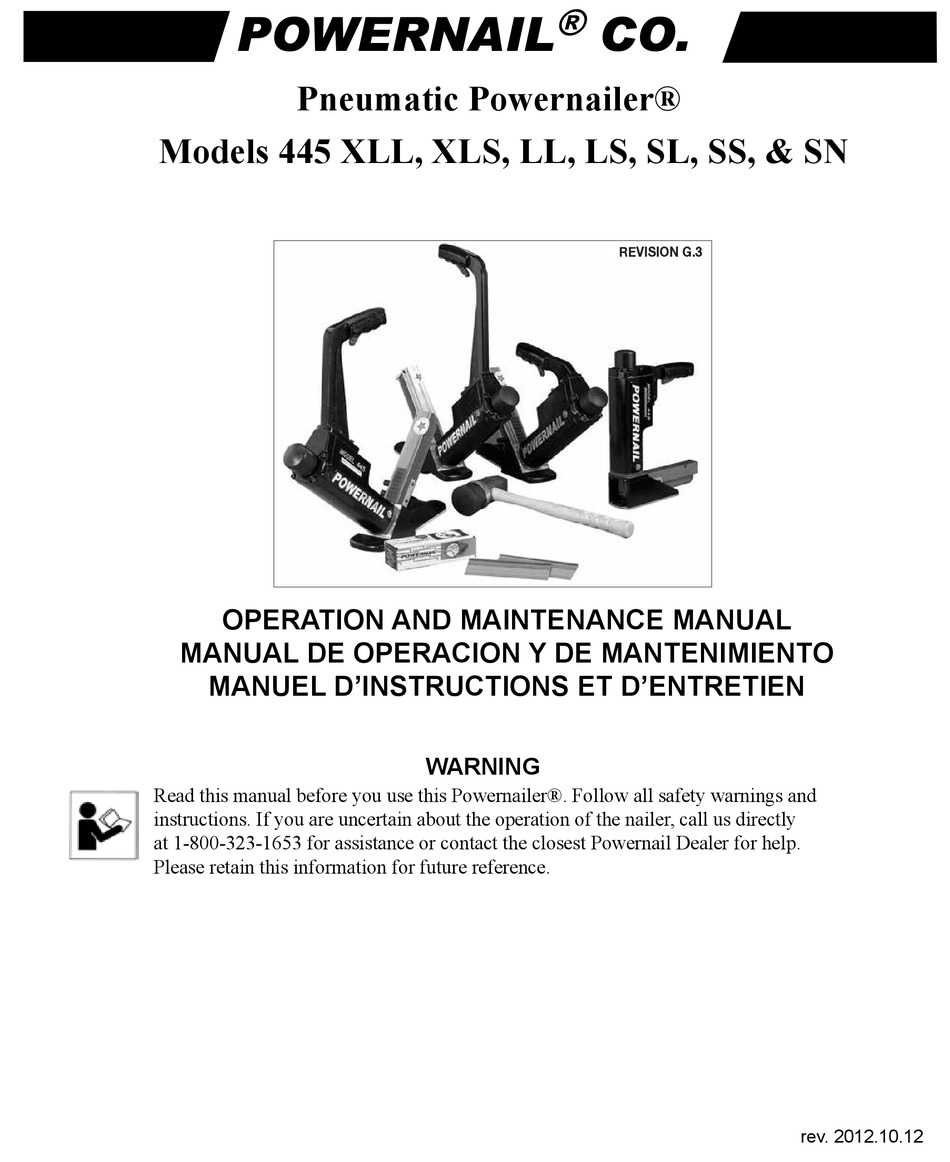

Read this manual before you use this Powernailer®. Follow all safety warnings and
instructions. If you are uncertain about the operation of the nailer, call us directly
at 1-800-323-1653 for assistance or contact the closest Powernail Dealer for help.
Please retain this information for future reference.
1
POWERNAIL
1300 Rose Road, Lake Zurich, IL 60047
phone: 1-800-323-1653
website: www.powernail.com
PNEUMATIC POWERNAILER
WARNING
unregulated air pressure. If you are uncertain about the
operation of the Nailer, call us directly at 1-800-323-1653
for assistance or contact the closest Powernail
help. Please retain this information for future reference.
WARNING
®
CO.
CO.
®
®
REVISION G.3
®
Dealer for
REVISION G.3—0805
rev. 2012.10.12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 445 XLL and is the answer not in the manual?

Questions and answers

Summary of Contents for Powernail 445 XLL

  • Page 1 Read this manual before you use this Powernailer®. Follow all safety warnings and instructions. If you are uncertain about the operation of the nailer, call us directly at 1-800-323-1653 for assistance or contact the closest Powernail Dealer for help. Please retain this information for future reference.
  • Page 2: Table Of Contents

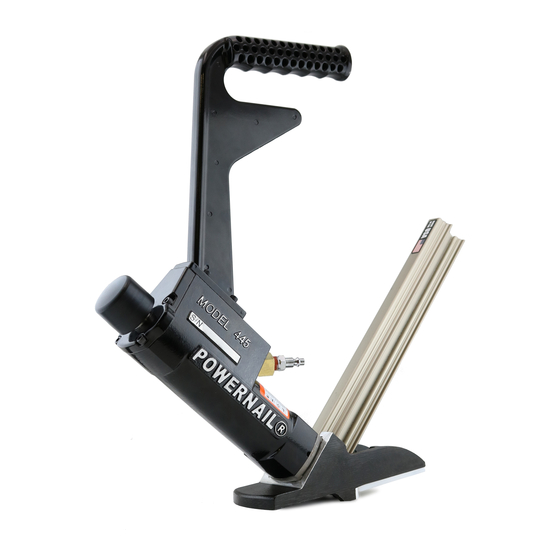

    INTRODUCTION The Powernailer ® Model 445 Mallet Actuated Pneumatic Nailer is designed to bring Powernail quality to a pneumatic Nailer. For those looking for ease of use in a pneumatic tool, the Powernailer Model 445 provides several distinct advantages. The Model 445 can nail 3/4” flooring down to 1/2” tongue and groove hardwood flooring through the use of easy-to-change, no-mar adapter plates.
  • Page 3: Safety Instructions

    Mechanism and the Nailer. Use the mallet to rack the wood strip, not the Nailer. Do not use any nails other than Powernail Powercleats Nails which are specifically designed for use in any Powernailer. Powercleats Nails are available in various lengths. Contact your Powernail Dealer for Powercleats Nails.
  • Page 4: Operating Instructions

    Nailer. damage the seals. DO NOT USE THE METAL END OF THE MALLET TO LOAD MODEL 445 XLL, LL or SL: TO STRIKE THE PLUNGER, use the rubber capped Place up to two sticks (200 Powercleats) into the Nail end only.
  • Page 5: Drive Blade

    NAILER DISASSEMBLY: There are 7 seals that may require replacement. We TO REPLACE RUBBER BUMPER (#20 or #65): recommend that you have your POWERNAIL Dealer 1. Disconnect the air supply replace the Seals. 2. Remove the four (4) cap screws holding the...
  • Page 6 OPERATING INSTRUCTIONS, continued Piston U-Cup Lip Seal (#22): 11. Use the supplied box wrenches to remove the 1. Remove the old Piston U-Cup Lip Seal from the 5/8-18 Jam Nut (#51). Remove the Dowel Pin (#38) and Driving Blade (#14). Piston using a bent paper clip or pick, being careful not to scratch the inside walls of the seal groove or the 12.
  • Page 7 Cylinder and screw the Piston onto the rod. Be sure For Step-by-Step Videos and Instructions, the Piston is facing the correct way, ears up, hex Visit our Web Site at: www.Powernail.com down. 5. Assemble the Driving Blade, Dowel Pin and Jam Nut on to the Piston Rod.
  • Page 8: Parts List

    MODELS 445 XLL, XLS, LL, LS, SL, SS & SN PARTS LIST Item Tuneup Seal Sold Separate or PART NO. DESCRIPTION Req’d Assembly # 09-445-29701 Body 09-445-29702 09-445-29703 Handle, Long 09-445-29703.1 Handle, Short 09-445-29704 Handle, Half A-6, A-7, A-17, A-19...
  • Page 9 MODELS 445 XLL, XLS, LL, LS, SL, SS & SN PARTS LIST Sold Separate or Item Tuneup PART NO. DESCRIPTION Assembly # Req’d 09-445-29751 #8-32 Locknut (Spacer) S, A-8, A-9, A-16 09-445-29754 #10-32 x 1/2” S.H.C.S. w/Patch (Foot) S, A-8, A-9, A-16 09-445-29832 #10-32 x 3/4”...
  • Page 10: Schematic (445 Nailers)

    SCHEMATIC VIEW MODELS 445 XLL, XLS, LL, LS, SL, and SS Kits Available - For use on all Model 445 Tongue & Groove Powernailers (Not 445SN) Seal Kit Tune-up Kit Overhaul Kit (1 Each Of All Seals) Part #: 09-2003058A...
  • Page 11: Schematic (445 Sn Nailer)

    Part #: 09-2003058A Part #: 09-445SNTUKIT Part #: 09-445SNOVHKIT Schematic #'s: Schematic #'s: 14,18,19, Schematic #'s: 9,10,11,12,14,17,18, 19,21,22,23,24,25,26 21,22,23,24,25,26,38,43,44, 19,21,22,23,24,25,26,30,31,32,33,43,44,45, 51,65,69(4),70(2) 49,51,54(4),55(3),69(4),70(2) *445SN Surface Nailer uses model specific bumper #65, 09-44529796 For Step-by-Step Videos and Instructions, Visit our Web Site at: www.Powernail.com...
  • Page 12: Safety Labels

    NAILER SAFETY DECALS CAUTION 1. Do not tie down the Safety Trigger 2. To prevent accidental discharge never attach air hose to loaded Nailer. ↑ Caution: CAUTION: Prevent Refill the nail channel with a Accidental Lubricate clip of Powercleats when empty. Discharge Nailer with Never...
  • Page 13: Seal Locations Diagram

    PNEUMATIC SEAL PART NUMBERS AND LOCATIONS Plunger Wiper Metal Cap O-Ring...
  • Page 15: Troubleshooting Chart

    POWERNAILER MODEL 445 TROUBLE SHOOTING CHART PROBLEM POSSIBLE CAUSE SOLUTION Check air supply for 80 psi minimum to 110 psi 1. Zero or Low air pressure maximum 2. Lack of lubrication Manually lubricate through male air inlet fitting Driving blade 3.
  • Page 16: Depth Chart

    The TOOL BAG holds all Powernailer® configurations including the FLEX and POWER ROLLER models. The Powernail TOOL BAG is built tough with a double wall of padded industrial nylon to protect your tools. Corners are reinforced with leather for durability.

This manual is also suitable for:

445 xls445 ll445 ls445 sl445 ss445 sn
