POWERNAIL
CO.

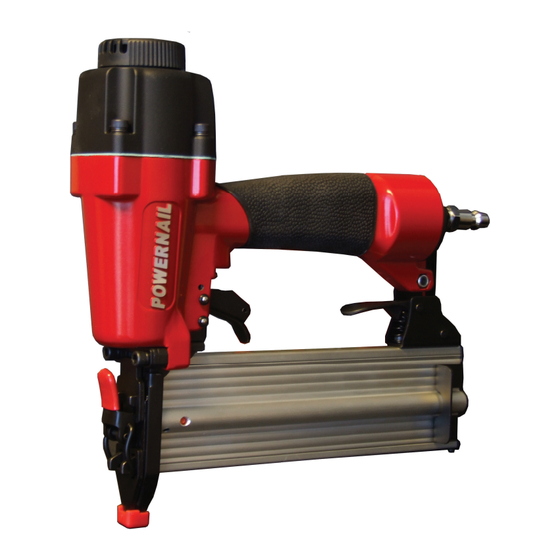

Model BR50 Pneumatic Brad Nailer
OPERATION AND MAINTENANCE MANUAL
MANUAL DE OPERACION Y DE MANTENIMIENTO
MANUEL D'INSTRUCTIONS ET D'ENTRETIEN
WARNING
Read this manual before you use this Powernailer®. Follow all safety warnings and
instructions. If you are uncertain about the operation of the nailer, call us directly
at 1-800-323-1653 for assistance or contact the closest Powernail Dealer for help.
Please retain this information for future reference.
REV 15.08.07
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Powernail BR50
Summary of Contents for Powernail BR50
- Page 1 Read this manual before you use this Powernailer®. Follow all safety warnings and instructions. If you are uncertain about the operation of the nailer, call us directly at 1-800-323-1653 for assistance or contact the closest Powernail Dealer for help. Please retain this information for future reference.
-
Page 2: Table Of Contents
The BR50 Brad Nailer is a trigger-pull nailer designed to bring Powernail quality and fl ooring expertise to a pneumatic brad nailer. The BR50 is designed for use with brad fi nish nails in lengths of 5/8” to 2”. The Model BR50 nails from 1/2” to 1-3/4” board and trim. -
Page 3: Safety Instructions
Do not use any nails other than 18 gauge straight brad fi nish nails which are designed specifi cally for your nailer. Use only Powernail replacement parts in the repair or maintenance of this nailer. Parts or repair services are available from the manufacturer or from agents authorized by the manufacturer. Repairs should be carried out only by trained service personel in the fi... -
Page 4: Operating The Tool
OPERATION APPLICATIONS: The Model BR50 nails from 1/2” to 1-3/4” board and trim. *Only use tool for its intended purposes. Drive fasteners into work surfaces only; never into materials too hard to penetrate. Single- re Procedure 1. Set the nailer to the work surface with the nose pressed down to release the safety. -
Page 5: Air Supply
OPERATION, continued... QUICK CONNECTOR CONNECTING THE TOOL TO AN AIR SUPPLY Your air tool is fully assembled when you receive it. Before using it, attach the air line and desired air system accessories. Be sure the air hose is depressurized when installing or removing adapters to the air line. -
Page 6: Loading Fasteners
OPERATION, LOADING BRADS 1. Disconnect air supply. Magazine release lever 2. Pull the release lever to unlatch magazine cover and slide it to the rear Slide magazine cover back 3. Lay 1 strip of fasteners inside the channel. 4. Slide the magazine cover forward until it latches. -
Page 7: Clearing A Jam
CLEARING JAMS 1. Disconnect air supply. 4. Inspect and clear 2. Pull the release lever to the driveblade path unlatch magazine cover of any material or Driving Blade and slide it to the rear debris. 3. Use the release lever to remove the nose-cover assmebly. -
Page 9: Troubleshooting Chart
TROUBLE SHOOTING CHART Here are some common issues that may occur during use. If the nailer is not working as it should, stop using the tool immediately and resolve the issue before continuing. PROBLEM POSSIBLE CAUSE SOLUTION 1. Damaged O-rings in trigger valve housing 1. -
Page 10: Parts List
MODEL BR-50 PARTS LIST ITEM DESCRIPTION PART # ITEM DESCRIPTION PART # UM HD Bolt M5x25 S.H.C.S+SW w/patch 09-BR5037 Flat Washer Driver Guide Bracket Seal Release Pad 09-BR5039 Exhaust Cover 40A Removable Gate Plate 09-BR5040A Driver Guide Cover Valve Seat Latch Valve Spring Rolled Pin... -
Page 11: Schematic
MODEL BR-50 SCHEMATIC ：... -
Page 12: Phone Support
POWERNAIL COMPANY, INC. 1300 Rose Road, Lake Zurich, IL 60047 US Phone: 1-800-323-1653 or 847-847-3000 www.powernail.com...
