POWERNAIL
CO.

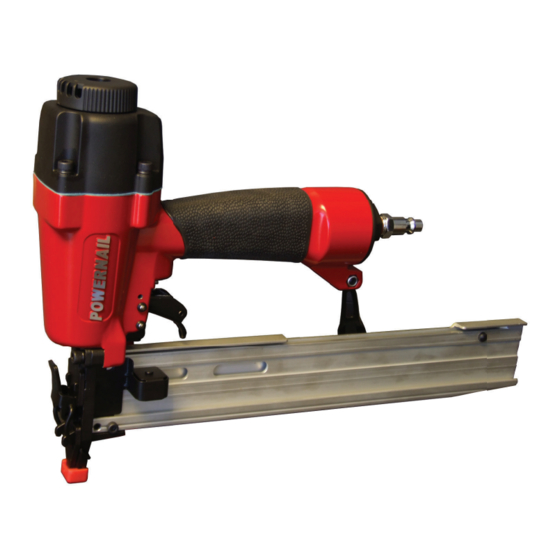

Model 1890U PowerStapler™
OPERATION AND MAINTENANCE MANUAL
MANUAL DE OPERACION Y DE MANTENIMIENTO
MANUEL D'INSTRUCTIONS ET D'ENTRETIEN
WARNING
Read this manual before you use this Powernailer®. Follow all safety warnings and
instructions. If you are uncertain about the operation of the nailer, call us directly
at 1-800-323-1653 for assistance or contact the closest Powernail Dealer for help.
Please retain this information for future reference.
REV 15.08.07
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Powernail 1890U PowerStapler
Summary of Contents for Powernail 1890U PowerStapler
- Page 1 Read this manual before you use this Powernailer®. Follow all safety warnings and instructions. If you are uncertain about the operation of the nailer, call us directly at 1-800-323-1653 for assistance or contact the closest Powernail Dealer for help. Please retain this information for future reference.
-
Page 2: Table Of Contents
Clearing a jam...... Powernail Company Info..LIMITED WARRANTY POWERNAIL® Company, Inc. warrants to its customer, and to the fi rst end-use purchaser of POWERNAIL 1890U PowerStapler purchased from an authorized POWERNAIL distributor, that each serialized manufactured 1890U PowerStapler by POWERNAIL®, for a period of 12 months from the date of purchase;... -
Page 3: Safety Instructions
Nailer is intended for use installing wood fl ooring and is not to be used for purposes not specifi ed in the operations manual. Do not use any nails other than Powernail® Powercleats which are 20 gage L-cleat nails specifi cally designed for use in any 20 gage Powernailer. Powercleat nails are available in lengths of 1” and 1-1/4”. Contact your Powernail Dealer for the correct Powercleats for the Model 2000. -
Page 4: Operating The Tool
OPERATION The Model 1890U is designed for use with 18 gauge, 1/4” crown staples in lengths from 7/8” to 1-1/2”. APPLICATIONS: Carpet and Carpet Pad Installation, Home Insulation Installation *Only use tool for its intended purposes. Drive fasteners into work surfaces only;... -
Page 5: Air Supply
OPERATION, continued... CONNECTING THE TOOL TO AN AIR SUPPLY Your air tool is fully assembled when you receive it. Before using it, attach the air line and desired air system accessories. Be sure the air hose is depressurized when installing or removing adapters to the air AIR HOSE line. -
Page 6: Loading Fasteners
LOADING STAPLES 1. Disconnect air supply. 2. Pull back on staple pusher in the magazine unit until it locks over the spring loaded stopper. 3. Load a clip of staples over the top of the staple channel. 4. Release the staple pusher from the spring loaded stopper and gently allow it to move forward to engage the fasteners in the magazine. -
Page 7: Clearing A Jam
CLEARING JAMS 1. Disconnect air supply. 4. Inspect and clear 2. Pull the release lever to the driveblade path unlatch magazine cover of any material or Driving Blade and slide it to the rear debris. 3. Use the release lever to remove the nose-cover assmebly. -
Page 9: Troubleshooting Chart
TROUBLE SHOOTING CHART Here are some common issues that may occur during use. If the nailer is not working as it should, stop using the tool immediately and resolve the issue before continuing. PROBLEM POSSIBLE CAUSE SOLUTION 1. Damaged O-rings in trigger valve housing 1. -
Page 10: Parts List
MODEL 1890U PARTS LIST ITEM DESCRIPTION PART # ITEM DESCRIPTION PART # UM HD Bolt Hex Soc HD Bolt+SW 09-18U037 Flat Washer Plate Seal Anchor Exhaust Cover Gate 09-18U040 Locknut Seal Fixed Magazine Spring Hex Soc HD Bolt 09-18U043 O-Ring 09-18U009 Bracket Head Valve... -
Page 11: Schematic
MODEL 1890U SCHEMATIC ：... -
Page 12: Phone Support
POWERNAIL COMPANY, INC. 1300 Rose Road, Lake Zurich, IL 60047 US Phone: 1-800-323-1653 or 847-847-3000 www.powernail.com...
