POWERNAIL
CO.
®

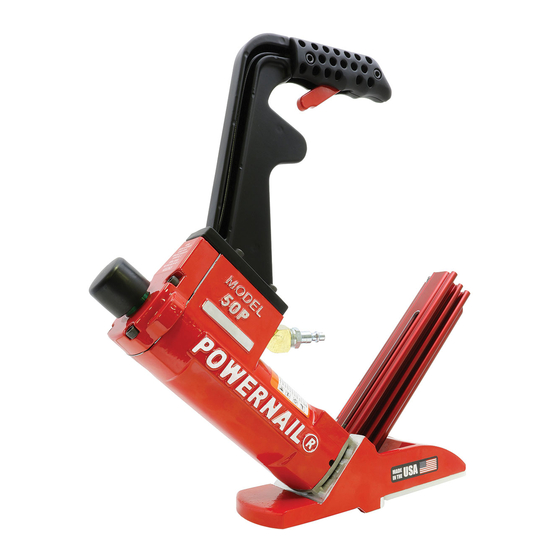

Powernail 50P Pneumatic Powernailer
®
OPERATION AND MAINTENANCE MANUAL
MANUAL DE OPERACION Y DE MANTENIMIENTO
MANUEL D'INSTRUCTIONS ET D'ENTRETIEN
WARNING
Read this manual before you use this Powernailer®. Follow all safety warnings and
instructions. If you are uncertain about the operation of the nailer, call us directly
at 1-800-323-1653 for assistance or contact the closest Powernail Dealer for help.
Please retain this information for future reference.
rev. 2012.10.12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 50P and is the answer not in the manual?

Questions and answers

Related Manuals for Powernail 50P

Summary of Contents for Powernail 50P

  • Page 1 Read this manual before you use this Powernailer®. Follow all safety warnings and instructions. If you are uncertain about the operation of the nailer, call us directly at 1-800-323-1653 for assistance or contact the closest Powernail Dealer for help. Please retain this information for future reference.

  • Page 2: Table Of Contents

    POWERNAIL®, for a period of 12 months from the date of purchase, and with respect to the nailer body (specifically Models 200, 445, and 50P), for a period of 10 years from date of purchase, (“warranty period”); shall be free of defects in materials and workmanship and will meet POWERNAIL’s specifications in effect at the time of Product shipment.

  • Page 3: Safety Instructions

    Mechanism and the Nailer. Use the mallet to rack the wood strip, not the Nailer. Do not use any nails other than Powernail Powercleats Nails which are specifically designed for use in any Powernailer. Powercleats Nails are available in various lengths. Contact your Powernail Dealer for Powercleats Nails.

  • Page 4: Operating Instructions

    Then turn the nailer over so the nails slide out of the channel. WARNING: Do not use any nails other than Powernail Powercleats® (18 gage) nails, which are specifically designed for use in the Model 50P Powernailer.

  • Page 5: Parts & Service

    Be sure to state the quantity of the part(s) required. AIR SUPPLY: Contact your Powernail Dealer for the necessary parts The air must be clean and dry. Dirty and/or wet or service. air will damage the Nailer. A combination filter-...

  • Page 6: Drive Blade

    There are 7 seals that may require replacement. We 8. Check the fit, there should be some sideways recommend that you have your POWERNAIL Dealer movement between the Driving Blade and the Jam Nut replace the Seals.
  • Page 7 OPERATION, continued... 2. Clean out the seal groove. Place a new U-Cup Lip TO REPLACE THE SEALS: Seal into the groove. Make sure the lip seal is not Plunger Seal Set (#32): twisted in the groove and the lips face the top of the 1.
  • Page 8 It is important that the three #10- 32 screws are tight or air leakage will occur. Our recommendation is to use 1-2 drops of blue Loctite® or similar on the 3 screws. For Step-by-Step Videos and Instructions, Visit our Web Site at: www.Powernail.com...

  • Page 9: Safety Labels

    NAILER SAFETY DECALS CAUTION 1. Do not tie down the Safety Trigger 2. To prevent accidental discharge never attach air hose to loaded Nailer. ↑ Caution: CAUTION: Prevent Refill the nail channel with a Accidental Lubricate clip of Powercleats when empty. Discharge Nailer with Never...

  • Page 10: 50P Parts List

    50P PARTS LIST For this parts list and other Powernailer schematics, please visit the Powernail Parts Store at http://www.powernail.com Item Tuneup Seal Sold Separate or PART NO. DESCRIPTION Req’d Assembly # 09-50P-3001 Body 09-50P-3002 09-445-29703 Handle - Long S, A-2...
  • Page 11 Nail Channel Assembly (Standard) 09-50P3064A Driving Blade Assembly 09-AW-445 Allen Wrench Set 09-445-29757A 6 Oz. Bottle Mobile Dte Light Oil 09-200-3063A Nail Pusher Assembly A-12 09-445-29768 Box Wrench (2) 09-50P-TUKIT Tune-up Kit for all 50P, 50P FLEX, & 50P Power Rollers...

  • Page 12: Seal Locations Diagram

    SEAL PLACEMENT...

  • Page 13: Schematic

    62. (.150 Thick) UHMW Plastic Pad 29. SUPPORT RING 63. 1/4-20 x 3/4 SHCS (Handle Half) Kits Available - For use on all Model 50P, 50P FLEX, & 50P FLEX Power Rollers Seal Kit Tune-up Kit (1 Each Of All Seals)

  • Page 15: Troubleshooting Chart

    POWERNAILER TROUBLE SHOOTING CHART PROBLEM POSSIBLE CAUSE SOLUTION Check air supply for 80 psi minimum to 110 psi 1. Zero or Low air pressure maximum 2. Lack of lubrication Manually lubricate through male air inlet fitting 3. Excessive dirt inside nailer Disassemble and clean Driving blade 4.

  • Page 16: Depth Chart

    The TOOL BAG holds all Powernailer® configurations including the FLEX and POWER ROLLER models. The Powernail TOOL BAG is built tough with a double wall of padded industrial nylon to protect your tools. Corners are reinforced with leather for durability.
