POWERNAIL
CO.
®

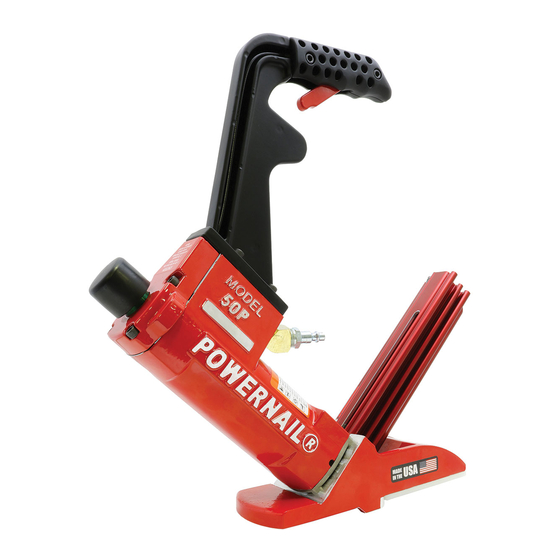

Powernail 50P FLEX Pneumatic Powernailer
®
50P FLEX
REV 3 MASTER
OPERATION AND MAINTENANCE MANUAL
MANUAL DE OPERACION Y DE MANTENIMIENTO
MANUEL D'INSTRUCTIONS ET D'ENTRETIEN
WARNING
Read this manual before you use this Powernailer®. Follow all safety warnings and
instructions. If you are uncertain about the operation of the nailer, call us directly
at 1-800-323-1653 for assistance or contact the closest Powernail Dealer for help.
Please retain this information for future reference.
rev. 2017.12.06

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 50P FLEX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Powernail 50P FLEX

Summary of Contents for Powernail 50P FLEX

  • Page 1 Read this manual before you use this Powernailer®. Follow all safety warnings and instructions. If you are uncertain about the operation of the nailer, call us directly at 1-800-323-1653 for assistance or contact the closest Powernail Dealer for help. Please retain this information for future reference.

  • Page 2: Table Of Contents

    Troubleshooting Chart..19 LIMITED WARRANTY POWERNAIL® Company, Inc. warrants to its customer, and to the fi rst end-use purchaser of POWERNAIL fl ooring nailers purchased from an authorized POWERNAIL distributor, that each serialized manufactured nailer by POWERNAIL®, for a period of 12 months from the date of purchase, and with respect to the nailer body (specifi...

  • Page 3: Safety Instructions

    Mechanism and the Nailer. Use the mallet to rack the wood strip, not the Nailer. Do not use any nails other than Powernail Powercleats Nails which are specifi cally designed for use in any Powernailer. Powercleats Nails are available in various lengths. Contact your Powernail Dealer for Powercleats Nails.

  • Page 4: Operating Instructions

    Read these instructions carefully before you use the Nailer. To use the Powernail Flex, adjust the nailer FLEX foot to a sample of your fl ooring (see instructions below). When the nailer foot is adjusted to your fl ooring, simply place the nailer on the fl oor and pull nailer back so the locating ears (Figure 3) catch the edge of the fl...

  • Page 5: Parts & Service

    Be sure to state the quantity of the part(s) required. AIR SUPPLY: Contact your Powernail Dealer for the necessary parts The air must be clean and dry. Dirty and/or wet or service. air will damage the Nailer. A combination fi lter-...

  • Page 6: Drive Blade

    Nailer Be sure to state the quantity of the part(s) required. body. This will severely damage the safety mechanism Contact your Powernail Dealer for the necessary parts and Nailer. This abuse and damage is not covered by the or service.

  • Page 7: Seal Replacement

    If the Jam Nut becomes worn and loose There are 7 seals that may require replacement. after frequent removals, it should be replaced. We recommend that you have your POWERNAIL Dealer replace the Seals. 8. Check the fi t, there should be some sideways...
  • Page 8 Nailer. See the sketch on next page (#19). 3. Carefully wipe off the U Cup Lip Seal surface with a clean rag and lubricate it generously with Pneumatic Light Air Tool Oil lubricant. For Step-by-Step Videos and Instructions, Visit our Web Site at: www.Powernail.com...

  • Page 9: Top Load Channel

    OPERATION, continued... Loading Top Load Channel: To Load the Powernail Flex: Pull back the spring loaded nail pusher towards the end of the channel until the pusher plate locks (Figure 4). Place up to one stick (100) of Powercleats® (18-gauge) nails, 1" , 1-1/4" , 1-1/2" or 1-3/4" long into the nail feed slot located on the top of the channel (Figure 5).

  • Page 10: Parts List

    POWERNAIL FLEX PARTS LIST For this parts list and other Powernailer schematics, please visit the Powernail Parts Store at www.powernail.com Item Tuneup Seal Sold Separate or PART NO. DESCRIPTION Req’d Assembly # 09-50P3001 Body 09-50P3002 09-44529703 Handle - Long S, A-2...
  • Page 11 09-445-29757A 6 oz. Industrial Light Air Tool Oil A-12 09-445-29768 Box Wrench (2) 09-50P-TUKIT-R2 Tune-up Kit for all (R2) 50P, 50P FLEX, & 50P Power Rollers A-14 09-50PFOOTKIT Steel foot assembly - includes R2 Foot, Gate, Gate Plate, screws A-15...

  • Page 12: Rear Load Channel And Original Foot Parts List

    POWERNAIL FLEX REAR LOAD CHANNEL AND ORIGINAL FOOT PARTS LIST If your nailer was manufactured in or before 2017, you may have the rear load channel confi guration and/or original foot, gate, and gate plate. These parts have since been revised but are still available as replacement parts.

  • Page 13: Schematic

    POWERNAIL FLEX SCHEMATIC For this and other Powernailer schematics, please visit the Powernail Parts Store at http://www.powernail.com 48 54 76 78 For Step-by-Step Videos and Instructions, Visit our Web Site at: www.Powernail.com...

  • Page 14: Seal Locations Diagram

    SEAL PLACEMENT...

  • Page 15: Safety Labels

    NAILER SAFETY DECALS CAUTION 1. Do not tie down the Safety Trigger 2. To prevent accidental discharge never attach air hose to loaded Nailer. Caution: CAUTION: Prevent Accidental Lubricate Discharge Nailer with Never 2-4 drops of Attach Industrial Light Air Hose Oil for every 8 hours of use.

  • Page 18: Clear A Jam With The R2 Foot

    3. Inspect and clear any jams in the 5. Re-install the gate plate and screws. Tighten fi rmly. drive blade pathway. Nailer is now ready for use. Check out our Repair and Maintenance Videos online at: http://www.powernail.com/repair...

  • Page 19: Troubleshooting Chart

    POWERNAILER TROUBLE SHOOTING CHART PROBLEM POSSIBLE CAUSE SOLUTION Check air supply for 80 psi minimum to 110 psi 1. Zero or Low air pressure maximum 2. Lack of lubrication Manually lubricate through male air inlet fi tting 3. Excessive dirt inside nailer Disassemble and clean Driving blade 4.
  • Page 20 2000F is the perfect performance match for the next generation of fl ooring. Part number: 2000FKIT Model 1845F Trigger-Pull Stapler With the same advanced features of its cleat nailing siblings, the Model 1845F PowerStapler brings Powernail quality and expertise to an engineered fl ooring stapler. Part number: 1845FKIT...
