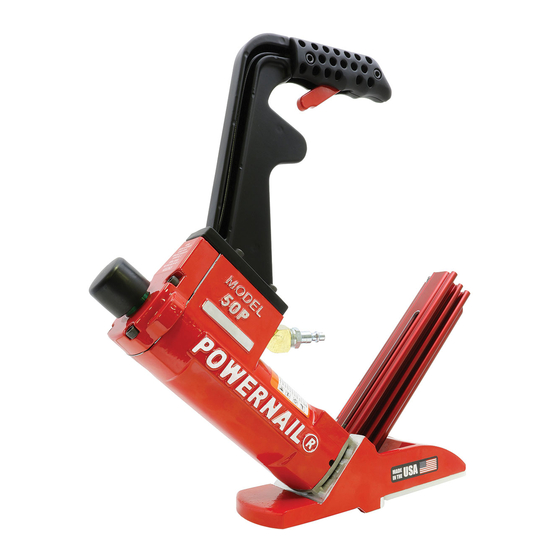

Pneumatic powernailer for tongue and groove flooring 3/8 inch to 5/8 inch
Hide thumbs
Also See for 50P:
- Operation and maintenance manual (20 pages) ,
- Operation and maintenance (20 pages) ,
- Operation and maintenance manual (8 pages)
Advertisement
Quick Links
Operation and Maintenance Manual

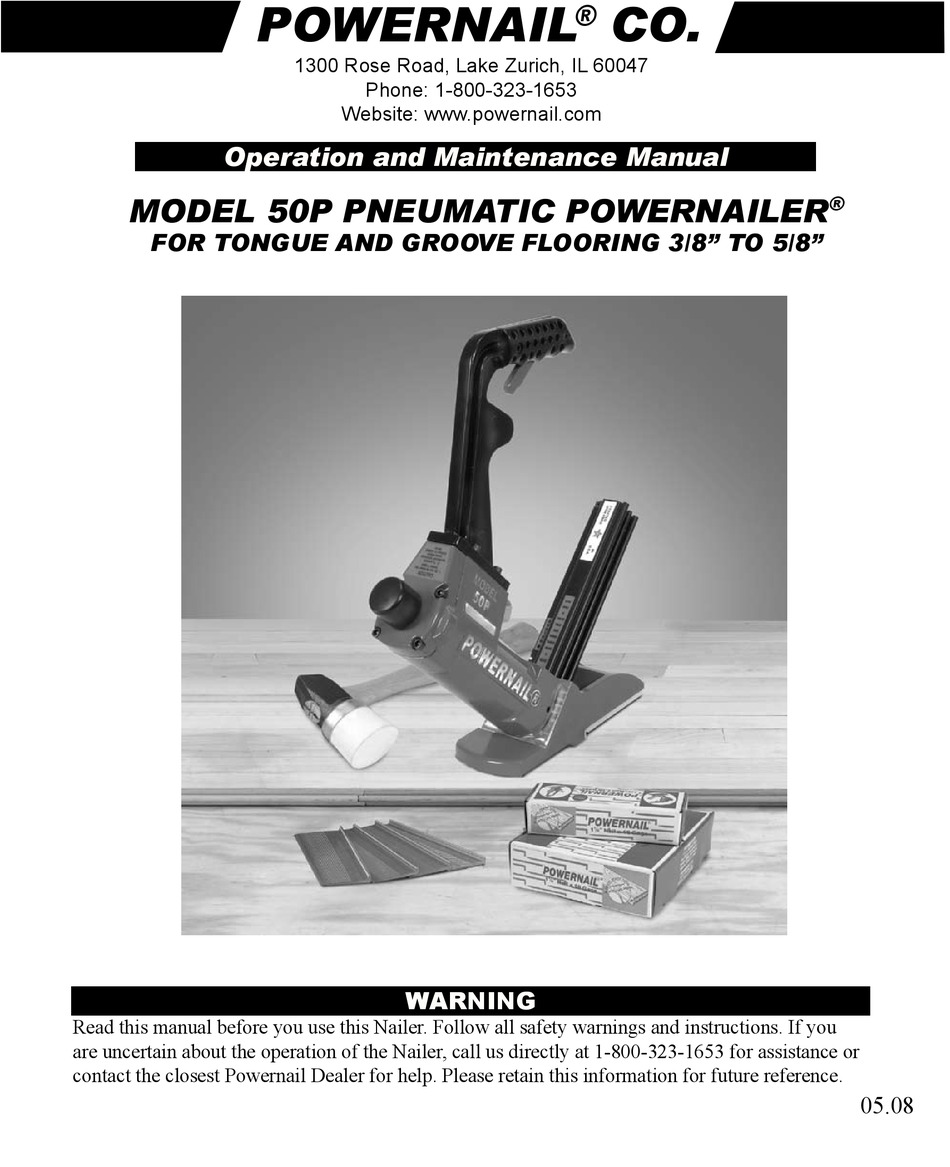

MODEL 50P PNEUMATIC POWERNAILER
Operation and Maintenance Manual
For T&G Flooring 3/8" to 5/8"
MODEL 50P PNEUMATIC POWERNAILER
FOR TONGUE AND GROOVE FLOORING 3/8" TO 5/8"
Read this manual before you use this Nailer. Follow all safety warnings and instructions. If you
are uncertain about the operation of the Nailer, call us directly at 1-800-323-1653 for assistance or
contact the closest Powernail Dealer for help. Please retain this information for future reference.
1300 Rose Road, Lake Zurich, IL 60047
phone: 1-800-323-1653
POWERNAIL
website: www.powernail.com
1300 Rose Road, Lake Zurich, IL 60047
Phone: 1-800-323-1653
Website: www.powernail.com
REV. 1.0
W A R N I N G
WARNING
CO.
®
directly at 1-800-323-1653 for assistance or contact
the closest Powernail
®
information for future reference.
®
Dealer for help. Please retain this
Revision 1.0 – 03.06
®
05.08
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Powernail 50P
Summary of Contents for Powernail 50P
- Page 1 Nailer. Follow directly at 1-800-323-1653 for assistance or contact contact the closest Powernail Dealer for help. Please retain this information for future reference. safety warnings and instructions. If you are the closest Powernail Dealer for help.
-
Page 2: Operation
50 years, POWERNAIL® COMPANY, INC. OPERATION Read these instructions carefully before you use the Nailer. To use the Model 50P, simply place the nailer on the To Load Model 50P LS or SS floor, pull nailer back so locating ears catch the edge of Place up to one stick (100) of Powercleats®... - Page 3 Contact your Powernailer ® ® Model 50P Powernailer. Powercleats® (18 gage) nails Powernailer® dealer for Powercleats® nails. specifically designed for use in the Model 50P Powernailer. dealer for Powercleats nails. ® (18 gage) nails are available in 1", 1-1/4", 1-1/2"...
-
Page 4: Air Supply
Nailer. Powernailer model and serial number. Be sure to state the quantity of the part(s) required. Contact your Powernail Dealer Never use the Safety Trigger interlock to lock up the plunger for the necessary parts or service. -
Page 5: Seal Replacement
TO REPLACE THE SEALS: There are 7 seals that may require replacement. We Plunger Seal Set (#32): recommend that you have your POWERNAIL Dealer replace 1. Remove the Teflon ® Seal and its O-ring expander from the Seals. the Plunger groove using a bent paper clip or pick. Be sure... - Page 6 4. Carefully insert the Piston Rod into the Return Cylinder Return Cylinder U Cup Lip Seal (#20): and screw the Piston onto the rod. Be sure the Piston is 1. Use a bent paper clip or pick to remove the old U Cup Lip facing the correct way, ears up, hex down.
- Page 8 Model 50P Parts List ITEM # PART NO. DESCRIPTION Qty Req’d Key Ref. Assy/Kit 09-50P-3001 Body 09-50P-3002 09-445-29815 Handle - Extra Long 09-445-29703 Handle - Long 09-445-29703.1 Handle - Short 09-445-29704 Handle Half Cover A-2,A-3,A-5 09-50P-3005 Adapter Foot 09-50P-3006 Foot...
- Page 9 09-50P-3038 Shim 09-50P-3040 Channel Plate 09-50P-3041 #6-32 X 3/8 BHCS (Channel Plate) 09-50P-3036 .150 Thick Plastic Pad Model 50P Assemblies, Kits and Accessories ITEM PART NO. DESCRIPTION 09-200-3058A Seal Kit (1 Each Of All Seals) 09-445-29759A Long Handle Assembly 09-445-29760A...
- Page 10 POWERNAILER MODEL 50P...
- Page 11 POWERCLEATS LENGTH DETERMINATION CHART This chart will assist you in determining the proper length of Powercleats to use for various thicknesses of flooring. Approximate vertical penetration of the Powercleat under the hardwood floor is shown for each application. This is only a guide.
- Page 12 POWERNAILER MODEL 50P TROUBLE SHOOTING CHART PROBLEM POSSIBLE CAUSE SOLUTION Check air supply for 70 psi minimum to 110 psi 1. Zero or Low air pressure maximum 2. Lack of lubrication Manually lubricate through male air inlet fitting Driving blade 3.
