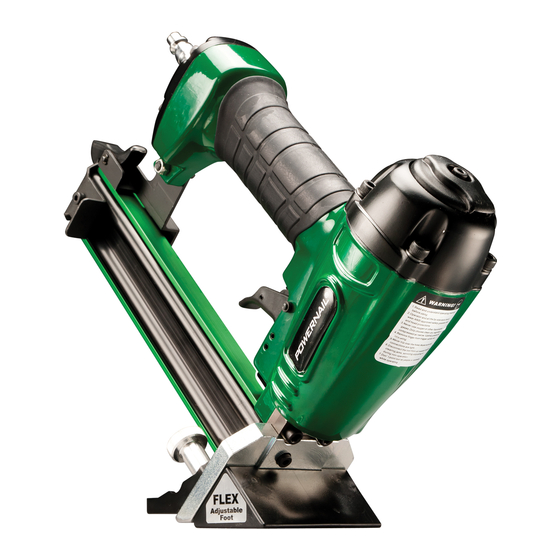

Pneumatic powernailer
Hide thumbs Also See for 2000:

Advertisement

Quick Links

POWERCLEATS LENGTH DETERMINATION CHART
This chart will assist you in determining the proper length of Powercleats to use for
various thicknesses of fl ooring. Approximate vertical penetration of the Powercleat under
the hardwood fl oor is shown for each application. This is only a guide. Results should be
tested in the fi eld before proceeding.
Nail Penetration for 3/4" Subfl ooring.
1-1/4" 20 GAGE POWERCLEATS®
1" 20 GAGE POWERCLEATS®
POWERNAIL COMPANY, INC.
1300 Rose Road, Lake Zurich, IL 60047 US
Phone: 1-800-323-1653 or 847-847-3000
www.powernail.com
©Powernail Company 2013
12
POWERNAIL
Model 2000 Pneumatic Powernailer™
OPERATION AND MAINTENANCE MANUAL
MANUAL DE OPERACION Y DE MANTENIMIENTO
MANUEL D'INSTRUCTIONS ET D'ENTRETIEN
WARNING
Read this manual before you use this Powernailer®. Follow all safety warnings and
instructions. If you are uncertain about the operation of the nailer, call us directly
at 1-800-323-1653 for assistance or contact the closest Powernail Dealer for help.
Please retain this information for future reference.
®
CO.
Revision 1
REV 16.08.18

Advertisement

loading
Need help?

Need help?

Do you have a question about the 2000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Powernail 2000

  • Page 1 If you are uncertain about the operation of the nailer, call us directly 1300 Rose Road, Lake Zurich, IL 60047 US at 1-800-323-1653 for assistance or contact the closest Powernail Dealer for help. Phone: 1-800-323-1653 or 847-847-3000 Please retain this information for future reference.
  • Page 2 The Model 2000 is designed for use with 1” and 1-1/4”, 20 gauge L-Cleat Powernails ® . The Model 2000 nails from 5/16” to 9/16” fl ooring through the use of a FLEX adjustable foot assembly that can be adjusted to fi t different fl ooring profi les.
  • Page 3 CYLINDER 09-20FN2019 NUT M5 09-20FN2066 Do not use any nails other than Powernail® Powercleats which are 20 gage L-cleat nails specifi cally designed O-RING 36.3 x 2.5 09-20FN2020 M5-0.8 x 18mm S.H.C.S. (Bracket) 09-20FN2067 for use in any 20 gage Powernailer. Powercleat nails are available in lengths of 1” and 1-1/4”. Contact your O-RING 35.3 x 2.5...
  • Page 4 PROBLEM POSSIBLE CAUSE SOLUTION To use the Model 2000, simply snug up the 5/16” to 9/16” fl ooring, pull the trigger and let the nailer drive and 1. O-ring (31) in trigger valve is damaged. 1. Check and replace O-ring.
  • Page 5 OPERATION, continued... CLEARING A JAM Figure 1. FOOT ADJUSTMENT / NAIL LOCATION Disassembly: (See Figure 7.) Loosen both adjusting knobs Adjust the foot to a sample of your wood. (#76, See Figure 1.) 1) NOTE: Do not remove the two M5 screws (80). Hold nailer on a piece of sample fl...
  • Page 6 Lay the stick of nails into the 7. Don’t point tool at people or animals while operating. fi xed channel with the L-shape facing inward towards the center of the channel. MODEL USE 20 GAUGE POWERCLEATS 2000 1” - 1-1/4“ (25mm - 32mm) Length...
