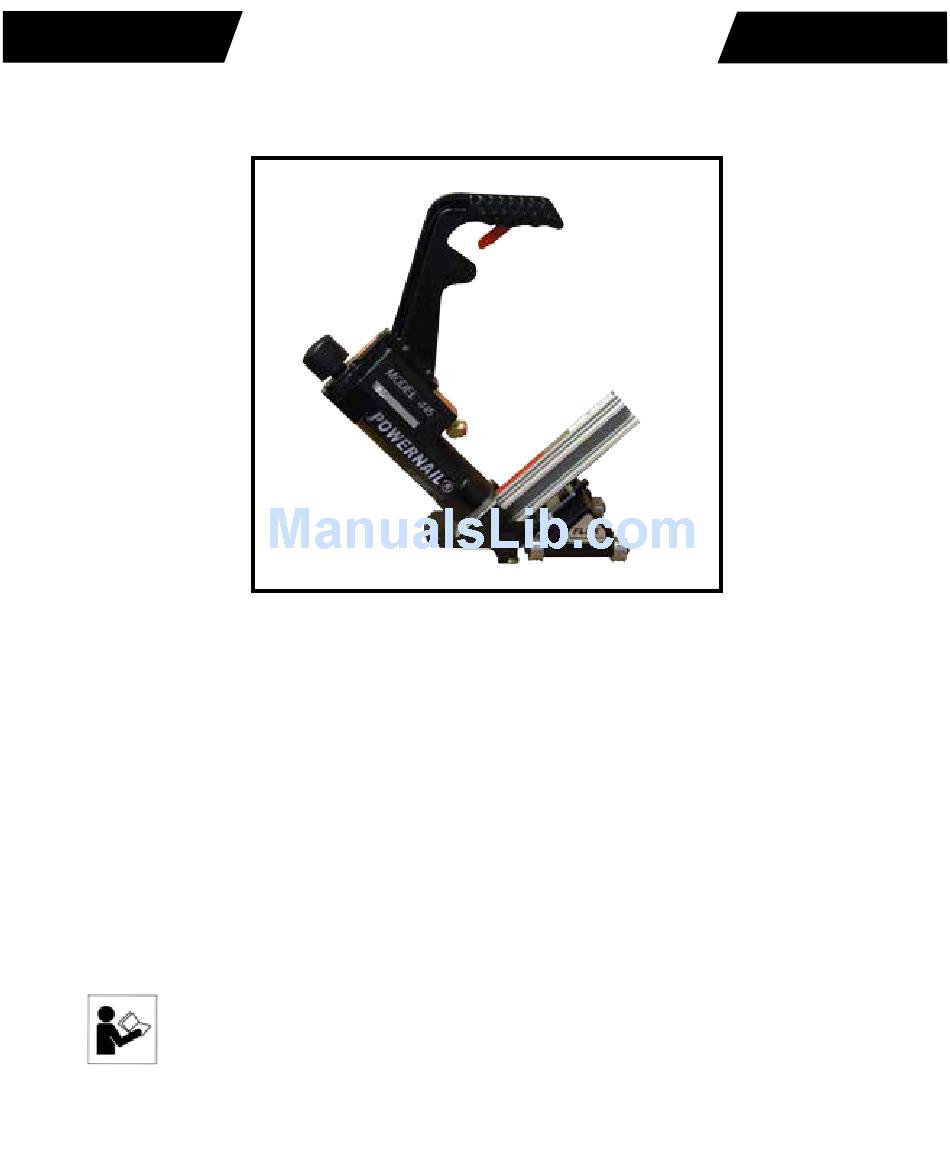

POWERNAIL
CO.
®
Powernail
®

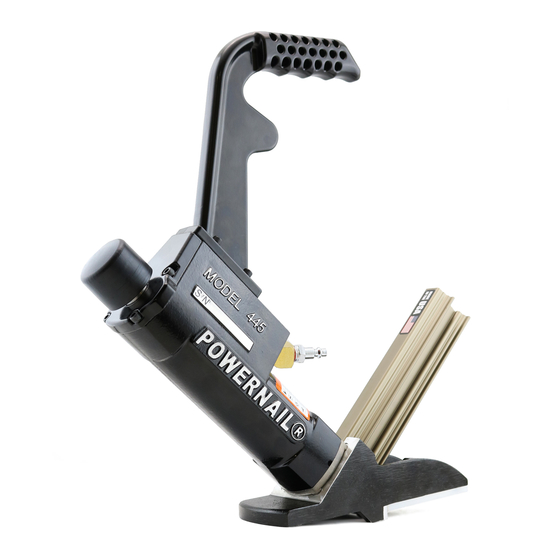

Model 445 with Power Roller
445 Power Roller
OPERATION AND MAINTENANCE MANUAL
MANUAL DE OPERACION Y DE MANTENIMIENTO
MANUEL D'INSTRUCTIONS ET D'ENTRETIEN
WARNING
Read this manual before you use this Powernailer®. Follow all safety warnings and
instructions. If you are uncertain about the operation of the nailer, call us directly
at 1-800-323-1653 for assistance or contact the closest Powernail Dealer for help.
Please retain this information for future reference.
REV 2013.10.15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 445 and is the answer not in the manual?

Questions and answers

Related Manuals for Powernail 445

Summary of Contents for Powernail 445

  • Page 1 Read this manual before you use this Powernailer®. Follow all safety warnings and instructions. If you are uncertain about the operation of the nailer, call us directly at 1-800-323-1653 for assistance or contact the closest Powernail Dealer for help. Please retain this information for future reference.

  • Page 2: Table Of Contents

    POWERNAIL distributor, that each serialized manufactured nailer by POWERNAIL®, for a period of 12 months from the date of purchase, and with respect to the nailer body (specifically Models 200, 445, and 50P), for a period of 7 years from date of purchase, (“warranty period”); shall be free of defects in materials and workmanship and will meet POWERNAIL’s specifications in effect at the time of...

  • Page 3: Safety Instructions

    Mechanism and the Nailer. Use the mallet to rack the wood strip, not the Nailer. Do not use any nails other than Powernail Powercleats Nails which are specifically designed for use in any Powernailer. Powercleats Nails are available in various lengths. Contact your Powernail Dealer for Powercleats Nails.

  • Page 4: Operating Instructions

    OPERATION Read these instructions carefully before you use the Nailer. To use the Powernail Flex, adjust the nailer FLEX foot to To Load the 445 FLEX Power Roller: a sample of your flooring (Figure 1). Place up to one stick (100) of Powercleats® (16 gage) nails, 2"...

  • Page 5: Parts & Service

    Be sure to state the quantity of the AIR SUPPLY: part(s) required. Contact your Powernail Dealer The air must be clean and dry. Dirty and/or wet air for the necessary parts. will damage the Nailer. A combination filter-regulator-...

  • Page 6: Drive Blade

    There are 7 seals that may require replacement. socket over its hex end opposite the Piston. We recommend that you have your Do not use pliers or a vise anywhere on the POWERNAIL Dealer replace the Seals. metal parts, they can damage the sealing SEAL KIT: surfaces.
  • Page 7 OPERATION, continued... TO REPLACE THE SEALS: wire hook. Rubber Seat (#19): 2. Clean out the seal groove. Place a new U-Cup 1. Remove the Cylinder Sleeve (#13). The Lip Seal into the groove. Make sure the lips is not Cylinder Sleeve should slide out of the Nailer twisted in the groove and the lips face the top of Body when you pull out the Driving Blade the Nailer See the sketch below.
  • Page 8 OPERATION, continued... Light Air Tool Oil lubricant. 7. Be sure there is a new O-Ring Gasket in the top groove of the Return Cylinder. Plunger Wiper Metal Cap O-Ring (#25): 1. Use a bent paper clip to pick out the felt 8.

  • Page 9: Safety Labels

    NAILER SAFETY DECALS CAUTION 1. Do not tie down the Safety Trigger 2. To prevent accidental discharge never attach air hose to loaded Nailer. ↑ Caution: CAUTION: Prevent Refill the nail channel with a Accidental Lubricate clip of Powercleats when empty. Discharge Nailer with Never...

  • Page 10: Parts List

    MODELS 445 POWER ROLLER PARTS LIST PART NO. DESCRIPTION QTY REQ TU SEAL AVAIL ITEM 09-445-29701 BODY 09-445-29702 09-445-29703 HANDLE, LONG 09-445-29703.1 HANDLE, SHORT 09-445-29704 HANDLE, HALF A-6,A-7,A-19 09-445-29706 FOOT S, A-8, A-9 09-445-29707 SAFETY YOKE 09-445-29710 PISTON ROD S, A-11...
  • Page 11 LARGE ROLLER BEARING WITH MOLDED COVER S, A-2 09-445-29878 SMALL ROLLER BEARING WITH MOLDED COVER KEY: S=Sold Separately, A= Sold as part of assembly, TU=Tune-up Kit, F=Factory replacement only Model 445 Power Roller Assemblies, Kits and Accessories ITEM # PART NO. DESCRIPTION QTY REQ 09-RC445A...

  • Page 12: Seal Locations Diagram

    3. Separate the Foot and gate with a screw driver just enough to clear out the jammed nail. 4. Put thread locking compound on all screws and reassemble the components. SEAL PLACEMENT...

  • Page 13: Schematic

    SCHEMATIC - FLEX WITH POWER ROLLER 94 46 50 58 FLEX Power Roller Conversion Parts. Kits Available - For use on all Model 445 Tongue & Groove Powernailers (Not 445SN) Seal Kit Tune-up Kit Overhaul Kit (1 Each Of All Seals)

  • Page 15: Troubleshooting Chart

    POWERNAILER MODEL 445 TROUBLE SHOOTING CHART PROBLEM POSSIBLE CAUSE SOLUTION Check air supply for 80 psi minimum to 110 psi 1. Zero or Low air pressure maximum 2. Lack of lubrication Manually lubricate through male air inlet fitting Driving blade 3.

  • Page 16: Depth Chart
