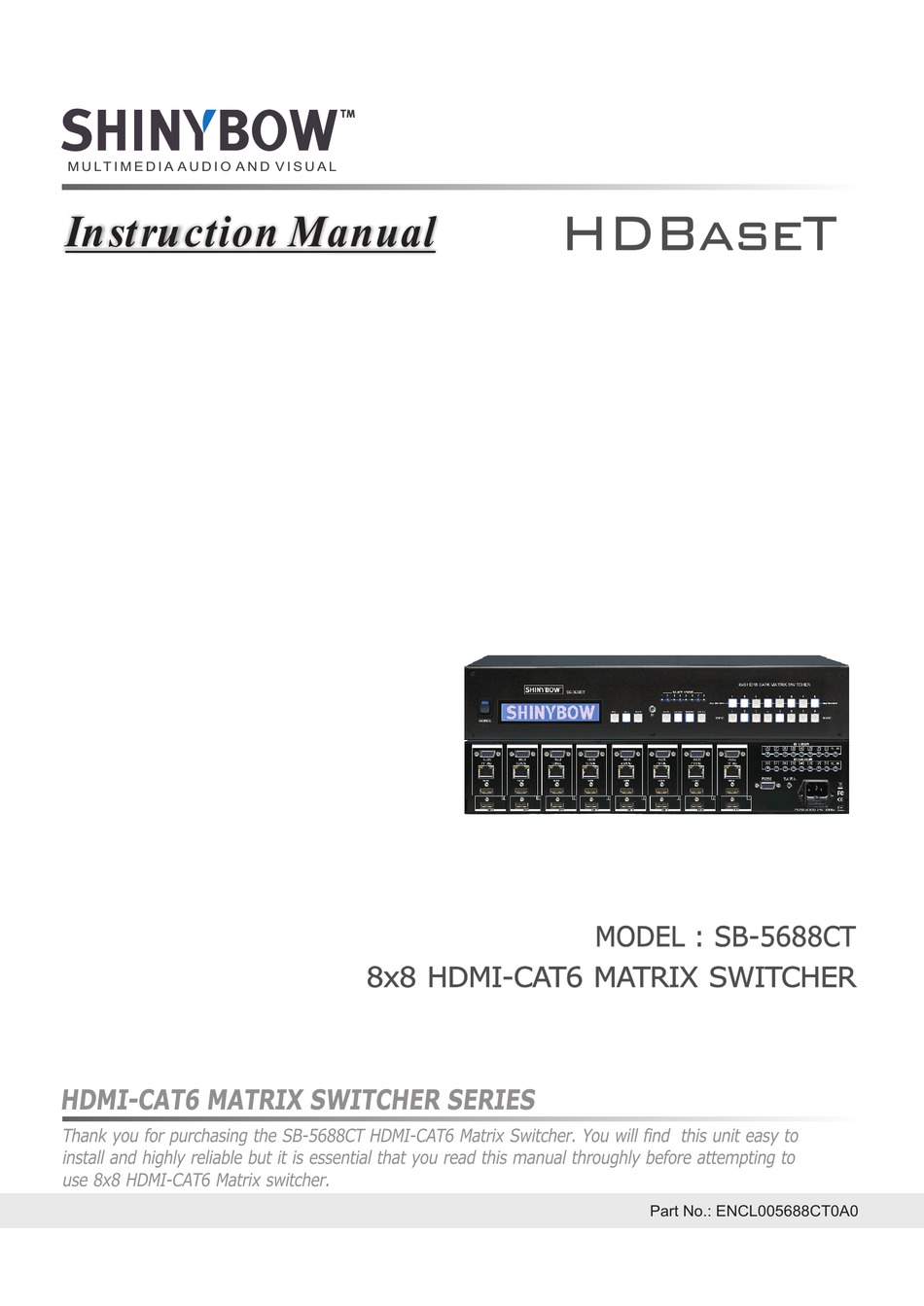

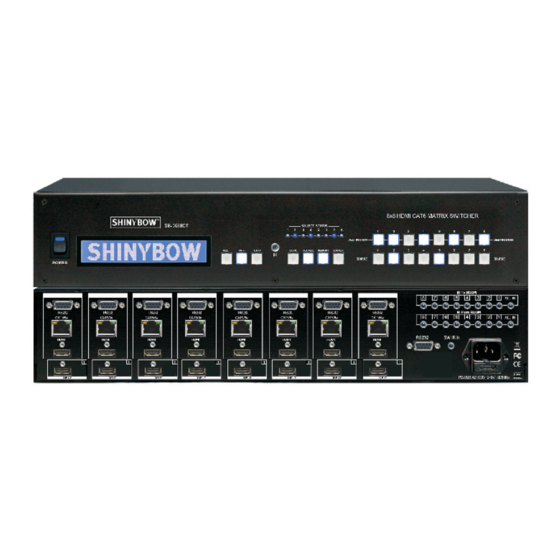

Instruction Manual
MODEL : SB-5688CT
8x8 HDMI-CAT6 MATRIX SWITCHER
HDMI-CAT6 MATRIX SWITCHER SERIES
Thank you for purchasing the SB-5688CT HDMI-CAT6 Matrix Switcher. You will find this unit easy to
install and highly reliable but it is essential that you read this manual throughly before attempting to
use 8x8 HDMI-CAT6 Matrix switcher.
Part No.: ENCL005688CT0A0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SB-5688CT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Shinybow USA SB-5688CT

Summary of Contents for Shinybow USA SB-5688CT

  • Page 1 8x8 HDMI-CAT6 MATRIX SWITCHER HDMI-CAT6 MATRIX SWITCHER SERIES Thank you for purchasing the SB-5688CT HDMI-CAT6 Matrix Switcher. You will find this unit easy to install and highly reliable but it is essential that you read this manual throughly before attempting to use 8x8 HDMI-CAT6 Matrix switcher.
  • Page 2 SAFETY INFORMATION WARNING! CAUTION RISK OF ELECTRIC SHOCK TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK DO NOT OPEN DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE. This symbol is intended to alert the user to the presence of uninsulated of uninsulated “dangerous voltage”...

  • Page 3: Table Of Contents

    IR REMOTE CONTROL _____________________________________________________ IR REMOTE CONTROL - IR DATA CODE _____________________________________________________ REMOTE CONTROL - ROOM 1~4 _____________________________________________________ REMOTE CONTEOL - ROOM 5~8 _____________________________________________________ CEC Control _____________________________________________________ IR EXTERNAL INSTALL _____________________________________________________ RS232 Control PAGE 3 SB-5688CT INSTRUCTION & OPERATION MANUAL...

  • Page 4: Introduction And Package Contents

    10. CD Contents : This manual, Windows GUI, ISP V1.0 Windows driver 11. RS232 Cable 6 feet (2M) 12. Worldwide Universal Power Supply 100~230 VAC, AC 50/60Hz, 10A Member of the HDBaseT Alliance Products support HDBaseT Specifications PAGE 4 SB-5688CT INSTRUCTION & OPERATION MANUAL...

  • Page 5: Features

    16. Consumer Electronic Control (CEC) switch all open or OFF The Switcher will remember that last state during a power cycle. When power is removed and resorted, the last configuration will be invoked. PAGE 5 SB-5688CT INSTRUCTION & OPERATION MANUAL...

  • Page 6: Specification

    Power Consumption 5880 mA Maximum Safety Approvals CE, FCC, RoHS (2002/95/EC). Product Weight 4.75 Kgs / 7.91 lb As product improvement is continuous, specifications are subject to change and without notice or liability. PAGE 6 SB-5688CT INSTRUCTION & OPERATION MANUAL...

  • Page 7: Front Panel

    Separate inputs 1 thru 8 select buttons are provided each source selection. 19 INCH EAR MOUNT PAIR Converts desktop to 19 inch rack mount. Bracket (part # 1U-440L) INCLUDED. Image shows rack mount bracket attached. PAGE 7 SB-5688CT INSTRUCTION & OPERATION MANUAL...

  • Page 8: Front Panel - 2

    INPUT 1 2 3 4 5 6 7 8 - Press and hold LOCK button for two seconds lockout the front panel. - Press and hold LOCK button for two seconds to enable the front panel. PAGE 8 SB-5688CT INSTRUCTION & OPERATION MANUAL...

  • Page 9: Front Panel - 3

    - press DESTINATION again, press the same DESTINATION # - press EDID to select new EDID mode or select to learn CATx EDID, source row #1 or #2 for LINK source EDID again. The EDID for CATx has been learned. PAGE 9 SB-5688CT INSTRUCTION & OPERATION MANUAL...

  • Page 10: Rear Panel

    With the proper adapters, the switcher can be used with DVI digital video signals HDMI Digital Video/Audio, Connector with fix screw HDCP compliant. DVI does not support audio. Input 1 ~ Input 8 PAGE 10 SB-5688CT INSTRUCTION & OPERATION MANUAL...

  • Page 11: Rear Panel - 2

    Extend cable distance maximum 300Meters / ~1000 feet IR Extender Jack: When you plug the CAT5e/6/7 IR extender into the external port, Female Jack - inner OD O 3.5 mm the room IR receiver remain active. PAGE 11 SB-5688CT INSTRUCTION & OPERATION MANUAL...

  • Page 12: Edid Function 1 - Edid

    Select Embedded EDID : Mode 1 : FSS Mode 2 : H24-3D Mode 3 : H24-3D-M Mode 4 : H36-3D Mode 5 : H36-3D-M Mode 6 : 1280x1024-60Hz Mode 7 : 1920x1200-60Hz Mode 8 : AUTO PAGE 12 SB-5688CT INSTRUCTION & OPERATION MANUAL...

  • Page 13: Edid Function 2 - Embedded Edid

    EPROM and the EDID data cannot change. Please select new learning destination to sources or change to one of the embedded EDID modes when you want to remove the learning EDID memory from EPRPM. PAGE 13 SB-5688CT INSTRUCTION & OPERATION MANUAL...
  • Page 14 1200-60HZ DVI-D Mode 8 . AUTO <Default> All Outputs will be set to the highest common EDID 1 2 3 4 5 6 7 8 resolution of all connected display devices. 8. AUTO MODE PAGE 14 SB-5688CT INSTRUCTION & OPERATION MANUAL...
  • Page 15 Learning anyone 1~8 Destination EDID to all sources. Step 2 . Press destination button 1 thru 8 Step 3 . Learning selected destination EDID to all sources. Press ALL button Step 4 . Press ENTER button To confirm entries. PAGE 15 SB-5688CT INSTRUCTION & OPERATION MANUAL...
  • Page 16 Destination device #1 will set to the highest common resolution and Audio of source #1 Example for multiple sources Destination device #1, #2, #3 will be set to the highest common resolution and Audio available and source device #1 will output this same resolution. PAGE 16 SB-5688CT INSTRUCTION & OPERATION MANUAL...
  • Page 17 TYPICAL APPLICATION INSTALLING DIAGRAM Sample connection using IR Transmitters (SB-101) and IR Receiver (SB-100) with SB-6335R & SB-5688CT to control a projector. HDMI Projector NOTE: 1. IR Control Projector Over HDBaseT Extender: SB-101 SB-5688CT HDBaseT Transmitter SB-6335R HDBaseT Receiver IR-Transmitter 2.
  • Page 18 TYPICAL APPLICATION 8x8 HDMI MATRIX SWITCHER INSTALLING DIAGRAM Sample connection using IR Transmitters (SB-101) with SB-5688CT and SB-6335R to control a IR signal from Satellite Receiver. Audio Amplifier NOTE : 1. IR Control Satellite Receiver Over HDBaseT SB-6335R AUD IO AMP LIFIE R...
  • Page 19 8x8 HDMI-CAT5e/6 MATRIX SWITCHER Sample connection using Audio Extractor To Recode Audio (SB-5609) or to control ARC (SB-5610) and Extend the HDMI signal via HDBaseT Transmitter to IR Receivers (SB-6335R) with SB-5688CT to extend 100M distance between switcher and destination..
  • Page 20 REMOTE CONTROL Before making any connections to the switcher. Observe the following: > Ensure the mains voltage supply matches the label on the supplied plug- > Connect all audio video sources and destination equipment Pack (+/- 10%) > power up all source and destination audio-visual sources >...
  • Page 21 REMOTE CONTROL IR REMOTE CUSTOM AND DATA CODES (NEC Standard) HOW TO SETUP IR CODES : 09F6 B04F CUSTOM CODE : 09F6 : 09F6 B14E EDID : 09F6 B748 POWER ON A15E 09F6 LOCK : 09F6 B54A RECALL : 09F6 B24D POWER OFF : A25D...
  • Page 22 38C7 09F6 SOURCE #8 : 09F6 48B7 31CF 35CA 41BE 45BA 32CD 36C9 42BD 46B9 33CC 37C8 43BC 47B8 34CB 38C7 44BB 48B7 8x8 CAT5e/6 SWITCHER 8x8 CAT5e/6 SWITCHER SW-5688CT-IR03 SW-5688CT-IR04 ENIRPA5688CT0A3 ENIRPA5688CT0A4 PAGE 22 SB-5688CT INSTRUCTION & OPERATION MANUAL...
  • Page 23 7887 SOURCE #8 : 8877 09F6 09F6 718E 758A 817E 857A 728D 7689 827D 8679 738C 7788 837C 8778 748B 7887 847B 8877 8x8 CAT5e/6 SWITCHER 8x8 CAT5e/6 SWITCHER SW-5688CT-IR07 SW-5688CT-IR08 ENIRPA5688CT0A7 ENIRPA5688CT0A8 PAGE 23 SB-5688CT INSTRUCTION & OPERATION MANUAL...
  • Page 24 The pre-set configuration will execute. Not all device support CEC. Check with your Users Guide for additional information and specifications. To ensure stable operation, HDMI connections should only be made with switcher powered OFF. PAGE 24 SB-5688CT INSTRUCTION & OPERATION MANUAL...
  • Page 25 IR EXTENDER REAR PANEL IR EXTENDER PORT IR EXTENDER CONNECTION RoHS/95/EC INPUT ROO M DC 12V SB-100 RS - 232 IR EXT. SB-100 DISTANCE maximum 300 M / ~ 1000 feet POW ER SHINYBOW SB-5688 IN PU T -1 IN PU T -2 IR Extender to a Room IN PU T -3 IR part number : SW-5688...
  • Page 26 RS-232 SERIAL INTERFACE RS-232 Definition ------ Not used Transmitter Receiver ------ Not used Ground ------ Not used ------ Not used ------ Not used ------ Not used RS-232 PROTOCOL COMMANDS ( RS232 Control driver V2.0 ) PAGE 26 SB-5688CT INSTRUCTION & OPERATION MANUAL...
  • Page 27 LIMITED WARRANTY LIMITED WARRANTY SHINYBOW WARRANTY SHINYBOW Technology warrants this product against defects in materials and workman ship for a period of 3 years from the date of purchase. Should this product, in SHINYBOW Technology's opinion, Prove defective within this warranty period, SHINYBOW Technology, at its option, will repair this product without charge, to whatever extent it shall deem necessary to restore said product to proper operation condition.
  • Page 28 M ULT IM EDI A AUDIO AN D V IS UA L 1399 Wildfi re Lane | Frisco, TX 75034 1-877-SHINY-USA 1-877-744-6987 1-972-377-2508 sales@shinybowusa.com www.shinybowusa.com...
