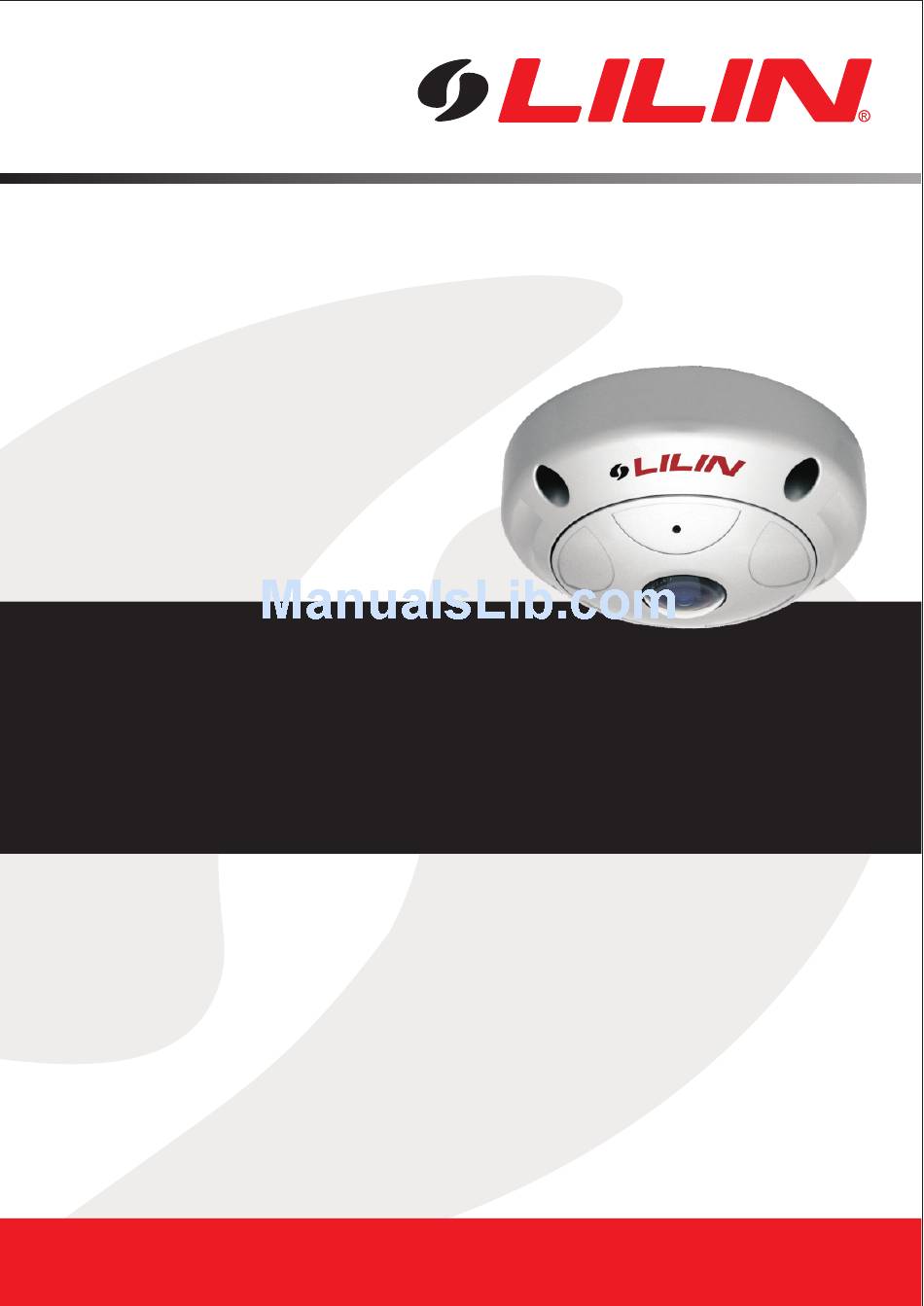

360° 4CH PANORAMA CAMERA
CMD2422S/SC
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CMD2422S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Lilin CMD2422S

  • Page 1 360° 4CH PANORAMA CAMERA CMD2422S/SC INSTRUCTION MANUAL...
  • Page 2: Important Safeguards

    IMPORTANT SAFEGUARDS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. GRAPHIC SYMBOL EXPLANATION The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"...
  • Page 3 (CVBS Port). Each image can be controlled by keyboard controller through RS-485 communication interface or through Lilin single-chip digital video recorder (DVR) Local Host RS-485 communication interface, and control functions are similar to controlling 4 fast dome cameras. The new panoramic camera can be from single 4-channel panoramic camera or serial linking to 64 panoramic cameras allowing expansion to 256- channel video screen.
  • Page 4: Structural Element

    STRUCTURAL ELEMENT 4 port Video Out BNC Jacks - [4CH BNC Model] RJ-45 Jack - [CAT5 Model] RS-485 In/Out Terminal Power In DC Jack (DC12V) Camera Case 2M-Pixels 360 Panorama Camera ° PANORAMA DOME CAMERA SETUP DIP Switch Setting RS-485 Protocol Switch Camera System &...
  • Page 5: Protocol Selection

    BAUD RATE SELECTION DIP SWITCH 2400 bps 4800 bps 9600 bps Remark: Lilin Protocol control mode is N, 8, 1 Baud Rate : 9600 bps Protocol Setting PROTOCOL SELECTION DIP SWITCH MLP2 (MERIT LILIN PROTOCOL 2) VERSION PELCO D PROTOCOL RS-485 In/Out Terminal Resistor Setting Daisy Connection: Set RS-485 In and Out terminal resistor as ON.
  • Page 6: Dip Switch

    Panorama Camera System Switch Camera System & ID Switch DIP SWITCH Camera ID : 1 - 256 NTSC Camera ID : 1 - 256 Panorama Camera ID Address Setting Refer Chart Up to 64 4CH panoramic camera can be serial linking in one system. Therefore each channel is addressed by ID switch for identification.
  • Page 7: Installation

    INSTALLATION Embedded Mounting Attached Mounting (Only applicable in CAT5 model option)
  • Page 8: Step 3. Camera Setting

    Embedded Mounting (False Ceiling) Step 1. Ceiling Preparation Drill a 3/32" (2.4mm) hole at the center of the chosen Use a pencil and a compass to mark a circle 3.6"~4.1" area. (90~105mm) in diameter and cut the circle. Note: Due to camera body cable tap hole position, drill hole bigger than 3.6"(90mm) but smaller than fix ring inner diameter. Step 2.
  • Page 9 Step 5. Install Camera Body and Ring Attach the camera body Tighten the two screws to to the fixed ring. fix the camera body. Notice: Camera body screw hole should be align to fixed ring’s latch position. Step 6. Install Decorative Ring Put the decorative ring on Rotate the decorative ring Installation is complete.
  • Page 10 Step 3. Camera Setting RS-485 Protocol Switch Camera System & ID Switch Note: Refer to section P2~4 Separate rubber sheet from camera main body. Set Panorama Camera ID, RS-485 Protocol and Camera system. Step 4. Control Cable Connection Connect RS-485 cable. Connect DC12V Power Connect RJ-45 cable.
  • Page 11: System Configuration

    SYSTEM CONFIGURATION Lilin’s Panorama camera Surveillance System is suitable for wide range of surveillance applications. With DVR digital storage in the system, it can control the panoramic camera. Such flexibility means future expansion is easily facilitated. Panoramic Camera, Keyboard and 4CH DVR Configuration Single Panoramic camera configuration: One Panorama Camera connects to one PIH-931D/932T.
  • Page 12 Long distance Panoramic Camera with a Keyboard and 4CH DVR ( Applicable Model: CMD2422SC ; Video transmission distance: 300m) When installing the panorama camera in long distance is required, may switch to panorama CAT5 camera. This model has built-in video encoder converting 4-ch analogue video signal to CAT5 network signal. With RJ-45 network connector, and transmitted through the network cable up to 300 meters transmission distance.
  • Page 13 Multiple Domes means that more than one panoramic camera is linked in the system. Each panoramic camera connects to next panoramic camera forming a serial linking. Each panoramic camera has an individual ID dip switch, which allows the keyboard to identify each panoramic camera and make command. Sometimes it is more convenient Ⅲ...
  • Page 14 9600bps). The PC control port RS-232 is converted to RS-485 format by interface. User may use their own software (protocol) or software provided by Lilin to control the panoramic camera. In this system, you can connect up to 64 panoramic cameras, a total of 256 channels.
  • Page 15 Panoramic Camera, DVR and Keyboard The DVR System is an advanced digital recorder, with long recording time and easy searching features. Telemetry remote control is through twisted pair for data transmission to the panoramic camera. Panoramic camera can be controlled directly from the control panel of the DVR, or from keyboard. Each DVR (Digital Video Recorder) can manage 16 channels signal and daisy link four (16 channels) panorama cameras via RS-485 interface.
  • Page 16: Operation

    OPERATION Initial Power Up Inspection After you completed the installation and initially power up, the panorama camera will perform self-test procedure, the camera calibrates and checks the basic function, controlling the camera is possible after self-test is completed. If preset positions and tours have been programmed into a panorama camera and the power is turned off, the panorama camera will enter the Auto Scan mode once the power is turned on again (after self-test period).
  • Page 17 Panorama Camera Selection Each panoramic camera has four surveillance panoramic image channels, the user can switch between image channel and operation. LENS C.ESC ALARM MATRIX WIPER SPRAY LIGHT RESET C.SET 。 SEARCH PRESET To select 1st Panorama Camera (Channel 1 of the first Camera) CTRL1 CTRL2 Push key...
  • Page 18: Joystick Control

    Select Panorama Camera Push key followed by key, confirming that first channel is selected. Ex. To select 1st channel (Channel 1 of the first Camera) keys To select 64th channel (Channel 4 of the 16th Camera) keys Selecting Preset Position Push key followed by key, confirming that first preset position selected.
  • Page 19 Recalling Preset Position Once the required preset positions have been stored in a camera, they may be quickly recalled, returning the camera to exact position. LENS C.ESC ALARM MATRIX WIPER SPRAY LIGHT RESET C.SET 。 SEARCH PRESET CTRL1 CTRL2 To recall 1st Preset Position: AUTO Push key followed by...
  • Page 20: Activating Auto Pan

    Activating Auto Pan When the Auto Pan function is activated, the panorama camera will auto touring the preset groups set. To activate Auto Pan: Push key, confirming the activaed of Auto Pan. (Auto Pan Led will be lit.) AUTO To stop Auto Pan: Push key again, confirming the stop of Auto Pan.
  • Page 21: Setup Menu Tree

    SETUP MENU TREE SETUP LANGUAGE ENGLISH MENU DISPLAY DATE/TIME TIME SETUP DATE DATE FORMAT PAN/TILT ANGLE AREA TITLE DOME CAMERA EXPOSURE MODE AUTO SETTINGS MANUAL CONTRAST SHARPNESS WHITE BALANCE AUTO MANUAL SATURATION MIRROR FLIP DAY/NIGHT PAN/TILT HOME POSITION SELF RETURN TIME SELF RETURN MODE AUTO MODE PANORAMA...
  • Page 22 Display Character Setup Menu 1. Display character Setup Menu Press key into Setup Menu. Push joystick down to select <DISPLAY SETUP>, and then press key to display character setup menu. Press key to go back setup menu. LANGUAGE ENGLISH DATE/TIME <DISPLAY SETUP>...
  • Page 23 3. PAN/TILT Angle Setting Push joystick down to select <PAN/TILT/ANGLE>, and then push joystick left or right to select pan/tilt setup: OFF : No Pan/Tilt Angle on the monitor screen. ON : Pan/Tilt Angle on the monitor screen. 4. Area Title Setting The area title function can display a direction indicator that appears in the picture to indicate the direction of the location being shown on the screen.
  • Page 24 MANUAL Exposure mode: Press key into MANUAL Exposure setting menu, and then push joystick left or right to make selection. Manual exposure levels are 1~10 (gray ~ light). (2) Contrast Setting Push joystick down to select <CONTRAST>, and then push joystick left or right to adjust the image contrast level.
  • Page 25 DAY : Set to DAY mode and always produce color image. NIGHT : Set to NIGHT mode and always produce monochrome image. SCHED. : DAY/NIGHT switch automatically between Day mode and Night mode by schedule of time setting. → 18:00 <CAMERA>...
  • Page 26 (3) Self Return Mode Setting Push joystick down to select <SELF RETURN MODE>, and then push joystick left or right to select return mode. → → → → HOME AUTO TOUR OFF : NO action. HOME : Perform return home position mode. AUTO : Perform auto scan mode.
  • Page 27 (6) Tour Function Setting Menu Push joystick down to select <SELF RETURN MODE> or <AUTO MODE>, and then push joystick left or right to select <TOUR>, then press key into tour setting menu. HOME POSITION <EDIT TOUR> SELF RETURN TIME <CLEAR>...
  • Page 28 After getting in dome setting menu, push joystick down to select <PANORAMA>, and then push joystick left or right to select mode. → → PAN01 PAN02 OFF : NO action. PAN01 : The first channel video screen to expand into 360 panorama mode. °...
  • Page 29 STOP : Stop the auto mode. OFF : NO action. AUTO : Perform auto scan mode. SEQ. : Perform preset group mode. TOUR : Perform tour list mode. Note: 1. Once scheduled start time arrived, all set auto mode will automatically start. 2.
  • Page 30: Specifications

    SPECIFICATIONS Model No. CMD2422S CMD2422SC Focal Length 1.25mm Minimum Aperture Ratio (F No.) F2.0 Lens 185° Angle of View 185° 185° Day & Night Schedule / Day(Color) / Night(B/W) Image Pick-up Device 1/3" Progressive scan CMOS Sensor (4 : 3)
  • Page 31: Quick Reference Table

    QUICK REFERENCE TABLE Function Operation To Tilt Up Push Joystick Forward To Tilt Down Push Joystick Down Pan / Tilt Control To Pan Left Push Joystick Left Push Joystick Right To Pan Right Dome Selection Numeric Key + CAM Zoom In ZOOM IN Zoom Out ZOOM OUT...
  • Page 32 MERIT LILIN ENT. CO., LTD http://www.meritlilin.com 66-CMD2422CSE...
