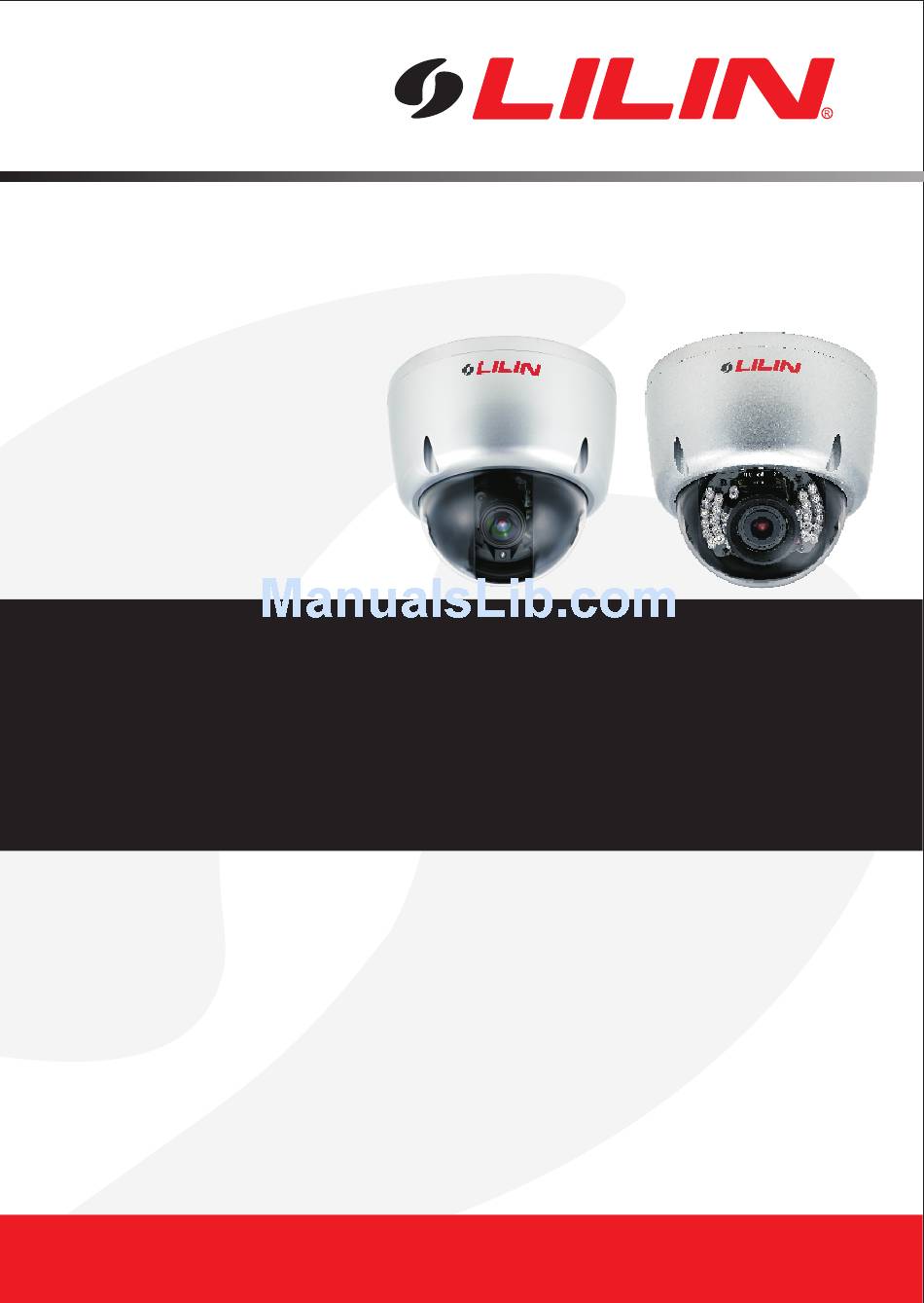

- Page 1 D/N VANDAL RESISTANT ATR 700TVL VARI-FOCAL DOME CAMERA CMD6182X/6186X3.6 N/P D/N VANDAL RESISTANT ATR 700TVL VARI-FOCAL IR DOME CAMERA CMR6182X/6186X3.6 N/P INSTRUCTION MANUAL...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION： TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. GRAPHIC SYMBOL EXPLANATION The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"... -
Page 3: Part Description & Dimension
PART DESCRIPTION & DIMENSION 145.0 10.0 78.7 130.0 (CMD6182X/6186X3.6N/P) 145.0 10.0 78.7 130.0 Unit: mm (CMR6182X/6186X3.6N/P) BOTTOM CHASSIS TOP COVER BOTTOM HOLE SIDE HOLE INNER COVER DOME COVER LENS HOLE PLUG... -
Page 4: Installation
INSTALLATION 1. Please use the enclosed hexagon screw driver to untighten the 4 screws on the top cover (FIG.1). FIG.1 2. Using screw drive to untighten the 3 screws on the camera module (FIG.2 & FIG.3). FIG.2 FIG.3 (CMD6182X/6186X3.6N/P) (CMR6182X/6186X3.6N/P) 3. - Page 5 FIG.4 66mm 120° FIG.5 FIG.6 4. Firstly, put video cable and power cable through a pipe with 1/2" PT at one end (FIG.7), and then screw the pipe to the side hole or bottom hole (FIG.8, please make sure the ...
- Page 6 FIG.9 FIG.10 (CMD6182X/6186X3.6N/P) (CMR6182X/6186X3.6N/P) 6. Plug and fix the power cable to the jack or terminal block and plug the video cable to video output of the camera (FIG.11 & FIG.12). For the safety reason, when plug video cable to ...
- Page 7 7. Take down the inner cover from the camera module (FIG.14, CMD6182X/6186X3.6N/P), and then adjust the direction of the lens through the adjustable Pan/Tilt bracket and rotatable round bracket for Azimuth (FIG.15 & FIG.16). TILT TILT AZIMUTH AZIMUTH Press inward FIG.14 FIG.15...
- Page 8 : Press to move the cursor to the right and to select or adjust the (RIGHT) parameters of the selected item. The parameters changes each time this button is pressed. (DOWN) : Press to move the cursor downwards or to select items. ...
- Page 9 Alternative Cabling positions 1. Untighten the hole plug on the bottom hole of the bottom chassis and screw it to the side hole. 2. Put the video cable and power cable through the bottom hole. Then connect them to ...
-
Page 10: Configuration Of The Menu
CONFIGURATION OF THE MENU SETUP － LENS AUTO TYPE DC MENU － MANUAL MODE AUTO OPEN CLOSE SPEED(000~255) SHUTTER/ AUTO HIGH LUMINANCE MODE AUTO IRIS/ SHUT+AUTO IRIS SHUT(NOTES*2) (NOTES*1) BRIGHTNESS(000~255) － LOW LUMINANCE MODE AGC OFF － BRIGHTNESS x0.25 x0.50 x0.75 x1.00 －... - Page 11 PRIVACY － AREA SEL 1/8~8/8 [000~244(NTSC), 000~288(PAL)] BOTTOM [000~244(NTSC), 000~288(PAL)] LEFT [000~474(NTSC), 000~468(PAL)] RIGHT [000~474(NTSC), 000~468(PAL)] COLOR(1~8) － TRANSP 0.00 0.50 0.75 1.00 MOSAIC OFF ON － － NR MODE Y/C OFF/ Y/ C Y LEVEL(000~015) C LEVEL(000~015) CAMERA ID －...
-
Page 12: Setting Menu And Function
SETTING MENU AND FUNCTION TO Open and Exit the Menu screen 1. Press "SET" button. The Menu screen appears on the monitor. Check the current settings on the menu. 2. Push or button to select the options then use or button to select a mode. ... -
Page 13: Specifications
SPECIFICATIONS D / N VA N D A L R E S I S TA N T AT R 7 0 0 T V L VA R I - F O C A L D O M E C A M E R A M o d e l N o . - Page 14 D / N VA N D A L R E S I S TA N T AT R 7 0 0 T V L VA R I - F O C A L I R D O M E C A M E R A M o d e l N o .
- Page 15 MERIT LILIN ENT. CO., LTD http://www.meritlilin.com 66-CMR618CSE...
