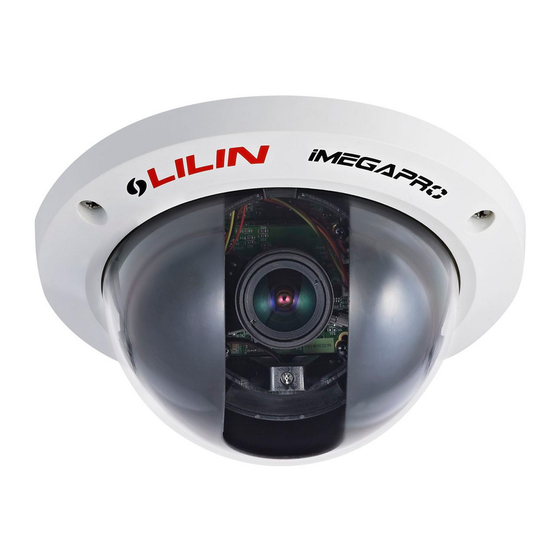

D/N 1080P HD Vari-Focal Dome IP Camera
IPD2322ESX / LD2322EX
Instr uction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IPD2322ESX and is the answer not in the manual?

Questions and answers

Summary of Contents for Lilin IPD2322ESX

  • Page 1 D/N 1080P HD Vari-Focal Dome IP Camera IPD2322ESX / LD2322EX Instr uction Manual...
  • Page 2: Important Safeguards

    IMPORTANT SAFEGUARDS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. GRAPHIC SYMBOL EXPLANATION The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"...
  • Page 3 Executive Summary IPD2322ESX & LD2322EX series is an 2 megapixel Day&Night 1080P HD Vari-Focal Dome IP Camera, built-in H.264 AVC (Advanced Video Coding) video compression. H.264 AVC video compression engine supports high definition video quality, 1080P(1920x1080) resolution, bandwidth efficiency with PPPoE and DDNS.
  • Page 4: Part Description & Dimension

    PART DESCRIPTION & DIMENSION 150.0 80.0 134.0 10 11 12 Unit: mm...
  • Page 5 Cylinder (Ceiling Mount) Top Cover Inner Cover Dome Cover Lens Slide Cover Fixed Plate (Ceiling Mount) Bottom Chassis Lock Plate RJ-45 Network Connector Audio Input 3.5mm Phone Jack Audio Output 3.5mm Phone Jack DC12V Power Input Jack Live Video Output RCA Jack Plug the video input of monitor to the RCA jack and adjust focus and zoom.
  • Page 6: Installation

    INSTALLATION Installation Structural Drawing Embedded Mounting Attached Mounting...
  • Page 7 Embedded Mounting (False Ceiling) 1. Please use the screw driver to untighten the 3 screws on the top cover(FIG.1), and to untighten the 3 screws on the cylinder(FIG.2). FIG.1 FIG.2 2. Use a hole site diagram to cut the circle 108mm(FIG.3 & FIG.4). DRILL HOLE Ø...
  • Page 8 4. Put the provided screw(M3.0x25, wooden screw) through the holes marked as “a”, and fix the bottom chassis in the desired area (FIG.6 & FIG.7) FIG.6 FIG.7 5. Take down the inner cover from the camera module (FIG.8), and then adjust the direction of the lens through the adjustable Pan/Tilt bracket and rotatable round bracket for Azimuth (FIG.9).
  • Page 9 7. Put on the inner cover (FIG.11). Replace the top cover and tighten the screws (FIG.12). FIG.11 FIG.12 Attached Mounting (Fixed Ceiling) 1. Please use the screw driver to untighten the 3 screws on the top cover(FIG.13). Push the lock plate of bottom chassis down for unlocking(FIG.14). Push the lock plate down FIG.13...
  • Page 10 3. Put the camera module into fixed plate, and push the lock plate up for locking(FIG.17). Push the lock plate up FIG.17 4. Plug and fix the power cable to the jack and plug the network cable to RJ-45 connector of the camera (FIG.18).
  • Page 11 6. Adjust the lens on focus and zoom to form the optimal video image after that tighten the  screws (FIG.21). Z O O M F O C U S FIG.21 7. Put on the inner cover (FIG.22). Replace the top cover and tighten the screws (FIG.23). FIG.22 FIG.23 Installation Micro SD card, please follow instruction as below:...
  • Page 12 D/N 1080P HD Vari-Focal Dome IP Camera IPD2322ESX / LD2322EX Instr uction Manual 3. CD Software Pack SYSTEM ARCHITECTURES For connecting IPD2322ESX/LD2322EX series to the network, please follow one of the system architectures: (1). Use DC12V power adapter and network switch connected to a network.
  • Page 13: Emergency Factory Default

    LAN / Internet Non-PoE Switch HD Vandal Dome IP Camera DC12V Adaptor (2). Use with PoE of the network switch connected to the network. LAN / Internet PoE Switch HD Vandal Dome IP Camera (3). Use PoE power injector and the network switch connected to the network. LAN / Internet Non-PoE Switch PoE Power...
  • Page 14: Specifications

    SPECIFICATIONS IPD2322ESX (1080P 30fps) D/N 1080P HD Vari-Focal Dome IP CAMERA Model No. IPD2322ESX3.6 3.3 ~ 12mm Focal Length F1.4 Iris 79.3° ~ 29.8° Lens Angle of View 59.4° ~ 22.4° 99° ~ 37.3° Pick Up Element 1/2.7" CMOS Image sensor...
  • Page 15 Android support System Integration ONVIF & LILIN HTTP API CMX HD3.6 support Video Display LILIN Universal ActiveX & LILIN Java Applet Embedded Linux 2.6.32 Two-way Audio G.711/ PCM SD Card Recording Support Micro SD/SDHC card for circular recording (card is not included) Alarm Input/ Output Digital 1 input(TTL, +3~5V) / 1 output(N.O.)
  • Page 16 LD2322EX (1080P 15fps) D/N 1080P HD Vari-Focal Dome IP CAMERA Model No. LD2322EX3.6 3.3 ~ 12mm Focal Length F1.4 Iris 59.6° ~ 22.6° Lens Angle of View 33.5° ~ 12.9° 68.4° ~ 25.9° Pick Up Element 1/2.5" CMOS Image sensor Effective Pixels 1920(H) x 1080(V) = 2,073,600(pixel) Chip Size...
  • Page 17 Android support System Integration ONVIF & LILIN HTTP API CMX HD3.6 support Video Display LILIN Universal ActiveX & LILIN Java Applet Embedded Linux 2.6.32 Two-way Audio G.711/ PCM SD Card Recording Support Micro SD/SDHC card for circular recording (card is not included) Alarm Input / Output Digital 1 input(TTL, +3~5V) / 1 output(N.O.)
  • Page 18 MERIT LILIN ENT. CO., LTD http://www.meritlilin.com 66-IPD2322CSE...
