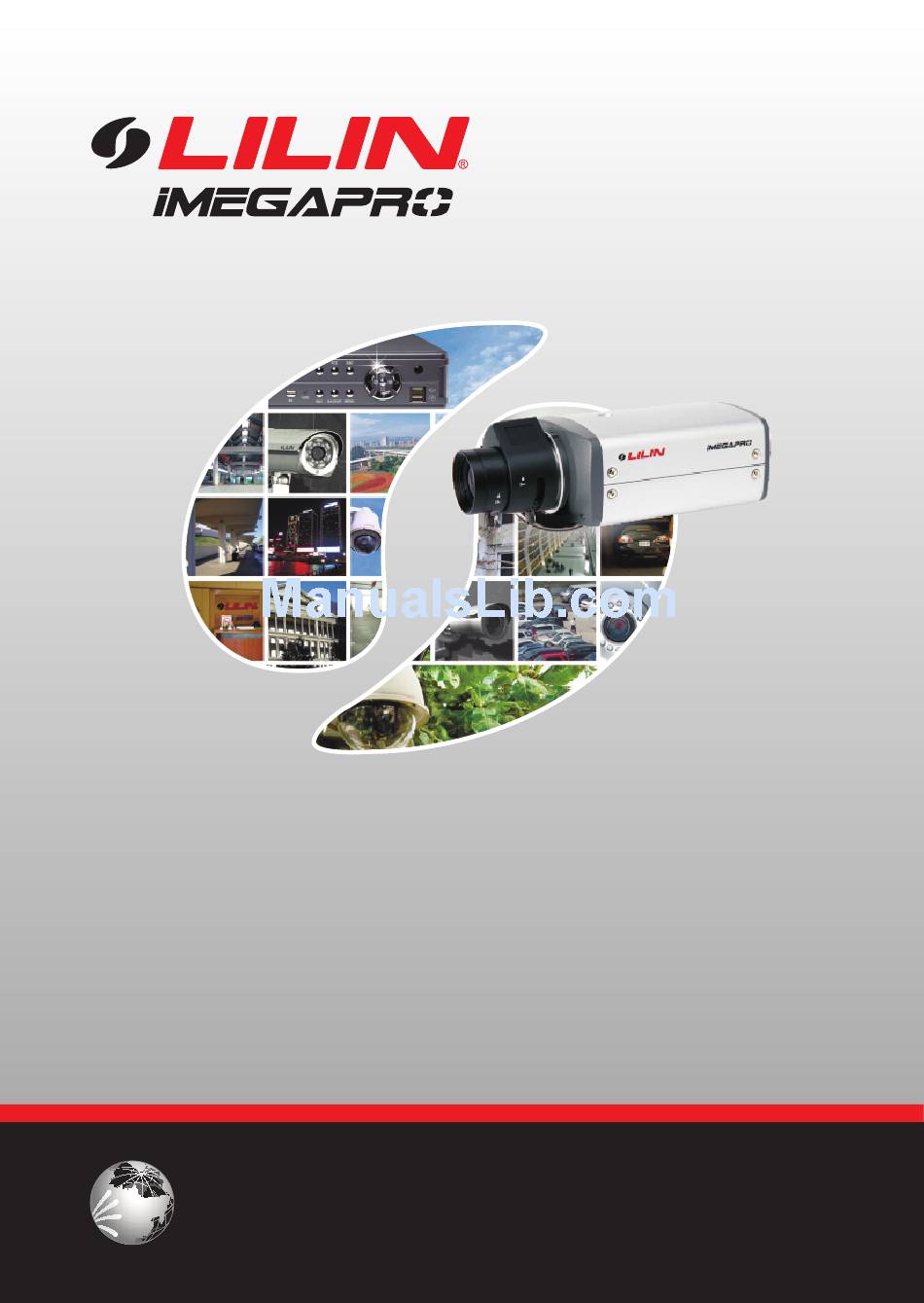

- Page 1 Day & Night 5MP HD IP Camera IPG1052ES Instr uction Manual...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION： TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. GRAPHIC SYMBOL EXPLANATION The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"... - Page 3 CAUTION Do not drop or strike this equipment. Sensitive electronics inside are vulnerable to excessive shock. Do not install the equipment near any naked flames or heat sources. Excessive heat could damage this unit. Do not expose this unit to rain or excessive moisture, avoid smoke and dust.
- Page 4 CONGRATULATIONS Thank you for purchasing this D/N Megapixel HD IP Camera. You now own one of the many fine network products we manufactured. This product has been carefully inspected under rigid quality control and should reach you in perfect condition. With reasonable care, it will provide years of reliable performance.
- Page 5 Executive Summary IPG1052ES series is an 5MP Day&Night HD IP Camera, built-in H.264 AVC(Advanced Video Coding) video compression. H.264 AVC video compression engine supports high definition video quality, 5MP(2592x1944) resolution, bandwidth efficiency with PPPoE and DDNS. Also it provides higher bit rate of internet and diverse alarm functions such as movement video detection e-mail or FTP.
-
Page 6: Part Description & Dimension
PART DESCRIPTION & DIMENSION 122mm 50mm RS485 EXTIN RS485 VIDEO OUT RESET AUDIO OUT AUDIO IN POWER DC12V SD CARD 70mm... - Page 7 1. LENS MOUNT CAP Prevent damages to the image sensor and to keep dust away. FOCAL LENGTH ADJUSTMENT RING AND LOCKING SCREW Use this ring to adjusts the back-focal distance or picture focus. Rotate this ring clockwise or counterclockwise for a CS-mount lens. ...
- Page 8 11. AUDIO OUTPUT 3.5mm PHONE JACK 12. DC12V POWER INPUT JACK DC12V ( 10%) power input. ± 13. SD CARD SLOT This network camera is compliant with SD/SDHC card. 14. ALARM IN/OUT, EXTIN & RS-485 TERMINAL RS485- N.O. EXTIN RS485+ +5V COM.
- Page 9 AUDIO INPUT MODE SETUP Access into web page setup menu, under audio adjustment setup menu, may select Audio Input mode to either camera front microphone or rear's Audio In (Line IN).
-
Page 10: Installation
INSTALLATION SUITABLE LENSES The lens must be either a C or CS mount type. The protrusion behind the mounting surface must be within the following limits: C - mount lens CS - mount lens 9mm or less 4mm or less FITTING THE LENS Remove the lens mount cap. - Page 11 CAUTION Keep the lens mount cap on the camera when not attaching a lens. FITTING THE CAMERA 1. The mounting hole on the top or bottom of the camera. 2. Tighten the screw to the mounting hole. Please refer to the following drawing.
- Page 12 Quick Installation Guide 3. CD Software Pack 4. Bracket SYSTEM ARCHITECTURES For connecting IPG1052ES series to the network, please follow one of the system architectures: (1). Use DC12V power adapter and network switch connected to a network. LAN / Internet...
-
Page 13: Emergency Factory Default
(2). Use with PoE of the network switch connected to the network. LAN / Internet PoE Switch IPG1052ES (3). Use PoE power injector and the network switch connected to the network. LAN / Internet Non-PoE Switch PoE Power Injector IPG1052ES... -
Page 14: Specifications
SPECIFICATIONS Day/Night 5MP HD IP CAMERA IPG1052ES Model No. Pick Up Element 1/2.5" CMOS Image sensor Effective Pixels 2592(H) x 1944(V) = 5,038,848(pixel) Chip Size 5.70mm(H) x 4.28mm(V) Scanning System Progressive Scan Infrared Cut Filter Auto / Schedule / Day(Color) / Night(Mono) / External control Min. - Page 15 Mobile Phone and PDA System Integration ONVIF & LILIN HTTP API CMX HD3.6 support Video Display LILIN Universal ActiveX & LILIN Java Applet Embedded Linux 2.6.32 Two-way Audio G.711 / PCM SD Card Recording Support SD/SDHC card for circular recording (card is not included) Alarm Input / Output Digital 1 input (TTL, +3~5V) / 1 Output (N.O.)
- Page 16 MERIT LILIN ENT. CO., LTD http://www.meritlilin.com...
