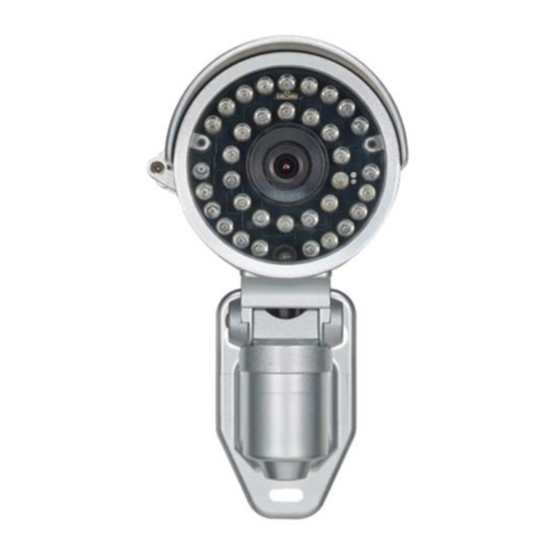

- Page 1 D/N ATR 700TVL IR CAMERA CMR7082/7084/7088 N/P 3.6/6 D/N ATR 700TVL VARI-FOCAL IR CAMERA CMR7082X3.6 N/P INSTRUCTION MANUAL...
- Page 2 IMPORTANT SAFEGUARDS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION： TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. GRAPHIC SYMBOL EXPLANATION The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"...
- Page 3 CAUTION Do not drop or strike this equipment. Sensitive electronics inside are vulnerable to excessive shock. Do not install the equipment near any naked flames or heat sources. Excessive heat could damage this unit. Do not expose this unit to rain or excessive moisture, avoid smoke and dust.
- Page 4 CONGRATULATIONS Thank you for purchasing this D/N ATR 700TVL (Vari-Focal)IR Camera. You now own one of the many fine CCTV products we manufactured. This product has been carefully inspected under rigid quality control and should reach you in perfect condition. With reasonable care, it will provide years of reliable performance.
-
Page 5: Table Of Contents
WARRANTY INFORMATION Please complete the following product purchase information. The factory will requests this information when contacted for technical support, or warranty repair. It is also valuable in case of loss or theft. ： Purchase Date ： Serial Number ： Model Number TABLE OF CONTENTS PART DESCRIPTION &... -
Page 6: Part Description & Dimension
PART DESCRIPTION & DIMENSION 72.5 Unit: mm TOP COVER BOTTOM CHASSIS BRACKET PAN ADJUSTMENT SCREW TILT ADJUSTMENT SCREW WINDOW VIDEO OUTPUT JACK (CMR7082) ± DC POWER INPUT JACK (DC12V 10%, CMR7082) -
Page 7: Installation
INSTALLATION 1. CMR7082 1-1. Take out the camera from the inner box first. Plug the video cable and power cable to video output jack and DC power input jack of the camera (FIG.1). Then fix bracket to the wall(FIG.2). DC power input Video output FIG. - Page 8 FIG. 4 FIG. 6 FIG. 5 2-2. Open the top cover with screw driver(FIG.7). FIG. 7 2-3. Next, Put the power cable and video cable through the bottom chassis and rubble(FIG.8) and then fix the camera body on the bracket(FIG.9).
- Page 9 FIG. 8 FIG. 9 2-4. Plug and fix the power cable to the terminal and plug the video cable to video output of the camera(FIG.10). For the safety reason, when plug video cable to video output please use the cable tubing to cover the bare part to avoid danger of electric shock or electric leakage(FIG.10&FIG.11).
- Page 10 FIG. 12 4. First, adjust the lens on focus and zoom to form the optimal video image after that tighten the screws(FIG.13). Then adjust the OSD menu to form the optimal image. Please refer to page7~10. LEFT RIGHT DOWN FOCUS ZOOM FIG.
- Page 11 : Press to move the cursor to the right and (RIGHT) select or adjust the parameters of the selected item. The parameters changes each time this button is pressed. (DOWN) : Press to move the cursor downwards or to select items.
-
Page 12: Configuration Of The Menu
CONFIGURATION OF THE MENU － SETUP LENS AUTO TYPE DC － MENU MANUAL MODE AUTO OPEN CLOSE SPEED(000~255) SHUTTER/ AUTO HIGH LUMINANCE MODE AUTO IRIS/ SHUT+AUTO IRIS SHUT(NOTES*2) (NOTES*1) BRIGHTNESS(000~255) － LOW LUMINANCE MODE AGC OFF － BRIGHTNESS x0.25 x0.50 x0.75 x1.00 －... - Page 13 PRIVACY － AREA SEL 1/8~8/8 [000~244(NTSC), 000~288(PAL)] BOTTOM [000~244(NTSC), 000~288(PAL)] LEFT [000~474(NTSC), 000~468(PAL)] RIGHT [000~474(NTSC), 000~468(PAL)] COLOR(1~8) － TRANSP 0.00 0.50 0.75 1.00 － MOSAIC OFF ON － NR MODE Y/C OFF/ Y/ C Y LEVEL(000~015) C LEVEL(000~015) CAMERA ID －...
-
Page 14: Setting Menu And Function
SETTING MENU AND FUNCTION TO Open and Exit the Menu screen 1. Press "SET" button. The Menu screen appears on the monitor. Check the current settings on the menu. 2. Push or button to select the options then use or button to select a mode. -
Page 15: Notes
NOTES 1. Without LENS option in the CMR7082/7084/7088N/P3.6/6. 2. Only DC mode on the TYPE option. Because a DC auto iris lens is used with the CMR7082X3.6N/P. 3. Please select AUTO mode on the SHUTTER/AGC option. If you select MANUAL mode, the over exposure may occur. -
Page 16: Specifications
SPECIFICATIONS D/N ATR 700TVL IR CAMERA Model No. CMR7082N/P3.6 CMR7082N/P6 CMR7084N/P3.6 CMR7084N/P6 CMR7088N/P3.6 CMR7088N/P6 Focal Length 3.6mm 3.6mm 3.6mm Iris F2.0 F1.8 F2.0 F1.8 F2.0 F1.8 Lens 44.5 44.5 44.5 Angle of view 54.5 33.1 54.5 33.1 54.5 33.1 ±... - Page 17 D / N AT R 7 0 0 T V L VA R I - F O C A L I R C A M E R A M o d e l N o . C M R 7 0 8 2 X 3 . 6 N / P F o c a l L e n g t h 3 .
- Page 18 MERIT LILIN ENT. CO., LTD http://www.meritlilin.com 66-CMR708CSE...
