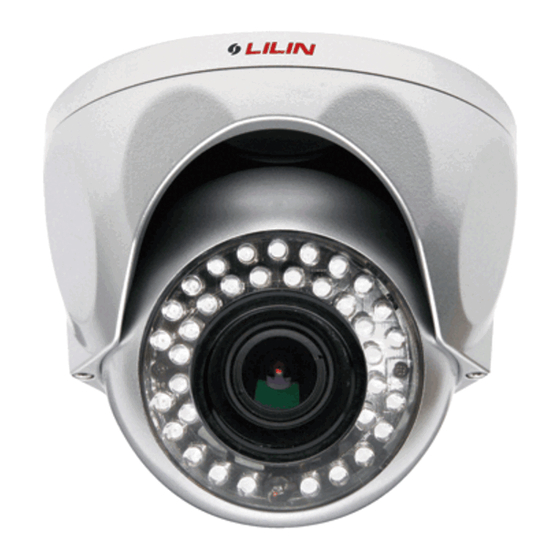

- Page 1 D/N VANDAL RESISTANT 700TVL VARI-FOCAL IR DOME CAMERA CMR6082X/6082MX3.6 N/P CMR6086X/6086MX3.6 N/P INSTRUCTION MANUAL...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION¡G TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. GRAPHIC SYMBOL EXPLANATION The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"... - Page 3 CAUTION Do not drop or strike this equipment. Sensitive electronics inside are vulnerable to excessive shock. Do not install the equipment near any naked flames or heat sources. Excessive heat could damage this unit. Do not expose this unit to rain or excessive moisture, avoid smoke and dust.
- Page 4 CONGRATULATIONS Thank you for purchasing this D/N Vandal Resistant 700TVL Vari- Focal IR Dome Camera. You now own one of the many fine CCTV products we manufactured. This product has been carefully inspected under rigid quality control and should reach you in perfect condition.
-
Page 5: Warranty Information
WARRANTY INFORMATION Please complete the following product purchase information. The factory will requests this information when contacted for technical support, or warranty repair. It is also valuable in case of loss or theft. Purchase Date ¡G Serial Number ¡G Model Number ¡G... -
Page 6: Part Description & Dimension
PART DESCRIPTION & DIMENSION Unit: mm BOTTOM CHASSIS OUTER COVER CAMERA BODY LENS MASK... -
Page 7: Installation
INSTALLATION 1. Please use the enclosed hexagon screw driver to untighten the 2 screws on the ¡@ bottom chassis (FIG.1). FIG. 1 2. Rotate the bottom chassis and outer cover until both " " marks are align, then ¢x ¡@ separate them (FIG.2 &... - Page 8 3. Put the provided screws (M3.0*25, wooden screw) through the holes marked as ¡@ "a", and fix the bottom chassis in the desired area (FIG.4 & FIG.5). 120 ¢X FIG. 4 FIG. 5 4. Plug or connect the power cable and plug the video cable to video output of the ¡@ camera (FIG.6 &...
- Page 9 FIG. 8 FIG. 9 6. Loosen the screws on the outer cover to rotate the camera body to the desired ¡@ angle and then tighten the screws (FIG.10 & FIG.11). FIG. 10 FIG. 11 7. Using the screw driver to adjust zoom and focus of lens for image of video (FIG.12). Zoom Focus FIG.
-
Page 10: Specifications
SPECIFICATIONS D/N VANDAL RESISTANT 700TVL VARI-FOCAL IR DOME CAMERA Model No. CMR6082X3.6N/P CMR6082MX3.6N/P Focal Length 3.3 ~ 12mm I r i s F1.4 L e n s 8 9 . 8 ¢X ~ 2 3 . 9 ¢X Angle of view 6 3 . - Page 11 D/N VANDAL RESISTANT 700TVL VARI-FOCAL IR DOME CAMERA CMR6086X3.6N/P CMR6086MX3.6N/P Model No. Focal Length 3.3 ~ 12mm I r i s F1.4 L e n s 8 9 . 8 ¢X ~ 2 3 . 9 ¢X Angle of view 6 3 .
- Page 12 MERIT LILIN ENT. CO., LTD http://www.meritlilin.com 66-CMR608CSE...
