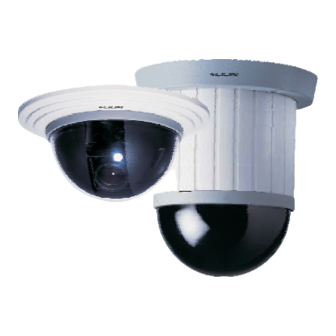

Lilin PIH-7625 D Series Instruction Manual

Wdr d/n fast dome camera
Hide thumbs Also See for PIH-7625 D Series:
Table of Contents

Advertisement

Quick Links

WDR D/N FAST DOME CAMERA
PIH-7625 D/DW Series
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PIH-7625 D Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lilin PIH-7625 D Series

Summary of Contents for Lilin PIH-7625 D Series

  • Page 1 WDR D/N FAST DOME CAMERA PIH-7625 D/DW Series INSTRUCTION MANUAL...

  • Page 2: Table Of Contents

    CONTENTS Pages .......................... Preface ........................Features ..................... Warning & Cautions ....................... Structural Element Fast Dome Camera Set Up ....................DIP Switch Setting ....................Fan Switch ....................Alarm Mode ................Fast Dome Function Switch ............... Fast Dome ID Address Setting Refer Chart ..........
  • Page 3 ..................Adjusting Lens ..................Setting Preset Speed ..................Setting Preset Dwell time ..................Storing Preset Data ..................Recalling Preset Position ................. Setting Preset Position Group .................... Changing Preset Data ....................Activating AutoPan ....................Deleting Preset Data ....................Alarm Management ................. Alarm Response Mode ....................
  • Page 4 ..............Expose Mode AE Shutter Setting ................Expose Mode WDR Setting ..............Expose Mode Manual Shutter Setting ..................White Balance Setting ....................Gamma Function Setting ..................Special Function Setting ................. Special Function Menu Display ..................Pedestal Level Setting ..................Aperture Level Setting ....................

  • Page 5: Preface

    PREFACE Based on Li-Lin's popular PIH-7625 series fast dome cameras, Lilin's Wide Dynamic Range Fast Dome offer significant enhancement and refinements to bring you the most innovative surveillance solutions. Conventional cameras operate only within a narrow spectrum of light in one single frame, producing image that either too dark or too bright in high contrast situations.

  • Page 6: Features

    FEATURES Wide Dynamic Range (PIH-7625DW) Preset No. / Preset ID Preset Scene File Dynamic Privacy Zone Digital Zoom Memory Function : Mirror / Rotate / Filp / Capture Low Speed Shutter 25X Auto Focus Lens Build-in 25X optical zoom lens with focal length 3.8 ~ 95.0mm Automatic / Manual Iris Control 360 continuous rotation Up to 128 programmable preset positions...

  • Page 7: Warning & Cautions

    WARNINGS & CAUTIONS Please read the manual before attempting installation or operation 1. Please be aware to the warnings and cautions notice. 2. Don't use any chemical detergent to clean the machine surface, use a damp cotton cloth only. Regularly clean the dome cover to assure proper focus ability. 3.

  • Page 8: Structural Element

    STRUCTURAL ELEMENT Dome Cover Alarm In / Out Jack Camera Case Video In / Out Jack Decoration Ring Power In Jack RS-485 In / Out Jack Camera Base...

  • Page 9: Fast Dome Camera Set Up

    FAST DOME CAMERA SET UP DIP Switch Setting Camera ID Switch Fan Power Switch Camera Function Switch Alarm Mode Switch Fan Power Switch Turn the number 2 switch to ON position to activate the internal fan. This will maintain the temperature inside and make the electric parts longer life.

  • Page 10: Fast Dome Id Address Setting Refer Chart

    Fast Dome ID Address Setting Refer Chart Up to 64 Fast Dome Camera can be serial linking in one system. Therefore each dome is addressing by ID switch located at the base of the Fast Dome. Below is the address setting for camera 1~64: 1 2 3 4 5 1 2 3 4 5 2 3 4 5...

  • Page 11: Fast Dome Connection Jack And Cable Requirement

    Fast Dome Connection Jack and Cable Requirement Center Pin 1. Power In Jack DC12V Input Voltage, Power Consumption 1.2Adc, Center Pin 2.0mm Require Cable: 18 AWG x 2C 2. Video Out BNC Jack Video Signal Output CVBS 1.0Vpp 75 Recommend Data Cable: 5C2V 3.

  • Page 12: Installation

    INSTALLATION Indoor Installation Structural Drawing Embedded Mounting Attached Mounting...

  • Page 13: Outdoor Installation Structural Drawing (Pendant Mounting)

    Outdoor Installation Structural Drawing (Pendant Mounting)

  • Page 14: Embedded Mounting (False Ceiling)

    Embedded Mounting (False Ceiling) Step 1 Ceiling Preparation l Drill a 3/32" (2.4mm) hole at the center of l Use a pencil and a compasses to mark a the chosen area. circle 6.7" (170mm) in diameter and cut the circle. Step 2 The Ceiling Ring l Attach the ring to ceiling l Tighten the three tapping...
  • Page 15 Step 4 Camera Setting l Untighten the three l Turn the camera l Separate the camera l Unplug the screws from the base body counter body and base connection cable clockwise Setting Fast Dome ID Setting Alarm Mode Setting Fan Power Refer to page 8,9 for the setting Step 5 Attach the Camera Body and Base l Reconnect the...
  • Page 16 Step 7 Install Camera Body and Decoration Ring l Put camera body and l Turn the camera body l Tighten three the fix ring into the hole clockwise to tight position black screws l Put on decoration l Turn the ring clockwise ring to tight position Step 8 Install The Dome Cover...

  • Page 17: Attached Mounting (Fixed Ceiling)

    Attached Mounting (Fixed Ceiling) Step 1 Fix The Base l Turn the dome cover l Separate the dome l Untighten the three counter clockwise cover from camera screws from base l Turn the camera cover l Separate the camera l Unplug the counter clockwise body to the base connection cable...
  • Page 18 Step 3 Attach Camera Body and Base l Reconnect the l Attach camera body l Turn camera body connection cable to base clockwise to tight position Step 4 Connection l Connect RS-485 l Connect video l Connect alarm cable signal cable output cable Step 5 Install Decoration Ring l Put on decoration ring to base...

  • Page 19: Pendant Mounting (External Housing)

    Pendant Mounting (External Housing) Step 1 Separate PSU and Bracket Untighten the screws Untighten and pull out Separate the housing Untighten the screws from PSU box and the bolt from the hinge and PSU box from PSU box open it. (Swan Neck) Step 2 Install Power Supply Unit 1.1 When use 24Vac power source: l Tighten 2 screws to...
  • Page 20 Step 4 Connection 4.1 Connect AC / DC cables: l Untighten the left l Connect the AC l Connect the AC l Connect the DC knob, put the AC power cable to AC power cable(below) power cable(above) power cable through Input jack to AC Output jack to DC Input jack...
  • Page 21 4.3 Connect Alarm and telemetry control (RS-485) cables: Untighten the right knob, Connect the Connect the Alarm put the Alarm and RS-485 telemetry control input cable to Alarm cables through the hole (RS-485) to RS-485 Input and tighten the knob Input (TXDI+,TXDI-) (Alarm 1 &...
  • Page 22 Step 6 Camera Setting Setting Fast Dome ID Setting Alarm Mode Setting Fan Power Refer to page 8,9 for the setting Step 7 Attach Camera Body and Base l Reconnect the l Attach camera l Turn camera body l Tighten the three connection cable body to base clockwise to high...
  • Page 23 Step 10 Connection l Connect the fan & heater l Connect the Fast Dome cable to pin jack cable to connection jack Step 11 Install The Power Box, Bracket and Housing PIH-510H l Attach the bracket l Tighten the 4 screws and housing to the box to fix the bracket PIH-510L...

  • Page 24: System Configuration

    SYSTEM CONFIGURATION Li Lin's integrated Fast Dome Surveillance System is suitable for a wide range of surveillance applications. The system cam be as single fast dome with one keyboard or encompassing as 64 domes with comprehensive matrix switching, PC control and even Digital Video Recording. Such flexibility means future expansion is easily facilitated.
  • Page 25 Multiple Domes means that more than one fast dome is linked in the system. Each dome connects to next dome forming a serial linking. Each dome has an individual ID dip switch, which allows the keyboard to identify each fast dome and make command. Sometimes it is more convenient to wire a telemetry system in star configuration rather than daisy chain.

  • Page 26: Fast Dome, Matrix And Keyboard

    Fast Dome, Matrix and Keyboard Matrix System is designed to process multiple video systems and video switching. Its central process unit (CPU) can manage multiple video signals simultaneously and control other linking system, such as PIH-7000/7600/7625 fast dome or PIH-820 telemetry receiver. All telemetry remote control and signal transmissions are through twisted pair.

  • Page 27: Fast Dome With Pc Control

    Fast Dome with PC Control PC telemetry remote controls fast dome with standard RS-485 data format (format: N, 8, 1 Baud Rate 9600 bps). The PC control port RS-232 is converted to RS-485 format by interface. User may use their own software (protocol) or software provided by Li-Lin to control the dome.

  • Page 28: Operation

    OPERATION Initial Power Up Inspection After the power is first applied to a dome it will perform a self-test procedure. This calibrates and checks the basic functions of the dome, control is not possible during this self-test period. Once the camera has stopped moving, it will then be ready to control. If preset positions and tours have been programmed into a dome and the power is turned off, the dome will enter the Auto Scan mode once the power is turned on again (after self-test period).

  • Page 29: Fast Dome Selection

    Fast Dome Selection To call out a dome controlling or setting To select 1st Fast Dome CAM ESC CAM SETUP 180 REV LENS SPEED AUTO Push key 1 followed by CAM key. SPRAY AUX LIGHT CTRL1 CTRL2 WIPER POWER ALARM To select 64th Fast Dome SETUP RESET...

  • Page 30: Iris Control

    Iris Control The purpose of iris control is to adjust brightness on target. It can be set as Auto Iris or Manual Iris. Iris Open Push IRIS O key, to open the iris and brighten the picture. Iris will stop when the key is released. Iris Close CAM ESC CAM SETUP...

  • Page 31: Selecting Preset Position

    Selecting Preset Position Push key 1 followed by CAM key, confirming that first preset position selected. : 1 PRESET keys Ex. To select the 1st preset position : 1 2 8 PRESET keys To select the 128th preset position Joystick Control Move the Joystick to bring the camera to the desired view position.

  • Page 32: Recalling Preset Position

    Recalling Preset Positions Once the required preset positions have been stored in a dome, they may be quickly recalled, returning the dome to exact position. To recall 1st Preset Position: Push key 1 followed by PRESET key. The dome will move to that position in speed of 360 /sec. : 1 PRESET keys Ex.

  • Page 33: Activating Autopan

    Activating Auto Pan When the Auto Pan function is activated, the fast dome will auto touring the preset groups entered. To activate Auto Pan: CAM ESC CAM SETUP 180 REV LENS SPEED AUTO Push AUTO PAN key, confirming the activation of SPRAY AUX LIGHT CTRL1...

  • Page 34: Alarm Response Mode

    Alarm Response Mode The fast dome alarm response can be set to Lock or Release mode. Lock : dome remains at last alarmed preset point Release : dome moves between alarmed points then reverts to prior status, such as autopan. Lock Mode When an alarm is triggered, the dome will go to the relevant position at 360 /sec and the keyboard will audio alert the user until it is canceled manually.

  • Page 35: Dw Fast Dome Function Setup (Osd Menu)

    25X DW Fast Dome Function Setup PIH-7625 DW (25X Optical zoom lens, wide dynamic range), PIH-7625D(25X Optical) series provide an on-screen display(OSD) setup menu. All functions can be selected and set via OSD Setup Menu. Menu Display SETUP MENU PRESET 01 Setup Menu Display SPECIAL FUNCTION CAM SETUP...

  • Page 36: Preset Setting

    Preset Setting CAM SETUP 1. Position the cursor beside POSITION SET in the Preset Setting Menu and press CTRL 1 to enter. Position Set Setup Select desired monitoring preset position by tilting the joystick up, down, left or right. Zoom and Focus Setup Press the zoom control buttons ( [Zoom In] and [Zoom out] ), and focus control buttons ( [Focus Far] and [Focus Near] ), to adjust to desired monitoring zoom and focus position.
  • Page 37 New Preset ID Setup CAM SETUP 1. Position the cursor beside desired character, and press to confirm. CTRL 1 The selected character is displayed in editing area (the pointer in the editing area moves one space to the right automatically). To enter a blank, select SPACE. 2.

  • Page 38: Dwell Time Setting

    Dwell Time Setting Position the cursor beside DWELL TIME and tilt the joystick left or right. Dwell time changes as follows : 2Sec 3Sec 5Sec 10Sec 30Sec 60Sec 120Sec 180Sec 255Sec PRESET SETTING MENU POSITION SET PRESET ID DWELL TIME 5 sec PRESET SPD 255 deg/Sec...

  • Page 39: Scene File Menu Display

    Scene File Menu Display To set a scene file number Position the cursor beside SCENE FILE and select a scene file number (1 to 10) by tilting the joystick left or right. To set Parameters for Scene File CAM SETUP Position the cursor beside a scene file number and press to enter.

  • Page 40: Special Function Menu Display

    Special Function Menu Display Display the special function menu directly. CAM SETUP Position the cursor beside SPECIAL FUNCTION, and press to enter Special Function CTRL 1 Menu. SETUP MENU SPECIAL FUNCTION PRIVACY ZONE PRESET 01 ELECTRIC ZOOM RET AUTO PAN SPECIAL FUNCTION RET HOME PSI CAMERA...

  • Page 41: Electric Zoom On/Off

    CAM SETUP Position the cursor beside ZONE SCALE SET , and press to enter. CTRL 1 Press IRIS O and tilting the joystick up, down, right or left to increase the zone frame. Press IRIS C and tilting the joystick up, down, right or left to decrease the zone frame. CAM SETUP Press to save and return to Privacy Zone Set Menu.

  • Page 42: Return Auto Pan Mode

    Notes : Linear interpolation Interpolation signals are created between original signals using liner approximation. It provides images with normal appearance. Cubic interpolation The ideal LPF's impulse response is approximated by a curve, which is folded into the original signal to create an interpolation signal. It provides images with increased resolution compared to linear interpolation.

  • Page 43: Return Home Position

    Return Home Position (RET HOME POSI) 1. Position the cursor beside RET HOME POSI and select ON or OFF by tilting the joystick left or right. ON : Return Home Position Mode. When keyboard controller did not act any function, and then setup time of Return Home Position is up, fast dome will return to home position.

  • Page 44: Expose Mode Setting

    2. EXPOSE MODE Setting Position the cursor beside EXPOSE MODE and select an AE mode by tilting the joystick left or right. Mode changes as follows: AE SHUT MANU SHUT CAMERA SETUP MENU MANU SHUT EXPOSE MODE WHITE BAL GAMMA SPECIAL Notes : EXPOSE MODE has four Exposure modes for selection.

  • Page 45: Expose Mode Ae Setting

    3. Expose Mode AE Setting CAM SETUP Position the cursor beside Expose Mode AE and press to enter Expose Mode AE CTRL 1 CAMERA SETUP MENU AUTO EXPOSE SETUP 1/60 EXPOSE MODE SHUT SPD MIN 1/500 WHITE BAL SHUT SPD MAX SLOW GAMMA LOW Lux MODE...

  • Page 46: Low Lux Mode Setting

    Low Lux Mode Setting The purpose of Low Lux Mode parameters is to improve low-brightness zones that make control of the electronic shutter and mechanical iris difficult. Thus, under minimum shutter speed (UMS) can improve the situation. Position the cursor beside LOW Lux Mode and select a field by tilting the joystick left or right. Mode changes as follows: SLOW AGC SLOW...

  • Page 47: Slow Shutter Setting

    Slow Shutter Setting Slow shutter control is activated when UMS reached. Position the cursor is positioned beside Low Lux Mode. Slow Shutter is available under SLOW, AGC SLOW and SLOW AGC mode Slow-Speed Shutter Mode changes as follows: 02 ..20 510 FLD AUTO EXPOSE SETUP 1/60...
  • Page 48 Control Range AEMODE Luminance (Auto Exposure) WDR CONT UMS mode Control Range WD Control AE(Conventional) UMS mode Control Range E-Iris Control AE SHUT UMS mode Control Range Mecha. Iris Control Luminance WDR CONT AE WD control High SHUT Speed Min High SHUT Speed Max E-Iris control (Conventional)

  • Page 49: Agc (Auto Gain Control)

    AGC (Auto Gain Control) AGC control is activated when UMS reached. Set up AGC level by position the cursor beside CAM SETUP Low Lux Mode and press to enter. CTRL 1 Select a gain level by tilting the joystick left or right. Level changes as follows: HIGH AGC SETUP...
  • Page 50 Notes : Fixed weighting mode Weighting values is fixed for each detection window, and backlight compensation is performed according to these values. Automatic weighting mode The weighting values are automatically controlled for backlight compensation in response to the light intensity detection window. Fig 1.

  • Page 51: Expose Mode Ae Shutter Setting

    5. Expose Mode AE Shutter Setting CAM SETUP Position the cursor beside Expose Mode AE Shut and press to enter Expose Mode CTRL 1 AE SHUT. CAMERA SETUP MENU AE SHUTTER SETUP AE SHUT EXPOSE MODE LOW Lux MODE WHITE BAL BACK LIGHT 1/50 GAMMA...

  • Page 52: Expose Mode Manual Shutter Setting

    7. Expose Mode Manual Shutter Setting CAM SETUP Position the cursor beside Expose Mode Manu Shut and press to enter Expose Mode CTRL 1 MANU SHUT. Select shutter speed by tilting the joystick left or right. Shutter Speed Mode changes as follows : 1/50 (1/60) 1/120 (1/100) 1/250...
  • Page 53 (3) Manual White Balance (MWB) Position the cursor beside WHITE BAL and select MWB by using the joystick. CAM SETUP Press to enter MWB Ssetting. CTRL 1 CAMERA SETUP MENU MANU SHUT EXPOSE MODE WHITE BAL GAMMA SPECIAL Press IRIS O to shift to higher color temperature and press IRIS C to shift to lower color temperature.

  • Page 54: Gamma Function Setting

    9. Gamma Function Setting CAM SETUP Position the cursor beside GAMMA and press to display Gamma Settng Menu. CTRL 1 CAMERA SETUP MENU GAMMA SETTING MANU SHUT EXPOSE MODE PRESET GAMMA MODE WHITE BAL YGAM GAMMA YKNEE SPECIAL Position the cursor beside GAMMA MODE and select a gamma mode by tilting the joystick left or right.
  • Page 55 Notes : Active 1 (Low Compensation) Active 1 automatically raises the gamma curve in low areas according to the deviation in the brightness histogram. In cases where there are significant brightness differences (e.g., backlight) and Wide-D processing is not performed. (Input Level 100% of the following figures is the border of gamma and KNEE.) Active 2 (Contrast Improvement) Active 2 automatically compresses the low areas of the gamma curve and raises the high...

  • Page 56: Special Function Setting

    10. Special Function Setting (1) Special Function Menu Display CAM SETUP Position the cursor beside SPECIAL and press to display Special menu. CTRL 1 CAMERA SETUP MENU SPECIAL MENU MANU SHUT EXPOSE MODE PEDESTAL WHITE BAL APERTURE GAIN GAMMA IMAGE FACTORY INIT SPECIAL (2) Pedestal Level Setting (PEDESTAL)

  • Page 57: Image Setting

    (4) Image Setting (IMAGE) CAM SETUP Position the cursor beside IMAGE and press to display Image Setting menu. CTRL 1 SPECIAL MENU IMAGE SETTING PEDESTAL MIRROR APERTURE GAIN ROTAGE IMAGE FLIP FACTORY INIT CAPTURE Y NEGATIVE C NEGATIVE MIRROR Function Position the cursor beside MIRROR and select ON or OFF by tilting the joystick left or right.

  • Page 58: Factory Initialization

    FLIP Function Position the cursor beside FLIP and select ON or OFF by tilting the joystick left or right. Note : This mode reverses the top and bottom sides of the linear. FILP = OFF FILP = ON (Normal) (Vertical reversal) Field image Capture (CAPTURE) Position the cursor beside CAPTURE and select ON or OFF by tilting the joystick left or right.

  • Page 59: Lens Control

    Lens Control Lens Control Menu Display CAM SETUP Position the cursor beside LENS CONT and press to display the Lens Control menu. CTRL 1 SETUP MENU LENS CONT ZOOM SPEED PRESET 01 FOCUS SPEED IRIS SPEED AUTO IRIS SETTING SPECIAL FUNCTION LEVEL CAMERA LENS CONT...

  • Page 60: Ir Cut Filter Setting

    (5) IR CUT FILTER Setting (ICR Function) Position the cursor beside IR CUT FILTER and select IN, OUT or AUTO by tilting the joystick left or right. LENS CONT ZOOM SPEED FOCUS SPEED IRIS SPEED AUTO IRIS SETTING LEVEL AUTO IR CUT FILTER IR SENSITIVITY IRF IN : IR Cut Filter is ON and always produce constant color image.

  • Page 61: Specification

    SPECIFICATION Operational Manual Pan / Tilt Speed 0.18 ~ 180 /sec (8 stages) Preset Position Pan / Tilt Speed 1 ~ 255 /sec Preset Position Dwell Time 1 ~ 255 secretary Recall Preset Position Pan / Tilt Speed 360 /sec 180 Instant Flip Rotation Speed 360 /sec Pan Rotation...

  • Page 62: Optical Zoom Lens

    Optical Lens 25X Lens Focal Length f = 3.8 ~ 95.0mm 25X Lens Aperture Max F1.6 (wide) ~ F3.7 (telephoto) 25X Horizontal View Angle 51.9 (wide) / 2.2 (telephoto) Focus Control Auto / One Shot / Manual (3 selections) Iris Control Auto / Manual (2 selections) Zoom In / Out Manual Control...

  • Page 63: External Housing

    External Housing Electrical Power Supply 24Vac or 90Vac ~ 260Vac (Option) Input Voltage 12Vdc Power Consumption 7.5W Control Interface RS-485 (1 Input / 1 Output) RS-485 Voltage 5.6V Alarm Input 6 Inputs (Pull up) Alarm Input Voltage 5.6V Alarm Output 1 Output (NC or NO mode setting) Alarm Output Voltage 0.5A 120Vac / 1A 24Vdc...

  • Page 64: Quick Reference Table

    APPENDIX A Quick Reference Table Function Operation To Tilt Up Push Joystick Forward To Tilt Down Push Joystick Down Pan / Tilt Control To Tilt Left Push Joystick Left Push Joystick Right To Tilt Right Dome Selection Numeric Key + CAM Zoom In ZOOM IN Zoom Out...
  • Page 65 APPENDIX B Trouble Shooting 1. No Power 1-1. Check power input connection 1-2. Check fuse on the PCB 1-3. Check connection between camera body and base 2. No Video 2-1. Check camera video output on camera 2-2. Check cable (damaged cable) 2-3.
  • Page 66 MERIT LILIN ENT. CO., LTD http://www.meritlilin.com 66-7625DWCSE...
