Lilin PIH-7625 Series Instruction Manual

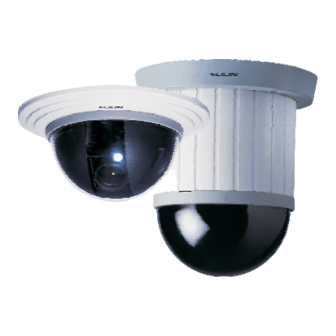

Day&night fast dome camera
Hide thumbs Also See for PIH-7625 Series:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual
DAY&NIGHT FAST DOME CAMERA
PIH-7625 Series
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PIH-7625 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lilin PIH-7625 Series

Summary of Contents for Lilin PIH-7625 Series

  • Page 1 DAY&NIGHT FAST DOME CAMERA PIH-7625 Series INSTRUCTION MANUAL...

  • Page 2: Table Of Contents

    CONTENTS Pages ..........................Preface ..........................Features ......................Warning & Cautions ......................Structural Element Fast Dome Camera Set Up ....................DIP Switch Setting ......................Fan Switch ......................Alarm Mode ............... Fast Dome ID Address Setting Refer Chart ................ RS-485 Protocol Dip Switch Setting ..........
  • Page 3 ....................Activating AutoPan ....................Deleting Preset Data ....................Alarm Management ......................Alarm Output Day & Night Fast Dome Function Setup (OSD Menu) ................Initial Setting (Factory Default) ....................OP. Mode Setting ....................RET Mode Setting ....................RET Time Setting ......................AGC Control ................

  • Page 4: Preface

    The system will auto-zoom on the size of the invader, and monitors the object on the screen center. LILIN's Fast Dome series measure only 145mm (5.6") in diameter and is capable of making 360 degrees continuous rotation with a speed range of 0.18 to 360 degrees per second, ensures direct and accurate target positioning.
  • Page 5 FEATURES 25X Auto Focus Lens Build-in 25X optical zoom lens with focal length 3.8 ~ 95.0mm Automatic / Manual Iris Control 360 continuous rotation Up to 128 programmable preset positions Preset positions auto scanning High speed rotation and tilt, speed range varies from 0.18 /sec ~ 360 /sec 180 Horizontal Instant Flip 6 alarm inputs, 1 alarm output can be set as NO (normally open) or NC (normally close) for each Fast Dome...
  • Page 6 Human Tracking System Function (PIH-7625T) 1. PIH-7625T series are smart sensor and built-in intelligent video processing which has surveillance applications on, (1) Detection motion object. (2) Tracking and zooming motion object. 2. PIH-7625T series have two modes: (1) Manual tracking mode (Keyboard mode). (2) Auto tracking mode (user can setup the schedule to active the auto tracking function once a day).
  • Page 7 WARNINGS & CAUTIONS Please read the manual before attempting installation or operation 1. Please be aware to the warnings and cautions notice. 2. Don't use any chemical detergent to clean the machine surface, use a damp cotton cloth only. Regularly clean the dome cover to assure proper focus ability. 3.

  • Page 8: Structural Element

    STRUCTURAL ELEMENT Dome Cover Alarm In / Out Terminal Camera Case Video Out Jack Decoration Ring Power In Jack RS-485 In / Out Terminal Camera Base...

  • Page 9: Fast Dome Camera Set Up

    FAST DOME CAMERA SET UP DIP Switch Setting RS-485 Protocol Dip Switch Camera ID Switch Fan Power Switch Alarm Mode Switch Fan Power Switch Turn the number 2 switch to ON position to activate the internal fan. This will maintain the temperature inside and make the electric parts longer life.

  • Page 10: Fast Dome Id Address Setting Refer Chart

    Up to 64 Fast Dome Camera can be serial linking in one system. Therefore each dome is addressing by ID switch located at the base of the Fast Dome. When select MLP1 (MERIT LILIN PROTOCOL 1), Camera ID setting as followings: 1 2 3 4 5...
  • Page 11 When select MLP2 (MERIT LILIN PROTOCOL 2), Camera ID setting as followings: 2 3 4 5 2 3 4 5 2 3 4 5 2 3 4 5 2 3 4 5 2 3 4 5 2 3 4 5...
  • Page 12 4 wiring system(full duplex) transmission mode: some system will require transmit and receive data at the same time. Baud Rate Setting BAUD RATE SELECTION DIP SWITCH 2400 bps 4800 bps 9600 bps 19200 bps Remark LILIN Protocol control mode is N, 8, 1 Baud Rate : 9600 bps...

  • Page 13: Rs-485 Protocol Dip Switch Setting

    MLP2 (MERIT LILIN PROTOCOL 2) VERSION MLP1 (MERIT LILIN PROTOCOL 1) VERSION Remark LILIN MLP1 (MERIT LILIN PROTOCOL 1) is same as PIH-717 Protocol. MLP2 (MERIT LILIN PROTOCOL 2) is new version LILIN Protocol. RS-485 Protocol Dip Switch of LILIN PIH-7625 series setting...

  • Page 14: Fast Dome Connection Jack And Cable Requirement

    Fast Dome Connection Jack and Cable Requirement Center Pin 1. Power In Jack DC12V Input Voltage, Power Consumption 1.2Adc, Center Pin 2.0mm Require Cable: 18 AWG x 2C 2. Video Out BNC Jack Video Signal Output CVBS 1.0Vpp 75 Recommend Data Cable: 5C2V 3.

  • Page 15: Installation

    INSTALLATION Indoor Installation Structural Drawing Embedded Mounting Attached Mounting...

  • Page 16: Outdoor Installation Structural Drawing (Pendant Mounting)

    Outdoor Installation Structural Drawing (Pendant Mounting)

  • Page 17: Embedded Mounting (False Ceiling)

    Embedded Mounting (False Ceiling) Step 1 Ceiling Preparation l Drill a 3/32" (2.4mm) hole at the center of l Use a pencil and a compasses to mark a the chosen area. circle 6.7" (170mm) in diameter and cut the circle. Step 2 The Ceiling Ring l Attach the ring to ceiling l Tighten the three tapping...
  • Page 18 Step 4 Camera Setting l Untighten the three l Turn the camera l Separate the camera l Unplug the screws from the base body anti-clockwise body and base connection cable Setting Fast Dome ID Setting Alarm Mode Setting RS-485 Protocol Setting Fan Power Step 5 Attach the Camera Body and Base l Reconnect the...
  • Page 19 Step 7 Install Camera Body and Decoration Ring l Put camera body and l Turn the camera body l Tighten three the fix ring into the hole clockwise to tight position black screws l Put on decoration l Turn the ring clockwise ring to tight position Step 8 Install The Dome Cover...

  • Page 20: Attached Mounting (Fixed Ceiling)

    Attached Mounting (Fixed Ceiling) Step 1 Fix The Base l Turn the dome cover l Separate the dome l Untighten the three anti-clockwise cover from camera screws from base l Turn the camera cover l Separate the camera l Unplug the anti-clockwise body to the base connection cable...
  • Page 21 Step 3 Attach Camera Body and Base l Reconnect the l Attach camera body l Turn camera body connection cable to base clockwise to tight position Step 4 Connection l Connect video l Connect alarm l Connect RS-485 signal cable cable cable Step 5 Install Decoration Ring...

  • Page 22: Pendant Mounting (External Housing)

    Pendant Mounting (External Housing) Step 1 Separate PSU and Bracket Untighten the screws Untighten and pull out Separate the housing Untighten the screws from PSU box and the bolt from the hinge and PSU box from PSU box open it. (Swan Neck) Step 2 Install Power Supply Unit 1.1 When use 24Vac power source: l Tighten 2 screws to...
  • Page 23 Step 4 Connection 4.1 Connect AC / DC cables: l Untighten the left l Connect the AC l Connect the AC l Connect the DC knob, put the AC power cable to AC power cable(below) power cable(above) power cable through Input jack to AC Output jack to DC Input jack...
  • Page 24 4.3 Connect Alarm and telemetry control (RS-485) cables: Untighten the right knob, Connect the Connect the Alarm put the Alarm and RS-485 telemetry control input cable to Alarm cables through the hole (RS-485) to RS-485 Input and tighten the knob Input (TXDI+,TXDI-) (Alarm 1 &...
  • Page 25 Step 6 Camera Setting Setting Fast Dome ID Setting Alarm Mode Setting RS-485 Protocol Setting Fan Power Step 7 Attach Camera Body and Base l Reconnect the l Attach camera l Turn camera body l Tighten the three connection cable body to base clockwise to high screws to fix the...
  • Page 26 Step 10 Connection l Connect the fan & heater l Connect the Fast Dome cable to pin jack cable to connection jack Step 11 Install The Power Box, Bracket and Housing PIH-510H l Attach the bracket l Tighten the 4 screws and housing to the box to fix the bracket PIH-510L...

  • Page 27: System Configuration

    SYSTEM CONFIGURATION LILIN's integrated Fast Dome Surveillance System is suitable for a wide range of surveillance applications. The system can be as single fast dome with one keyboard or encompassing as 64 domes with comprehensive matrix switching, PC control and even Digital Video Recording.
  • Page 28 Multiple Domes means that more than one fast dome is linked in the system. Each dome connects to next dome forming a serial linking. Each dome has an individual ID dip switch, which allows the keyboard to identify each fast dome and make command. Sometimes it is more convenient to wire a telemetry system in star configuration rather than daisy chain.

  • Page 29: Fast Dome, Matrix And Keyboard

    Fast Dome, Matrix and Keyboard Matrix System is designed to process multiple video systems and video switching. Its central process unit (CPU) can manage multiple video signals simultaneously and control other linking system, such as PIH-7000/7600/7625 fast dome or PIH-820 telemetry receiver. All telemetry remote control and signal transmissions are through twisted pair.

  • Page 30: Fast Dome, Dvr And Keyboard

    Fast Dome, DVR and Keyboard The DVR System is an advanced digital recording product, with long recording time and easy searching features. Telemetry remote control is twisted pair for data transmission to the fast dome. Fast Dome can be controlled directly from the control panel of the DVR, or from keyboard.

  • Page 31: Fast Dome With Pc Control

    Baud Rate 9600 bps). The PC control port RS-232 is converted to RS-485 format by interface. User may use their own software (protocol) or software provided by LILIN to control the dome. In this system up to 64 fast domes can be linked.

  • Page 32: Operation

    OPERATION Initial Power Up Inspection After the power is first applied to a dome it will perform a self-test procedure. This calibrates and checks the basic functions of the dome, control is not possible during this self-test period. Once the camera has stopped moving, it will then be ready to control. If preset positions and tours have been programmed into a dome and the power is turned off, the dome will enter the Auto Scan mode once the power is turned on again (after self-test period).

  • Page 33: Fast Dome Selection

    Fast Dome Selection To call out a dome controlling or setting To select 1st Fast Dome CAM ESC CAM SETUP 180 REV LENS SPEED AUTO Push key 1 followed by CAM key. SPRAY AUX LIGHT CTRL1 CTRL2 WIPER POWER To select 64th Fast Dome ALARM SETUP RESET...

  • Page 34: Focus Control

    On "ZOOM SPD" push joystick left or right to make selection. One of three speed can be selected: FAST = Tele - Wide : 3.5 seconds. MEDIUM = Tele - Wide : 6 seconds. SLOW = Tele - Wide : 52 seconds. To Exit Setup Menu CAM ESC Push...
  • Page 35 25X Fast Dome Camera Auto Focus & One Shot Focus Selection Recall Setup Menu CAM SETUP Push key to recall OSD menu. CTRL 1 MENU SETUP PAGE 1 MENU SETUP PAGE 2 MENU SETUP PAGE 3 : OFF : OFF 1.
  • Page 36 25X Fast Dome Camera Manual Focus Speed Setup Recall Setup Menu CAM SETUP Push key to recall OSD menu. CTRL 1 MENU SETUP PAGE 1 MENU SETUP PAGE 2 MENU SETUP PAGE 3 : OFF : OFF 1. INITIAL SET 9.

  • Page 37: Iris Control

    Iris Control The purpose of iris control is to adjust brightness on target. It can be set as Auto Iris or Manual Iris. Iris Open Push IRIS O key, to open the iris and brighten the picture. Iris will stop when the key is released. Iris Close CAM ESC CAM SETUP...

  • Page 38: Horizontal 180 Instant Flip

    Horizontal 180 Instant Flip Some times it is hard to use the joystick to control the camera tracking the target directly under the camera. The instant flip key can rotate the camera 180 instantly. This allows the camera continue to track the target passing directly under the camera. Two ways to operate 180 instant flip: 180 REV Push...
  • Page 39 Adjusting Lens ZOOM IN / OUT, FOCUS NEAR / FAR / AUTO and IRIS O / C / AUTO keys. When set up preset point, using manual focus will provide both clarity and stability of image. CAM ESC CAM SETUP 180 REV LENS SPEED AUTO...

  • Page 40: Preset Position Setting

    Recalling Preset Positions Once the required preset positions have been stored in a dome, they may be quickly recalled, returning the dome to exact position. To recall 1st Preset Position: Push key 1 followed by PRESET key. The dome will move to that position in speed of 360 /sec. : 1 PRESET keys Ex.

  • Page 41: Activating Auto Pan

    Activating Auto Pan When the Auto Pan function is activated, the fast dome will auto touring the preset groups entered. To activate Auto Pan: CAM ESC CAM SETUP 180 REV LENS SPEED AUTO Push AUTO PAN key, confirming the activation of SPRAY AUX LIGHT CTRL1...

  • Page 42: Alarm Output

    Alarm Response Mode The fast dome alarm response can be set to Lock or Release mode. Lock : dome remains at last alarmed preset point Release : dome moves between alarmed points then reverts to prior status, such as autopan. Lock Mode When an alarm is triggered, the dome will go to the relevant position at 360 /sec and the keyboard will audio alert the user until it is canceled manually.
  • Page 43 25X Fast Dome Function Setup The 25X Fast Dome Camera series provide on-screen setup menu, all functions can be selected and set via OSD Setup Menu. Recall Setup Menu CAM SETUP Push key to recall OSD menu. CTRL 1 MENU SETUP PAGE 1 MENU SETUP PAGE 2 MENU SETUP PAGE 3 : OFF...
  • Page 44 Initial Setting (Factory Default) To reset all functions back to initial factory setting. CAM SETUP Push key to recall OSD setup menu. CTRL 1 Move joystick to select 1st item "Initial Set" on menu and move joystick left or right to make selection.
  • Page 45 RET Mode Setting There are 3 return modes can be selected. (Off, Home, Seq.) Without any coming commend to keyboard controller or tracking object outside field of view and reach the setup return time, the system will active return mode function. OFF : Turn off return function HOME : Back to the preset 1 (not available when OP.
  • Page 46 CAM ESC Push key to exit menu or move joystick to select next item. AUX LIGHT Note : Using the Function button [ 5 Plus 1 Plus F4 button] on the keyboard controller to switch the "RET TIME" setting as ON / OFF Mode by cycle. Auto Gain Control Selection There are 3 different AGC levels can be selected.

  • Page 47: Back Light Compensation

    Sensitivity Up (Enhancement) Sensitivity Up function allows user to select different Video Gain (Y Gain) control. (Auto/On/Off) AUTO : System auto turn on or off Video Gain Control function according to target's brightness. ON : Video Gain Control Enhancement always on. OFF : Video Gain Control Enhancement always off.
  • Page 48 Back Light Compensation Zone Selection One of five different zone can be selected for BLC. (Factory Default is Center) To select BLC zone : CAM SETUP Push key to recall OSD setup menu. CTRL 1 Move joystick to select 8th item "BLC REGION" on menu. Move joystick right or left to make selection : "Top Bottom Left...
  • Page 49 White Balance Mode Selection One of four different White Balance Modes can be selected. (Factory Default is ATW) ATW : Auto Trace White Balance, is a feedback system that automatically aligns the white balance by detecting the R-G and B-G before gamma correction processing. AWC : Auto White Balance Correction, is performed at a faster operating speed than ATW without an operation or other limitations.
  • Page 50 ICR Switch One of three different ICR modes can be selected. (Factory Default is AUTO) AUTO : IR Cut filter auto switch according to Lux level. When light is over 5 Lux, IR Cut filter auto switch in and produce color image. When light drops below 3 Lux, IR Cut filter auto switch out and produce monochrome image, under monochrome mode sensitivity is increased to 0.01 Lux and can be use with IR lighting.
  • Page 51 To adjust gamma level : CAM SETUP Push key to recall OSD setup menu. CTRL 1 Move joystick to select 17th item "Gamma" on menu. Move joystick right or left to make selection : "0 ~ 7". MENU SETUP PAGE 3 MENU SETUP PAGE 3 8 selections 17.
  • Page 52 Aperture Correction Adjustment The 19th item to 24th item on the menu are different aperture correction function. User can adjust the aperture correct level. VHAPSL : Vertical & Horizontal Aperture Correction Slice level : 16 levels (Factory Default is 8) VAPSL : Vertical Aperture Correction Slice level : 8 levels (Factory Default is 4) HAPGL : Horizontal Aperture Correction (Low Band) Gain level : 4 levels (Factory Default is 2)
  • Page 53 Notes : When Private Mask is activated, the attached private mask will block certain area on screen when preset is recalled or in Auto Pan mode. When Private Mask is deactivated, there will be no private mask block any area on screen when preset is recalled or in Auto Pan mode.
  • Page 54 SPECIFICATION Operational Manual Pan / Tilt Speed 1 ~ 180 /sec (8 stages) Preset Position Pan / Tilt Speed 1 ~ 255 /sec Preset Position Dwell Time 1 ~ 255 sec Recall Preset Position Pan / Tilt Speed 360 /sec 180 Instant Flip Rotation Speed 360 /sec Pan Rotation...
  • Page 55 Optical Lens 25X Lens Focal Length = 3.8 ~ 95.0mm 25X Lens Maximum Aperture Ratio F1.6 (wide) ~ F3.7 (telephoto) 25X Horizontal View Angle 51.9 (wide) / 2.2 (telephoto) Focus Control Auto / One Shot / Manual (3 selections) Iris Control Auto / Manual (2 selections) Zoom In / Out Manual Control...
  • Page 56 External Housing Electrical Power Supply 24Vac or 90Vac ~ 260Vac (Option) Input Voltage 12Vdc Power Consumption 7.5W Control Interface RS-485 (1 Input / 1 Output) RS-485 Voltage 5.6V Alarm Input 6 Inputs (Pull up) Alarm Input Voltage 5.6V Alarm Output 1 Output (NC or NO mode setting) Alarm Output Voltage 0.5A 120Vac / 1A 24Vdc...

  • Page 57: Quick Reference Table

    APPENDIX A Quick Reference Table Function Operation To Tilt Up Push Joystick Forward To Tilt Down Push Joystick Down Pan / Tilt Control To Pan Left Push Joystick Left Push Joystick Right To Pan Right Dome Selection Numeric Key + CAM Zoom In ZOOM IN Zoom Out...
  • Page 58 APPENDIX B Trouble Shooting 1. No Power 1-1. Check power input connection 1-2. Check fuse on the PCB 1-3. Check connection between camera body and base 2. No Video 2-1. Check camera video output on camera 2-2. Check cable (damaged cable) 2-3.
  • Page 59 MERIT LILIN ENT. CO., LTD http://www.meritlilin.com 66-7625TCSE...
