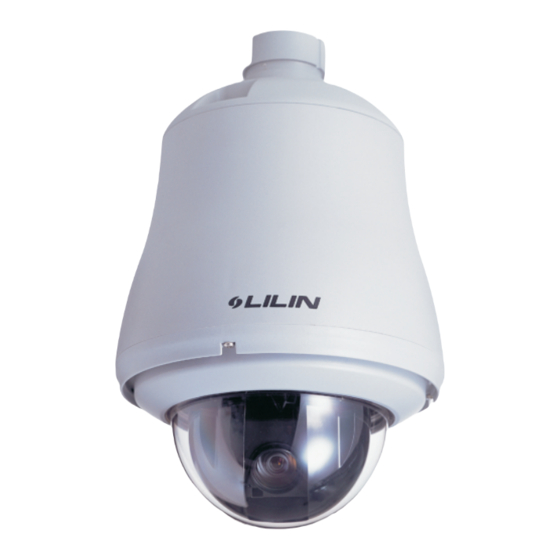

OUTDOOR D/N WDR 700TVL FAST DOME CAMERA
SP8264/8268 N/P & SP8364/8368 N/P
OUTDOOR D/N WDR 700TVL FAST DOME IP CAMERA
IPS8264/8268 N/P & IPS8364/8368 N/P
OUTDOOR HUMAN TRACKING FAST DOME CAMERA
ST8264/8268 N/P & ST8364/8368 N/P
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP 8264 and is the answer not in the manual?

Questions and answers

Summary of Contents for Lilin SP 8264

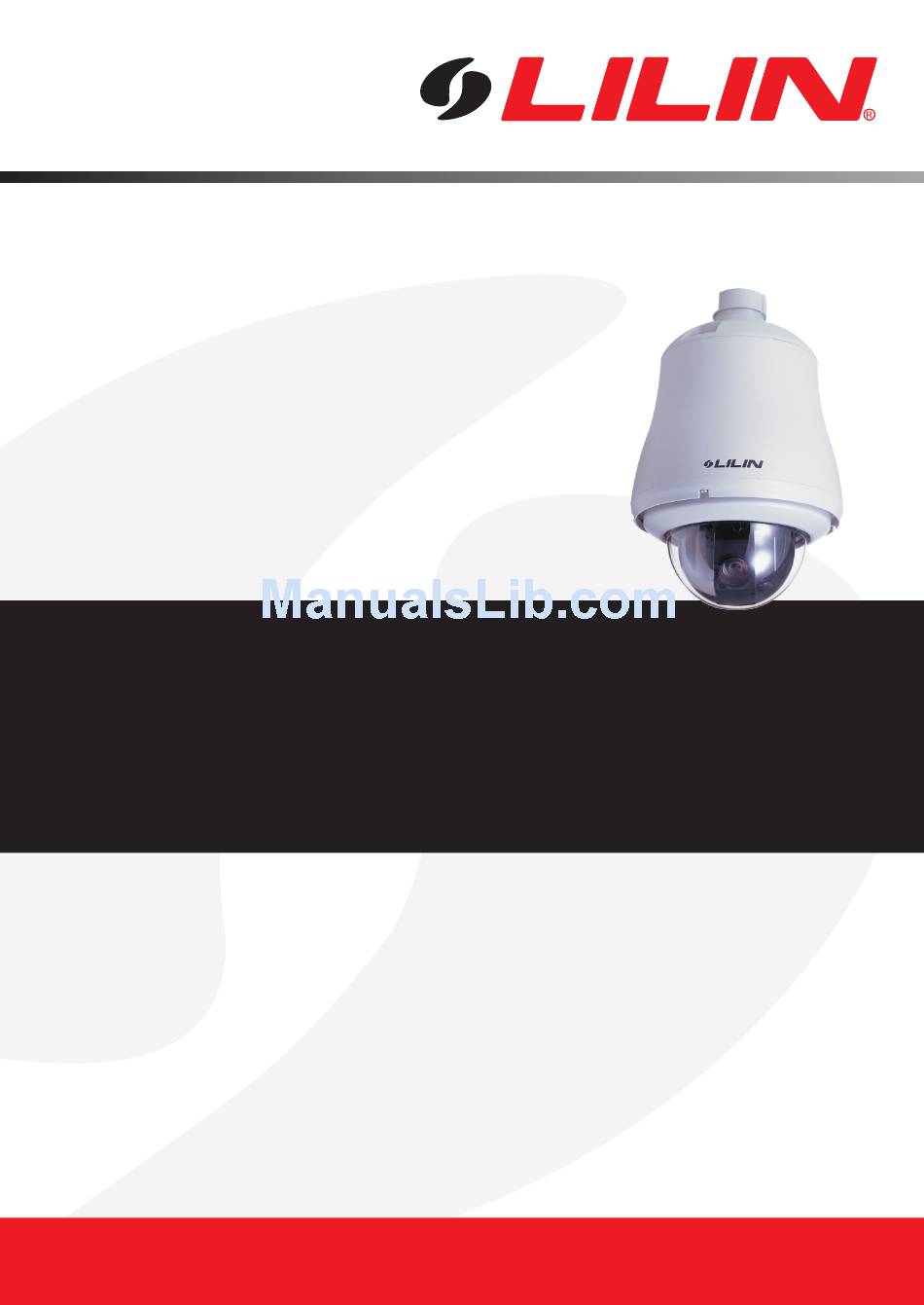

  • Page 1 OUTDOOR D/N WDR 700TVL FAST DOME CAMERA SP8264/8268 N/P & SP8364/8368 N/P OUTDOOR D/N WDR 700TVL FAST DOME IP CAMERA IPS8264/8268 N/P & IPS8364/8368 N/P OUTDOOR HUMAN TRACKING FAST DOME CAMERA ST8264/8268 N/P & ST8364/8368 N/P INSTRUCTION MANUAL...
  • Page 2: Table Of Contents

    CONTENTS Pages Preface Features Warnings & Cautions Structural Element Fast Dome Camera Set Up    RS-485 Protocol Switch Setting    Fast Dome ID Address Setting Refer Chart    Fast Dome Connection Jack and Cable Requirement Installation    Outdoor AC24V Model (Easy Installation) System Configuration    Fast Dome and Keyboard    Fast Dome, Matrix and Keyboard    Fast Dome with PC Control...
  • Page 3      Display the Camera Setting Menu        Auto Focus Setting        Zoom Speed Setting        Focus Speed Setting        Auto Iris Setting      Advanced Setting        Shutter/AGC Setting        White Balance Setting        HLC (High Light Compensation) Setting        Day/Night Setting        Night Environment Setting        Synchronization Mode Setting        Image Setting    Pan/Tilt Setting Menu      Display the Pan/Tilt Setting Menu      Home Position Setting      Self Return Time Setting...
  • Page 4: Preface

    Zoom, Wide Dynamic Range, Digital Noise Reduction, High Light Compensation and Digital Image Stabilizer. LILIN's D/N WDR 700TVL Fast Dome series measure only 210mm in diameter and is capable of making 360 degrees continuous rotation with a speed range of 0.15 to 360 degrees per second, ensures direct and accurate target positioning.
  • Page 5: Features

    FEATURES 26X Auto Focus Lens Build-in 26X optical zoom lens with focal length 3.2~83.2mm 36X Auto Focus Lens Build-in 36X optical zoom lens with focal length 3.3~119mm 700 Horizontal TV lines Automatic / Manual Iris Control Preset ID / Name Preset Background Environment File Private Mask 360°...
  • Page 6 Human Tracking Fast Dome Camera Function:(ST826X/836X series)  1. Human Tracking Fast Dome Camera series are smart sensor and built-in intelligent video   processing which has surveillance applications on,   (1) Moving object detection.   (2) Tracking and zooming moving object.  2. Human Tracking Fast Dome Camera series have two modes:   (1) Manual tracking mode (Keyboard mode).
  • Page 7: Warnings & Cautions

    WARNINGS & CAUTIONS Please read the manual before attempting installation or operation 1. Please be aware to the warnings and cautions notice. 2. Don't use any chemical detergent to clean the machine surface, use a damp cotton cloth only. Regularly clean the dome cover to assure proper focus ability. 3.
  • Page 8: Structural Element

    STRUCTURAL ELEMENT Dome Cover RS-485 In/Out Terminal Camera Case Video Out Jack Upper Base Alarm In/Out connector Power In Jack (AC100 ~ 240V) RJ45 Network Connector Power In Jack (AC24V) [IPS826X/836X]...
  • Page 9: Fast Dome Camera Set Up

    FAST DOME CAMERA SET UP DIP Switch Setting 1 2 3 4 5 6 7 8 9 10 1 2 3 4 5 6 7 8 9 10 Remark: Black icon of the DIP Switch bump. Camera ID Switch RS-485 Protocol Switch RS-485 Protocol Switch Setting  Explanation of DIP Switch Setting :  1.
  • Page 10            position of a fast dome camera. Please refer to MERIT LILIN            PROTOCOL2 (MLP2) for detail of command format. RS-485 Protocol DIP Switch of LILIN Outdoor D/N WDR 700TVL Fast Dome (IP) Camera / Outdoor Human Tracking Fast Dome Camera Series Setting...
  • Page 11: Fast Dome Id Address Setting Refer Chart

    Therefore each dome is addressing by ID switch located at the base of the Fast Dome. Remark: Black icon of the DIP Switch bump.   When select MLP1 (MERIT LILIN PROTOCOL 1), Camera ID setting as followings: 1 2 3 4 5...
  • Page 12 When select MLP2 (MERIT LILIN PROTOCOL 2), Camera ID setting as followings: 8 9 10 8 9 10 8 9 10 8 9 10 8 9 10 8 9 10 8 9 10 8 9 10 8 9 10 8 9 10...
  • Page 13 8 9 10 8 9 10 8 9 10 8 9 10 8 9 10 8 9 10 8 9 10 8 9 10 8 9 10 8 9 10 8 9 10 8 9 10 8 9 10 8 9 10 8 9 10 8 9 10 8 9 10...
  • Page 14 8 9 10 8 9 10 8 9 10 8 9 10 8 9 10 8 9 10 8 9 10 8 9 10 8 9 10 8 9 10 8 9 10 8 9 10 8 9 10 8 9 10 8 9 10 8 9 10 8 9 10...
  • Page 15: Fast Dome Connection Jack And Cable Requirement

    Fast Dome Connection Jack and Cable Requirement AC100~240V Power Cable AC24V Power Cable RS-485 Twisted Pair Cable To Keyboard or Matrix . ..etc. Video Signal Cable To Monitor Alarm In/Out Cable To PIR CAT5 Network Cable 1. AC100 ~ 240V Power Cable 2.
  • Page 16 b. Prepare the individual conductors for clamping. After clamping the contacts, push them   into the proper holes in the accessory connector of this camera until they snap in place. Contact CAUTIONS : CONNECT THIS TO 24V AC CLASS 2 POWER SUPPLY ONLY. 3.
  • Page 17: Installation

    INSTALLATION Step 1 Separate bracket from base of bracket Untighten four screws Separate bracket and from bracket base of bracket from top of bolt. Step 2 Fix base of bracket on the wall 70mm 60mm Drill holes on desired Tighten four screws to If this circle hole is location fix the base of bracket...
  • Page 18 Step 4 Fast Dome Camera Setting Untighten three screws Separate the dome Setup ID numbers of Attach the dome cover from dome cover cover from camera fast dome camera and to camera case case RS-485 protocol. Tighten three screws to fix the dome cover Step 5 Connect Jack TXDI+ TXDI -...
  • Page 19: Outdoor Ac24V Model (Easy Installation)

    Step 6 Fix bracket and outdoor fast dome camera with base Tighten four screws to Use rubber cover to Complete outdoor bracket chock outlet of un-use fast dome camera cable installation Outdoor AC24V Model (Easy Installation) Step 1 Unmounting the camera Untighten three screws Turn the camera case Separate the camera...
  • Page 20: System Configuration

    SYSTEM CONFIGURATION LILIN's integrated Fast Dome Surveillance System is suitable for a wide range of surveillance applications. The system can be as single fast dome with one keyboard or encompassing as 64 domes with comprehensive matrix switching, PC control and even Digital Video Recording.
  • Page 21 Multiple Domes means that more than one fast dome is linked in the system. Each dome connects to next dome forming a serial linking. Each dome has an individual ID dip switch, which allows the keyboard to identify each fast dome and make command. Sometimes it is more convenient to wire a Ⅲ...
  • Page 22: Fast Dome, Matrix And Keyboard

    Fast Dome, Matrix and Keyboard Matrix System is designed to process multiple video systems and video switching. Its central process unit (CPU) can manage multiple video signals simultaneously and control other Ⅲ linking system, such as fast dome or PIH-820 telemetry receiver.
  • Page 23: Fast Dome With Pc Control

    9600 bps). The PC control port RS-232 is converted to RS-485 format by interface. User may use their own software (protocol) or software provided by LILIN to control the dome. In this system up to 64 fast domes can be linked.
  • Page 24: Fast Dome, Dvr And Keyboard

    Fast Dome, DVR and Keyboard The DVR System is an advanced digital recording product, with long recording time and easy searching features. Telemetry remote control is twisted pair for data transmission to the fast dome. Fast Dome can be controlled directly from the control panel of the DVR, or from keyboard. Each DVR (Digital Video Recorder) can manage 16 video signals and via RS-485 ot daisy connection 16 sets of fast dome camera.
  • Page 25: Fast Dome Ip Camera With Pc Control

    Fast Dome IP Camera with PC Control The Fast Dome IP Camera can be connected via RJ-45 Ethernet cable that provides both Internet and/ or Intranet access. Multiple Fast Dome IP Cameras can be connected with in a Hub or multiple Hubs. Please consult your network administrator for network architecture and software settings.
  • Page 26: Operation

    OPERATION Initial Power Up Inspection After the power is first applied to a dome it will perform a self-test procedure. This calibrates and checks the basic functions of the dome, control is not possible during this self-test period. Once the camera has stopped moving, it will then be ready to control. If preset positions and tours have been programmed into a dome and the power is turned off, the dome will enter the Auto Scan mode once the power is turned on again (after self-test period).
  • Page 27: Fast Dome Selection

    Fast Dome Selection To call out a dome controlling or setting  To select 1st Fast Dome LENS  ICR  C.ESC ALARM MATRIX WIPER SPRAY LIGHT RESET Push key   followed by   key. C.SET 。 SEARCH PRESET CTRL1 CTRL2  To select 64th Fast Dome AUTO Push key  ...
  • Page 28: Iris Control

    Iris Control The purpose of iris control is to adjust brightness on target. It can be set as Auto Iris or Manual Iris. 1. Iris Open Push   key, to open the iris and brighten the picture. LENS  ICR  C.ESC ALARM MATRIX WIPER SPRAY...
  • Page 29 Joystick Control Move the Joystick to bring the camera to the desired view position. Adjusting Lens ZOOM IN / OUT, FOCUS NEAR / FAR / AUTO and IRIS O / C / AUTO keys. When set up preset point, using manual focus will LENS ...
  • Page 30: Recalling Preset Positions

    Recalling Preset Positions Once the required preset positions have been stored in a dome, they may be quickly recalled, returning the dome to exact position.             To recall 1st Preset Position: Push key followed by key. PRESET    。...
  • Page 31: Activating Auto Pan

    Activating Auto Pan When the Auto Pan function is activated, the fast dome will auto touring the preset groups entered.   To activate Auto Pan: ALARM LENS  ICR  C.ESC AUTO MATRIX Push   key, confirming the activation of autopan. WIPER SPRAY LIGHT RESET C.SET...
  • Page 32: Alarm Management

    Alarm Management The 6 alarm inputs of each fast dome are corresponding with the first 6 preset positions. When 。 an alarm signal is triggered, the dome will go to the relevant position at 360 /sec. Make sure the first 6 preset positions are set to desired alarm areas. Alarm input can be set to NC (normally close) or NO (normally open) depends on alarm detector.
  • Page 33: Setup Menu Tree

    SETUP MENU TREE SETUP LANGUAGE ENGLISH MENU DISPLAY PRESET ID SETUP ZOOM RATIO ALARM MESSAGE TIME DATE/TIME DATE DATE FORMAT PAN/TILT ANGLE AUTO PAN AREA TITLE DOME CAMERA AUTO FOCUS AUTO SETTINGS ONE PUSH ZOOM SPEED FOCUS SPEED AUTO IRIS LEVEL HIGH LUM.
  • Page 34 PAN/TILT HOME POSITION SELF RETURN TIME SELF RETURN MODE AUTO EDIT POSITION AUTO MODE DWELL TIME PRESETS PRESET NUMBER SCAN SPEED PRESET MAP PATROL LEARN EDIT POSITION CLEAR EDIT ID SCENE FILES EXPOSURE MODE DWELL TIME WHITE BALANCE SPEED CLR PRESET TOURS NUMBER EDIT TOUR...
  • Page 35: Fast Dome Camera Function Setup

    Press   key on the keyboard to recall Setup Menu. CTRL1 Press   key to exit setup menu or push joystick down to select <EXIT>, and then press    key to exit setup menu. C.SET CTRL1   MERIT LILIN FAST DOME NOTE LANGUAGE ENGLISH Enter Exit Buttons Description <DISPLAY SETUP>...
  • Page 36: Display System Information

    2. Camera, Pan/Tilt, Receiver version 3. Font of OSD version 4. Protocol rate and format 5. Fast dome ID number 6. Protocol version, LILIN717 (LILIN MLP1), LILIN MLP2 Display Character Setup Menu 1. Display Character Setup Menu Press   key into Setup Menu.
  • Page 37 3. Zoom Ratio Setting Push joystick down to select <ZOOM RATIO>, and then push joystick left or right to make selection: OFF : No Zoom Ratio on the monitor screen. ON : Zoom Ratio on the monitor screen. 5~30 sec : Display elapsed time. Zoom Ratio will have been displayed on the monitor screen     ...
  • Page 38 (3) Date Format Setting    Push joystick down to select <DATE FORMAT>, and then push joystick left or right to    adjust format of date. yy / mm / dd → mm / dd / yy → dd / mm / yy 6.
  • Page 39   USER AREA AREA NUMBER <EDIT POSITION> <EDIT TITLE> ABOVE NUM CLR AREA BACK EXIT 1. Push joystick down to select <AREA NUMBER>, and then push joystick left or right to  select area number. (1~6) 2. Push joystick down to select <EDIT POSITION>, and then press   key into Area Position C.SET CTRL1  setting.
  • Page 40: Display Dome Function Setup Menu

    (3) Modify Area title    Push joystick down to select [EDIT AREA] on the area title setting, and push joystick    right to select modifiable characters.    Push joystick down to select new characters, and press   key to chose. C.SET CTRL1 (4) Cancel Area Title   ...
  • Page 41: Camera Setting Menu Display

    Camera Setting Menu Display 1. Display the Camera Setting Menu After getting in dome setting menu, push joystick down to select <CAMERA>, and then press    key into camera setting menu. C.SET CTRL1   CAMERA AUTO AUTO FOCUS ZOOM SPEED MID. FOCUS SPEED AUTO IRIS LEVEL <ADVANCED SETTING>...
  • Page 42: Shutter/Agc Setting

      ADVANCED SETTING    AUTO SETUP SHUTTER/AGC <MANUAL> HIGH LUM. MODE SHUT WHITE BAL <ATW>  BRIGHTNESS <HLC> LOW LUM. MODE DAY/NIGHT AUTO  GAIN 25dB NIGHT ENV. NORMAL  SHUT ---- SYNC  BRIGHTNESS x0.50 <IMAGE> BACK EXIT BACK EXIT (1) SHUTTER/AGC Setting    Push joystick down to select <SHUTTER/AGC>, and then push joystick left or right   ...
  • Page 43  BRIGHTNESS:  Push joystick down to select <BRIGHTNESS>, and then push joystick left or  right to adjust brightness level of darker part. x0.25 → x0.50 → x0.75 → x1.00    1-3. BLC Setting:      When “AUTO” is selected, the brightness gain is automatically controlled for      backlight compensation in response to the light intensity detection window.
  • Page 44: White Balance Setting

       2-2. WDR+SHUT Mode:      This mode can set a fixed WDR and shutter speed with iris to exhibit image effect.       Push joystick down to select <SHUT>, and then    MANUAL SETUP       push joystick left or right to make selection. MODE WDR+SHUT 1/53 1/53(63) →...
  • Page 45    1-3. ATW FRAME:       Push joystick down to select <ATW FRAME>, and then push joystick left or right       to make selection. X0.5 → X1.0 → X1.5 → X2.0    1-4. ENVIRONMENT:       Push joystick down to select <ENVIRONMENT>, and then push joystick left or       right to select INDOOR mode or OUTDOOR mode.
  • Page 46: Hlc (High Light Compensation) Setting

      5. ANTICR:    This mode suppresses the color rolling which arises when there are slight deviations    between blinking frequency of non-inverter fluorescent lights and the drive frequency    of the image sensor devices.    Note: Color rolling suppression (HIGH LUM. MODE = SHUT).      ...
  • Page 47: Night Environment Setting

       DAY/NIGHT SCHEDULE DAY→NIGHT 18:00 NIGHT→DAY 06:00 BACK EXIT      Push joystick down to select <NIGHT→DAY>, and then press   key into time C.SET CTRL1      setting. Push joystick left or right to select time of NIGHT→DAY. Then press C.SET CTRL1      key again to next item.      06 : 00 →  ...
  • Page 48   ADVANCED SETTING       IMAGE-1 SHUTTER/AGC <MANUAL> DIGITAL EFFECT WHITE BAL <ATW> CONTRAST <HLC> SHARPNESS DAY/NIGHT AUTO NIGHT ENV. NORMAL R-GAIN SYNC B-GAIN <IMAGE> <NEXT> BACK EXIT BACK EXIT   1. DIGITAL EFFECT:    The flip function enables the analogue output’s image to flip from top/bottom, left/    right or to spin 180°.
  • Page 49: Pan/Tilt Setting Menu

          IMAGE-1       IMAGE-2 DIGITAL EFFECT 3D-NR CONTRAST E-ZOOM SHARPNESS R-GAIN B-GAIN <NEXT> BACK EXIT BACK EXIT   7. 3D-NR (3D Noise Reduction):     Push joystick down to select <3D-NR>, and then push joystick left or right to select     “ON”...
  • Page 50: Self Return Time Setting

    3. Self Return Time Setting Push joystick down to select <SELF RETURN TIME>, and then push joystick left or right to select return time: OFF → 3sec → 4sec → .... → 9sec → 10sec → 20sec → 30sec → 40sec → 50sec 60min ←...
  • Page 51: Auto Scan Mode Setting

    6. Auto Scan Mode Setting Push joystick down to select <SELF RET. MODE> or <AUTO MODE>, and then push joystick left or right to select <AUTO>, then press   key into auto scan mode setting. C.SET CTRL1   AUTO SCAN <EDIT POSITION> DWELL TIME 5 Sec SCAN SPEED...
  • Page 52: Preset Function Setting Menu

      PATROL LEARN MEMORY 100 PERCENT (2) Clear Memory of Patrol    Push joystick down to select <CLEAR>, and then press   key to clear all memory of C.SET CTRL1    patrol. Preset Function Setting Menu 1. Display the Preset Setting Menu After getting in dome setting menu, push joystick down to select <PRESETS>, and then press   ...
  • Page 53 3. Preset Position Setting C.SET Push joystick down to select <EDIT POSITION>, and then press   key into preset position CTRL1 setting. FOCUS Push joystick left, right, up, or down to start position, and then press   ,   ,   ,   , FOCUS NEAR   ...
  • Page 54 (5) Preset ID Position Setting    Push joystick down to <POSI>, and then press   key to get in. C.SET CTRL1 C.SET    Push joystick to move preset ID to needful position of frame, and then push   key to CTRL1    confirm. (6) Return Preset Menu   ...
  • Page 55: Tour Function Setting Menu

    Tour Function Setting Menu 1. Display the Tour Setting Menu After getting in dome setting menu, push joystick down to select <TOURS>, and then press    key into tours setting menu. C.SET CTRL1 2. Tour Number Selection   TOURS Push joystick down to select <NUMBER>, and then push NUMBER joystick left or right to select Tour1 or 2.
  • Page 56: Privacy Zones Setting Menu

    Privacy Zones Setting Menu 1. Display the Privacy Zones Setting Menu After getting in dome setting menu, push joystick down to select <PRIVACY ZONES>, and then press   key into privacy zones setting menu. C.SET CTRL1   PRIVACY ZONES NUMBER MODE <EDIT ZONE> CLEAR BACK EXIT...
  • Page 57: Alarms Setting Menu

    Alarms Setting Menu 1. Display the Alarms Setting Menu After getting in dome setting menu, push joystick down to select <ALARMS>, and then press    key into alarms setting. C.SET CTRL1    ALARMS POSI 1 POSI 2 POSI 3 POSI 4 POSI 5 POSI 6 IN MODE...
  • Page 58: Password Function Menu (Ip Camera Not Support)

    4. Alarm Output Control Setting Push joystick down to select <OUT>, and then push joystick left or right to select alarm output mode: OFF → IN 1 → IN 2 → IN 3 → IN 4 → IN 5 → IN 6 → ANY OFF: NO action.
  • Page 59 Push joystick down to select <OK>, and then press   key to confirm and back to password C.SET CTRL1 C.SET function menu, or push joystick down to select <CANCEL>, and then press   key to cancel CTRL1 password. These numbers of Edit column will be reset to "1111". Note: When edit password setting and camera recording function are simultaneously performed,   ...
  • Page 60: Restore Factory Defaults

    Restore Factory Defaults 1. Display the Restore Function Initialization Menu After getting in dome setting menu, push joystick down to select <FACTORY INITIAL>, and then press   key into factory initial setting. C.SET CTRL1 RESTORE FACTORY DEFAULTS RESTORE BACK EXIT 2. Factory Initial for All Push joystick down to select <RESTORE>, and then push joystick left or right to select <ALL>.
  • Page 61: Schedule Setup Menu

    Press   key into setup menu. C.SET CTRL1 Push joystick down to select <SCHEDULE SETUP>, and then press   key into schedule C.SET CTRL1 setting.   MERIT LILIN FAST DOME   SCHEDULE SETUP ENGLISH LANGUAGE <ALARM IN> <DISPLAY SETUP> <STARTUP AUTO OPTIONS> <DOME SETTINGS>...
  • Page 62: Startup Auto Options Menu

    4. End Time Setting C.SET Push joystick down to select <END>, and then press   key into time setting. Then push CTRL1 joystick left or right to select end time and press   key for next item. C.SET CTRL1 08 : 00 →   → 08 : 00 →   → 08 : 00 C.SET C.SET CTRL1...
  • Page 63: Daylight Saving Time Menu

    Example:   1. 12:00, perform SEQ. Mode  2. 13:00, STOP (If "self return mode" is home, "home position setting" is 1, and "self return       time" is 10 min, camera will be performed "self return mode" function and recall       preset position 1 by 13:10.)  3.
  • Page 64: Specification

    SPECIFICATION Operational Manual Pan / Tilt Speed 0.15° ~ 120°/sec (8 stages) Preset Position Pan / Tilt Speed 1° ~ 255°/sec Preset Position Dwell Time 1 ~ 255 sec Recall Preset Position Pan / Tilt Speed 360°/sec 。 180 Instant Flip Rotation Speed 360°/sec Pan Rotation 360°...
  • Page 65: Optical Lens

    Optical Lens 26X Lens f = 3.2 ~ 83.2mm Focal Length F1.6 (wide) ~ F3.8 (telephoto) Aperture Max View of Angle W: 74.8°(D) 61.2°(H) 46.5°(V) T : 3.1°(D) 2.5°(H) 1.8°(V) 36X Lens Focal Length f = 3.3 ~ 119mm Aperture Max F1.4 (wide) ~ F4.2 (telephoto) View of Angle W: 72.5°(D) 60.1°(H) 46.3°(V)
  • Page 66: Appendix A Quick Reference Table

    APPENDIX A Quick Reference Table Function Operation To Tilt Up Push Joystick Forward To Tilt Down Push Joystick Down Pan / Tilt Control To Pan Left Push Joystick Left Push Joystick Right To Pan Right Dome Selection Numeric Key + CAM Zoom In ZOOM IN Zoom Out...
  • Page 67: Appendix B Trouble Shooting

    APPENDIX B Trouble Shooting 1. No Power 1-1. Check power input connection 1-2. Check connection between camera body and upper base (AC24V Model) 2. No Video 2-1. Check camera video output on camera 2-2. Check cable (damaged cable) 2-3. Check video input connection on monitor 2-4.
  • Page 68: Appendix C Pelco Operation

    PELCO OPERATION RS-485 Protocol Setting and DIP SWITCH Selection RS-485 Terminal Resistance Setting (PELCO D/P for parallel system) In parallel system, MUST turn the resistance of the first and last terminal to ON position, and the resistance of nodes in-between to OFF position. This will insure the transmission interface in best condition.
  • Page 69 PELCO D Camera ID Switch Setting DIP SWITCH CAMERA ID 1 CAMERA ID 2 CAMERA ID 3 CAMERA ID 4 CAMERA ID 5 CAMERA ID 253 CAMERA ID 254 PELCO P Camera ID Switch Setting DIP SWITCH CAMERA ID 1 CAMERA ID 2 CAMERA ID 3 CAMERA ID 4...
  • Page 70  Move the joystick “up” and “down” to selection function. Move the joystick “right” and “left”  to change the settings. Push [IRIS OPEN] in menu homepage to store the setting changes or  continue to another page. Push [IRIS CLOSE] in menu homepage to leave the settings. 8. Other settings please refer to LILIN instruction manual.
  • Page 71 PELCO D/P FUNCTION TABLE Operation Function Keyboard PELCO D Set or Recall Preset Position (1~32) Number + PRESET PELCO P Set or Recall Preset Position (1~32/ 41~90/ 106~128) Number + PRESET 180° Horizontal Instant Flip Number 3 3 + PRESET Return Home Position Number 3 4 + PRESET Perform Auto Scan mode (SCAN)
