Summary of Contents for Lilin PIH-802

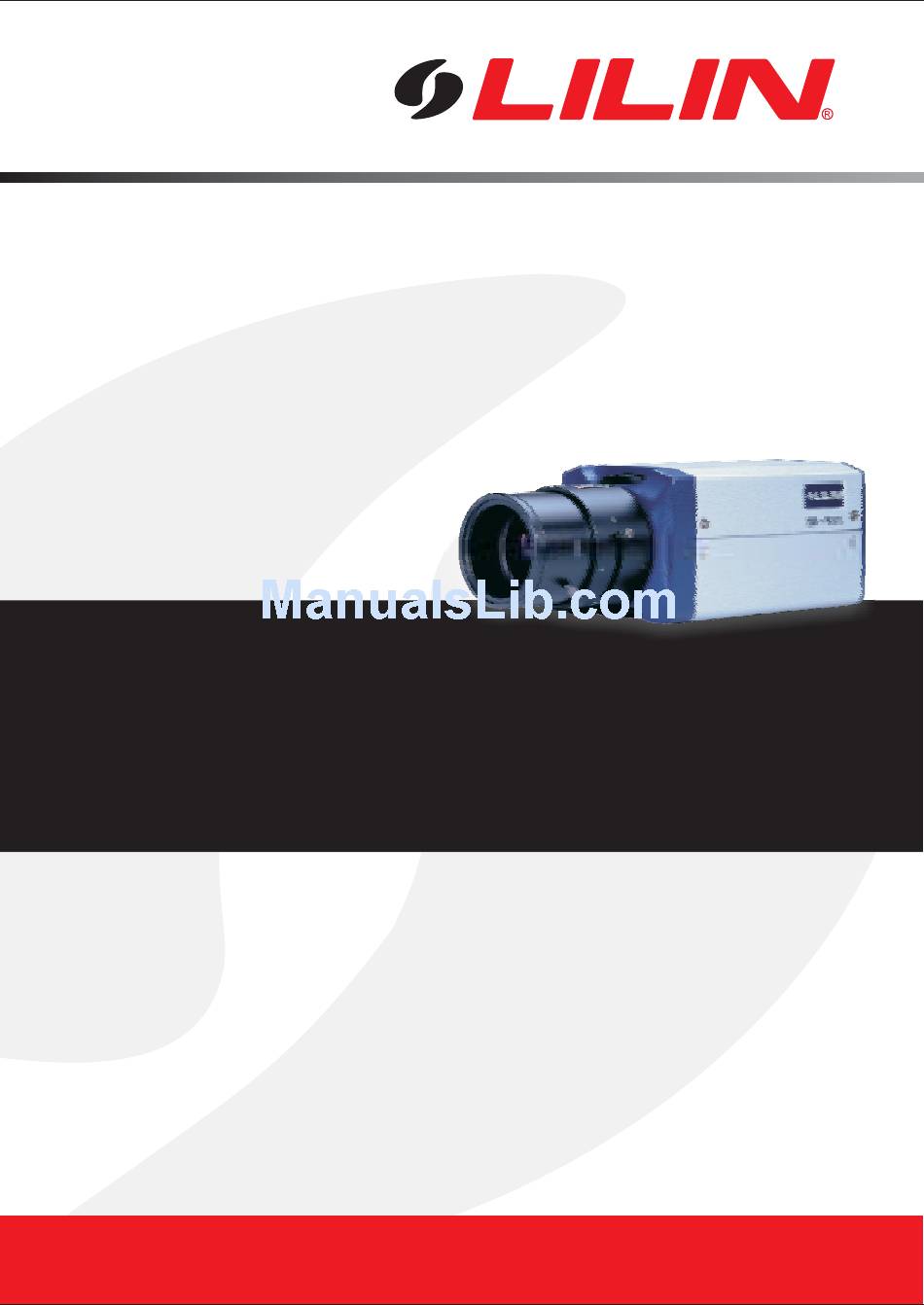

- Page 1 DAY&NIGHT CAMERA PIH-802/804/808 Series INSTRUCTION MANUAL...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. GRAPHIC SYMBOL EXPLANATION The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"... - Page 3 CAUTION Do not drop or strike this equipment. Sensitive electronics inside are vulnerable to excessive shock. Do not install the equipment near any naked flames or heat sources. Excessive heat could damage this unit. Do not expose this unit to rain or excessive moisture, avoid smoke and dust.
- Page 4 CONGRATULATIONS Thank you for purchasing this high quality color camera. You now own one of the many fine CCTV products we manufactured. This product has been carefully inspected under rigid quality control and should reach you in perfect condition. With reasonable care, it will provide years of reliable performance.
- Page 5 WARRANTY INFORMATION Please complete the following product purchase information. The factory will requests this information when contacted for technical support, or warranty repair. It is also valuable in case of loss or theft. Purchase Date Serial Number Model Number TABLE OF CONTENTS FEATURES PART DESCRIPTION INSTALLATION...

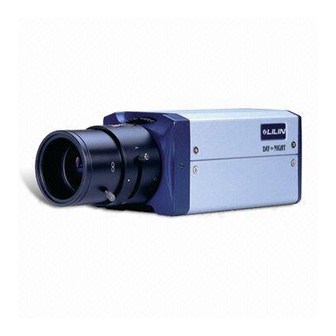

- Page 6 FEATURES The PIH-802/804/808 series Day&Night Camera introduces a new level of high quality picture. The compact full performance, general purpose color DSP camera, which use high sensitive 1/3" interline transfer CCD. It delivers high resolution superior color images in day condition, and clear sharp monochrome pictures in night condition.
- Page 7 LINE-LOCK / INTERNAL With AC camera the Line Lock facility enables roll free picture switching. The Internal Sync. Function uses a crystal to control the camera frequency independently of the AC supply. (DC cameras have only Internal Sync, AC cameras have Line Lock.) ACCEPT VIDEO OR DC DRIVE AUTO IRIS LENS Both types of Auto Iris lens can be used;...
- Page 8 POWER PIH-8026N IRCUT IRIS LEVEL AWB1 AWB2 AUDIO AWB3 LL.PHASE VIDEO AC24V / DC 12V PIH-8026/8046/8086 POWER PIH-8028N IRCUT IRIS LEVEL AWB1 AWB2 AUDIO AWB3 LL.PHASE VIDEO AC90~260V PIH-8028/8048/8088...
- Page 9 LENS MOUNT CAP Prevent damages to the image sensor and to keep dust away. FOCAL LENGTH ADJUSTMENT RING AND LOCKING SCREW Use this ring to adjusts the back-focal distance or picture focus. Rotate this ring clockwise or counterclockwise for a CS-mount lens. Use the locking screw to lock the focal length.
- Page 10 AES (AUTOMATIC ELECTRONIC SHUTTER) ON/OFF SWITCH When using a manual iris lens or fixed iris lens, set this switch to ON. Switching the switch to the OFF while the auto iris lens in use. AGC (AUTOMATIC GAIN CONTROL) ON/OFF SWITCH The AGC function automatically adjusts picture gain in accordance with the brighness of the subject.
- Page 11 : ATW is the Auto Trace White Balance mode that automatically aligns the white balance, as the color temperature is 2500K~9500K. PUSH : Push mode is performed at a faster operating speed than ATW without and operation frame, as the color temperature is 2500K~9500K. HOLD : Convergence Operation is stopped when shifting to Hold mode, as the color temperature is 2500K~9500K.
- Page 12 AUDIO OUT CONNECTOR Audio signal output. IRIS LEVEL ADJUSTMENT VOLUME Adjusts the signal level when DC control type auto iris lens is in use. VIDEO OUTPUT CONNECTOR Composite vide signal output. LL (LINE-LOCK) PHASE ADJUSTMENT PUSH BUTTON Adjusts the line-lock delay phase. Press to match the vertical phase for both video output signals as closely as possible.
- Page 13 CHANGING THE PLUG ON AN AUTO IRIS LENS CABLE The camera is supplied with a plug to fit the AUTO IRIS connector. To connect an auto iris lens, first replace the plug on the lens cable with the supplied plug. Solder the lens cable to the pins of the supplied plug (For cable pin assignment, refer to the instruction manual for the lens.).
- Page 14 FITTING THE LENS Remove the lens mount cap. Screw in the C mount ring(not supplied), unit it is secured. When using a CS mount lens skip step2. Screw in the lens, unit it is secured. Insert the lens plug in the AUTO IRIS connector, when fitting a manual- iris lens, skip step4.
- Page 15 FITTING THE CAMERA 1. The mounting base can be attached to either the top or bottom of the camera. 2. Tighten the screw to attach the mounting base. Please refer to the following drawing. IG H T D A Y N IG H T D A Y N CONNECTION OF POWER SUPPLY CABLE (AC24V or DC12V)
- Page 16 DC IRIS LEVEL ADJUSTMENT Adjust DC iris level manually. Please refer to the above drawing. IRIS LEVEL AUDIO ATTENTION Adjust this VR with care so as not to cause damage to the unit.
-
Page 17: Specifications
SPECIFICATIONS DAY & NIGHT CAMERA Model No. PIH-8026 N/P PIH-8028 N PIH-8028 P System NTSC or PAL NTSC Power Input Voltage DC12V/AC24V AC90V ~ 260V Line-Lock/Internal Selectable Sync. Mode DC12V : Sync. Mode is fixed to Internal Pick Up Element 1/3"... - Page 18 HIGH RESOLUTION DAY & NIGHT CAMERA Model No. PIH-8046 N/P PIH-8048 N PIH-8048 P System NTSC or PAL NTSC Power Input Voltage DC12V/AC24V AC90V ~ 260V Line-Lock/Internal Selectable Sync. Mode DC12V : Sync. Mode is fixed to Internal Pick Up Element 1/3"...
- Page 19 SUPER EYE HIGH RESOLUTION DAY & NIGHT CAMERA Model No. PIH-8086 N/P PIH-8088 N PIH-8088 P System NTSC or PAL NTSC Power Input Voltage DC12V/AC24V AC90V ~ 260V Line-Lock/Internal Selectable Sync. Mode DC12V : Sync. Mode is fixed to Internal Pick Up Element 1/3"...
- Page 20 MERIT LILIN ENT. CO., LTD http://www.meritlilin.com 66-802CSE...
