- Page 1 INSTRUCTION MANUAL AIR-POWERED 2-IN-1 NAILER 058-8548-4...
- Page 2 QUICK START GUIDE TECHNICAL SPECIFICATIONS SAFETY GUIDELINES 4–9 KEY PARTS DIAGRAM IMPORTANT INFORMATION 11–14 TYPES OF FASTENERS 15–16 OPERATING INSTRUCTIONS 17–22 MAINTENANCE 23–24 TROUBLESHOOTING 25–27 EXPLODED VIEW PARTS LIST 29–30 WARRANTY 31–32 AIR-POWERED 2-IN-1 NAILER 058-8548-4...
- Page 4 PERSONAL SAFETY These precautions are intended for the personal safety of the user and others working with the user. Please take time to read and understand them. AIR-POWERED 2-IN-1 NAILER 058-8548-4...
- Page 5 Disconnect the compressor from the power source before servicing. Compressor must be grounded. Do not use grounding adaptors. Risk of personal injury: Do not direct compressed air from the air hose • towards the user or other personnel. AIR-POWERED 2-IN-1 NAILER 058-8548-4...
- Page 6 Drain water from tank after each use. Do not weld or repair tank. Relieve all pressure in the hose before removing or attaching accessories. MC-OM-22 AIR-POWERED 2-IN-1 NAILER 058-8548-4...
- Page 7 Do not allow unskilled or untrained individuals to operate the Air-powered 2- in-1 Nailer. • Do not use the Air-powered 2-in-1 Nailer for any task other than that it is designed to perform. • Do not use the Air-powered 2-in-1 Nailer unless it is been instructed. Only a qualified person should use the tool.
- Page 8 • Always follow all workshop safety rules, regulations, and conditions when using the Air-powered 2-in-1 Nailer. • Carry the tool by the handle only, keeping the finger away from the trigger. Do not carry the tool by the hose, magazine or any other parts.
- Page 9 Note: Recycle unwanted materials rather than disposing of them as waste. Sort tools, hoses, and packaging into specific categories and take to the local recycling centre or dispose of them in an environmentally safe way. AIR-POWERED 2-IN-1 NAILER 058-8548-4...
- Page 10 MC-588548-01 Description Description Air deflector Safety stand Air inlet plug Release handle Latch Trigger Magazine Depth adjustment dial AIR-POWERED 2-IN-1 NAILER 058-8548-4...

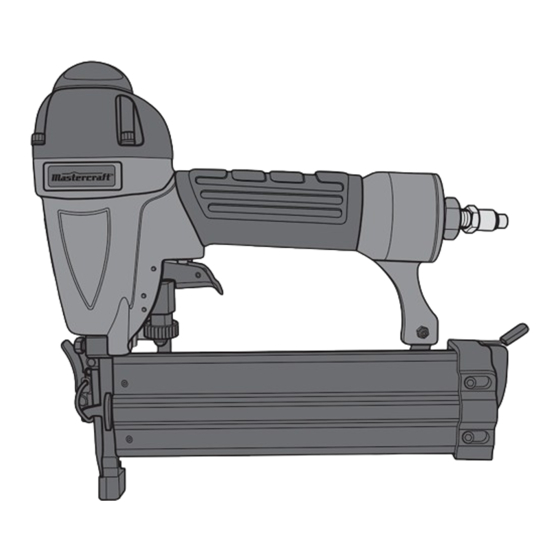

- Page 11 ® This Mastercraft Air-powered 2-in-1 Nailer drives18 gauge brad nails having a length of 15 to 50 mm (5/8 to 2") and18 gauge staples having a length of 5/8 to 1 5/8". The 2-in-1 magazine accepts staples and brad nails without adjustment. The tool has a die cast aluminum body that is strong and light in weight, and a rubber-made handle sleeve for providing improved control and comfort, even during extended use.
- Page 12 <1" (25 mm) staples 70 PSI ≥1" (25 mm) staples 100 PSI Air system MC-588548-02 Description Description ® Mastercraft Air-powered 2-in-1 Nailer Regulator (0 to 8.5 bar) Quick connector Filter Quick coupler Cut-off valve Air hose Air compressor Lubricator AIR-POWERED 2-IN-1 NAILER 058-8548-4...
- Page 13 Failure to comply could lead to serious injury or loss of life. Read this Instruction Manual carefully before using the Air-powered 2-in-1 Nailer • Read and follow all the safety instructions at the beginning of this manual. Inspect the Air-powered 2-in-1 Nailer prior to each use in order to –...
- Page 14 Do not attempt to clear a jammed fastener when the air hose is connected. Do not drive a fastener on top of an existing fastener. Failure to comply could • lead to serious injury or loss of life. AIR-POWERED 2-IN-1 NAILER 058-8548-4...
- Page 15 This Mastercraft® Air-Powered 2-in-1 Nailer drives18 gauge brad nails having a length of 5/8 to 2" (15 to 50 mm) and18 gauge staples having a length of 5/8 to 1 5/8" (16 to 40 mm). ACCEPTABLE FASTENERS Staples (18 gauge) Brad Nails (18 gauge) Length: 5/8 to 1 5/8"...
- Page 16 NAIL TYPE ICONS These Icons are used to select the proper nails for this specific nailer. Note: Icons are colour coded, please refer the actual tool for the specific colour. AIR-POWERED 2-IN-1 NAILER 058-8548-4...
- Page 17 (fig A) supply (2) MC-588548-03 2. Hold the Air-powered Nailer firmly with one hand, and use the other hand to fig B press the latch (1) on the magazine (2) (fig B) and slide it back MC-588548-04 AIR-POWERED 2-IN-1 NAILER 058-8548-4...
- Page 18 (1) before working on the workpiece. If the fasteners are being driven too deep or not deep enough, adjust the regulator in the air supply in order to provide more or less air (fig E) pressure, as required MC-588548-07 AIR-POWERED 2-IN-1 NAILER 058-8548-4...
-
Page 19: Loading Staples
‘arm’ of the staple in the centre slot of the magazine and the other arm of the staple along the left side (fig G) of the magazine AIR-POWERED 2-IN-1 NAILER 058-8548-4... - Page 20 Firing modes ® The Mastercraft Air-powered 2-in-1 Nailer is equipped with a single sequential actuation mode which follows the sequence for firing the fastener: • Press the safety stand against the workpiece. • Pull the trigger in order to drive the fastener.
- Page 22 Reconnect the air supply line to the tool’s air inlet. • Test fire 3 to 5 fasteners into a piece of scrap wood in order to ensure proper operation. Note: If the fasteners continue to jam, please call 1-800-689-9928. AIR-POWERED 2-IN-1 NAILER 058-8548-4...
- Page 23 Pneumatic tool Lubrication See below • Lubrication: If the Air-powered 2-in-1 Nailer and the compressor are not equipped with an in-line lubrication system, place up to 6 drops of pneu- matic tool oil into the air inlet before each work...
- Page 24 • Keep the magazine and the safety tip clean and free of any dirt or abrasive particles. Note: When temperatures are below freezing, keep the tools warm using any safe, convenient method. AIR-POWERED 2-IN-1 NAILER 058-8548-4...
- Page 25 Failure to comply will lead to serious injury or loss of life. • Disconnect the tool from the air supply before making any adjustments. • Repairs must be performed by a qualified service technician only. AIR-POWERED 2-IN-1 NAILER 058-8548-4...
- Page 26 7. Foreign material (adhesive or 7. Remove the material (adhesive fragment or wood fragment) is present inside wood) and clean the clylinder. the cylinder. Have the tool serviced by a qualified technician. AIR-POWERED 2-IN-1 NAILER 058-8548-4...
- Page 27 4. Send for service. 5. Driver guide is damaged or 5. Inspect and send tool for service. worn. 6. Workpiece material (or backer) 6. Use an alternate tool. is too hard. Note: For further repair information, please call 1-800-689-9928. AIR-POWERED 2-IN-1 NAILER 058-8548-4...
- Page 28 32 33 56 55 63 64 MC-588548-07 AIR-POWERED 2-IN-1 NAILER 058-8548-4...
- Page 29 Drive guide washer Hex bolt M5 X 25 Gun body Pin case WCE guide seat Plate pin Roll pin 3 x 26 Roll pin 1 x 10 Adjustment washer Hex bolt M4 x16 WCE spring Switch AIR-POWERED 2-IN-1 NAILER 058-8548-4...
- Page 30 Hex bolt M4 x14 Pin 3 x 20 Gun body handle sleeve Movable magazine O-ring 33.3 x 3.5 Pusher End cap Hex bolt M4 x 6 Air inlet plug Fixed seat Air inlet plug sleeve Spring AIR-POWERED 2-IN-1 NAILER 058-8548-4...
- Page 31 This warranty will not apply where damage is caused by repairs made or attempted by others (i.e., persons not authorized by the manufacturer). This warranty will not apply to any product that was sold to the original purchaser as a reconditioned or refurbished product (unless otherwise specified in writing). AIR-POWERED 2-IN-1 NAILER 058-8548-4...
- Page 32 This warranty gives you specific legal rights, and you may have other rights, which may vary from province to province. The provisions contained in this warranty are not intended to limit, modify, take away from, disclaim, or exclude any statutory warranties set forth in any applicable provincial or federal legislation. AIR-POWERED 2-IN-1 NAILER 058-8548-4...
