Summary of Contents for MasterCraft 058-8489-4

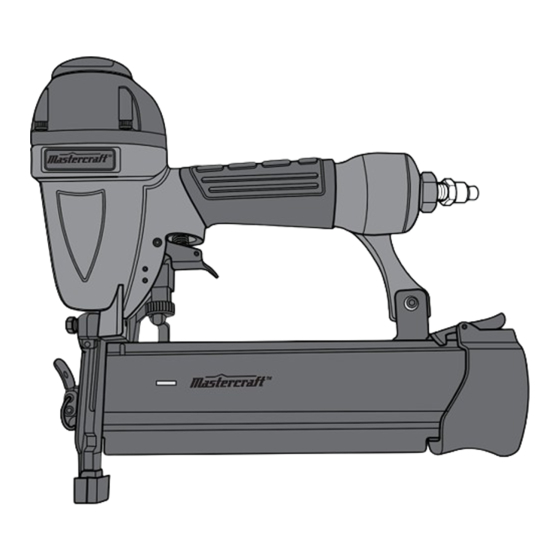

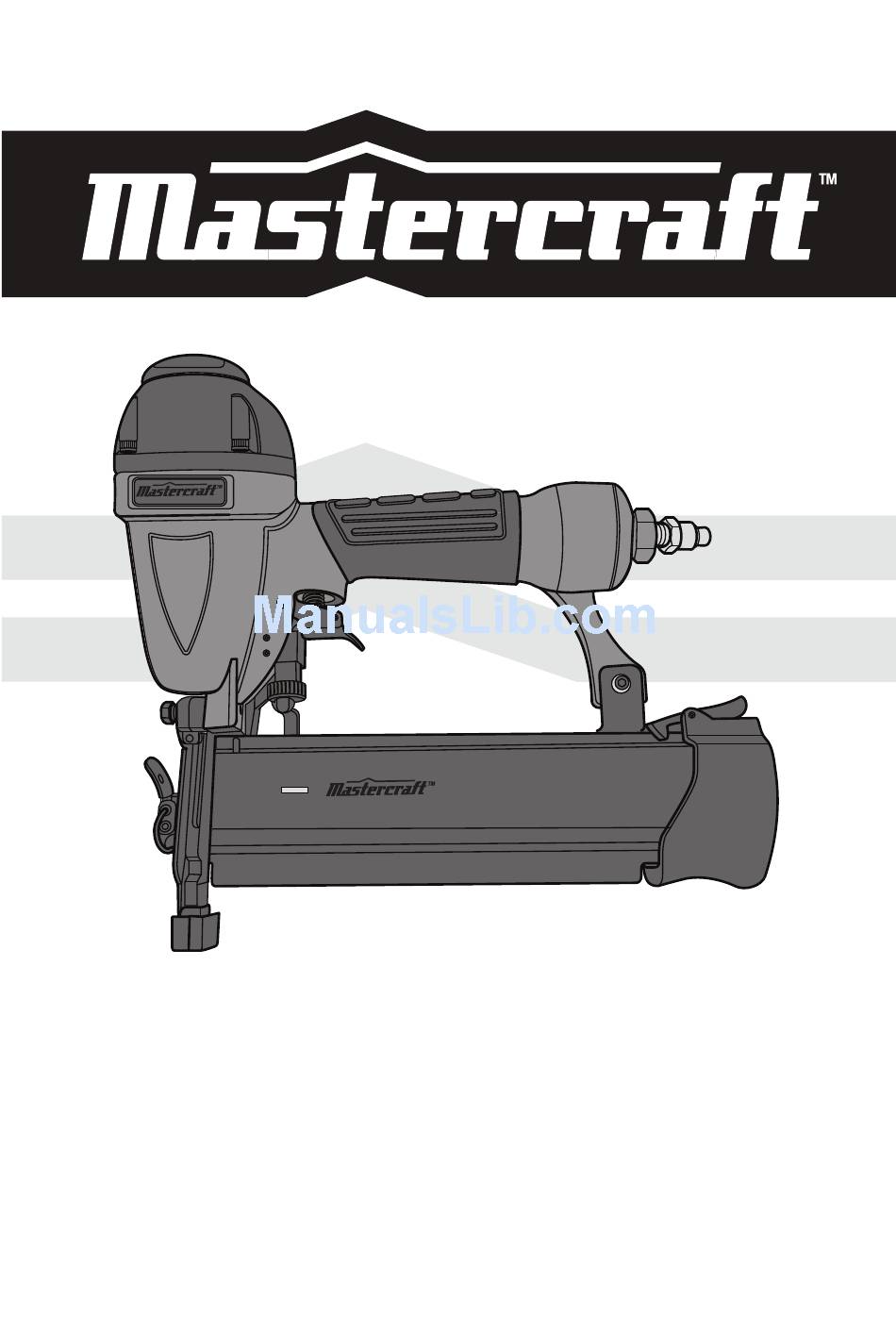

- Page 1 INSTRUCTION MANUAL AIR-POWERED 3-IN-1 NAILER 058-8489-4...
- Page 2 QUICK START GUIDE TECHNICAL SPECIFICATIONS SAFETY GUIDELINES 4–9 KEY PARTS DIAGRAM IMPORTANT INFORMATION 11–14 OPERATING INSTRUCTIONS 15–20 MAINTENANCE 21–22 TROUBLESHOOTING 23–25 EXPLODED VIEW PARTS LIST 27–28 WARRANTY 29–30 AIR-POWERED 3-IN-1 NAILER 058-8489-4...
- Page 4 PERSONAL SAFETY These precautions are intended for the personal safety of the user and others working with the user. Please take time to read and understand them. AIR-POWERED 3-IN-1 NAILER 058-8489-4...
- Page 5 Disconnect the compressor from power source before servicing. Compressor must be grounded. Do not use grounding adaptors. Risk of personal injury: Do not direct compressed air from the air hose • towards the user or other personnel. AIR-POWERED 3-IN-1 NAILER 058-8489-4...
- Page 6 Drain water from tank after each use. Do not weld or repair tank. Relieve all pressure in the hose before removing or attaching accessories. MC-OM-22 AIR-POWERED 3-IN-1 NAILER 058-8489-4...
- Page 7 Do not operate the compressor if it is not in a stable position. • Do not operate the compressor on a rooftop or an elevated position that could allow the unit to fall or be tipped over. • Always replace a damaged gauge before operating the unit again. AIR-POWERED 3-IN-1 NAILER 058-8489-4...
- Page 8 Handling and storage of oil: Use with adequate ventilation. Avoid contact of oil with eyes, skin, and clothing. Avoid breathing spray or mist. Store in a tightly closed container in a cool, dry, well-ventilated area free from incompatible substances. AIR-POWERED 3-IN-1 NAILER 058-8489-4...
- Page 9 Note: Recycle unwanted materials rather than disposing of them as waste. Sort the tools, hoses, and packaging in specific categories and take to the local recycling centre or dispose of in an environmentally safe way. AIR-POWERED 3-IN-1 NAILER 058-8489-4...
- Page 10 MC-588489-01 Description Description Air inlet plug Safety tip Trigger Safety stand Depth adjustment dial Release latch Magazine latch Air deflector Magazine AIR-POWERED 3-IN-1 NAILER 058-8489-4...
- Page 11 5/8 to 1 5/8" (15 to 40 mm) long 18 gauge staples. The tool has a rubber handle that ® provides improved control and comfortable grip, even during extended use. This Mastercraft Air- powered 3-in-1 Nailer features a 360º air deflector and a touch-strike security system for improved operator safety.
- Page 12 It is recommended that a filter-regulator-lubricator be used and be located as close to the tool as possible. • If a filter-regulator-lubricator is not installed, place up to 6 drops of pneumatic tool oil into the air inlet plug before each use. AIR-POWERED 3-IN-1 NAILER 058-8489-4...
- Page 13 Read and follow all the safety instructions at the beginning of this manual. • Inspect the Air-powered 3 1 Nailer prior to each use in order to – ensure that the proper power source is being used. – verify that the tool is in proper working order. AIR-POWERED 3-IN-1 NAILER 058-8489-4...
- Page 14 Never attempt to clear a jammed fastener when the air hose is connected. Do not drive a fastener on top of an existing fastener. • Failure to comply could lead to serious injury or loss of life. • AIR-POWERED 3-IN-1 NAILER 058-8489-4...
- Page 15 (2) fig A MC-588489-02 2. Hold the tool firmly with one hand and use the other hand to press the latch (1) fig B on the magazine (2) and slide it back (fig B) MC-588489-03 AIR-POWERED 3-IN-1 NAILER 058-8489-4...
- Page 16 Load the correct type of fasteners only. Do not load different sized fasteners into the magazine, as doing so may cause fasteners to jam. Failure to comply could lead to serious injury or loss of life. AIR-POWERED 3-IN-1 NAILER 058-8489-4...
- Page 17 fig G magazine with one arm of the staple in the centre slot of the magazine and the other arm along the left side of the (fig G) magazine (see nail type icon on page 19) MC-588489-08 AIR-POWERED 3-IN-1 NAILER 058-8489-4...
- Page 18 Air-powered 3-in-1 Nailer has a depth adjustment dial below the trigger (fig I) to adjust the firing depth of fasteners Note: Refer to the graphic imprinted below the trigger and adjust the firing depth MC-588489-09 accordingly. AIR-POWERED 3-IN-1 NAILER 058-8489-4...
- Page 21 MC-588489-15 • Air-operated tools must be inspected periodically and worn or broken parts must be replaced in order to ensure that the tools are operating safely and efficiently. AIR-POWERED 3-IN-1 NAILER 058-8489-4...
- Page 22 • Keep the magazine and the contact trip lever clean and free of dirt, lint, or abrasive particles. Note: When temperatures are below freezing, maintain the tools in a warm condition using any safe, convenient method. AIR-POWERED 3-IN-1 NAILER 058-8489-4...
-
Page 23: Troubleshooting
3. Adjust depth setting by turning the knob 3. The depth adjustment knob is not Fasteners are being See section “Fastener counter-clockwise. adjusted properly. driven too deep. depth adjustment” in this manual for more detailed instructions. AIR-POWERED 3-IN-1 NAILER 058-8489-4... - Page 24 4. Clean the magazine. Air exhaust is being The direction of the exhaust vent directed towards the Direct the exhaust vent away from the operator. requires adjustment. operator. Note: For further repair information, please call 1-800-689-9928. AIR-POWERED 3-IN-1 NAILER 058-8489-4...
- Page 25 AIR-POWERED 3-IN-1 NAILER 058-8489-4...
- Page 26 60 61 56 58 MC-588489-08 AIR-POWERED 3-IN-1 NAILER 058-8489-4...
- Page 27 O-ring 3.75 X 1.8 Drive blade O-ring 6 X 2 Bumper O-ring 7.2 X 1.9 Washer Valve guide Gun body Compressed spring Bumper O-ring 2.5 X 1.5 Pin 3 x 26 Trigger pin Safety Stand O-ring 15.2.65 AIR-POWERED 3-IN-1 NAILER 058-8489-4...
- Page 28 Pusher pipe Rubber handle case Movable magazine End cap Compressed spring Air inlet plug Bolt Air inlet plug bush Fixed seat If any parts are missing or damaged, or if you have any questions, please call 1-800-689-9928. AIR-POWERED 3-IN-1 NAILER 058-8489-4...
- Page 29 This warranty will not apply where damage is caused by repairs made or attempted by others (i.e., persons not authorized by the manufacturer). This warranty will not apply to any product that was sold to the original purchaser as a reconditioned or refurbished product (unless otherwise specified in writing). AIR-POWERED 3-IN-1 NAILER 058-8489-4...
- Page 30 This warranty gives you specific legal rights, and you may have other rights, which may vary from province to province. The provisions contained in this warranty are not intended to limit, modify, take away from, disclaim, or exclude any statutory warranties set forth in any applicable provincial or federal legislation. AIR-POWERED 3-IN-1 NAILER 058-8489-4...
Need help?
Do you have a question about the 058-8489-4 and is the answer not in the manual?
Questions and answers
Where are I can get part #15 (collar) for 058-8489-4 and how much is it cost?
Part #15 (collar) for the MasterCraft 058-8489-4 air-powered 3-in-1 nailer is listed in the exploded view and parts list, but the context does not provide a source or supplier for obtaining the part. Therefore, the location to find or purchase part #15 cannot be determined from the provided information.
This answer is automatically generated
My gun won’t shoot nails only air
Air is just coming out the top when I pull the trigger and will not push a nail out
Where can I buy replacement parts
