MasterCraft AIR-POWERED BRAD NAILERS Operating Instructions Manual

Instructions d'utilisation
Service d'assistance téléphonique sans frais : 1-866-220-2097
Bostitch ® est une marque déposée de The Stanley Works
Campbell Hausfeld ® est une marque déposée de Campbell Hausfeld/Scott Fetzer Co.
DeWalt ® est une marque déposée de Black & Decker Corp.
Paslode ® est une marque déposée de Illinois Tool Works Inc.
Porter Cable ® est une marque déposée de Porter-Cable Corp.
Senco est une marque déposée de Senco Products, Inc.
Finish Pro ® est une marque de commerce deSenco Products, Inc.
Garantie Limitée
Cet article Mastercraft comprend aussi une garantie de réparation de trois (3) ans contre les défauts de fabrication et de
matériau(x). Mastercraft Canada consent, à sa discrétion, à réparer ou à remplacer toute pièce défectueuse sans frais au
cours de la période de garantie convenue lorsque l'article, accompagné de la preuve d'achat, est retourné par l'acquéreur
initial. Exclusion : usure ou bris causés par un usage abusif ou inapproprié.
Si cet article est utilisé à des fins commerciales, industrielles ou locatives, la garantie sera en vigueur pendant
quatre-vingt-dix (90) jours à compter de la date d'achat.
6-Fr
See Warranty on page 6 for important information about commercial use of this product.
Operating Instructions
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or prop-
erty damage! Retain instructions for future reference.
Table Of Contents
not use a com-
pressed air source
General Safety . . . . . . . . . 1 – 2
capable of more than
Specifications . . . . . . . . . . . . . 2
200 PSI. The nailer
Operating The Nailer . . . . . . 2
could explode which
Troubleshooting . . . . . . . . . . 5
will cause death or
serious personal
Warranty . . . . . . . . . . . . . . . . 6
injury.
G Never use gasoline or other flamma-
Description
ble liquids to clean
Air-powered brad nailers are designed the nailer. Never use
for decorative trims, moldings, win- the nailer in the pres-
ence of flammable
dow casings, furniture trim and picture
liquids or gases.
frame assembly. Features include: con-
Vapours could ignite by a spark and
venient side loading magazine which
cause an explosion which will result
holds up to 100 nails, a sequential trip
in death or serious personal injury.
safety mechanism and a narrow nose
for accurate fastener placement in G Always remain in
tight applications.
a firmly balanced
position when
General Safety Information
using or handling
This manual contains safety, opera-
the nailer.
tional and maintenance
information.
G Do not modify or
Read this manual and
disable the Work
understand all safety warn-
MANUAL
Contact Element
ings and instructions before
(WCE). Do not tie or
operating the nailer.
tape the WCE or
OPERATOR'S RESPONSIBILITY:
trigger in a
Before operating the nailer, read and depressed position.
understand all safety warnings and Death or serious
labels. Follow the operating instruc-
personal injury could result.
tions outlined in this manual.
Locate model and serial number on
Danger indicates
DANGER
! tool magazine and record below:
an imminently haz-
ardous situation which, if not avoided,
Model No. ________________________
WILL result in death or serious injury.
Serial No. _________________________
G Do not use any type of flammable
gases or oxygen as a
Retain these numbers for
power source for the
nailer. Use filtered,
lubricated, regulated
G Do not touch
O
compressed air only. CO
2
trigger unless
Use of a compressed
driving nails.
gas instead of com-
Never attach
pressed air may cause the nailer to
air line to
explode which will cause death or
nailer or carry
serious personal injury.
nailer while
G Do not exceed maximum operating
touching the trigger. The tool could
pressure of the nailer (100 PSI). The
eject a fastener which will result in
nailer will not function properly. Do
death or serious personal injury.
REMINDER: Keep your dated proof of purchase for warranty purposes! Attach it to this manual or file it for safekeeping.

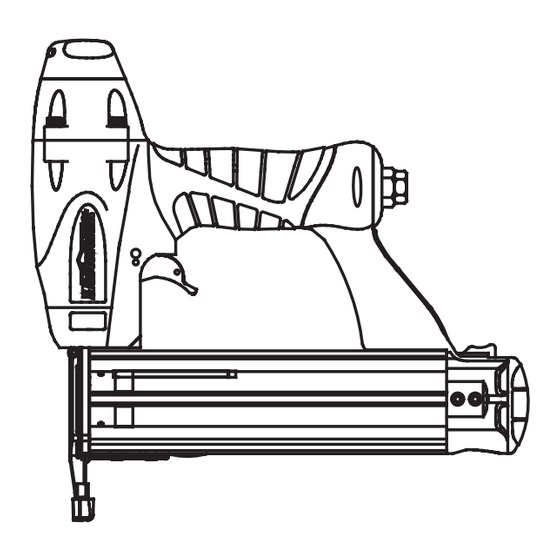

Air-Powered
Brad Nailer
PSI
Warning indicates
WARNING
!
a potentially haz-
ardous situation which, if not avoided,
COULD result in death or serious
injury.
G Always discon-
nect nailer from
air line before
clearing jams,
adjusting or
servicing the
nailer, relocating the nailer, or
when the nailer is not in use.
Always reconnect the air line
BEFORE loading any fasteners. The
nailer could eject a fastener causing
death or serious personal injury.
G Protect your eyes and
ears. Wear Z87 safety
glasses, with side
shields. Wear hearing
protection. Employers
and users are respon-
sible for ensuring the user or any-
one near the nailer wears this safe-
ty protection. Serious eye injury or
future reference. permanent hearing loss could
result.
G Do not use a check
valve or any other
fitting which allows
air to remain in the
nailer. Death or seri-
ous personal injury could occur.
IN296500AV 2/04
