Samcon RoughCam IPP1387 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
RoughCam
IPP1387
®
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RoughCam IPP1387 and is the answer not in the manual?

Questions and answers

Related Manuals for Samcon RoughCam IPP1387

Summary of Contents for Samcon RoughCam IPP1387

  • Page 1 RoughCam IPP1387 ® User Manual...

  • Page 2: Table Of Contents

    Table of contents Introduction ......................4 Technical data ......................5 Illustration of the model key ................. 5 Electrical parameters of the camera ..............6 Connection cable....................6 2.3.1 Connection cable for models without heater (SKD01-T/ASKD02-T) ......... 6 2.3.2 Connection cable for models with heater (SKDP03-T/ASKDP03-T) ......... 7 Video-technical characteristics ................
  • Page 3 Fig. 6-1 Removing the weather protection roof (1/2) (this illustration is an example) ..21 Fig. 6-2 Removing the weather protection roof (2/2) (similar illustration) ......21 Fig. 6-3 Opening the RoughCam IPP1387 (similar illustration) ........22 Fig. 6-4. Mounting adapter with built-in components ............23 Fig.

  • Page 4: Introduction

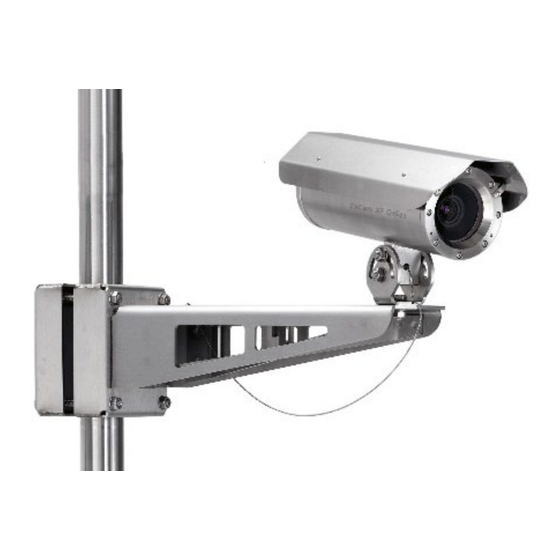

    Introduction The RoughCam IPP1387 is a powerful mega-pixel IP camera of the latest generation, with 5-megapixel resolution at 2592 x 1944 pixels. The camera has a high-definition tele- vision resolution and it is equipped with a powerful remote zoom and focus lens (with i- CS).

  • Page 5: Technical Data

    VA2.3.K3.BOR2- LL.H- 005.A- Tab. 2-1 Model key Explanations: RoughCam IPP1387 = Functional camera description of the RoughCam Series (technical data/ specification of the individual camera module) T10 = SAMCON Production- Type 10, (for safe areas) VA2.3.K3.BOR2 = T11 housing (stainless steel 1.4404) with large diameter Ø...

  • Page 6: Electrical Parameters Of The Camera

    10 x D when installed, 5 x D after relocation Data line: 4 x 2 x AWG22/1 CAT.6 Properties: PUR halogen-free, flame-retardant, UV- resistant, chemical resistance, shielded Quicklink: https://www.samcon.eu/fileadmin/documents/en/60- Assembling%26mounting/SKD02-T_Datasheet.pdf Fig. 2-1 Sectional view of SKD01-T Doc.-ID: 241203-PT10BA-SHe-RoughCam-IPP1387_en_rev.00.docx, Page 6 of 32...

  • Page 7: Connection Cable For Models With Heater (Skdp03-T/Askdp03-T)

    4 x 2 x AWG23/1 CAT.6 Properties: PUR halogen-free, flame-retardant, UV- resistant, chemical resistance, shielded (see www.samcon.eu Quicklink: https://www.samcon.eu/fileadmin/documents/en/60- Assembling%26mounting/ASKD02-T_Datasheet.pdf Fig. 2-2 Sectional view of ASKD02-T 2.3.2 Connection cable for models with heater (SKDP03-T/ASKDP03-T) Systemcable SKDP03-T: Outside diameter: 12.40 ± 0.3 mm...

  • Page 8: Video-Technical Characteristics

    Properties: PUR halogen-free, flame-retardant, UV- resistant, chemical resistance, shielded Quicklink: https://www.samcon.eu/fileadmin/documents/en/60- Assembling%26mounting/ASKDP03-T_Datasheet.pdf Fig. 2-4 Sectional view of ASKDP03-T Video-technical characteristics We use the AXIS P1377 network camera in our enclosure. For details, please refer to the Product Documentation, video-technical data of AXIS ®...

  • Page 9: Other Technical Data

    Other technical data Protection class: IP 66/68 (IEC /EN 60529) Transport/storage temperature: -40°C…+65°C Ambient temperature: -10°C…+60°C (Type…N.H) -60°C…+60°C (Type…LL.H) Camera Terminal box Permissible ambient temperature -10°C … +60°C -60°C … +55°C (for PoE power supply) -60°C … +60°C (In the event of additional 24 V DC power supply) Protection class as per EN IP66/68...

  • Page 10: Installation

    Please pay attention to the national and local regulations for mounting heavy loads. If in doubt, take appropriate security measures. Drawings for drill hole patterns and further information can be viewed on our product page: Quick link: https://www.samcon.eu/en/products/roughcam/roughcam-ipp1387/ Doc.-ID: 241203-PT10BA-SHe-RoughCam-IPP1387_en_rev.00.docx, Page 10 of 32...
  • Page 11 Option mounting accessories Wall bracket WALL MOUNT BRACKET WMB-VA2.3 Wall bracket for devices of T10-VA2.3 series WMB-... Suitable for hanging the camera on walls. Material: stainless steel 1.4404 Load bearing: 45 kg Dimensions: 445 x 140 x 185 mm Weather protec- WEATHER PROTECTION ROOF WPR-VA2.3 Weathershield for cameras of the T10-VA2.3- tion roof...

  • Page 12: Electrical Connection

    For this purpose, a screw terminal is provided at the rear side, at the bottom (right) (see Figure 5.1). The cross-section of the equipotential bonding should comply with the National Ground Rules (at least 4 mm Fig. 5-1 RoughCam IPP1387 Equipotential Bonding Wiring table: Potential...

  • Page 13: Connection And Fusing

    IEEE 802.3af and 802.3at type 1 Class 3 ("classification current: 26-30 mA @48VDC, max. feed-in power (power source equipment): 11.73 W, maximum offtake (power device): 6.49 - 12.95 W"). The data transfer of the RoughCam IPP1387 series is done via a 100 Mbit/s Ethernet connection (100BASE-TX).

  • Page 14: Video Tutorial

    Fig. 5-4. RoughCam IPP1387 T10-VA2.3.K3.BOR2-LL.H-005.N-P Video Tutorial: Please view our video tutorial : “SAMCON 01 Wiring the cable SKDP03-T to the junction box ExTB-3” https://go.samcon.eu/v01 Fig. 5-5 Video Tutorial ExTB-3 The pin assignment of the SKD01-T is executed in accordance with the standard...
  • Page 15 The pin assignment of the ASKD02-T is executed in accordance with the standard EIA/TIA-568B for 100BaseTX and 24VDC, as follows: Camera Colour Terminal Cross- Comment ASKD02-T sectional (T568B) (IEC60757) surface Reinforcement YE / GN 2.5 mm Flex WH / OG 0.26 mm Solid conductor 0.26 mm...
  • Page 16 L+ 24VDC 1.5 mm L- 24VDC YE / GN 1.5 mm Tab. 5-5 Wire assignment of terminal box (model LL/ASKDP03-T) SKD01-T SKD01-T RoughCam IPP1387 Fig. 5-6 Sample circuit of terminal box ExTB-3 (without heater) Doc.-ID: 241203-PT10BA-SHe-RoughCam-IPP1387_en_rev.00.docx, Page 16 of 32...
  • Page 17 RoughCam IPP1387 Fig. 5-7 Sample circuit of terminal box ExTB-3 (heater integrated) Fig. 5-8 Photo of the wired terminal box Doc.-ID: 241203-PT10BA-SHe-RoughCam-IPP1387_en_rev.00.docx, Page 17 of 32...

  • Page 18: Fusing

    Bring the twisted pair composite up to about 10 mm close to the ter- minals, in order to ensure interference immunity. Attention! Use only terminals approved by SAMCON. Attention! Finally, check your network installation with a Class-D Link Test. 5.2.1 Fusing PoE power supply requires no fuses.

  • Page 19: Plug Assignments (Rj45)

    5.2.2 Plug assignments (RJ45) The data transfer of the RoughCam IPP1387 uses a 100 Mbit/s Ethernet connection (100BASE-TX). If the cable termination uses a plug, the latter should be plugged into the RJ45 PoE slot of the network device (PSE). Prior to connecting it to the camera, the net- work device (PSE) can already be supplied with power, hence there is no „power ON“...

  • Page 20: Tests Prior To Switching On The Voltage

    Opening the housing If the RoughCam IPP1387 is equipped with a weather protection roof (optional accesso- ry), remove the roof before you start working! To do so, untighten the 4x12mm lens screws M4*0.7 at the front and rear sides of the bracket holders (Fig. 6-1).
  • Page 21 Fig. 6-1 Removing the weather protection roof (1/2) (this illustration is an example) Fig. 6-2 Removing the weather protection roof (2/2) (similar illustration) To open the RoughCam IPP1387’s stainless steel housing (T11 VA2.3.x.x) of, loosen the eight cylinder-head hexagon screws (DIN 912/ ISO 4762) together with their spring rings (DIN 127A) on the rear side of the cable and power supply flange (see Fig.
  • Page 22 Fig. 6-3 Opening the RoughCam IPP1387 (similar illustration) Attention: The mounting adapter with the housing’s PTC heater, camera module and op- tics, as well as the CB06 temperature control and (if applicable) auxiliary relays and ter- minal box are fixed on the cable and supply flange. Dealing with these components, too,...
  • Page 23 The illustration is only an example, the lens is changed MicroSD card slot Status LED Built-in microphone. Zoom slider Setting screw for the focus ring Focus ring Power supply (DC) I/O port Iris connector RS48S/422 port Power LED Network LED Control key Safety slot Audio input...

  • Page 24: Removing/Inserting A Sd Memory Card

    Removing/inserting a SD memory card Note: The RoughCam IPP1387 disposes of a micro SDHC memory card slot (see Fig. 6-4 1). Saved video files can be played and deleted via the web interface. They are also availa- ble in a download list. Moreover, the videos available on the memory card can also be accessed via an FTP server in the network.

  • Page 25: Closing Of The Pressure-Resistant Housing

    Battery RoughCam IPP1387 is equipped with a high-temperature resistant Panasonic button cell BR2330A/VAN. This cell supplies energy to the internal real time clock (RTC). The cus- tomer is not allowed to replace the battery! In this case, please contact the manufacturer.

  • Page 26: Network Access And Visualization

    Assigning the IP address The RoughCam IPP1387 is intended for use in an Ethernet network and requires an IP address to access and control it. In most of today’s networks, a DHCP server is integrat- ed. This server automatically assigns an IP address.

  • Page 27: Password/ Identification

    It can also be used to manually assign a static IP address. For this purpose, the RoughCam IPP1387 network camera should be installed in the same physi- cal network segment (physical subnet) as the computer on which the AXIS IP Utility is running.

  • Page 28: Maintenance/ Modification

    Repairs may only be carried out with original parts of SAMCON Prozessleittechnik GmbH. If in doubt, send the part in question back to SAMCON Prozessleittechnik GmbH. Rebuilding of or alterations to the devices are not permitted.
  • Page 29 If you wish additional technical information, please contact us at: support@samcon.eu Doc.-ID: 241203-PT10BA-SHe-RoughCam-IPP1387_en_rev.00.docx, Page 29 of 32...

  • Page 30: Certificates And Further Documentation

    Certificates and further documentation Certificates and further documentation are available in the download area at the product website: Quick link: https://www.samcon.eu/en/products/roughcam/roughcam-ipp1387/ Doc.-ID: 241203-PT10BA-SHe-RoughCam-IPP1387_en_rev.00.docx, Page 30 of 32...

  • Page 31: Notes

    Notes Doc.-ID: 241203-PT10BA-SHe-RoughCam-IPP1387_en_rev.00.docx, Page 31 of 32...
  • Page 32 Schillerstrasse 17, 35102 Lohra-Altenvers, Germany www.samcon.eu, info@samcon.eu Phone: +49 6426 9231-0, fax: - 31...
