Loading for Non-Peel Mode

1. Feed the supply over the platen roller, peel bar, and label deflector.
2. Close the supply cover.
3. Calibrate the supply. See "Calibrating the Supply" for more information.

Loading for Peel Mode

1. Peel and discard the first four inches of labels from the backing paper.
2. Hold the printer upright and push down on the label deflector.
3. Feed the backing paper over the peel bar and through the slot at the base of the label
deflector.
2-4 Equipment Manual

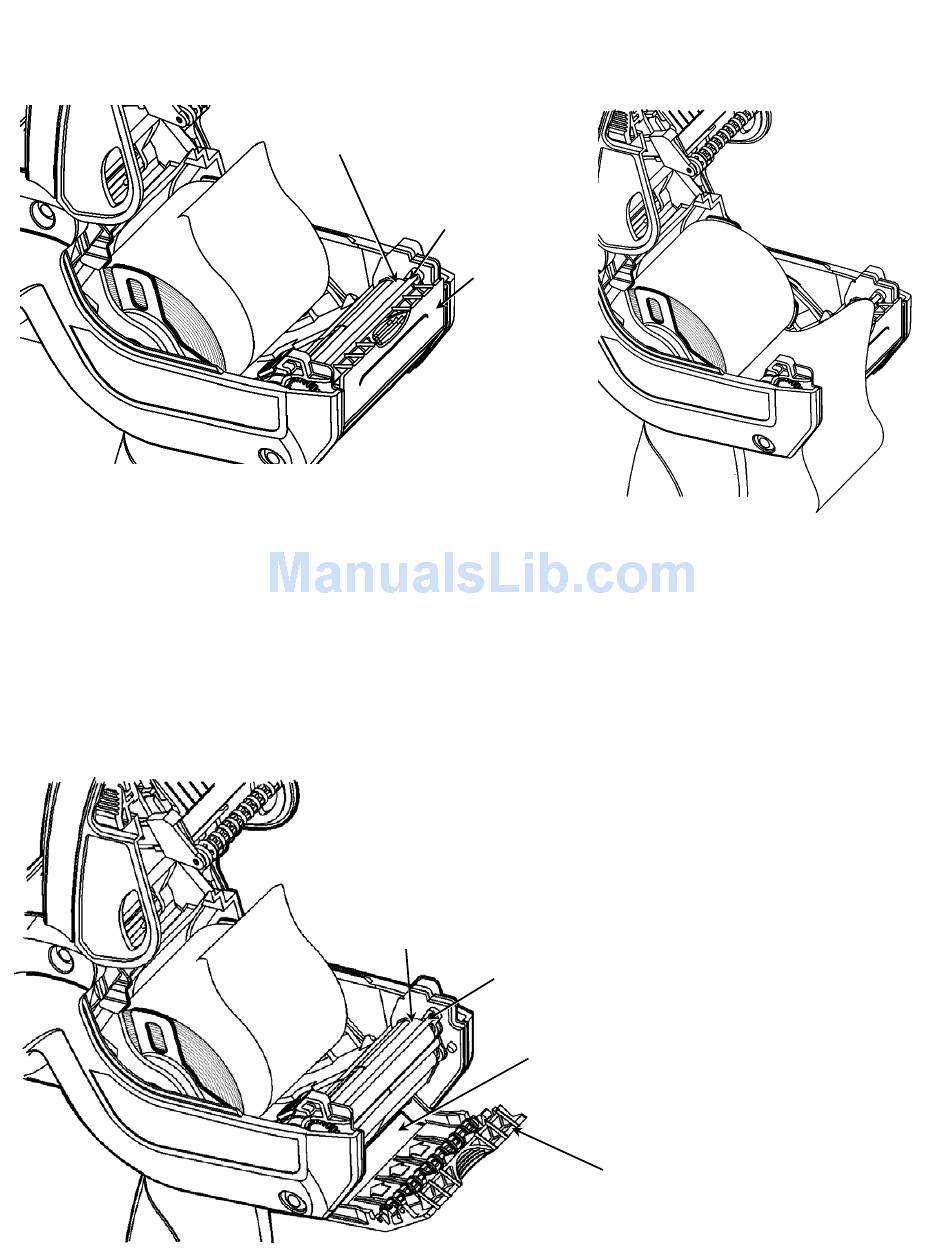

Platen Roller
(black rubber)
Peel Bar
(metal)
Platen Roller
(black rubber)
Label
Deflector
Peel Bar (metal)
Backing Paper Opening
Label Deflector
