O P E R AT I N G I N S T R U C T I O N S
Use these Operating Instructions to assemble and use
the 6054 Network Control Module and the 6055 Docking
Module.
The 6054 Network Control Module controls one to four
6055 Docking Modules, which provides Pathfinder®
printers charging and Ethernet communication capability
The 6054 Network Control Module and 6055 Docking
Module can only be used with printers that contain the
approved battery as listed in the printer documentation.
Refer to the Operator's Handbook for additional important
battery safety information.
Follow the operating and storage limit specifications
listed at the end of these instructions. Otherwise, the
battery may permanently lose its charge capacity.
Charge the printer before using it.

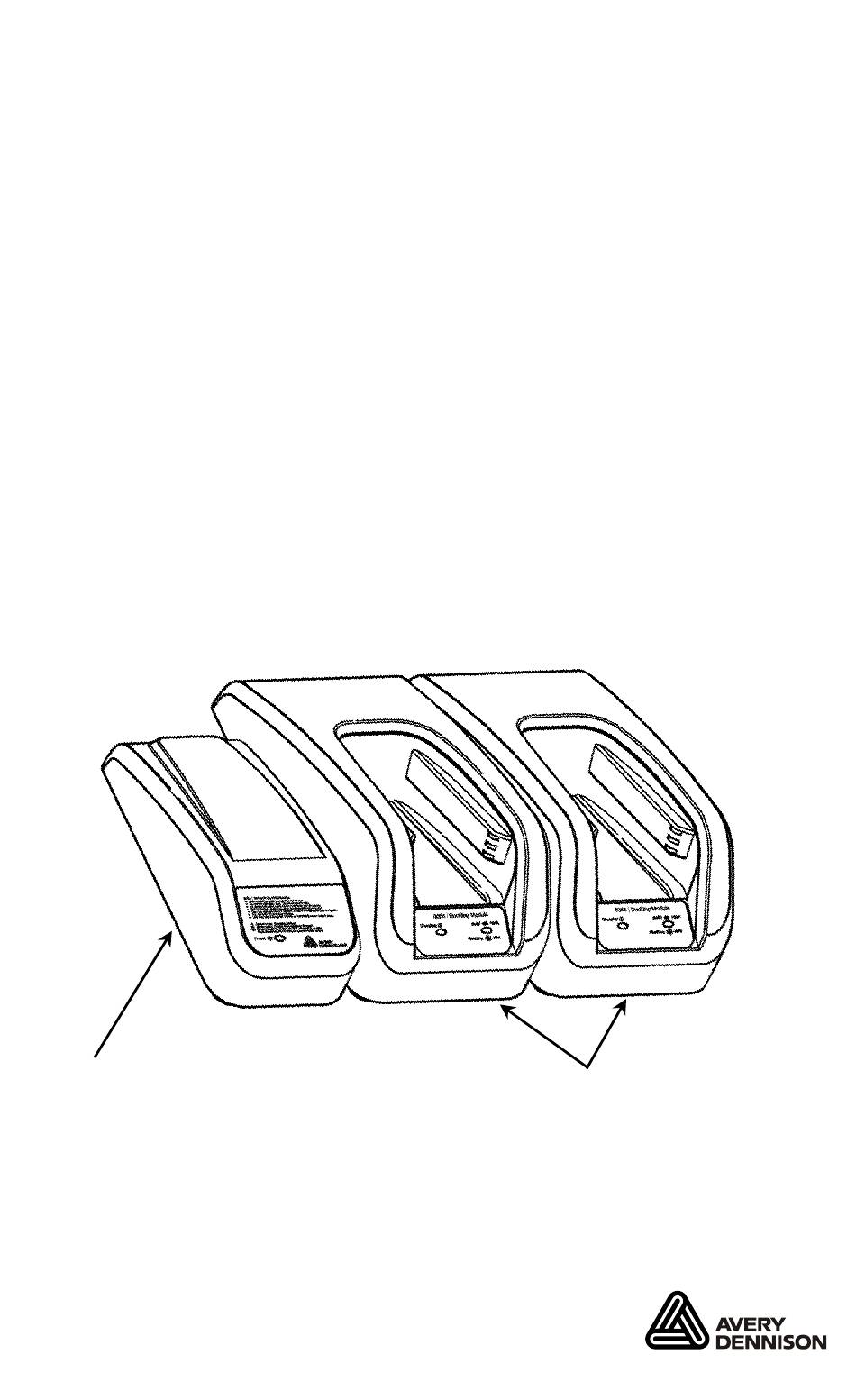

6054 Netw ork
Control M odule
TC6054OI Rev. AE 5/21
Classification: Avery Dennison – Public
6055 Do cking M odules
©2010 Avery Dennison Corp. All rights reserved.
Advertisement
Related Manuals for Avery Dennison 6054
Summary of Contents for Avery Dennison 6054
- Page 1 O P E R AT I N G I N S T R U C T I O N S Use these Operating Instructions to assemble and use the 6054 Network Control Module and the 6055 Docking Module. The 6054 Network Control Module controls one to four 6055 Docking Modules, which provides Pathfinder®...
- Page 2 A s s e m b l i n g t h e N e t w o r k C o n t r o l M o d u l e Turn over the 6055 Docking Module and 6054 Network Control Module.
- Page 3 Loosen the two screws on the 6054 Network Control Module and slide the 6054 Network Control Module onto the Docking Module’s connector plate. Tighten the screws. Using a Philips screwdriver, attach the end cap to the end of the 6055 Docking Module.
- Page 4 For Use in Brazil In order to meet the compliance requirements of Brazil, Network Module, whose model is 6054, should be fed by the source model: FSP FSP084-DMAA1, Input: 100-240Vac, 50-60Hz, 1.3A, Output: 12Vdc, 7.0A, LPS. Or Edac Power Electronics And 10953A Input: 100-240Vac, 50-60Hz, 2.5A, Output:...
-
Page 5: Reading The Display
Docking Module until you hear a click. Pow er LED The green power LED on the 6054 Network Control Module turns on when there is power to it. Charging time can take up to four hours. It takes approximately 2 hours to reach the 80% level (where it is now usable). - Page 6 If the error still occurs, put a new battery into the printer and place the printer back into the charger. If there is a problem after the second attempt to charge, call Service. 6 Classification: Avery Dennison – Public...
- Page 7 2.25” (57 mm) Input: 12 to 16 VDC/50W Weight: 2.2 lbs. (1 kg) Shipping Weight: 2.7 lbs. (1.2 kg) Power Supply Input: Universal switching power supply, 85 to 264 VAC, 50/60 Hz. Output: 12 VDC/80W max Classification: Avery Dennison – Public...
- Page 8 8 Classification: Avery Dennison – Public...
