- Page 2 Each product and program carries a respective written warranty, the only warranty on which the customer can rely. Avery Dennison Corp. reserves the right to make changes in the product, the programs, and their availability at any time and without notice. Although Avery Dennison Corp.
-
Page 3: Table Of Contents
T A B L E O F C O N T E N T S INTRODUCTION ........................1-1 Using this Manual....................... 1-2 Audience ........................... 1-2 Getting Started ........................1-2 Helpful Reminders ......................1-3 Attaching the Safety Strap ....................1-3 USING BATTERIES ......................... 2-1 Using the Main Battery ....................... - Page 4 CARE & MAINTENANCE ......................5-1 Cleaning..........................5-1 Cleaning the Printhead ....................5-1 Cleaning the Platen Roller ....................5-2 Cleaning the Pinch and Feed Rollers ................5-2 Cleaning the Sensors ...................... 5-2 Cleaning the Scanner Window ..................5-3 Cleaning the Scanner Flex Cable ..................5-3 Clearing Supply Jams ......................
-
Page 5: Introduction

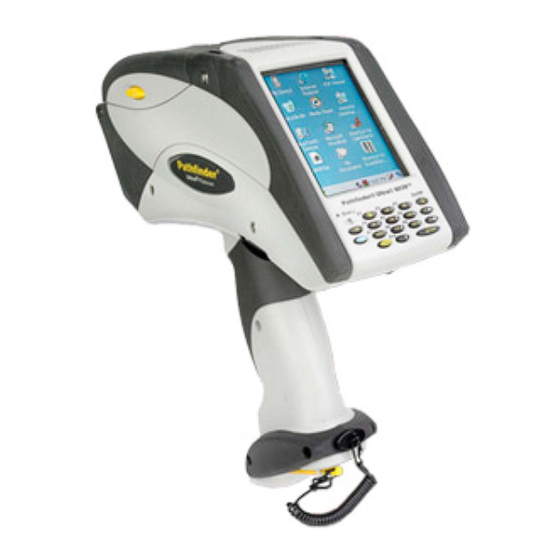

I N T R O D U C T I O N The Monarch® Pathfinder® Ultra® Platinum 6039™ printer prints, scans bar codes, collects data, and communicates with other devices. The printer operates on a Microsoft Windows- based CE platform. -
Page 6: Using This Manual
U s i n g t h i s M a n u a l Following is a summary of the contents of this manual: Chapter Contents Introduction Information you should know before using the printer. Using Batteries Charging, changing, and using batteries safely. Using Supplies Supply loading and removal. -
Page 7: Helpful Reminders
H e l p f u l R e m i n d e r s Always start with a fully charged battery. Attach the safety strap to your wrist before using the printer. Do not pound the printer when applying labels printed in peel mode. ... - Page 8 1-4 Operator’s Handbook...
-
Page 9: Using Batteries
U S I N G B A T T E R I E S The printer uses two batteries: a main battery and a backup battery. Battery Main Running the printer. It is also rechargeable using the Monarch 9462 single-station or the Monarch 9465 four-station charger. Backup Maintaining the printer’s system settings. -
Page 10: Charging The Backup Battery
C h a r g i n g t h e B a c k u p B a t t e r y Some printers support backup battery charging. Contact your Service representative for more information. C h e c k i n g t h e B a t t e r y S t a t u s The printer easily provides the status of the main and backup batteries. -
Page 11: Main Battery Safety Information
For more information about how to recycle batteries in your area, visit www.rbrc.org. Batteries can also be returned postage- paid to: Avery Dennison ERC 200 Monarch Lane Door #39 Miamisburg, OH 45342 Caution: Do not disassemble, short-circuit, heat above 80°C, or incinerate the battery. - Page 12 2-4 Operator’s Handbook...
-
Page 13: Using Supplies
U S I N G S U P P L I E S The printer can use three types of supplies: Labels Tags Receipt Paper. See “Selecting the Supply Type” in this chapter for more information. There are two print modes. The way you load the supplies depends on the print mode you use. ... -
Page 14: Loading For Peel Mode
4. Open the spring-loaded supply holder. Spread the supply holder tabs apart with one hand so it adjusts to the size of your supply roll. You can set it at 1.2”, 1.5”, and 2.0”. Supply Holder 5. Place the supply roll in the supply holder so the supply feeds labels from the bottom. 6. - Page 15 3. Feed all four inches of the backing paper under the applicator roller, over the peel bar, and under the label deflector. 4. Push the label deflector up until it snaps into place. 5. Partially close the cover to the first position. Partially closed cover 6.
-
Page 16: Loading For Non-Peel Mode
Loading for Non-Peel Mode To load supplies for non-peel mode: 1. Feed the supply under the applicator roller and over the label deflector. Ap plicator Roller Label Deflector 2. Close the supply cover. 3. Tap Load Supply from the printer icon menu, then Calibrate. S e l e c t i n g t h e S u p p l y T y p e To select the supply type: 1. -
Page 17: Removing Supplies In Peel Mode
3. Select the supply type you are using: Supply Used For Paper Labels and tags Receipt paper Synthetic Labels and Tags 4. Tap Feed to advance a label or Calibrate to register the black mark. R e m o v i n g S u p p l i e s i n P e e l M o d e To remove supplies in peel mode: Tear the backing paper just above the pinch roller. - Page 18 3-6 Operator’s Handbook...
-
Page 19: Entering & Printing Data
E N T E R I N G & P R I N T I N G D A T A This chapter explains the printer’s features and how to use them. U s i n g t h e K e y p a d The printer’s keypad appears below. -
Page 20: Entering Special Characters/Symbols
Entering Special Characters/Symbols The table shows how to enter special characters and symbols when in Lower-case and Upper- case Alpha Mode. For lower-case Alpha mode, press Alpha once. For upper-case Alpha mode, press Alpha twice. Press Key Lower-case Alpha Mode Upper-case Alpha Mode <space>... -
Page 21: Scanning Bar Codes
S c a n n i n g B a r C o d e s Your printer may have a built-in scanner. To scan a bar code: Attach the safety strap to your wrist. Point the scanner at a slight angle approximately 4 – 8 inches from the bar code symbol. -
Page 22: Certification Note
C e r t i f i c a t i o n N o t e This product is certified to be a Class II laser product with the United States DHHS Center for Devices and Radiological Health and complies with 21CFR1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. -
Page 23: Printing
P r i n t i n g When and how you print depends on your printer’s application. It may print only after you press a certain key automatically as soon as you press a key automatically with no input from you ... -
Page 24: Power Management
Select: Description Adjust Contrast Scroll to change contrast. The higher the number, the darker the print; the lower the number, the lighter the print. The print contrast controls the darkness of the printing on your supply. The range is –28 to +40 and the default is 0. You may need to increase or decrease the print contrast depending on your supply type. -
Page 25: Care & Maintenance
C A R E & M A I N T E N A N C E Caring for and properly maintaining your printer protects it and keeps it running smoothly. This chapter explains how to clean the printhead, platen roller, sensors, and scanner window ... -
Page 26: Cleaning The Platen Roller
3. Check the supply holder for adhesive buildup and clean it if necessary. 4. Ground yourself by touching a metal object other than the printer. Grounding prevents electrostatic discharge, which may damage your printer. 5. Clean the printhead area of all adhesive and label particles using a Cleaning Pen (#114226) or a soft cloth moistened with isopropyl alcohol. -
Page 27: Cleaning The Scanner Window
Remove the supplies. See “Removing Supplies” in Chapter 3 for more information. Open the label deflector by gently pressing down with two fingers. Clean the on-demand sensor with a soft cloth moistened with distilled water. Reload the supplies, close the label deflector and supply cover. To clean the black mark sensor: Turn off the printer and open the supply cover. -
Page 28: Storing The Printer
Carefully remove any jammed supply and close the deflector. Note: Do not pull the jammed supply out through the front of the label deflector. Do not use sharp objects to remove jammed supplies. Carefully remove any jammed supply Feed Roller between the pinch and feed rollers. -
Page 29: Troubleshooting
T R O U B L E S H O O T I N G This section lists some common printer problems and their solutions. Problem Solution Printer does not feed. Switch to a fully charged battery. Close the supply cover completely. Load the supply correctly. -
Page 30: Checking The Software Version
C h e c k i n g t h e S o f t w a r e V e r s i o n To check the Software version of the printer, the Ultra Class library, the scanner configuration, printer diagnostics, and the Application version: Tap the printer icon from Status Bar on the display. -
Page 31: Error Codes
Error Codes This section lists common error codes and what they mean. Code(s) Description 004 - 005 Supply size is incorrect. Reload the correct supplies. 267 – 271 Communication error. See your System Administrator. 410 - 413 703 - 704 Supply Error. - Page 32 6-4 Operator’s Handbook...
-
Page 33: Specifications & Accessories
S P E C I F I C A T I O N S & A C C E S S O R I E S S p e c i f i c a t i o n s Dimensions: Width –... -
Page 34: Accessories
A c c e s s o r i e s This section lists accessories available for your printer and their part numbers. Part Number Description M09462 Single-Station Battery Charger M09465 Four-Station Battery Charger M06063 AC Adapter 114226 Cleaning Pen 125859 USB Cable 120095...
