Net2Phone Max 410 Quick Start Manual

Voip gateway
Hide thumbs Also See for Max 410:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
/
/
TM
MAX 410
/
/
/
/ / / /
/ / / /
/
/
VoIP Gateway

Quick Start Guide

Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Max 410 and is the answer not in the manual?

Questions and answers

Related Manuals for Net2Phone Max 410

Summary of Contents for Net2Phone Max 410

  • Page 1: Quick Start Guide

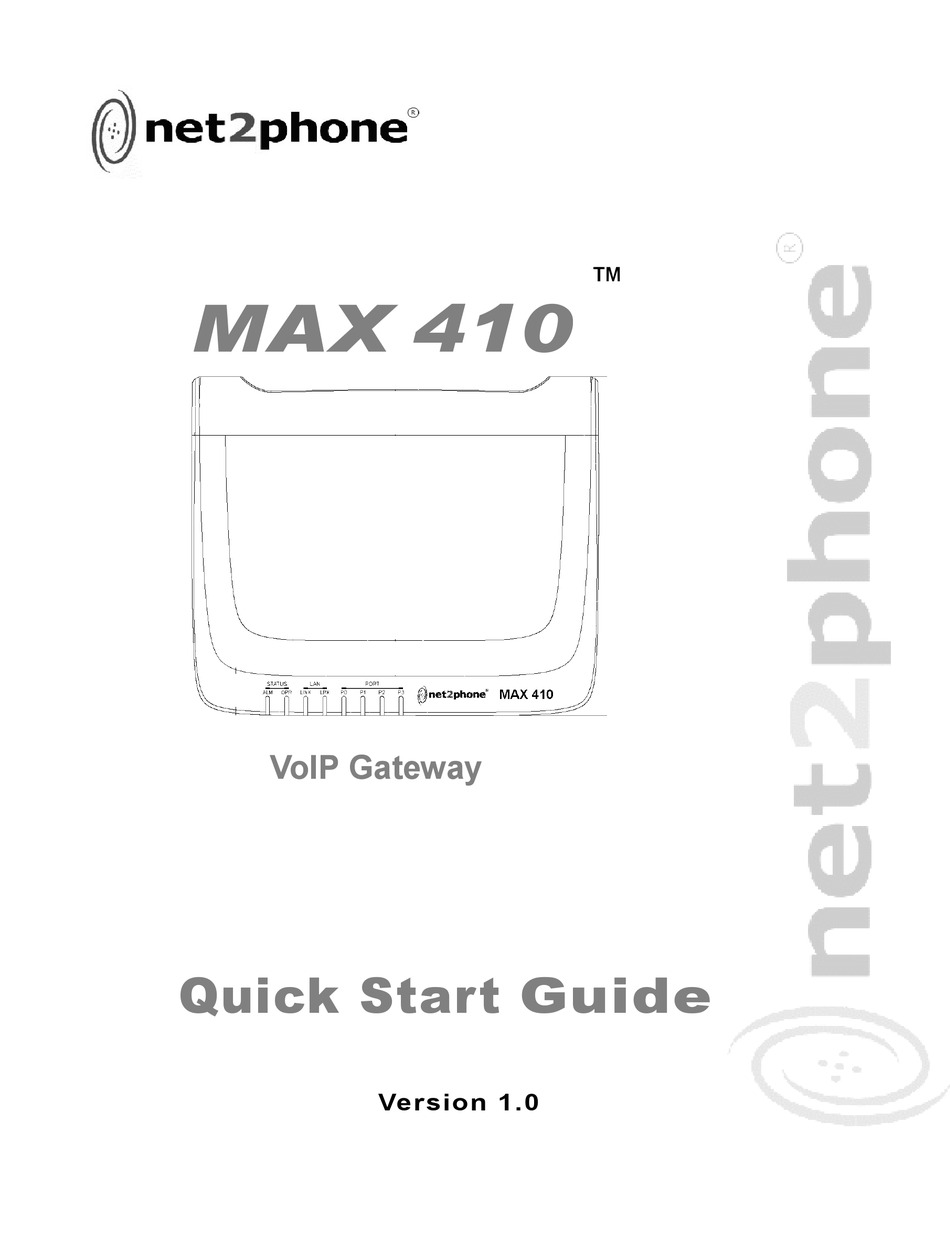

    MAX 410 / / / / / / / / VoIP Gateway Quick Start Guide Version 1.0...
  • Page 2 Net2Phone or its suppliers have been advised of the possibility of such damages. Net2Phone MAX 410, net2phone, and the Net2Phone logo are registered trademarks of Net2Phone, Inc. in the US and certain other countries.

  • Page 3: Table Of Contents

    Connecting the MAX 410 to a DHCP LAN ..............6 Obtaining the MAX 410’s DHCP IP address ..............6/ Connecting the MAX 410 to a LAN with Static IP Addresses ........8 Disabling DHCP in the MAX 410..................8/ Entering a static IP address ....................9/ Entering a netmask address ...................

  • Page 4: Welcome

    This Quick Start Guide is intended to help you set up and use the basic features of the MAX 410 as quickly and simply as possible. In addition to this Quick Start Guide, the MAX 410 is shipped with three product manuals: •...

  • Page 5: Requirements

    A PC or Mac workstation with any recent Web browser, connected to the LAN, for initial setup and system management. NOTE: On a MAX 410, LAN settings must be configured using a PC with a serial cable connection if local network does not support DHCP. For details, see Section 2.1.2, Connecting to the MAX 410 Through a Serial Cable, in the MAX...

  • Page 6: Net2Phone Max 410 Hardware Setup

    MAX with 4 ports. Physical Port Numbering Figure 1 illustrates the physical port numbering on the MAX 410’s rear panel for a unit with 8 ports installed. (Your unit may have only 4 ports.) These numbers are referenced by the MAX Web Manager when identifying ports, setting up the MAX’s features and configuring Net2Phone calling accounts.

  • Page 7: Installing The Max 410

    Do not place objects on top of the unit. Please refer to the Net2Phone MAX 410 Hardware Installation Guide and observe the safety precautions listed.
  • Page 8 Your Net2Phone MAX 410 hardware setup is now complete. The next step is to configure the unit to communicate with your LAN so that you can browse the MAX Web Manager.

  • Page 9: Connecting The Max 410 To Your Lan

    LAN before you can browse the MAX Web Manager, MAX 410’s Web-based configuration system. If your LAN is using DHCP, configuring the Net2Phone MAX 410 will entail the following steps: 1. Obtain the MAX 410’s current IP address.
  • Page 10 If your LAN uses DHCP, you are now ready to finish setting up the Net2Phone MAX 410 using the MAX Web Manager. Proceed to Section 3, Logging In to the MAX Web Manager. Page 7...

  • Page 11: Connecting The Max 410 To A Lan With Static Ip Addresses

    Net2Phone MAX 410 – Quick Start Guide Connecting the MAX 410 to Your LAN Connecting the MAX 410 to a LAN with Static IP Addresses Before you can begin configuring the MAX 410 for a LAN with static addresses, you need to know: •...

  • Page 12: Entering A Static Ip Address

    Entering a static IP address To enter a static IP address: 1. Login via console as described in section “Obtaining the MAX 410’s DHCP IP address”. 2. After logging in to the MAX 410, type /config/ip at the command prompt.

  • Page 13: Entering A Netmask Address

    Entering a netmask address To enter a netmask address: 1. Login via console as described in section “Obtaining the MAX 410’s DHCP IP address”. 2. After logging in to the MAX 410, type /config/ip at the command prompt. 3. Type change.

  • Page 14: Logging In To The Max Web Manager

    Logging In to the MAX Web Manager Logging In to the MAX Web Manager Now that you know the Net2Phone MAX 410’s IP address, you are ready to log in to the MAX Web Manager through a Web browser as follows: 1.
  • Page 15 Net2Phone MAX 410 – Quick Start Guide Logging In to the MAX Web Manager 2. Click within the enter - Open the door area. The Network Password page appears. Page 12...
  • Page 16 Net2Phone MAX 410 – Quick Start Guide Logging In to the MAX Web Manager 3. Enter your User Name and Password and click the OK button. NOTE: The default User Name is root and the default password is n2p. You are now logged in. The MAX Web Manager Site Map page appears.

  • Page 17: Using The Max Web Manager

    MAX 410. Detailed instructions for configuring the MAX’s FXO functions can be found in the MAX 410 User Guide starting at Section 4.4, IVR (Interactive Voice Response) Configuration. Network and Voice Configuration Click the Network and Voice Config link on the Site Map page to access the Network and Voice Configuration page, illustrated below.
  • Page 18 The Max Web Manager will not allow you to save your configuration settings while these fields are blank. Click Save when you are finished. For firewall issues or other more detailed network configuration information, refer to Section 4, Using the MAX Web Manager, in your MAX 410 User Guide. Page 15...

  • Page 19: Configuring Accounts

    Click the Account Config link to access the Account Information page, illustrated below. The Net2Phone MAX 410 allows you to handle accounts in either of two ways: • Single account management - All of the ports can operate from a single account number and PIN, or •...

  • Page 20: Single Account Management

    Managing Single and Multiple Accounts Single account management For single account management: 1. In the box for Port #1 in the Account column, enter a Net2Phone account number. 2. In the PIN field, enter the Personal Identification Number for that account.

  • Page 21: Placing Calls

    PBX extension in your office in the US, you would dial 011 01 753 831118 (omitting the 0 before the city code). We will place the call as a MAX-to-MAX call, using the MAX 410 in your company’s New York City office and the MAX 410 in your company’s London office.
  • Page 22 If the LAN to which either MAX is connected employs a firewall, you will need to configure settings on both the MAX unit and the firewall before MAX-to-MAX calls can be made. For information about configuring firewalls, refer to Section Configuring a Firewall, in your MAX 410 User Guide. •...

  • Page 23: Troubleshooting Tips

    410 to your LAN, Page 6.) 2. Check for proper account setup. (See Single account management, Page 17.) 3. Refer to Appendix A, Troubleshooting in your Net2Phone MAX 410 User Guide. Technical Support If you are experiencing a technical problem, please refer to Appendix A, Troubleshooting, in the Net2Phone MAX 410 User Guide.
