POWERNAIL
CO.
®

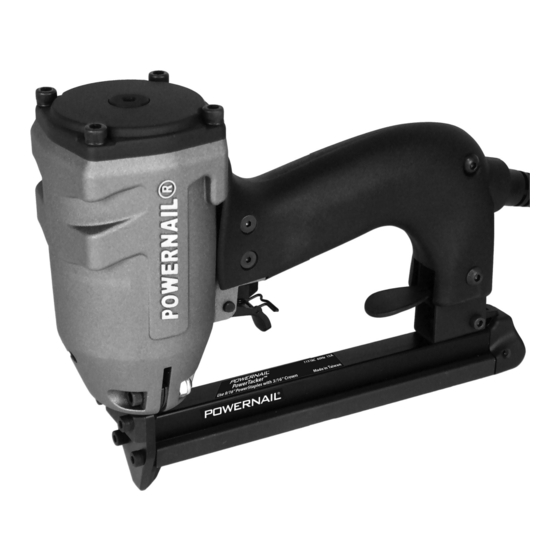

Powernail Electric PowerTacker™
OPERATION AND MAINTENANCE MANUAL
MANUAL DE OPERACION Y DE MANTENIMIENTO
MANUEL D'INSTRUCTIONS ET D'ENTRETIEN
WARNING
Read this manual before you use this electric Powerstapler®. Follow all safety warnings
and instructions. If you are uncertain about the operation of the nailer, call us directly at
1-800-323-1653 for assistance or contact the closest Powernail Dealer for help. Please
retain this information for future reference.
REV 16.06.15
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Powernail PowerTacker
Summary of Contents for Powernail PowerTacker
- Page 1 Read this manual before you use this electric Powerstapler®. Follow all safety warnings and instructions. If you are uncertain about the operation of the nailer, call us directly at 1-800-323-1653 for assistance or contact the closest Powernail Dealer for help. Please retain this information for future reference.
-
Page 2: Table Of Contents
PowerTacker™ by POWERNAIL®, for a period of 12 months from the date of purchase, and with respect to the PowerTacker™ power cord for a period of 100 days; shall be free of defects in materials and workmanship and will meet POWERNAIL’S specifi... -
Page 3: Safety
For safety, keep tools locked up and out of reach of children. Use only Powernail replacement parts in the repair or maintenance of this carpet tacker. Parts or repair services are available from the manufacturer or from agents authorized by the manufacturer. -
Page 4: Operation
OPERATION The Powernail PowerTacker™ is designed for use with 9/16” long staples with a 3/16” crown. APPLICATIONS Carpet and Carpet Pad Installation *Only use tool for its intended purposes. Drive fasteners into work surfaces only; never into materials too hard to penetrate. - Page 5 WORK TIPS Before using this tool, carefully check that all parts are working correctly. Do not use the tool if it is not operating correctly, check for causes and adjust as necessary for proper operation. When unplugging the tool, always grasp the base of the power cord to pull the plug.
-
Page 6: Loading Staples
LOADING STAPLES 1. Unplug the stapler power cord. To prevent wear, always grasp the base of the power cord to unplug. 2. Hold the tool upside down, and depress the magazine latch. Pull back on the magazine cover. 3. Insert a strip of fasteners into the magazine. -
Page 7: Clearing A Jam
CLEARING JAMS CAUTION: Always unplug the tool power cord before adjusting the tool, clearing jams, servicing, carrying to a new work location, or when not in use. For fasteners jammed inside the magazine: 1. Unplug tool power cord. 2. Press down latch and pull back on magazine. 3 Remove jammed fasteners using pliers if needed. -
Page 8: Disassembly/Reassembly
Powernail PowerTacker™ TECHNICAL SPECIFICATIONS Power Source: 15 Amps 120 Volts 60 Hz Single Phase Dimensions: 9" L x 7.5" H x 2.75" W Weight: 3.25 lbs. Fastener Capacity: 85 staples Fastener Type: 20 Gauge 3/16" Crown Fastener Lengths: 1/4" , 5/16" , 3/8" , 1/2", 9/16"... -
Page 9: Troubleshooting Chart
TROUBLE SHOOTING CHART Here are some common issues that may occur during use. If the stapler is not working as it should, stop using the tool immediately and resolve the issue before continuing. PROBLEM POSSIBLE CAUSE SOLUTION 1. Wrong staple size 1. -
Page 10: Schematic / Parts List
Powernail PowerTacker™ PARTS LIST DESCRTIPTION PART # DESCRTIPTION PART # 1 Screw M5x20 09-54E001 29 Trigger Nut Seat 2 Cylinder Cap Assembly 30 Spring 3 Bumper (Cap) 31 Contact Button 4 Plunger Assembly 09-54E004 32 Safety Buckle 5 Plunger Disc Retaining Washer... - Page 11 Powernail PowerTacker™ SCHEMATIC...
-
Page 12: Phone Support
POWERNAIL COMPANY, INC. 1300 Rose Road, Lake Zurich, IL 60047 US Phone: 1-800-323-1653 or 847-847-3000 www.powernail.com...
