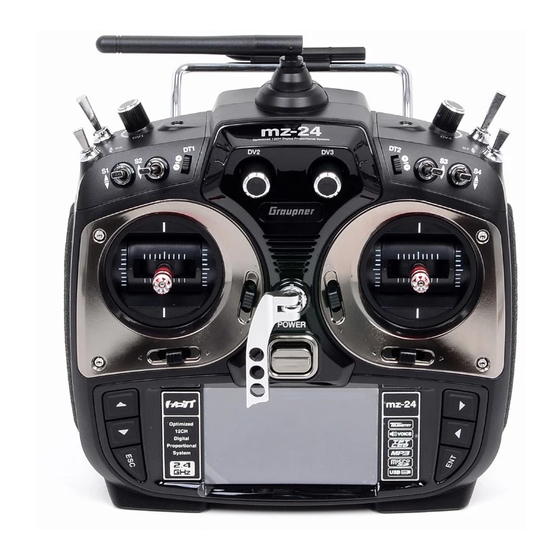

GRAUPNER mz-24 HoTT Operating Instructions Manual

2.4ghz radio system
Hide thumbs Also See for mz-24 HoTT:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Instructions, Manual
No. S1006
OPERATING INSTRUCTION
Prior to use, please read this manual thoroughly.
Keep this manual in a convenient place for quick and easy reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the mz-24 HoTT and is the answer not in the manual?

Questions and answers

Related Manuals for GRAUPNER mz-24 HoTT

Summary of Contents for GRAUPNER mz-24 HoTT

  • Page 1 No. S1006 OPERATING INSTRUCTION Prior to use, please read this manual thoroughly. Keep this manual in a convenient place for quick and easy reference.

  • Page 2: Table Of Contents

    Contents 8. S.Limit 9. S.MIX 41~43P • Before Use 10. THR.MIX • Introduction 43~44P 11. PRO.MIX • Support and Service 44~48P 12. Trainer • Openhobby A/S Center 48~49P 1. Box Contents 13. PIT >> RUDD 49~51P 2. Flying Safety 14. Telemetry 3.

  • Page 3: Introduction

    Do not attempt disassembly, use with incompatible INTRODUCTION components or augment product in any way without the approval of Graupner/SJ. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions...

  • Page 4: Specification

    4. SPECIFICATION 6. TRANSMITTER CONTROL IDENTIFICATION ANTENNA Transmitter mz-24 Receiver GR-24 Frequency band 2.4~2.4835GHz 2.4~2.4835GHz Modulation S3 SWITCH FHSS FHSS S5 SWITCH Output power 100mW S2 SWITCH Current drain approx 125mA approx 70mA S1 SWITCH S4 SWITCH Operating voltage 3.4V~6V 3.6V~8.4V...

  • Page 5: Binding

    7. BINDING You must bind the receiver to the transmitter before the receiver will operate. Binding teaches the receiver the specific code of the transmitter so that it will only connect to it’s corresponding transmitter. If you turn on transmitter’s power before binding, the warning message appears on transmitter LCD page, which announce transmitter is not bound.

  • Page 6: Base Menu (Helicopter, Airplane, Gilder)

    BASE MENU (Helicopter, Airplane, Gilder) 1. Model select It is used to add or select model. Touch Model Sel icon in base menu to access Model sel menu 1-2. NEW Touch This function is use to create the new model or exchange the current model to others. There is 2 methods of Manual setting and Wizard setting.
  • Page 7 Touch Touch Touch Touch Touch Touch Touch Touch Touch Touch Touch Touch Touch Touch Touch Touch...
  • Page 8 Touch Touch Touch “Wizard setup” is used to set the basic function of a model and the essential function of flight one by one. Please refer to the example of helicopter type as below. Touch the icon of desired model you want to program Wizard setup in the model list and touch “NEW”...
  • Page 9 Touch Touch Touch Touch Touch Touch Touch Touch Touch Touch Touch Touch Touch Touch...
  • Page 10 1-3. INT.M (Internal Model) It is used to copy the model memory in SD Card into the model list of transmitter. To make use of INT.M function, you need SD Card that has the programmed model file. If you put SD Card into SD Card slot on the back of transmitter, “SD Card”...

  • Page 11: Cpy(Model Copy)

    Touch Touch Touch Touch INITIALIZE MODEL SURE CHANGE Touch Touch Touch 1-6. CPY(Model Copy) 1-5. RES(RESET) The Copy function is used to copy the programmed values of a model into the other model. Touch It allows you to remove the selected models in model list. Refer to the example of Model 01 the source model to copy, it is activated in blue.

  • Page 12: Model Type 3. E

    Touch Touch Touch Touch Touch Touch Touch Touch Touch Touch 2. Model type It is used to reset the model type. Please note that all the value, excepting for model name, is reset when “Model type” is set again. Touch “Model type” icon on base menu page to call the model type setup page, the preset “model type”, “swash type”...
  • Page 13 3. E.P.A E.P.A is used to adjust the end point and limitation of servo travel for each channel. Touch “E.P.A” icon on the base menu page to call E.P.A setup page. “Limit” and “travel” can be set individually. When you touch each icon, it is activated in blue and you may adjust the values with “INC”...

  • Page 14: Reverse

    4. Reverse It is used to reverse the operation of an individual servo. Touch the “Reverse” icon in the base menu page to call the Reverse setup page. In “Reverse” page, you are able to reverse the oper- ation of a servo. When you touch the “NOR” icon, “NOR” is changed to REV” and the operation of an individual servo is reversed.

  • Page 15: Thr.cut

    6. THR.CUT This function is used to stop the operation of engine. THR.CUT function works from below one- third position of the full movement range of throttle stick. Touch “THR.CUT” icon in the base menu page to call the “THR.CUT” setup page. When touching “INH” icon in “ACT” line, you may change the value to “OFF”.

  • Page 16: Tx Ctl

    - BIND ON/OFF It is used to bind a transmitter to a receiver. In “TX ctl” setup page, turn on a receiver and press & hold “Setup” button of a receiver for over 3 seconds until a receiver is entered the binding mode.
  • Page 17 Touch - RF TYPE mz-24 offers 2 RF types, NORMAL and FRANCE, to comply with country regulation. “NORMAL” type is usually used in most countries, but you need France RF setting to comply with France regulations in FANCE. France RF setting should only be turned on when operating your transmitter in France outdoors.

  • Page 18: Timer

    - RANGE TEST “Range Test” function reduces the power output. This allows for a range test to confirm the RF link is operating correctly. Perform a range check at the beginning of each flying session to confirm system operation. If the servo connected to receiver is operated normally within 50m or 70m of the distance from the receiver, you may fly a model, if not, you need do range test again.
  • Page 19 Timer consists of TIMER1 and TIMER2. The flight data is saved to SD card on transmitter After “MODE” setup, you need to set “ALARM”. The alarm sounds from the last 20 seconds in the during the flight time is operating in TIMER1 mode but TIMER2 don’t have the storing function setup time.
  • Page 20 Touch Touch Touch Touch Touch After RESET SW is set, you may set “LAP SW” function. Touch “NULL” icon in “LAP SW” to call “select” message popup. Now, move the switch with your choice then this switch is set on/ off switch for “LAP SW” and the switch direction setup page appears. You may change ON/OFF by touching icons.
  • Page 21 After Timer 2 setup, touch “NEXT” icon on the right. You may call the page of the date/ time setup. Touch and activate “SET” icon in blue first. All options can be activated in blue by touching icon. Now, you may adjust the values for the date and time with “INC” and “DEC” buttons as the picture Touch shown below.

  • Page 22: Failsafe

    Touch Touch Touch Touch Touch Touch Touch 9. FAILSAFE When you bind your transmitter, you are programming the receiver with failsafe defaults. If connection is lost between the transmitter and receiver, the receiver immediately operates in those preprogrammed default positions. The default value is “Hold”...
  • Page 23 Touch Touch Touch Touch Touch Touch Touch Touch Touch Touch Touch Touch Touch Touch Touch Touch...

  • Page 24: Trim Step

    10. TRIM STEP It allows you to check all values of “Digital trim step”, “DT1”, “DT2”, ‘Digital volume”, and “Side slide”. Touch “Trim Step” icon in base menu page to call Trim Step setup page. The step values in T1, T2, T3, T4 indicate servo movement per click of trim. “4” is set by default, which means that trim will travel as much as 4 by each click of trim Touch and activate the step values and then adjust them with INC”...

  • Page 25: Servo

    Touch Touch Touch Touch Touch Touch Touch Touch 11. SERVO It is used to test a servo and check the servo movement in a graph. You are able to test the servo movement from 0.5sec to 5 sec with your choice. Touch “Servo” icon in the base page to call the servo setup page.

  • Page 26: Ch Set

    12. CH Set It is used to set the channel of a transmitter. The basic setup of the transmitter’s channel is set differently depending on 3 different types (“model type”, “wing type”, and “swash type”) and mz-12 Touch offers AUX channel to set the switch, volume, and side lever for your purpose. Touch “CH set” icon on base menu page to call to “CH set”...

  • Page 27: Function Menu (Helicopter)

    Touch Touch FUNCTION MENU (Helicopter) 1. Q.LINK This function is used to set Q.LINK and assign the corresponding switch to cope with the unex- pected trouble situation. Since the adjusted value is activated by moving the switch and you can cope with the crisis with just one switch.

  • Page 28: Nam

    Touch Hold Hold Hold ldle-up1 ldle-up1 ldle-up1 Touch ldle-up2 ldle-up2 ldle-up2 ldle-up3 ldle-up3 ldle-up3 1-2 NAM It is used when to revise the name of “Q.LINK”. Touch the target value in “Q.LINK” to activate in blue. Now touch “NAM” icon to call NAM setup page. In the page, enter the desired name Hold Hold using the keypad.

  • Page 29: Cpy

    “DEL” icon. Now, the selected Q.LINK entry is deleted in Q.LINK list. If you touch “NEXT” icon, you may call the next page mz-24 supports copying the preset Q.LINK setup data into another Q.LINK. Touch and activate the source Q.LINK in blue and touch “CPY” icon to call “COPY” message popup.
  • Page 30 2. D/R, EXP Dual Rates and exponentials are available on all channels including aileron, elevator and rudder channels. This adjusts control rates for servos. Adjust the throws (Dual Rate) and center sensitivity (Expo) of the control’s range independently. You may assign a switch for moving between control rates for a servo channel and Dual Rates and exponentials are available on each Q.LINK as well Dual rate is a percentage of the Travel Adjust.
  • Page 31 Touch Touch Touch Touch Touch Touch Touch Touch Touch Touch Touch Touch...

  • Page 32: Pit.crv

    Touch Touch Telemetry In FUNCTIOPN page, touch “PIT.CRV” icon to call PIT.CRV setup page. You need to mark the point on graph first and then adjust the operation curve with “DEC”, “INC”, X-axis and Y-axis buttons. Touch “ST OFF” to change to “ST ON” then the throttle position line appears on graph.
  • Page 33 TRIM TRIM TRIM TRIM Touch Touch Touch Touch TRIM TRIM TRIM TRIM Touch Touch Touch TRIM TRIM TRIM TRIM Touch Touch Touch Touch TRIM TRIM TRIM TRIM Touch Touch...
  • Page 34 Q.LINK (idel-up2) TRIM TRIM TRIM Touch Touch Q.LINK (Hold) TRIM Touch Touch Telemetry If you touch OFF icon in Curve line, it is switched to ON and the operation curve is smoother. After setup, touch “TRIM” icon in the top right to call the pitch, throttle curve trim setup page. TRIM TRIM Touch...

  • Page 35: Thr.crv

    TRIM Touch +076% +076% Telemetry In FUNCTIOPN page, touch “THR.CRV” icon to call THR.CRV setup page. You need to mark the point on graph first and then adjust the operation curve with “DEC”, “INC”, X-axis and Y-axis buttons. Touch “ST OFF” to switch to “ST ON” then the throttle position line appears on graph.
  • Page 36 TRIM TRIM TRIM TRIM Touch Touch Touch 워드:63P TRIM TRIM TRIM TRIM 63-5W 이미지 수정 Touch Touch Touch TRIM TRIM TRIM TRIM Touch Touch TRIM TRIM TRIM TRIM Touch Touch...

  • Page 37: Gyr/Gover

    TRIM Touch Touch Touch Telemetry If you touch OFF icon in Curve line, it is changed to ON and the operation curve is smoother. NORMAL You may set the pitch, throttle curve trim by touching “TRIM” icon in the top right. The setup MODEL NAME 1 method is explained at PIT.CRV TRIM...
  • Page 38 Touch Touch Gyro Suppression Gyro Suppression TRIM TRIM Telemetry Gyro Gain, Governor, Governor RATE, Gyro Suppression are available in this function - Gyro Gain is used to adjust the sensitivity of gyro. “00%” is basically set and heading lock gyro is operated at over 40% of sensitivity.

  • Page 39: Thr.hold

    Touch Touch Gyro Suppression Gyro Suppression TRIM TRIM Telemetry Touch Touch Gyro Suppression TRIM Telemetry 6. THR.HOLD Touch This function is for powering down an engine or motor using a designated switch. Throttle hold has higher authority than any other flight mode. When you activate THR.HOLD, the throttle channel is driven to its programmed value.

  • Page 40: Swash

    Touch Touch Touch Telemetry Touch Touch 7. SWASH The swash function supports adjustment of the travel amount and direction of the aileron, eleva- Touch tor and pitch in Helicopter mode. Bind a helicopter to a receiver and set the travel amount and direction of the swash channels desirably Touch “SWASH”...
  • Page 41 100% Touch Touch The Swash rotation function in the bottom is used to make the swash that mz-24 doesn’t Touch support available by rotating the swash angle In the Function page, touch “S.Limit” icon to call “S.Limit” setup page. Touch “INH” icon in “ACT”...
  • Page 42 (RATE) (RATE) Touch Touch Touch Telemetry Touch Touch (RATE) (RATE) Touch Touch Touch (RATE) (RATE) Touch Touch Touch Touch Touch (RATE) (RATE) Touch Touch...

  • Page 43: Thr.mix

    (RATE) Touch Touch Telemetry 10. THR.MIX THR.MIX function prevents RPM decay when PITCH, AILE and ELEV inputs are given. This mix advances the throttle position with mix control to maintain RPM. This function can be adjusted for each condition of Q.LINK and three types is available (AILE>>THRO, (RATE) (RATE) ELEV>>THRO, RUDD>>THRO)
  • Page 44 - CTL setup with a stick Touch “SW6” icon in CTL line to call “Select” message popup then move the stick with your Touch choice then that stick is designated as on/ off stick and then the stick direction setup page appears.
  • Page 45 Touch Touch Touch Touch Touch Touch Touch Touch Touch Touch Touch Touch Touch...
  • Page 46 Touch Touch Touch Touch Touch Touch Telemetry 11-2. Curve mixing type In the prog.mix page, touch “NEXT” icon to call the next page. Number 6~8 are used for PRO. MIX curve mixing. Touch any of them to switch to ON in ACT line. If so, mixing is available to Touch use.
  • Page 47 - CTL setup with a stick Hoping that you would refer the explanation as explained above Touch Here, you need to set the operation value, “L” and “H” points are set by default and you need to mark 5 points between “L” and “H” on graph first and then adjust the operation curve with “DEC”, “INC”, X-axis and Y-axis buttons.

  • Page 48: Trainer

    Touch 12. Trainer (Helicopter, Airplane, Gilder) mz-24 features a programmable trainer function. Two transmitters must be connected by Wireless or an optional DSC code. This function makes it possible for the instructor to choose which functions and channels are to be used for instruction.

  • Page 49: Pit >>Rudd

    Now, you need to bind teacher transmitter and pupil transmitter. Turn on pupil’s transmitter and receiver. Touch “OFF” icon in BIND line to switch to ON and touch “OFF” icon in Teacher trans- mitter to switch to “ON” then Teacher transmitter is bound to pupil transmitter. Pupil transmitter Touch can control the channels only if Teacher trainer switch is on.
  • Page 50 Touch Telemetry Touch Touch Touch Touch Touch Touch Touch Touch Touch Touch Touch Touch...

  • Page 51: Telemetry

    14. Telemetry It is used to perform the programming setup and check HoTT telemetry functions. Touch “Teleme- try” icon to call the Telemetry page. You may program 5 types of “RX SELECT”, “SETTING & DATA VIEW” “SENSOR SELECT”, ”RF STATUS VIEW”, and “VOCIE TRIGGER”. 14-1.
  • Page 52 Touch Touch Touch - RX SERVO The servo functions, “REVERSE”, “CENTER”, “TRIM”,” LIMIT-“, LIMIT+, and “PERIOD”, can be programmed throughout receiver when servo is connected to each channel of receiver. In “RX DATA VIEW” page, touch “ENT” icon to call RX SERVO page. You may move the cursor “>” to other category with INC button and select the category that you want to program.
  • Page 53 Touch Touch • CENTER It is used to set the “center position” of servo. Touch “SET” icon to activate the value in red. Move and hold the throttle stick to the desired position for the servo center and touch “SET” icon then that position is assigned to the servo center and the relevant value is displayed.
  • Page 54 • PERIOD It is used to set the speed of receiver’s output signal. Touch “SET” icon to activate the default value, 20msec, in red and set the value to 10msec with INC and DEC buttons. Touch “SET” icon again to deactivate the value and touch ENT button to call “RX FAIL SAFE”...
  • Page 55 Touch INC button to move the cursor to “INPUT CH” and touch “SET” icon to activate the value in red then select the channel to be connected to “OUTPUT CH” with INC and DEC buttons. Touch “SET” icon again to deactivate the value. Touch INC button to move the cursor to “MODE”...
  • Page 56 Touch Touch • FAIL SAFE ALL This function allows that all failsafe position for every channel can be set at a time without the use of F.S.POS function. Notice that MODE of all channels should be set to FAIL SAFE. Touch “SET”...
  • Page 57 • MASTER CH - RX FREE MIXER You may set the master channel of FREE MIXER. This function is used to correct the unintended movement of airplane during the flight by mixing Touch “SET” icon to activate the value in red and select the master channel number with INC and master channel and slave channel.
  • Page 58 • SLAVE CH You may set the salve channel of FREE MIXER. Touch “SET” icon to activate the value in red and select the slave channel number with INC and DEC buttons. Touch “SET” icon again to deactivate the value. Touch INC button to move the cursor to “S-TRAVEL-”...
  • Page 59 - RX CURVE It is used to set the curve of CH2, CH3, and CH4 and 3 types of A, B, and C are selectable. > A type: Sensitive operating > B type: Normal operating > C type: smooth operating The default, B type is set and it is very similar with “EXP”...
  • Page 60 Touch Touch Touch Touch Touch Touch - RX SERVO TEST This function allows servo operation to be tested and program the receiver’s power voltage, the alarm for the maximum/minimum temperature of receiver and the channel out type of receiver. • ALL-MAX/ ALL-MIN/ TEST Touch The travel amount for servo test is decided for the setup value of ALL-MAX and ALL-MIN Touch...
  • Page 61 • ALARM VOLT It is the low voltage alarm setup for receiver power battery. Transmitter sounds an alarm throughout telemetry technology when the battery of receiver reaches the low voltage limit. Touch “SET” icon to activate the value in red and adjust the value with INC and DEC buttons. Touch “SET”...
  • Page 62 Touch Touch - CH OUT TYPE It is used to set the type of receiver’s signal output and it consists of ONCE, SAME, SUMO 12, SUMI, and SUMD HD12. > ONCE: This type is applied to the analog servo. “20msec” is automatically set to PERIOD in RX SERVO setup Touch >...

  • Page 63: Sensor Select

    Touch Touch Touch 14-3. SENSOR SELECT This function is used to program telemetry sensor that is connected to HoTT receiver. You should select the sensor first to use and program the function such as voice function, warning and the telemetry data information. Touch “>>”...

  • Page 64: Rf Status View

    14-4. RF STATUS VIEW It shows RF status between transmitter and receiver throughout telemetry function Touch “>>” icon in RF STATUS VIEW line then the indication to show the RF connection status is Touch displayed by graph. Touch Touch Touch Touch Touch 14-5.

  • Page 65: Voice Trigger

    - TRIG - VARIO You may designate the transmitter control for the voice functions of transmitter, receiver and You may designate the transmitter control for the voice functions of Vario module. sensor. The next voice function is came in turn whenever the control is on/off Touch “NULL”...
  • Page 66 - TRANSMITTER You may select the voice functions to use or not to use. 6 voice functions, TX VOLT, MODEL TIME, BATT TIME, TIMER1, TIMER2, and CURRENT TIME, are available Touch “>>” icon to call the transmitter setup page. All the functions are marked with red dot by Touch default in the page.
  • Page 67 - VARIO MOD You may decide the voice functions of VARIO MOD to use or not to use. 3 voice functions, Touch ALTITUD, MAX ALT and MIN ALT, are available. Touch “>>” icon to call the VARIO MOD setup page. All the functions are marked with red dot by default in the page.

  • Page 68: Display Setup For Telemetry Sensor

    Touch Touch Touch 14-6. DISPLAY SETUP FOR TELEMETRY SENSOR Touch All telemetry indication of the sensors are displayed at the receiver telemetry page. Connect option sensors to receiver and access to the sensor select setup page by course of page transfer. Touch “OFF”...
  • Page 69 Touch Touch Touch Touch Touch Touch Touch Touch Touch Touch Telemetry Touch Touch...

  • Page 70: Function Menu (Airplane, Gilder)

    FUNCTION MENU (Airplane, Gilder) 1. Q.LINK This function is used to set Q.LINK and assign the corresponding switch to cope with the unex- pected trouble situation. Since the adjusted value is activated by moving the switch and you can Touch cope with the crisis with just one switch.

  • Page 71: Nam

    Q.LINK. 1-3 CPY mz-24 supports copying the preset Q.LINK setup data into another Q.LINK. Touch and activate the source Q.LINK in blue and touch “CPY” icon to call “COPY” message popup. Whenever touching Touch Q.LINK in TARGET line in the popup, all entries in TARGET are displayed in turn.

  • Page 72: Del

    2. D/R, EXP Dual Rates and exponentials are available on all channels including aileron, elevator and rudder channels. This adjusts control rates for servos. Adjust the throws (Dual Rate) and center sensitivity (Expo) of the control’s range independently. You may assign a switch for moving between control rates for a servo channel and Dual Rates and exponentials are available on each Q.LINK as well Dual rate is a percentage of the Travel Adjust.
  • Page 73 Touch Touch Touch Touch Touch Touch After “D/R”, “EXP” setup, perform CTL setup. It is used to assign the switch to D/R, EXP function Touch “NULL” icon in CTL line to call “Select” message popup and move the switch that you want to use then that switch is set on/ off switch and the switch direction setup page appears.

  • Page 74: Wing Mix

    Touch Touch Touch Telemetry 3. Wing MIX Wing MIX consists of various mixing functions which are essential to fly. There are three types mix, RUDD>>AILE”, “AILE>>RUDD”, and “RUDD>>ELEV” In FUNCTION page, touch “Wing MIX” icon to call “Wing MIX” setup page. Touch “INH” icon in “ACT”...
  • Page 75 Touch Touch Touch Telemetry Touch (RATE) Touch Touch Touch (RATE) (RATE) Touch Touch Touch Touch (RATE) (RATE) Touch Touch Touch...

  • Page 76: Thr.crv

    Touch Touch Touch Telemetry Touch Touch Telemetry In FUNCTIOPN page, touch “THR.CRV” icon to call THR.CRV setup page. You need to mark the point on graph first and then adjust the operation curve with “DEC”, “INC”, X-axis and Y-axis buttons. Touch “ST OFF” to switch to “ST ON” then the throttle position line appears on graph.
  • Page 77 Touch Touch Touch Touch Touch Touch Touch Touch Touch Touch Touch...
  • Page 78 Touch Touch Touch Telemetry Touch 5. Idle LOW It is used to lower the idle speed of the engine temporarily when airplane lands In FUNCTIOPN page, touch “Idle LOW” icon to call “Idle LOW” setup page and touch and switch “INH”...

  • Page 79: Prog.mix

    is operated. The value of set position is displayed in POS. If you touch REVERSE in “DIR” line, all setup is reversed. To set “ON” or “OFF” at the both end of stick operation range, touch “SINGLE” icon to switch to “DUAL” then Prog.MIX function is on or off at the both end of stick operation range.
  • Page 80 Touch Touch Touch Touch Touch Touch Touch Touch Touch Touch Touch Touch Touch...
  • Page 81 Touch Touch Touch Touch Touch Touch Telemetry 6-2. Curve mixing type In the prog.mix page, touch “NEXT” icon to call the next page and touch “INH” icon in the cross line of NO7 and ACT to switch to “ON”. Touch “NONE” in MST line to access the channel selection Touch page and touch and activate “NONE”...
  • Page 82 Touch Touch Touch Touch Touch Touch Touch Touch Touch Touch Touch Touch Touch Touch...

  • Page 83: Snap Roll

    Touch Touch Touch Touch Touch Touch 7. Snap roll It is used to select the switch and adjust the value of AILE, ELEV, RUDD channels for the snap roll function. Four snap roll directions can be set for your convenience. In function page, touch “Snap roll”...

  • Page 84: Aile Diff

    Touch Touch Touch Touch Telemetry Touch 8. Aile diff This function decreases the amount an aileron moves down without affecting the amount the other aileron moves up. This can decrease adverse yaw (right or left movement of the aircraft nose) tendencies during roll maneuvers. Touch “Aile diff”...

  • Page 85: Flap Mix

    Telemetry Touch Touch 9. Flap MIX It consists of 4 mixing types, “FLAP”, ”AILE>>FLAP”, “ELEV>>FLAP”, and “FLAP>>ELEV”. All of 4 mixing types are closely related with Q.LINK setup and the different values can be set to each individual Q.Link for 4 mixing types 9-1.
  • Page 86 Touch Touch Touch Telemetry Telemetry Touch Touch OFFSET OFFSET Touch Touch Touch Touch OFFSET OFFSET Touch Touch Touch Touch Touch OFFSET OFFSET...

  • Page 87: Aile >> Flap

    Touch Touch OFFSET Touch Touch Touch 9-2. AILE >> FLAP This mixing allows the entire trailing edge of the wing (aileron and flap) to operate as ailerons. When active, as aileron is applied the flaps also move so that the airplane rolls faster. In FLAP MIX page, touch “INH”...

  • Page 88: Elev >> Flap

    Touch Touch Touch Touch Touch Touch Touch Touch 9-3. ELEV >> FLAP This mixing creates more lift of airplane, allowing a tighter turn. The entire trailing edge of the wing (aileron and flap) operates as flaps when elevator is applied. Touch INH icon in ACT line to switch to “ON”...

  • Page 89: Flap >> Elev

    Touch Touch Touch Touch Touch Touch Touch Touch 9-4. FLAP >> ELEV This mixer is used to set elevator (pitch-trim) compensation when a flap command is given. This typically enables you to adjust the model’s airspeed automatically when flaps are lowered. In FLAP MIX page, touch “INH”...
  • Page 90 Touch Touch Touch Touch Touch Touch Touch Touch Touch Touch Touch Touch Touch...

  • Page 91: Flap Sett (Airplane, Gilder)

    10. Flap sett (Airplane, Gilder) This mixing allows that the aileron, flap and elevator setups are applied at the same time by Touch operating a switch. It can be also applied to Camber mix, Launch mode and Speed mode. Touch “Flap sett” icon to access to the “Flap sett” setup page. The first page is AILE setup and you may access to FLAP and ELEV setup page by touching “NEXT”...

  • Page 92: Airbrake (Airplane)

    Touch Touch Telemetry 11. Airbrake (Airplane) This mixing is used when the airplane is need to land or descent vertically. Airbrake can be set by AILE, FLAP and ELEV. Touch “Airbrake” icon in the function setup page to call the airbrake setup page. The first page is AILE setup and you may access to FLAP, ELEV and AIRBRAKE DELAY setup page by touching “NEXT”...
  • Page 93 Touch Touch Touch Touch Touch Touch Touch Touch Touch Touch Touch Touch Touch...

  • Page 94: Butterfly (Gilder)

    If you touch OFF icon in Curve line, it is changed to ON and the operation curve is smoother. Now touch “NEXT” icon to call “BUTTERFLY OFF” setup page. This function is used to decide the throttle stick position where the butterfly function is off. Move and hold the throttle stick to Touch the desired position for the function off and touch the value then the stick position is decided and the assigned value is displayed.
  • Page 95 Touch Touch Touch Touch Touch Touch Touch Touch Touch Touch Touch Touch Touch Touch...

  • Page 96: System(Helicopter, Airplane, Gilder)

    SYSTEM (Helicopter, Airplane, Gilder) 1. ST mode There are 4 fundamental options for assigning the four control functions (aileron, elevator, rudder Etc.Set and throttle/brake flap) for a winged aircraft model to the two sticks. Just which of these options is chosen depends on the individual preferences of the individual model pilot.

  • Page 97: Etc.set

    Touch Power on Melody Power on Melody Touch Touch Speaker Volume Speaker Volume Touch Etc.Set Power on Melody Power on Melody Speaker Volume Speaker Volume Touch Touch 3. Etc. set It is used to select the battery type and set battery warning voltage, Power on melody and Speaker volume.

  • Page 98: Display

    Touch Etc.Set 4.5V Power on Melody Touch Speaker Volume Logo color Logo color DEFAULT DEFAULT Touch Glaring sun Glaring sun 4. Display It is used to adjust TFT LCD’s contrast, back light off time, the sensitivity of Touch sense, Logo color and Glaring sun.

  • Page 99: Stick Cali 99P

    Etc.Set Touch Touch 5. Stick Cali It is used to calibrate the stick’s neutral position Touch “Stick Cali” icon in the system menu page to call “Stick Cali’ page. The right stick and the left stick of transmitter are calibrated in turn and the stick position is indicated on VERTI, HORIZ with percentage Touch Touch...

  • Page 100: Firmware Update

    Touch FIRMWARE UPDATE For more information on the latest firmware and the related software, please refer to the down- Touch load menu on our website www.openhobby.com, www.graupner-sj.com NOTICE: The optional USB adapter is needed to update. Touch SAFETY APPROVAL Declaration of Conformity...
