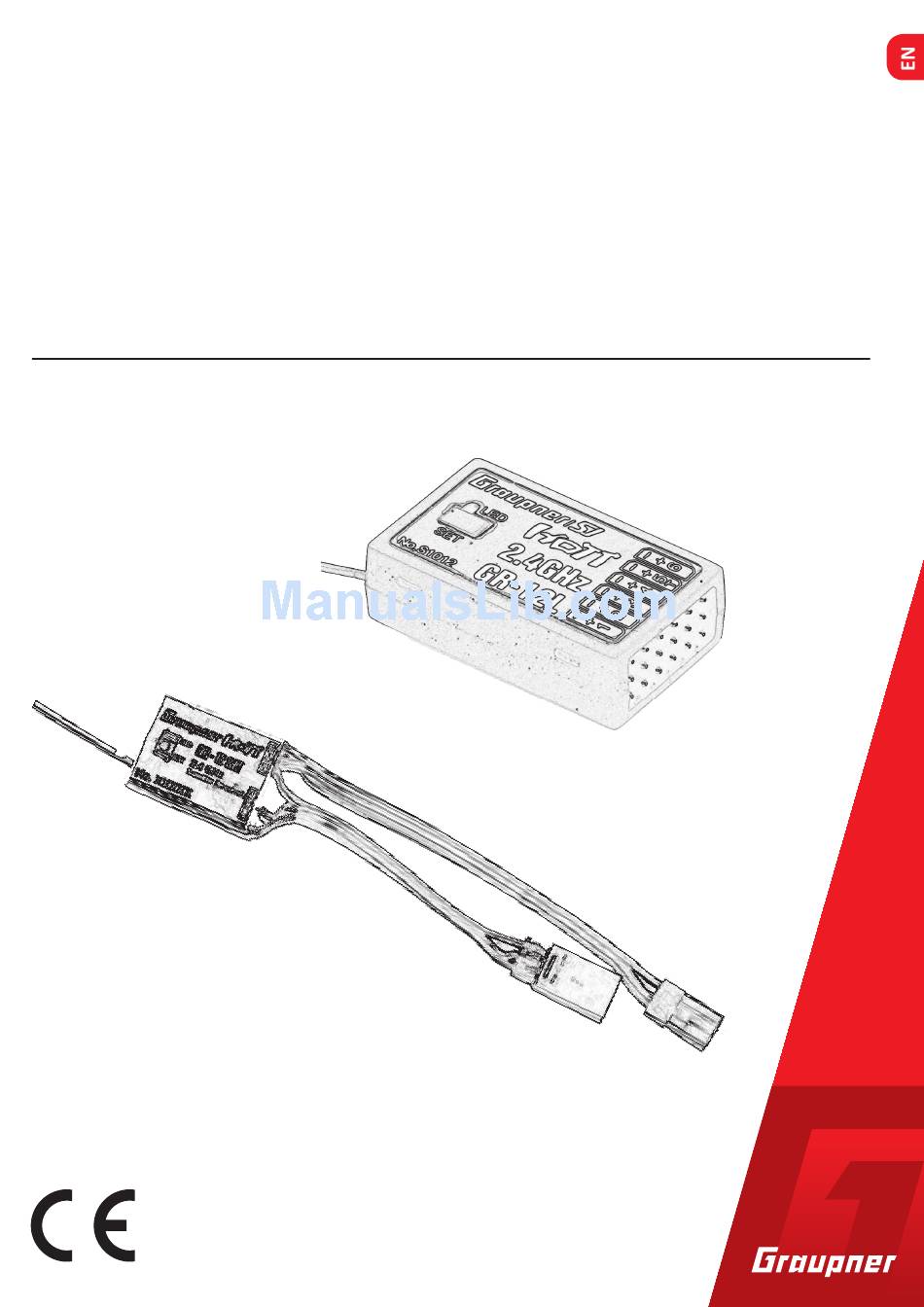

- Page 1 Manual GR-12L / GR-12L SUMD+T 6 channel receiver / Satellite receiver No. S1012 / S1037 Part 1...
-
Page 3: Table Of Contents
Safety notes................6 Installation ................8 Binding ..................8 Connection S1012 - GR-12L ............9 Power supply ..................9 Connection S1037 - GR-12L SUMD+T ........10 Power supply ................10 Receiver settings ..............11 Receiver settings menu ...............11 Free mixers ...................12 Channel reverse ..............13 Firmware update .............. -
Page 4: Introduction
This manual is part of the product. It contains important informa- tion concerning operation and handling. Keep these instructions for future reference and give it to third person in case you gave the product. Service Centre Graupner Central Service (+49) (0)7021/722-130 Monday - Thursday: 9:15 am - 4:00 pm Friday:... -
Page 5: Intended Use
Intended use The GR-12L receiver is designed exclusively to be used in bat- tery-powered, radio controlled models, any other use is not allowed. The GR-12L receiver works only with HoTT transmitters. For any improper use no warranty or liability is accepted.For any improper use no warranty or liability is accepted. -
Page 6: Symbols Explication
Symbols explication Always observe the information indicated by this warning sign. Par- ticularly those which are additionally marked with the CAUTION or WARNING. The signal word WARNING indicates the potential for serious injury, the signal word CAUTION indicates possibility of lighter injuries. - Page 7 Only use the components and spare parts that we recommend. Always use matching, original Graupner plug-in connections of the same design and material. Make sure that all of the plug-in connections are tight. When dis- connecting the plug-in connections, do not pull the cables.
-
Page 8: Installation
Installation Install the receiver so that the connecting cables for the servos and power supply remain loose, and so that the receiving antennas are at least 5 cm from all large metal parts or wires. This includes carbon fiber parts, servos, electric motors, fuel pumps, all types of cables, etc. -
Page 9: Connection S1012 - Gr-12L
The polarity is also printed on the receiver; the negative wire (-) is brown, the positive (+) red and the signal orange. The servo sockets of Graupner-HoTT 2.4 receivers are numbered sequentially. Attention A servo plug must never be inserted horizontally on the vertical servo connectors. -
Page 10: Connection S1037 - Gr-12L Sumd+T
Connection S1037 - GR-12L SUMD+T Connect your Flybarless system to the SUMD connector. You can connect HoTT sensors to the Telemetry port. The colors of both cables mean: brown cable (-) power supply red cable (+) power supply orange cable (signal) telemetry or SUMD... -
Page 11: Receiver Settings
Receiver settings The receiver can be programmed with a suitable HoTT transmitter or in connection with the SMART-BOX. Receiver settings menu The receiver setup menu appears in the “Telemetry“ menu under RECEIVER 2.0< > SETTINGS / DISPLAYS or if you are using a SMART-BOX under SET- >ALARM VOLT 3,8V TING &... -
Page 12: Free Mixers
Free mixers Up to five mixers can be contemporaneously programmed. You can RX FREE MIXER < > switch between Mixer 1, Mixer 2, 3, 4 … and mixer 5 in the “Mixer” >MIXER: line. MASTER CH: >SLAVE CH: The following settings only affect the mixer selected in this line. >TRIM: TRAVEL-: +100%... -
Page 13: Channel Reverse
Declaration of conformity S1037 / S1012 receiver GR-12L HoTT Graupner/SJ declares that the product is conform to EU norms. EN 301 489-1 V1.9.2 EN 301 489-17 V2.2.1 EN 300 328 V1.8.1 EN 60950-1+A11+A1+A12+A2:2013 EN 62311:2008... -
Page 14: Notes On Environmental Protection
In your own interests protect it from dust, dirt and moisture. Warranty The Graupner, Henriettenstrassee 96, 73230 Kirchheim/Teck grants from the date of purchase of this product for a period of 24 months. The warranty applies only to the material or operational defects already existing when you purchased the item. - Page 15 15 / 16 S1037_S1012_jh_V1...
