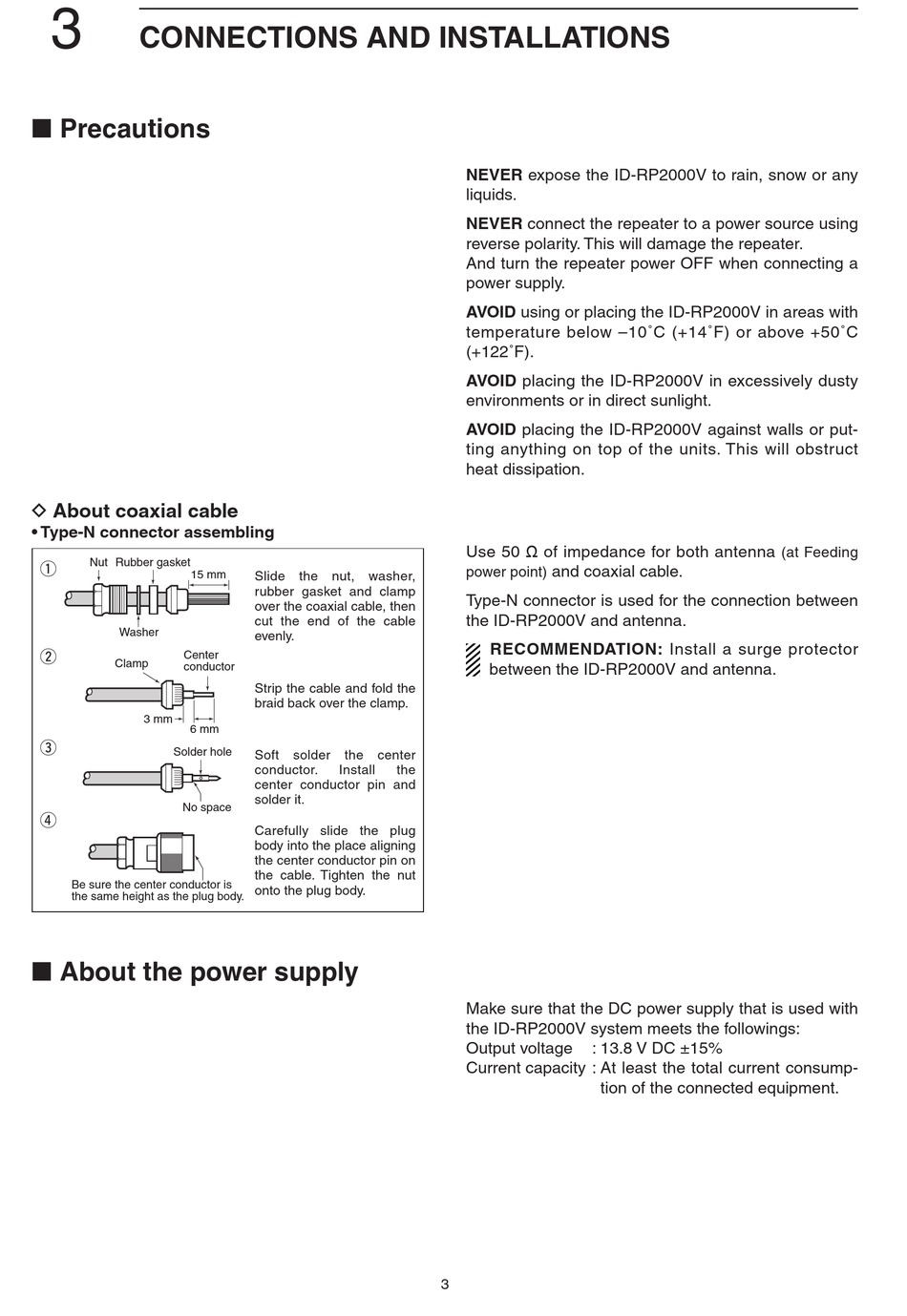

CONNECTIONS AND INSTALLATIONS

■ Precautions

D About coaxial cable

• Type-N connector assembling
Nut Rubber gasket
q
15 mm
Washer
w
Center
Clamp
conductor
3 mm
6 mm
e
Solder hole
No space
r
Be sure the center conductor is
the same height as the plug body.

■ About the power supply

Slide the nut, washer,
rubber gasket and clamp
over the coaxial cable, then
cut the end of the cable
evenly.
Strip the cable and fold the
braid back over the clamp.
Soft solder the center
conductor. Install the
center conductor pin and
solder it.
Carefully slide the plug
body into the place aligning
the center conductor pin on
the cable. Tighten the nut
onto the plug body.
NEVER expose the ID-RP2000V to rain, snow or any
liquids.
NEVER connect the repeater to a power source using
reverse polarity. This will damage the repeater.
And turn the repeater power OFF when connecting a
power supply.
AVOID using or placing the ID-RP2000V in areas with
temperature below –10˚C (+14˚F) or above +50˚C
(+122˚F).
AVOID placing the ID-RP2000V in excessively dusty
environments or in direct sunlight.
AVOID placing the ID-RP2000V against walls or put-
ting anything on top of the units. This will obstruct
heat dissipation.
Use 50 Ω of impedance for both antenna
and coaxial cable.
power point)
Type-N connector is used for the connection between
the ID-RP2000V and antenna.
RECOMMENDATION: Install a surge protector
between the ID-RP2000V and antenna.
Make sure that the DC power supply that is used with
the ID-RP2000V system meets the followings:
Output voltage : 13.8 V DC ±15%
Current capacity : At least the total current consump-
tion of the connected equipment.
3
(at Feeding
