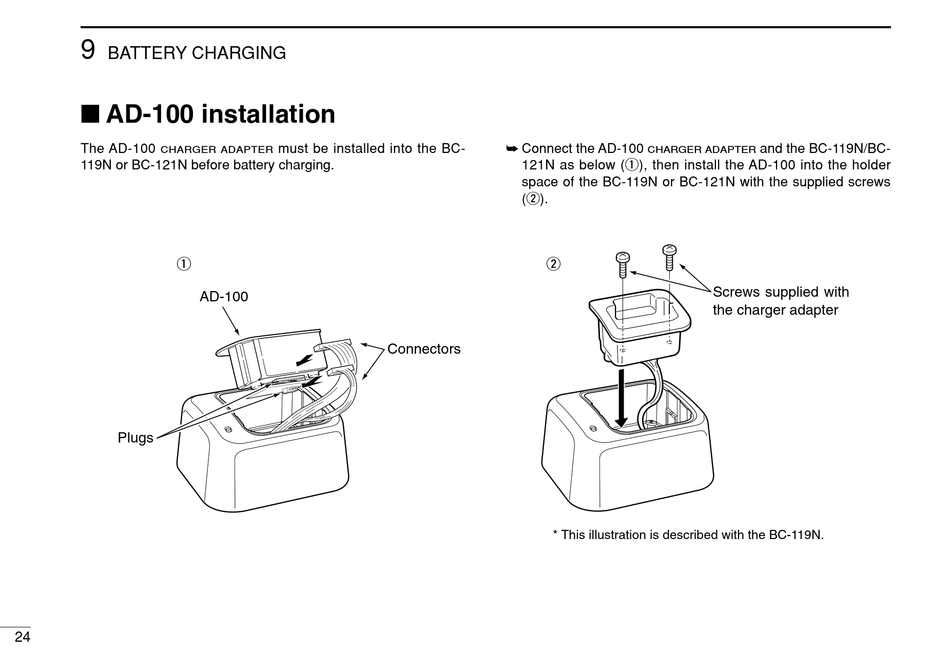

BATTERY CHARGING
I AD-100 installation
The AD-100
CHARGER ADAPTER
119N or BC-121N before battery charging.
q
Plugs
24
must be installed into the BC-
AD-100
➥ Connect the AD-100
121N as below (q), then install the AD-100 into the holder
space of the BC-119N or BC-121N with the supplied screws
(w).
w
Connectors
* This illustration is described with the BC-119N.
and the BC-119N/BC-
CHARGER ADAPTER
Screws supplied with
the charger adapter
