9
BATTERY CHARGING
I AD-100 installation
Install the AD-100 desktop charger adapter into the holder
space of the BC-119N/121N.
q
Plugs
25
Desktop charger adapter
Connectors

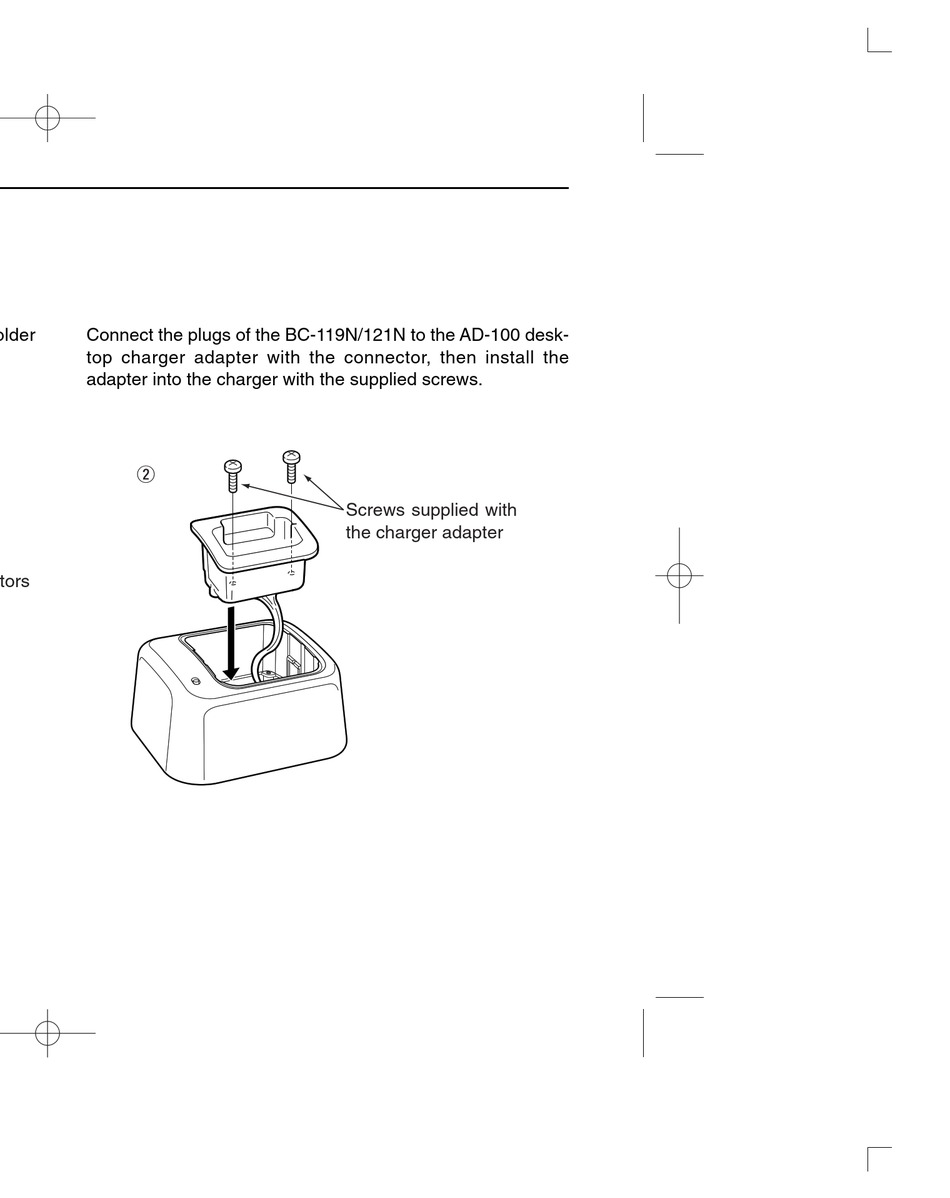

Connect the plugs of the BC-119N/121N to the AD-100 desk-
top charger adapter with the connector, then install the
adapter into the charger with the supplied screws.
w
Screws supplied with
the charger adapter
