PANEL DESCRIPTION

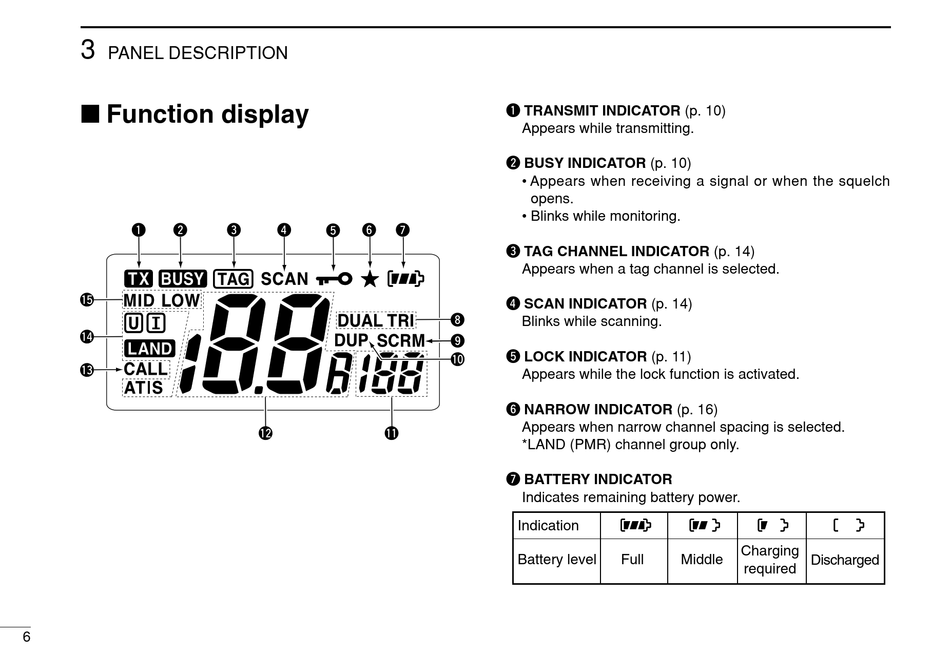

I Function display

q w
!5
!4
!3
6
e r y u
t
!2
!1
q TRANSMIT INDICATOR (p. 10)
Appears while transmitting.
w BUSY INDICATOR (p. 10)
• Appears when receiving a signal or when the squelch
opens.
• Blinks while monitoring.
e TAG CHANNEL INDICATOR (p. 14)
Appears when a tag channel is selected.
r SCAN INDICATOR (p. 14)
i
Blinks while scanning.
o
t LOCK INDICATOR (p. 11)
!0
Appears while the lock function is activated.
y NARROW INDICATOR (p. 16)
Appears when narrow channel spacing is selected.
*LAND (PMR) channel group only.
u BATTERY INDICATOR
Indicates remaining battery power.
Indication
Battery level Full
Charging
Middle Discharged
required
