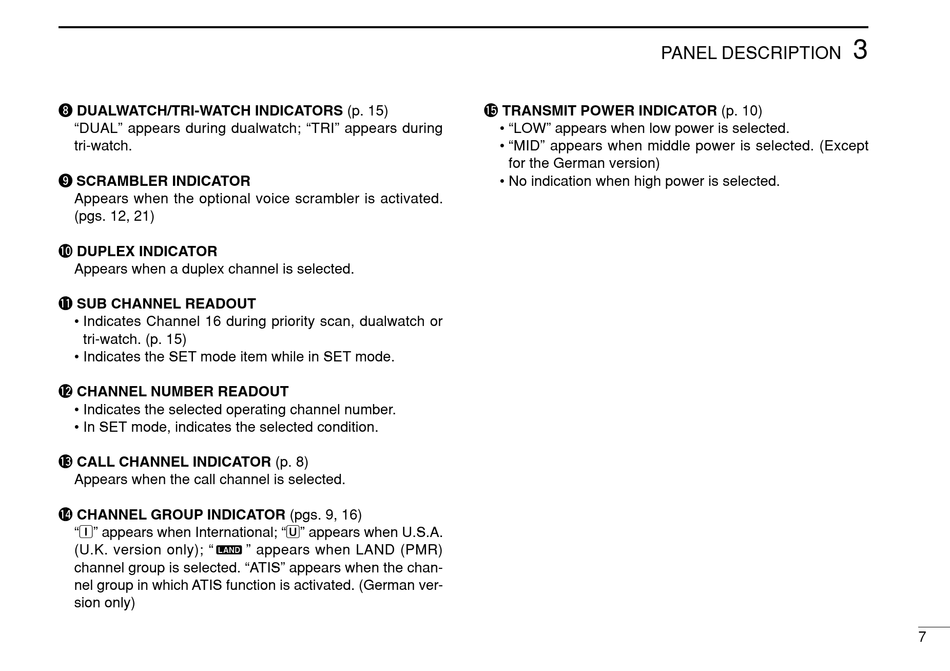

i DUALWATCH/TRI-WATCH INDICATORS (p. 15)

"DUAL" appears during dualwatch; "TRI" appears during

tri-watch.

o SCRAMBLER INDICATOR

Appears when the optional voice scrambler is activated.

(pgs. 12, 21)

!0 DUPLEX INDICATOR

Appears when a duplex channel is selected.

!1 SUB CHANNEL READOUT

• Indicates Channel 16 during priority scan, dualwatch or

tri-watch. (p. 15)

• Indicates the SET mode item while in SET mode.

!2 CHANNEL NUMBER READOUT

• Indicates the selected operating channel number.

• In SET mode, indicates the selected condition.

!3 CALL CHANNEL INDICATOR (p. 8)

Appears when the call channel is selected.

!4 CHANNEL GROUP INDICATOR (pgs. 9, 16)

"I" appears when International; "U" appears when U.S.A.

(U.K. version only); "

channel group is selected. "ATIS" appears when the chan-

nel group in which ATIS function is activated. (German ver-

sion only)

" appears when LAND (PMR)

PANEL DESCRIPTION

!5 TRANSMIT POWER INDICATOR (p. 10)

• "LOW" appears when low power is selected.

• "MID" appears when middle power is selected. (Except

for the German version)

• No indication when high power is selected.
