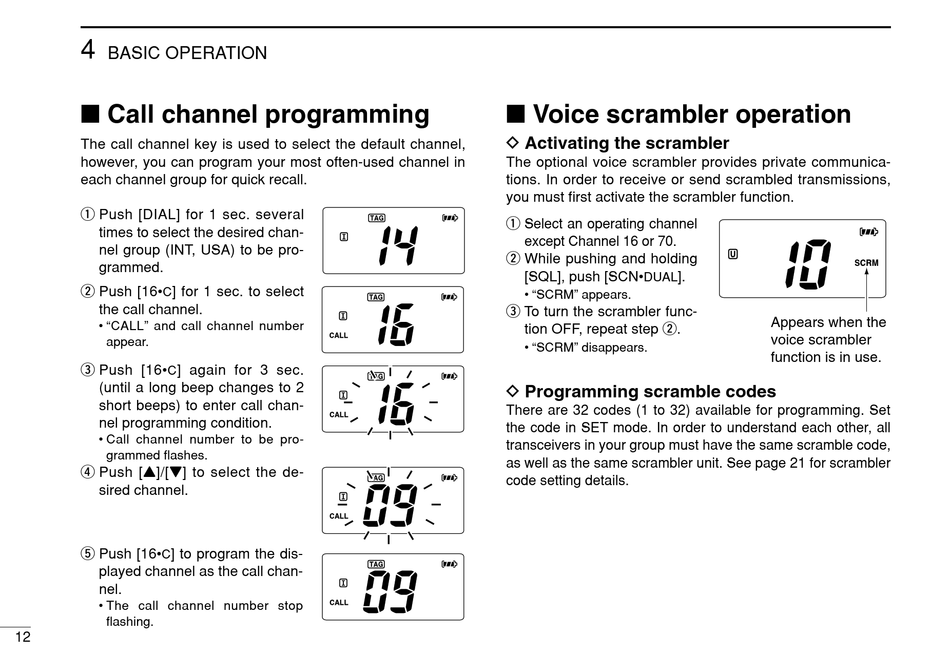

I Call Channel Programming; I Voice Scrambler Operation - Icom IC-M87 Instruction Manual

4
BASIC OPERATION

I Call channel programming

The call channel key is used to select the default channel,
however, you can program your most often-used channel in
each channel group for quick recall.
q Push [DIAL] for 1 sec. several
times to select the desired chan-
nel group (INT, USA) to be pro-
grammed.
w Push [16•
] for 1 sec. to select
C
the call channel.
• "CALL" and call channel number
appear.
e Push [16•
] again for 3 sec.
C
(until a long beep changes to 2
short beeps) to enter call chan-
nel programming condition.
• Call channel number to be pro-
grammed flashes.
r Push [Y]/[Z] to select the de-
sired channel.
t Push [16•
] to program the dis-
C
played channel as the call chan-
nel.
• The call channel number stop
flashing.
12

I Voice scrambler operation

D Activating the scrambler
The optional voice scrambler provides private communica-
tions. In order to receive or send scrambled transmissions,
you must first activate the scrambler function.
q Select an operating channel
except Channel 16 or 70.
w While pushing and holding
[SQL], push [SCN• ].
DUAL
• "SCRM" appears.
e To turn the scrambler func-
tion OFF, repeat step w.
• "SCRM" disappears.
D Programming scramble codes
There are 32 codes (1 to 32) available for programming. Set
the code in SET mode. In order to understand each other, all
transceivers in your group must have the same scramble code,
as well as the same scrambler unit. See page 21 for scrambler
code setting details.
Appears when the
voice scrambler
function is in use.
