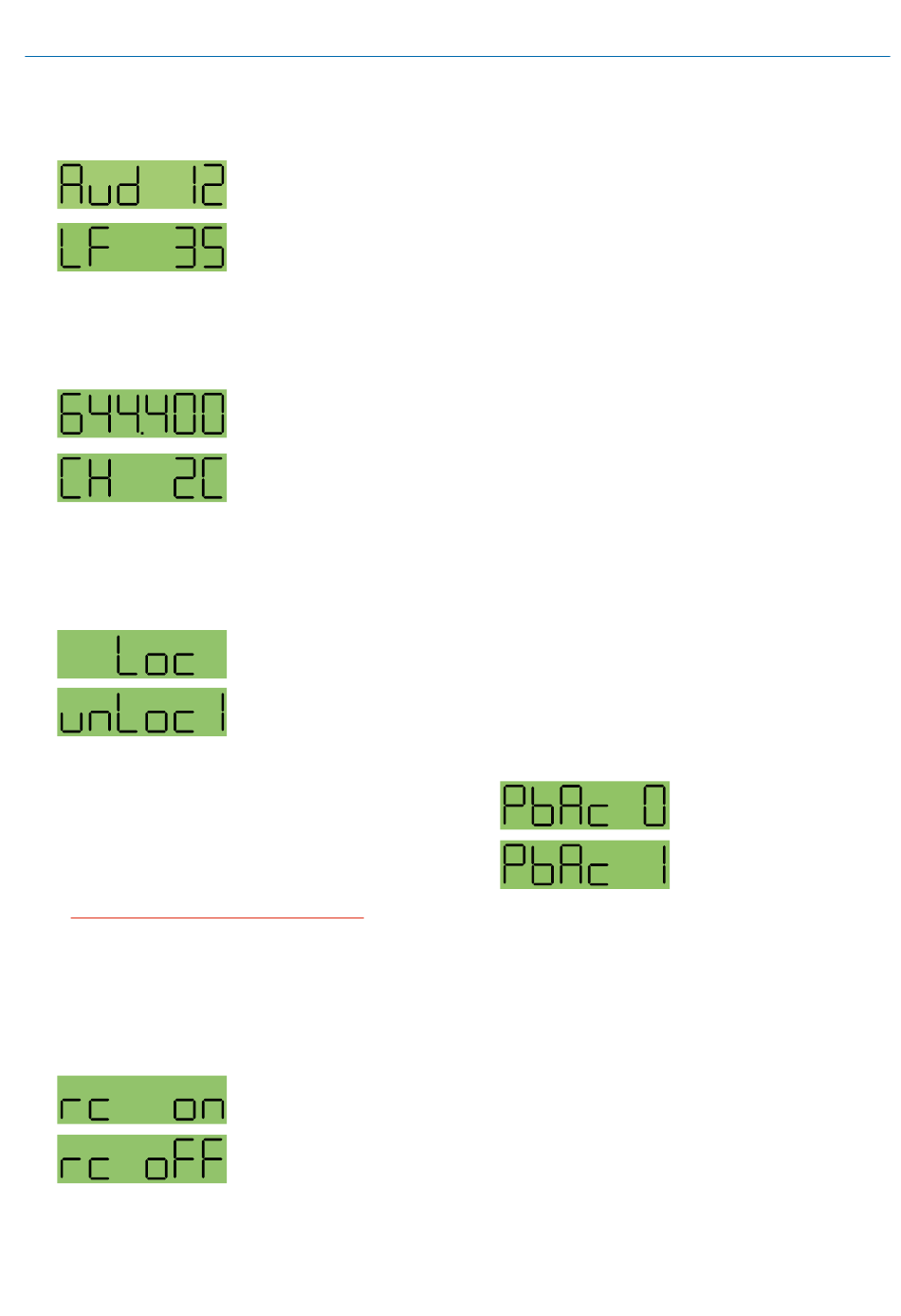

Setup Screens

Audio Screen

displays. Press and hold the AUDIO button and use
the Up and Down arrows to make adjustments.

Frequency Screen

pressing the FREQ button toggles between the two
displays. Press and hold the FREQ button and use
the Up and Down arrows to select the frequency.

Lock/Unlock Screen

When the timer reaches zero, the transmitter's
controls are locked.
With the controls locked, the AUDIO and FREQ but-
tons can still be used to display current settings. Any
attempt to change a setting by pressing either the Up
or Down arrow button will result in an on-screen Loc
reminder that the controls are locked. Remove the
batteries to unlock the control panel.
Important: Once the transmitter is locked, it
cannot be unlocked or powered off using the
buttons. The only ways to unlock a locked
transmitter are to remove the battery or unlock
it using the RM remote control if this function is
enabled on the transmitter.

Remote Control Operation

Remote Control Screens
Rio Rancho, NM
The Audio screen is used
to adjust input gain from 0
to +44 dB, and the low
frequency roll-off from 35
to 150 Hz. Repeatedly
pressing the AUDIO
button toggles back and
forth between the two
The Frequency Screen
displays the operating
frequency in MHz or as a
two-digit hexadecimal
number that corresponds
to the equivalent Lectro-
sonics Frequency Switch
Setting. Repeatedly
Simultaneously pressing
and holding both the Up
and Down arrow buttons
during normal operation
starts the Lock timer. The
timer starts at three and
counts down to zero.
The transmitters can be
configured to respond to
signals from the RM
remote control unit or to
ignore them. This setting
is accessed by holding
down the Down arrow
button while powering the
transmitter on.
Super-Minature Belt Pack Transmitters
If a remote control signal is detected but the trans-
mitter is set to rc oFF, the message rc oFF will be
displayed briefly on the transmitter's LCD, to confirm
that a valid signal was received, but that the transmit-
ter is not configured to respond to it.
Functions available from the remote control are:
• Audio Level
• Frequency
• Lock/Unlock Buttons
• Sleep/Wake (power saving mode)
In sleep mode, the transmitter uses only 20% of the
normal amount of battery drain. Sleep mode can only
be invoked with the remote control, and can only be
revoked with the remote control or by removing the
battery. When in the sleep mode, the PWR LED blinks
green every few seconds to indicate that the transmitter
is asleep and not turned off.
The RM is not included with SM Series transmitters.
Several "Dweedle tones" can also be downloaded
from the web site at:
http://www.lectrosonics.com/europe/en/Transmitters/
rm.html
The dweedle tones can be played back through an
MP3 player, PDA, smart phone, etc., and in most
cases, will even work with walkie talkies. The tones
will not work through the loudspeakers of a sound
system because the reflections and reverberation in
the room will alter the tones.

Configuring for Power Restore

Power Restore Screens
1) Press and hold the Down Arrow Button then
power on the transmitter by pressing the
Audio and Freq buttons simultaneously.
2) Press AUDIO or FREQ key to scroll to the setting
and then use the arrow keys to select PbAc 1 for
ON or PbAc 0 for OFF.
The Power Restore feature
will turn the transmitter
back on with the same
settings that were enabled
in the previous use after a
battery is replaced or
external power has been
cycled off and back on.
