5-Pin Input Jack Wiring

The wiring diagrams included in this section repre-
sent the basic wiring necessary for the most common
types of microphones and other audio inputs. Some
microphones may require extra jumpers or a slight
variation on the diagrams shown.
It is virtually impossible to keep completely up to date
on changes that other manufacturers make to their
products, thus you may encounter a microphone that
differs from these instructions. If this occurs please
call our toll-free number listed under Service and
Repair in this manual or visit our web site at:
www.lectrosonics.com
1 GND 100 Ohm
2
BIAS
3 MIC
BIAS SELECT
4
5 LINE IN
Insert
TA5F Latchlock

Installing the Connector:

1) If necessary, remove old connector from micro-
phone cable.
2) Slide Rubber Boot onto microphone cable with the
large end facing away from the microphone. (See
illustration above.)
3) If necessary, slide the 1/8-inch black shrink tubing
onto the mircrophone cable. (This tubing is needed
for some cables to ensure the cable fits snugly in
the rubber boot.)
4) Use the resistors and connector included with this
kit to configure the TA5F to your particular micro-
phone. A length of .065 OD clear tubing is included
if insulating the resistor leads or shield wire is
necessary. (Remove rubber strain relief from con-
nector backshell by pulling it out of the backshell.)
10
+5 VDC
Servo Bias
Pin 4 to Pin 1 = 0 V
Pin 4 Open = 2 V
+
Pin 4 to Pin 2 = 4 V
30uF
30uF
200 Ohm 100 Ohm
+
3.3uF
10k

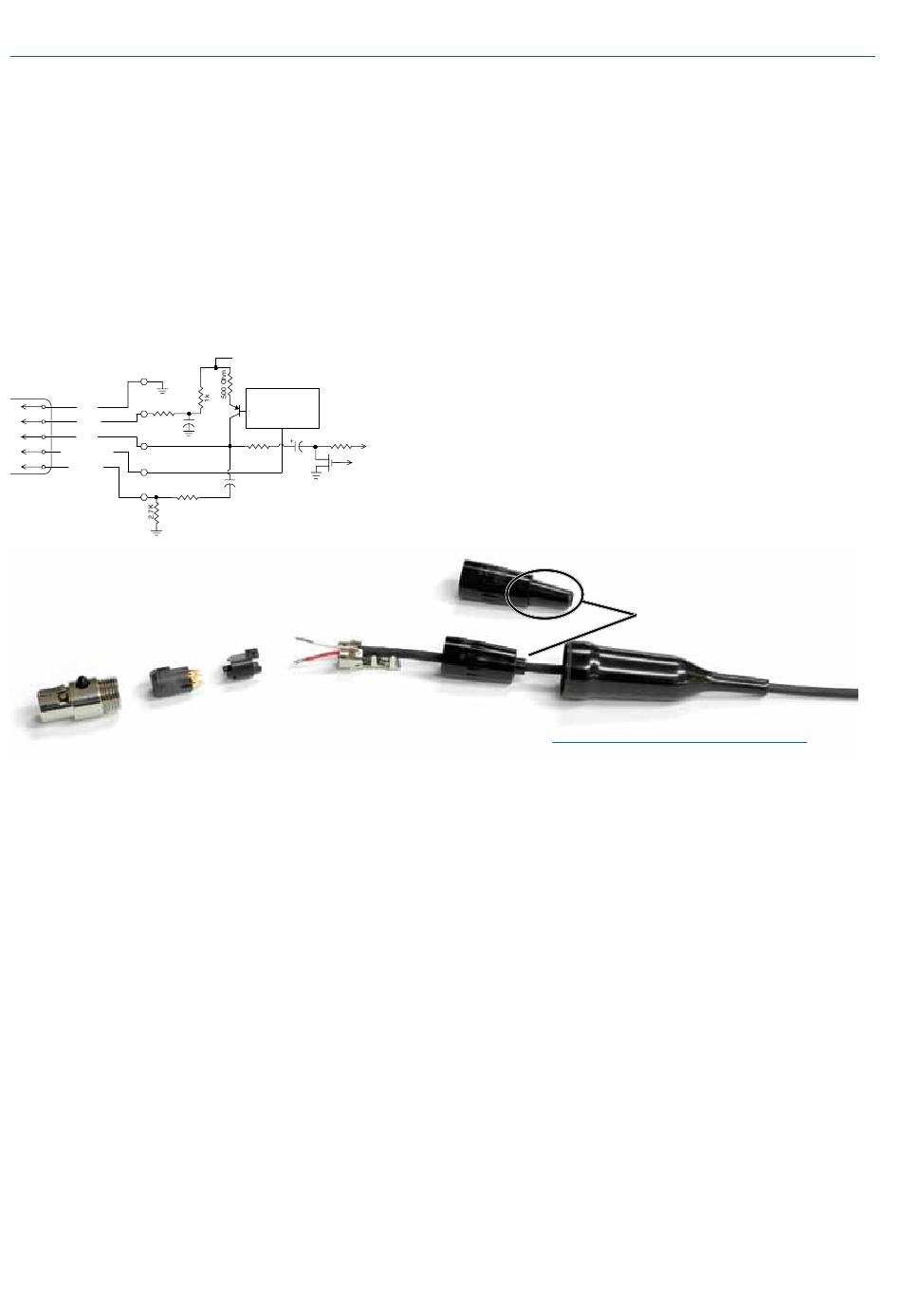

SM Equivalent Input Circuit Wiring
Cable clamp
Insulator
Audio input jack wiring:
• PIN 1
electret lavaliere microphones. Shield (ground) for
dynamic microphones and line level inputs.
• PIN 2
electret lavaliere microphones.
• PIN 3
for dynamic microphones. Also accepts hand-held
electret microphones provided the microphone
has its own built-in battery.
• PIN 4
age (0, 2 or 4 volts) depends on Pin 4 connection.
Pin 4 tied to Pin 1:
Pin 4 Open:
Pin 4 to Pin 2:
To Virtual Ground
Audio Amplifier
• PIN 5
To Limiter Control
decks, mixer outputs, musical instruments, etc.
TA5F Backshell
(Strain Relief
removed)
5) Slide the Strain Relief over the TA5F Insert and
crimp as shown to the right. Then insert the TA5F
Insert and Strain Relief in the TA5F Latchlock.
Screw the TA5F Flex Relief onto the TA5F Latch-
lock.
6) If needed, position and shrink the 1/8-inch shrink
tubing on the microphone cable, then slide the Rub-
ber Boot down over the TA5F connector.
Shield (ground) for positive biased
Bias voltage source for positive biased
Low impedance microphone level input
Bias voltage selector for Pin 3. Pin 3 volt-
0 V
2 V
4 V
High impedance, line level input for tape
TA5F Backshell
with Strain Relief
Remove strain relief
if using dust boot
Dust Boot (35510)
Note: If you use the dust boot, remove
the rubber strain relief that is attached to
the TA5F cap, or the boot will not fit over
the assembly.
