5-Pin Input Jack Wiring

The wiring diagrams included in this section represent
the basic wiring necessary for the most common types
of microphones and other audio inputs. Some micro-
phones may require extra jumpers or a slight variation
on the diagrams shown.
It is virtually impossible to keep completely up to date
on changes that other manufacturers make to their
products, thus you may encounter a microphone that
differs from these instructions. If this occurs please call
our toll-free number listed under Service and Repair in
this manual or visit our web site at:
www.lectrosonics.com
1 GND 100 Ohm
2 BIAS
3
MIC
4 BIAS SELECT
5 LINE IN
Insert
TA5F Latchlock

Installing the Connector:

1) If necessary, remove old connector from micro-
phone cable.
2) Slide Rubber Boot onto microphone cable with the
large end facing away from the microphone. (See
illustration above.)
3) If necessary, slide the 1/8-inch black shrink tub-
ing onto the mircrophone cable. (This tubing is
needed for some cables to ensure the cable fits
snugly in the rubber boot.)
4) Use the resistors and connector included with
this kit to configure the TA5F to your particular
microphone. A length of .065 OD clear tubing is
included if insulating the resistor leads or shield
wire is necessary. (Remove rubber strain relief
from connector backshell by pulling it out of the
backshell.)
Rio Rancho, NM
+5 VDC
Servo Bias
Pin 4 to Pin 1 = 0 V
Pin 4 Open = 2 V
+
Pin 4 to Pin 2 = 4 V
30uF
30uF
100 Ohm
200 Ohm
+
3.3uF
10k

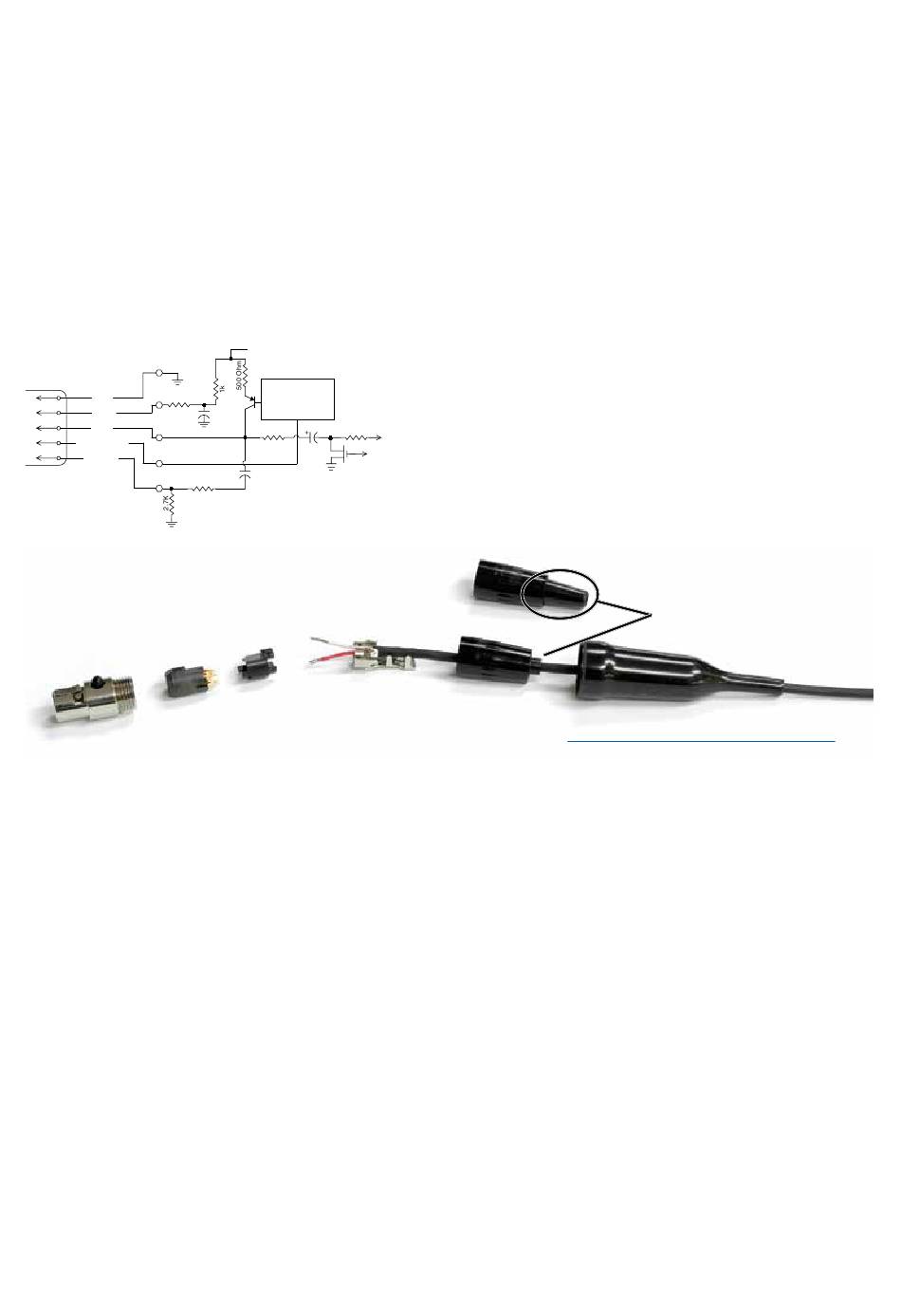

SM Equivalent Input Circuit Wiring
Cable clamp
Insulator
Super-Minature Belt Pack Transmitters
Audio input jack wiring:
• PIN 1
electret lavaliere microphones. Shield (ground) for
dynamic microphones and line level inputs.
• PIN 2
electret lavaliere microphones.
• PIN 3
for dynamic microphones. Also accepts hand-
held electret microphones provided the micro-
phone has its own built-in battery.
• PIN 4
voltage (0, 2 or 4 volts) depends on Pin 4 con-
nection.
Pin 4 tied to Pin 1: 0 V
Pin 4 Open:
To Virtual Ground Pin 4 to Pin 2:
Audio Amplifier
To Limiter Control
• PIN 5
decks, mixer outputs, musical instruments, etc.
TA5F Backshell
(Strain Relief
removed)
5) Slide the Strain Relief over the TA5F Insert and
crimp as shown to the right. Then insert the TA5F
Insert and Strain Relief in the TA5F Latchlock.
Screw the TA5F Flex Relief onto the TA5F Latch-
lock.
6) If needed, position and shrink the 1/8-inch shrink
tubing on the microphone cable, then slide the
Rubber Boot down over the TA5F connector.
Shield (ground) for positive biased
Bias voltage source for positive biased
Low impedance microphone level input
Bias voltage selector for Pin 3. Pin 3
2 V
4 V
High impedance, line level input for tape
TA5F Backshell
with Strain Relief
Remove strain relief
if using dust boot
Dust Boot (35510)
Note: If you use the dust boot, remove
the rubber strain relief that is attached
to the TA5F cap, or the boot will not fit
over the assembly.
