Connecting the Cables

ONNECTING A REVOLABS FUSION TO

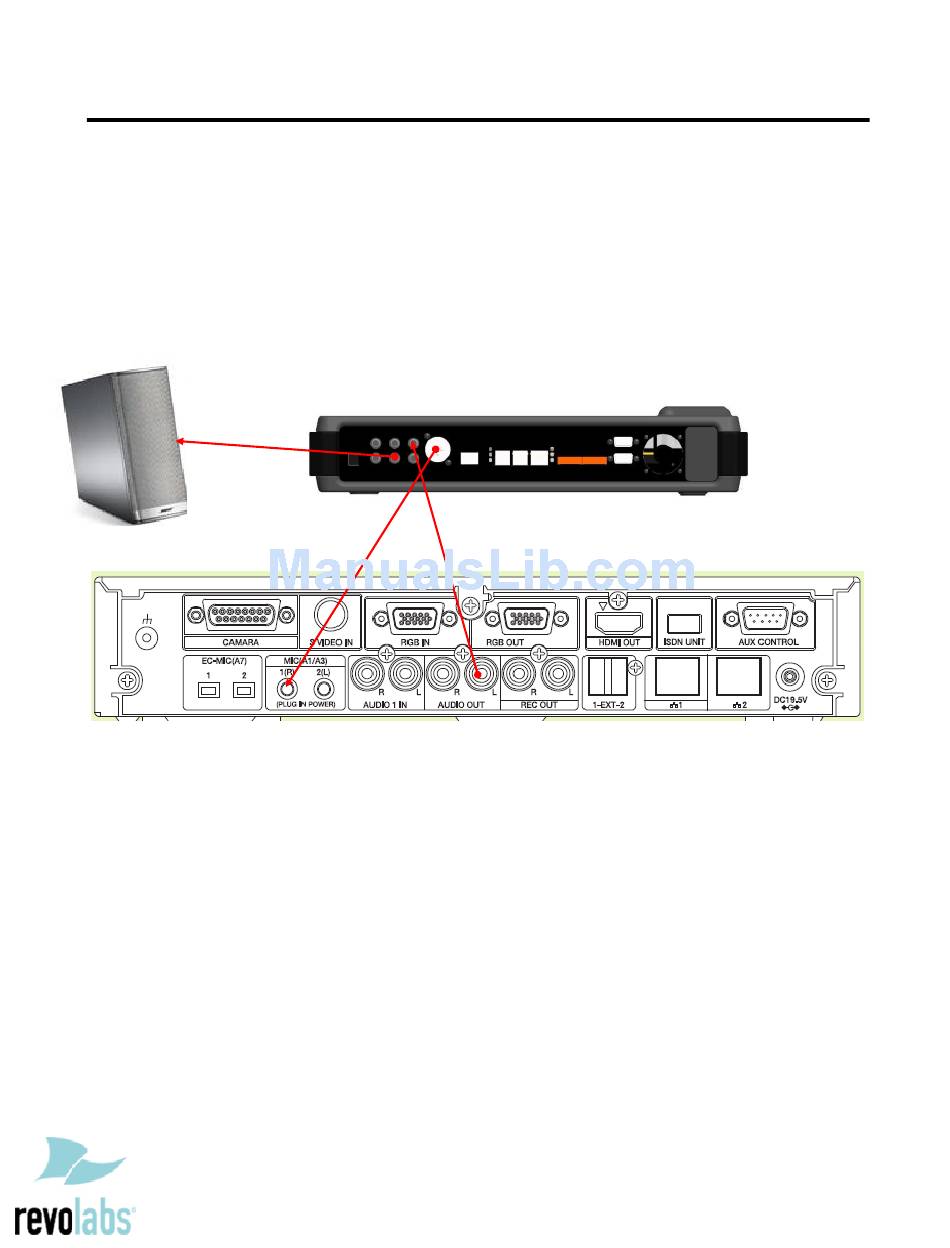

1. Connect a Female XLR – 1/8" audio cable between the XLR "CONF OUT" port on

the Fusion and the 1(R) "MIC (A1/A3)" port on the XG-80.

2. Connect a Male RCA-RCA audio cable between the "CONF IN" port on the Fusion

and the L "AUDIO OUT" port on the XG-80.

3. Connect a Male RCA audio cable between the "Room Out" port on the Fusion and

the Speakers.

Note: The speakers used for audio and video conferencing with this

configuration must be connected to the Fusion for proper echo cancellation.

XG-80

ONY

VIDEO CODEC
