Connecting the Cables
C
ONNECTING A REVOLABS

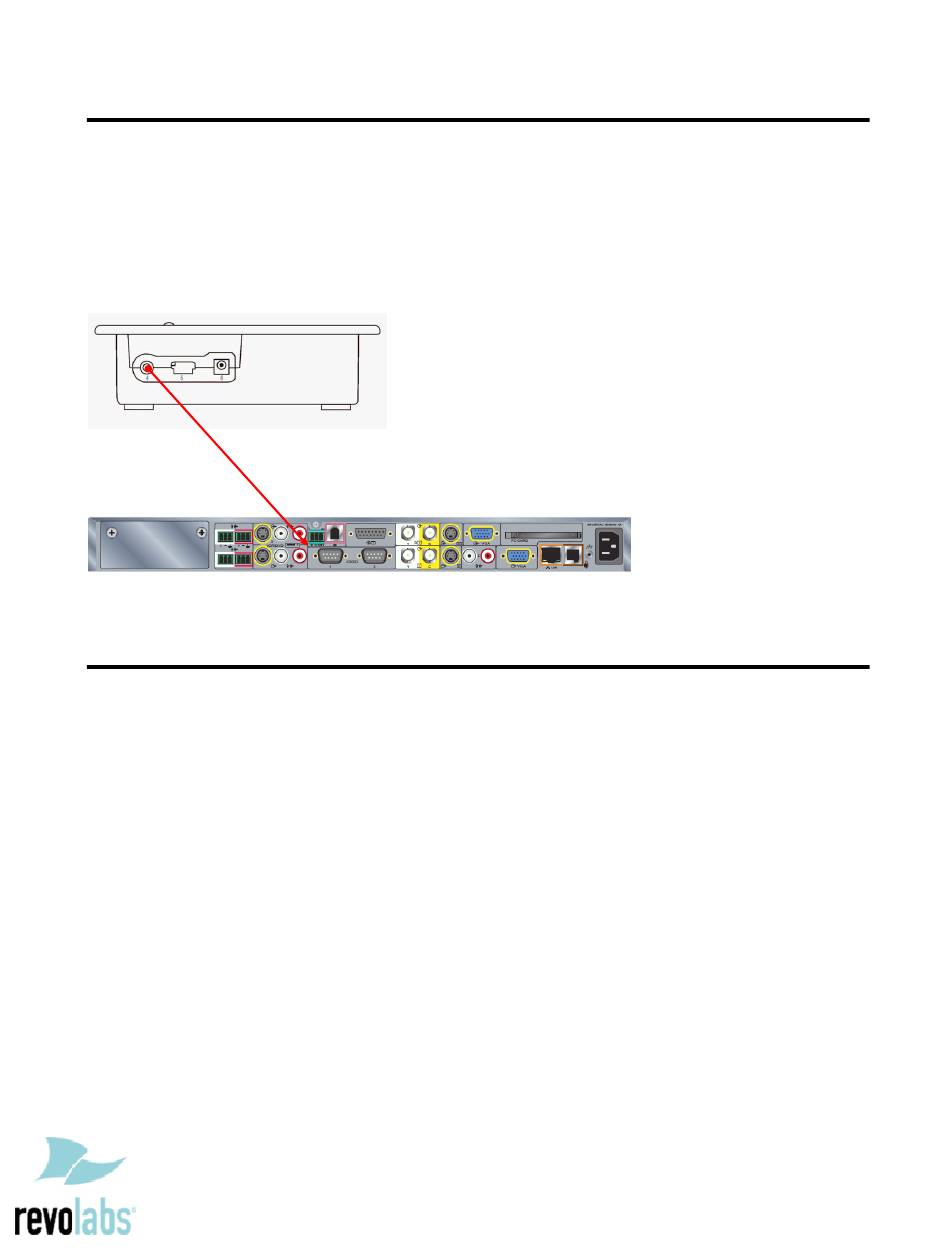

1. Connect a Revolabs 2.5mm to RCA audio cable between the 2.5mm analog
output on the Single Channel System and the red "LINE INPUT" Phoenix
connector on the VSX8000e.
Configuring the VSX8000e Video Codec
C
ONFIGURI NG THE A UDIO MENUS OF THE
1.
Select SYSTEM
2.
Select ADMIN SETTINGS
3.
Select AUDIO
4.
Set INPUT TYPE to LINE INPUT
5.
ENABLE Echo Canceller
6.
DISABLE Polycom microphones by removing checkmark on ENABLE
POLYCOM MICROPHONES
S
C
S
INGLE
HA NNEL
YSTEM TO POLYCOM VSX
VSX8000
8000
E VIDEO CODEC
E VIDEO CODEC
