7. Other Functions

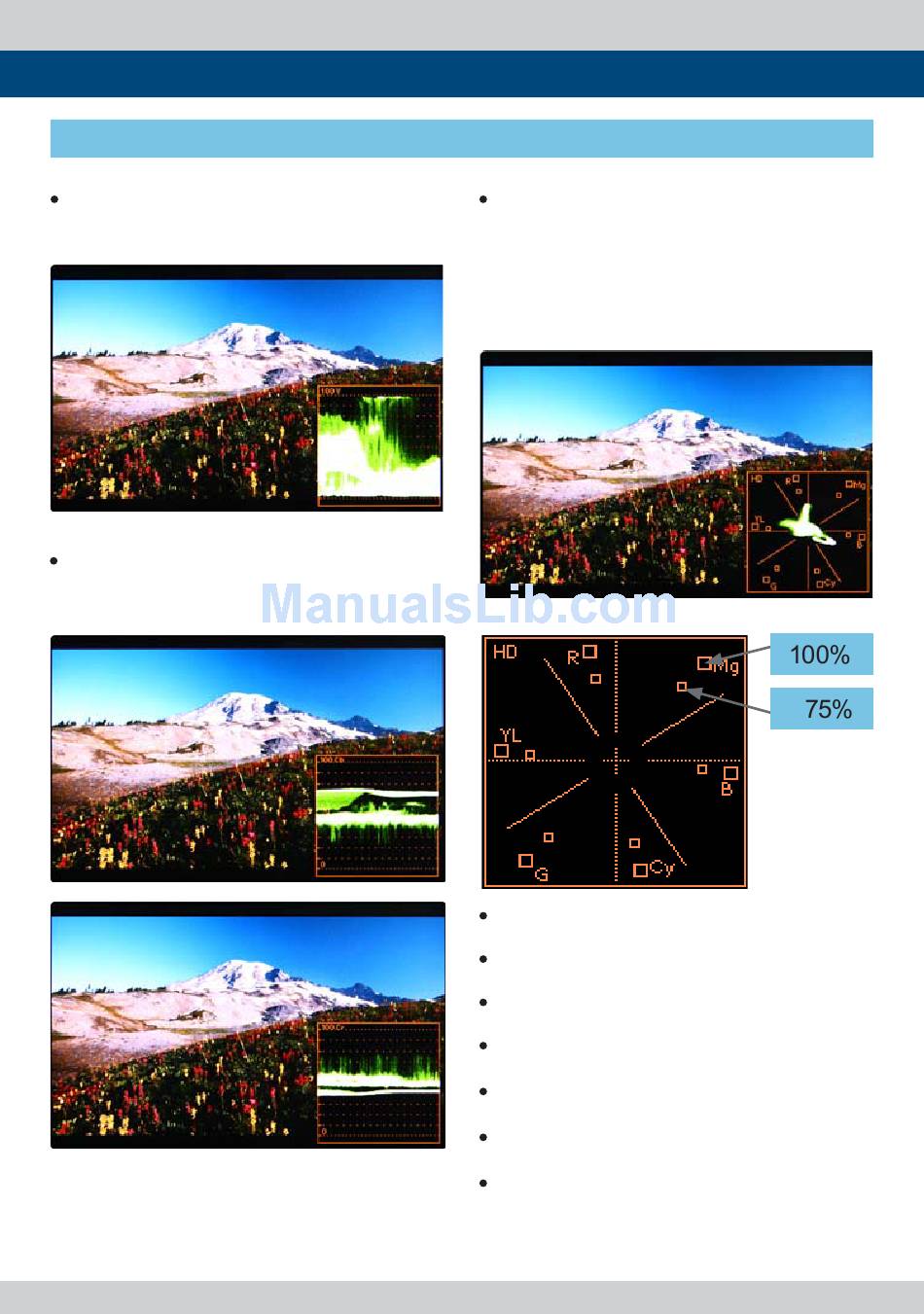

[3] Waveform / Vectorscope
Waveform Y
- Displays the Luma(Y') component of the input
signal into waveform.
Waveform Cb, Cr
- Displays the Cb, Cr components of the input
signal into waveform.
VectorScope
- Displays the color components 'B-Y' and 'R-Y'
of the input signals onto the X-Y axis.
- Two different types of Vetorscopes are
displayed according to SD or HD input signals.
- 100% and 75% scales are indicated on the
Vetorscope.
Vector WIDE
YCbCr
Wave Vector
Vector YCbCr
Full Wide(Y)
Full Wave(Y)
Full Vector
Multi Format LCD Monitor 25
