PassFinder AP2620 VoIP Gateway , Release 1.00
Voice Interface Connection
FXS/FXO port can be connected to proper equipment using RJ-11
connector. Usually FXS is connected to subscribers' handset and
FXO is connected to PBX extension. Because E&M port has a
different PIN array, please check the cable specification at 4
chapter Appendix.
AddPac Technology Proprietary & Documentation

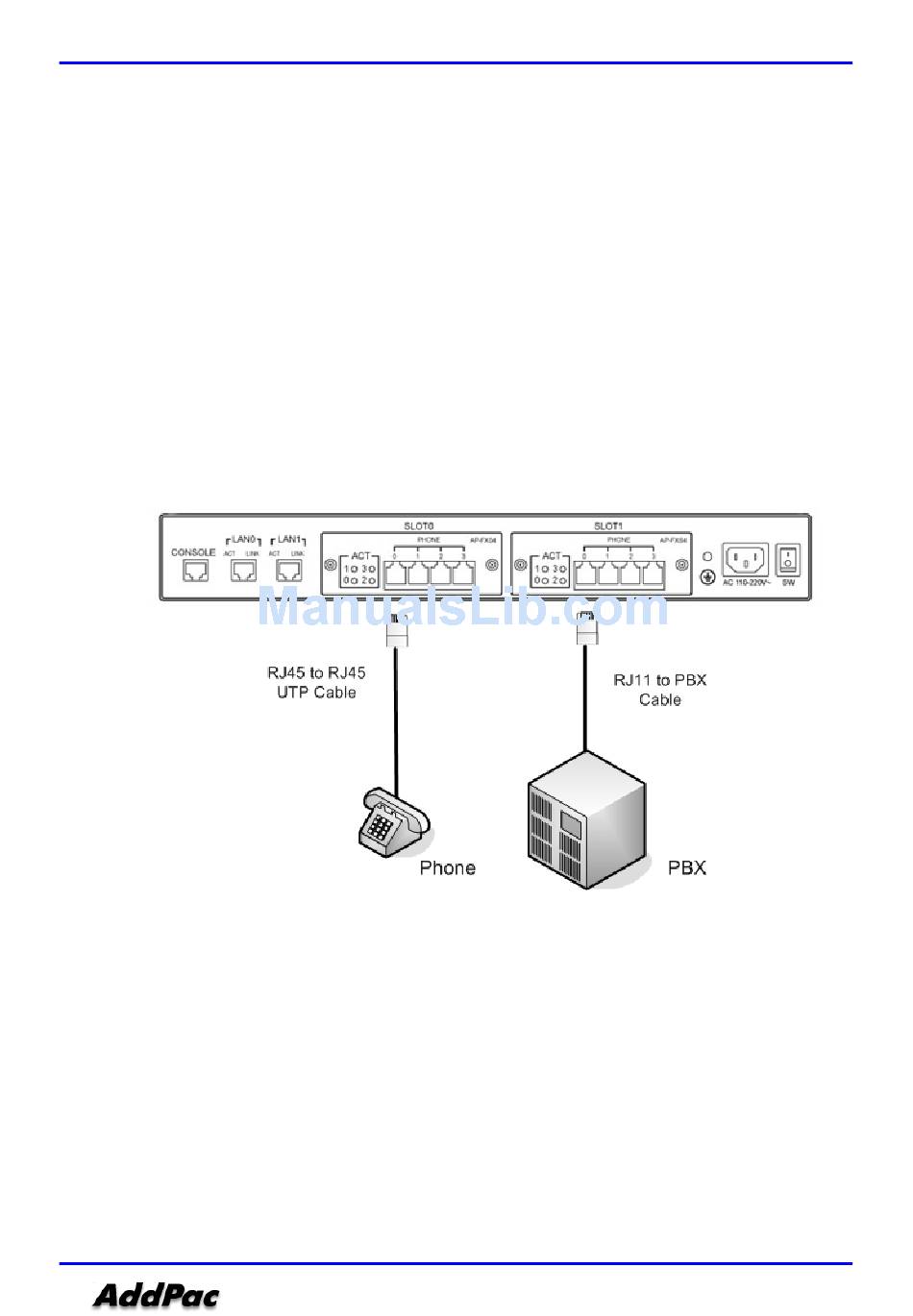

[ Figure 3-3 Connection for VoiceFinder AP2620 Voice Interfaces ]
