PassFinder AP2620 VoIP Gateway , Release 1.00
4-port-FXO2S2 offers various voice service with 2- channel FXS voice
interface and 2- channel FXO interface in one module.
4-Port E&M Voice Interface Module
AP2620 VoIP Gateway supports 4 channel voice service module of
recEieve and transMit (E&M).
connect Trunk line of PBX.
Digital E1 Voice Interface Module
VoiceFinder AP2620 VoIP Gateway support digital E1 voice
processing module for PBX interworking. Digital E1 Interface module
supports ISDN-PRI, MFC-R2, DTMF and accommodate maximum 30
AddPac Technology Proprietary & Documentation

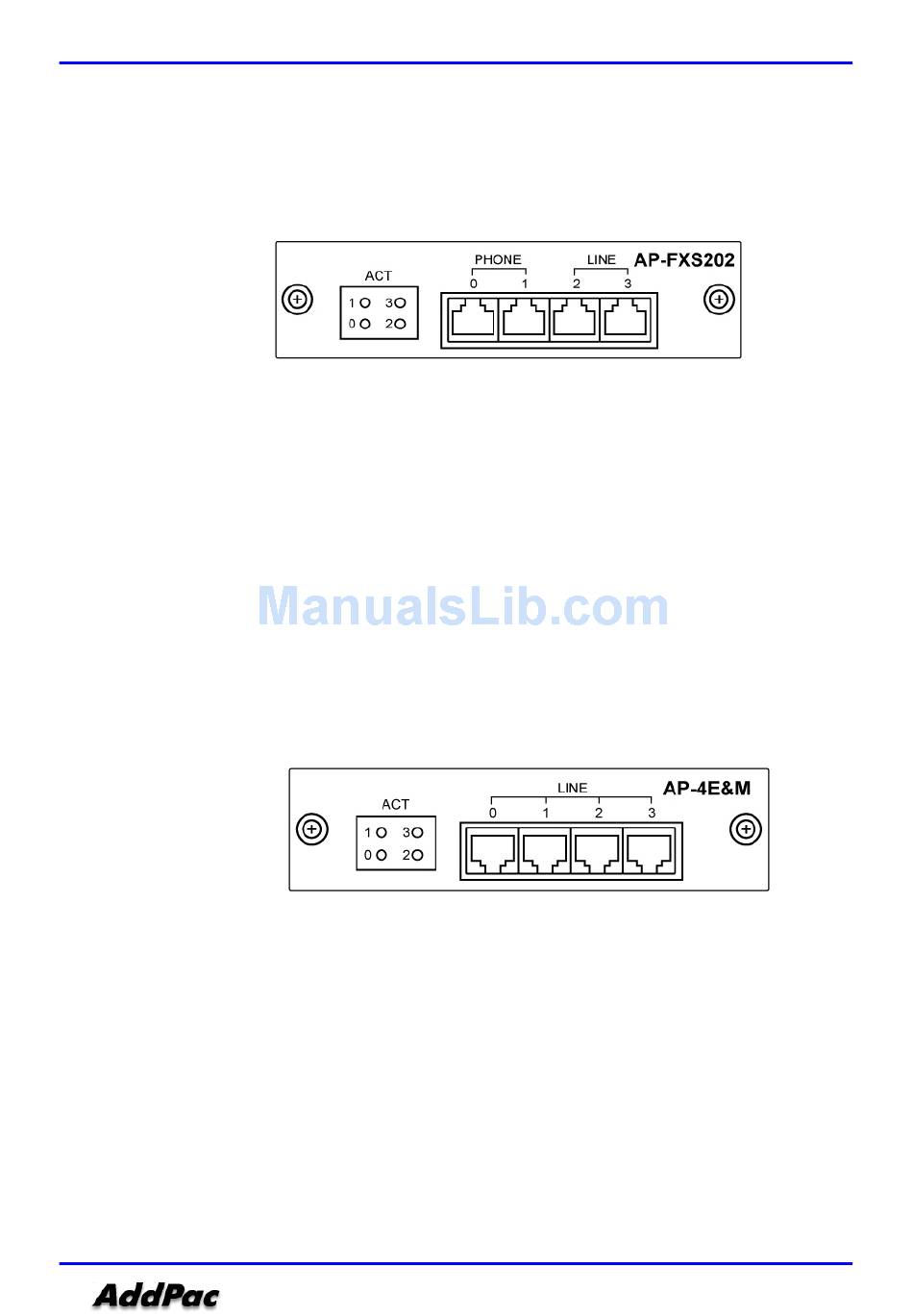

[ Figure 1-7 AP-FXS2O2 for AP2620 ]

This analog E&M Interface is used to
[ Figure 1-8 AP-E&M4 card for AP2620 ]
