PassFinder AP2620 VoIP Gateway , Release 1.00
1-Channel Audio&Video Encoder/Decoder Module
VoiceFinder AP2620 VoIP Gateway supports high performance
video & audio encoding/decoding interface module. AP-AV500
broadcasting module provides high quality AV broadcasting
service using 1-channel Audio, Video In/Out. User can use
MIC/Line-in as audio input channels, DVD/TV/Camera as video
input channels. Line-out/Headphone as video input channels, and
TV/Monitor as video output channels. Built-in PSB relay port also
enables remote On/Off power switching of Audio Amp.
AddPac Technology Proprietary & Documentation

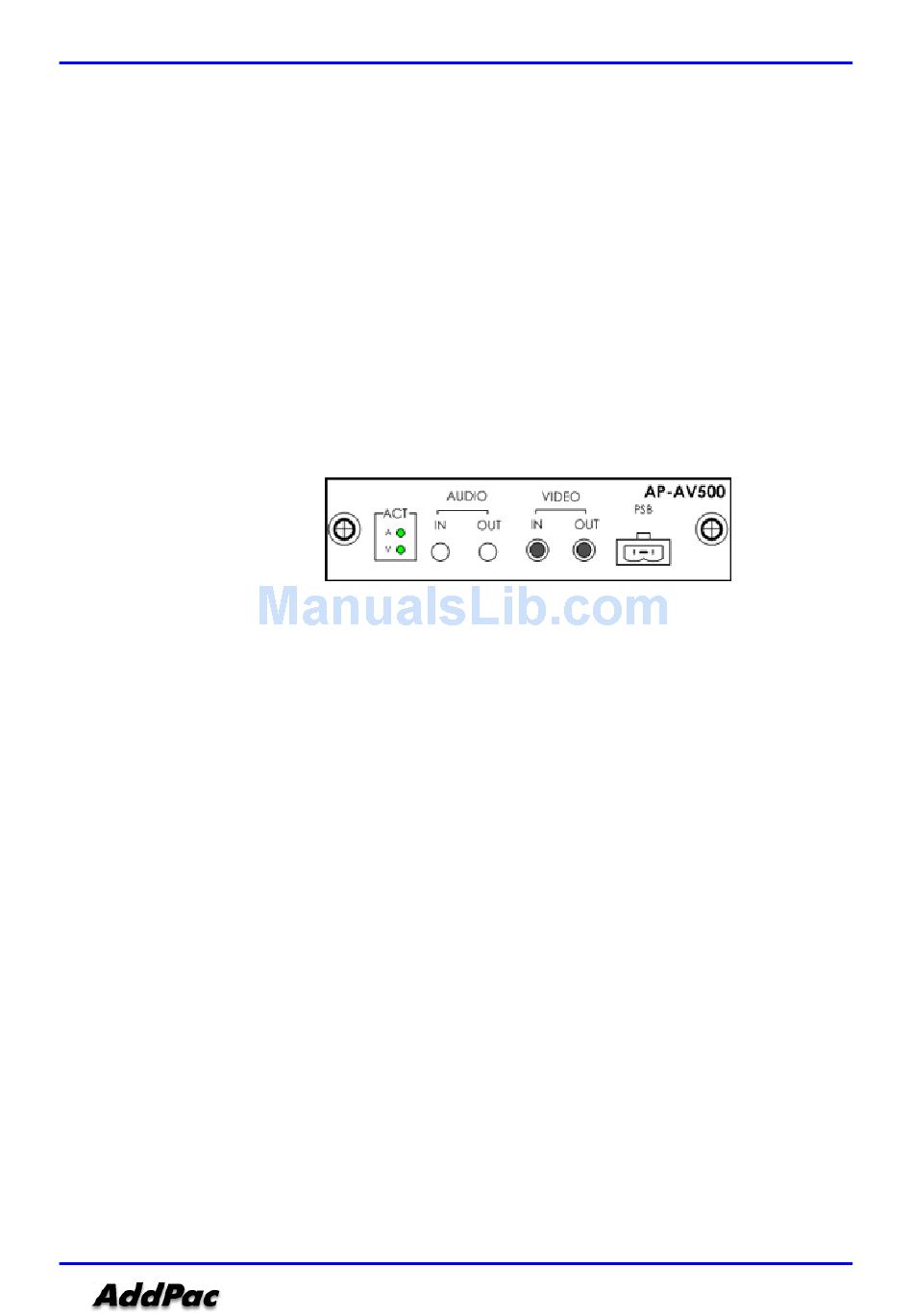

[ Figure 1-17 AP-AV500 card for AP2620 ]

47 - 25
