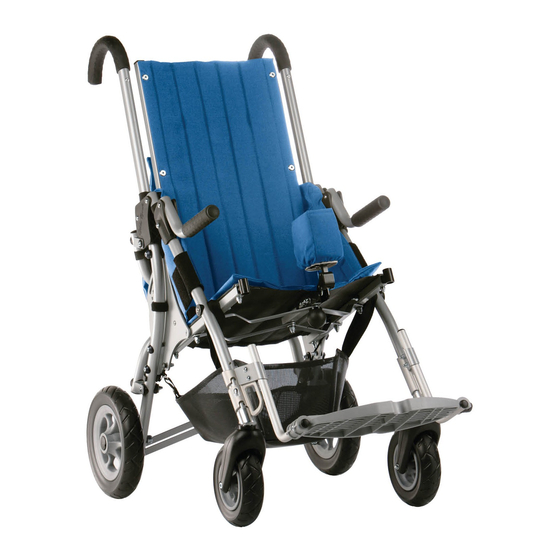

Otto Bock Lisa Service Manual
Hide thumbs
Also See for Lisa:
- Instructions for use manual (496 pages) ,
- Using manual (152 pages) ,
- Instructions for use manual (368 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Otto Bock Lisa
Summary of Contents for Otto Bock Lisa

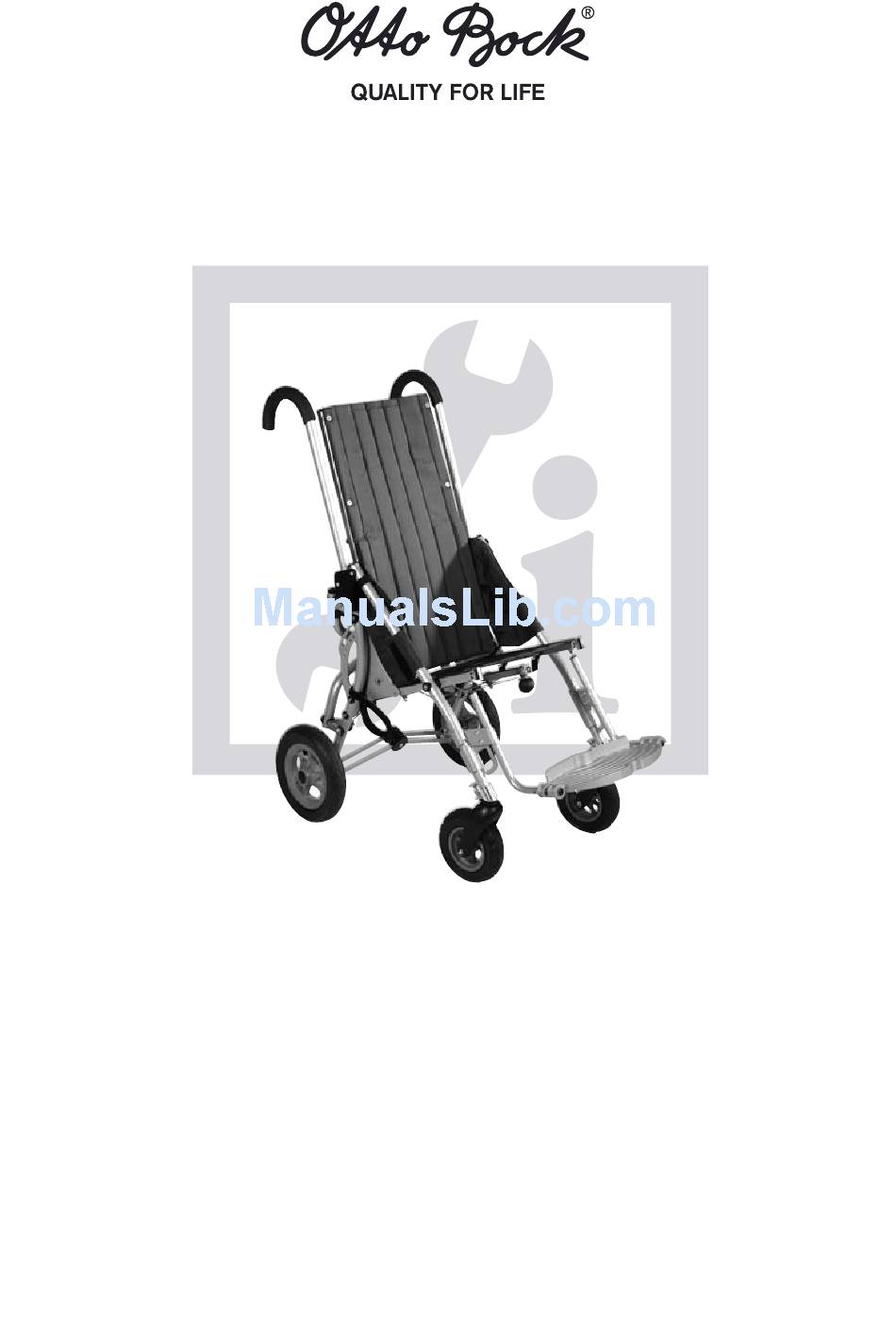

- Page 1 Lisa Service Manual...
-
Page 2: Table Of Contents
Service Instructions for LISA Rehab Buggy/Stroller (Models from 2005, HR3213.../HR3214...) Contents Page General Information Preface ........................... 2 Warning Symbols ........................2 Information for Service Staff....................2 Support ..........................3 Safety Instructions..........................3 Warning Symbols ........................3 General Safety Instructions ....................3 Maintenance Plan and Required Tools..................... -
Page 3: General Information
1 General Information 1.1 Preface Regular maintenance is important. It increases safety and prolongs the service life of the product. All rehab products should be inspected and serviced once a year. If the product is used frequently, or if it is used by growing children or patients with changing clinical conditions, it should be readjusted and serviced every 6 months. -
Page 4: Support
1.4 Technical Support For technical questions, please contact our Customer Service (phone no.: ++49-5527-848-1590). Instructions for use Spare parts catalog Lisa rehab buggy/stroller 647H140 646K79 2 Safety Instructions Observe the following guidelines for maintenance or repair work: Danger! Always wear adequate protective clothing (e.g. gloves, safety glasses, etc.) and use appropriate... -
Page 5: Maintenance Plan And Required Tools
3 Maintenance Plan and Required Tools The following list shows you the tools and auxiliaries mentioned in the text. Reversible ratchet handle wrench and Torque wrench, Wrenches, sizes 8 mm to 19 mm sockets, sizes 8 mm to 19 mm measurement range 10 Nm to 50 Nm Allen wrenches, sizes 3 mm to 6 mm Screw driver, blade width 2.5 mm... - Page 6 Customer: Lisa Maintenance Plan for Regular Service rehab buggy/stroller Item Component (group) Inspection (check list) Serial no.: Function / setting Inspected for Screw connections (refer to 647H140 Instructions for Use) damages/deformations inspected LISA Anterior frame - Frame Posterior frame - Frame...
-
Page 7: Settings / Retrofit / Replacement
4 Settings / Retrofit / Replacement 4.1 Anterior Frame Replacing an Anterior Frame (right/left) Loosen and remove the screws (arrowed) from the anterior frame. First place the unfolded rehab buggy/stroller on its back. Remove the front wheels and wheel forks as described in section 4.8. -
Page 8: Posterior Frame
4.2 Posterior Frame Replacing one side of the Posterior Frame Loosen and remove the screw connection between the back adjustment mechanism and the guiding slot (right/left) in the gusset plate. Place the unfolded buggy/stroller on its side. Pay attention to the order of washers and bushings First loosen and remove the screw connections for later reassembly. - Page 9 Replacing the Rubber Hand Grips Open the two part adhesive sachet. Use the spatula to squeeze out all the contents of the sachet into the Carefully cut open the rubber hand grip using a centre of the mixing card and mix the components stanley knife and remove the old rubber hand grip.
-
Page 10: Folding Scissor Construction
4.3 Folding Scissor Construction Replacing the Folding Scissor Construction Next loosen and remove the screw connections between the tube ends of the folding scissor Place the unfolded buggy/stroller in front of you. construction and the upper joint forks and thread out the loop of the lateral upholstery. -
Page 11: Back
4.4 Back Replacing the Back Undo the hook and loop closure on the back upholstery and thread out the handle and cable First remove the back cover. To do this, undo downwards. the hook and loop straps on the folding scissor construction and the snap fasteners on the back tubes. - Page 12 Loosen and remove the screw connection on either Replacing the Complete Upholstery side between the back tube and the gusset plate of The complete upholstery consists of the seat the posterior frame and remove the backrest. upholstery (refer to section 4.6), the back upholstery, the lateral upholsteries and the back cover.
- Page 13 Pull the loop of the lateral upholstery up and off the Finally, remove the lateral upholstery by pulling it up folding scissor construction, as described in section and over the posterior frame and push handle. 4.3 and off the anterior frame, as described in section 4.1.
-
Page 14: Back Adjustment Mechanism
4.5 Back Adjustment Mechanism Replacing the Back Adjustment Mechanism Thread the cable out of the right and left key ring. First completely disassemble the back as described in section 4.4. The back upholstery does not need to be disassembled when replacing the back adjustment mechanism. -
Page 15: Seat Base
4.6 Seat Base Shifting / Replacing the Seat Base Replacing the Seat Upholstery and the Seat Braces Loosen and remove the screw connections (arrowed) between the seat tubes and the anterior Loosen and remove the four screw connections on frames, and the seat tubes and the gusset plates of both the left and right seat tubes and remove the the posterior frames. -
Page 16: Footrest
4.7 Footrest Replacing the Footrest Open the footrest lock as described in the Instructions for Use. Place the unfolded rehab buggy/stroller on its back. Pull the pivot bearings with the attached footrest Remove the front wheel attachments as described in halves down off the anterior frame. - Page 17 Shifting / Replacing the Footplate Replacing the Footrest Tubes Open the footrest lock as described in the Disassemble the fooplate and pull the footrest tubes Instructions for Use. out of the pivot bearings' clamp pieces. Loosen and remove the screw from the footrest tube Remove the lamellar plugs from the tube ends.
-
Page 18: Wheel Lock / Tip-Assist
4.8 Wheel Lock / Tip-assist Replacing the Wheel Lock As a complete unit the wheel lock can be pulled down out of the posterior frame tubes. First disassemble the two rear wheels as described in section 4.10. Shifting / Replacing the Tip-assist To change the mounting side, loosen and remove the corresponding screw connection on the opposite Loosen and remove the tip-assist's screw... -
Page 19: Front Wheel
4.9 Front Wheel Danger! To ensure safe use of the product, wheels with EVA foam tires must be replaced if the material shows signs of cracking or damage, or when the tread becomes worn down to such an extent that there is only 5 mm of radius left on the outer edges of the tire. Attention! To ensure safe use of the product, use new, self-locking nuts! Tighten the bolts with a torque of 10 Nm. - Page 20 Fill the inner tube with a small amount of air before Replacing the Caster Fork mounting in order to avoid damages and pinching. Loosen and remove the screw connection in the caster fork on the anterior frame. Tire Pressure Always ensure that all tires are fully inflated to the Tighten the screw with a torque of maximum pressure indicated on the sidewall of the 13 Nm.
-
Page 21: Rear Wheel
4.10 Rear Wheel Replacing the Rear Wheels Loosen and remove the screw connection and replace the wheel. Remove the hub cover. When mounting, make sure that the toothed ring for the wheel lock is on the inner side. If the casing or inner tube of pneumatic tires require replacement, refer to section 4.9. -
Page 22: Abductor
4.11 Abductor Retrofitting the Abductor Place the adapter over the two bore holes in the holding tube. Put the two screws through the holes First remove the lamellar plug from the holding tube and close the screw connection. below the seat base. The guiding slot allows for depth adjustment of the abductor. -
Page 23: Armrest
4.12 Armrest Retrofitting the Armrests Screw on the armrest using the provided attachment materials. Place the armrest with holder onto the anterior frame tube as shown in the photo. To replace the armrest cover, please observe the instructions in section 4.2. Select the upper or lower position. -
Page 24: Grabrail
4.13 Grabrail Retrofitting the Grabrail Loosen and remove the anterior screw connection. First remove the lamellar plugs from the two seat tubes. Insert the grabrail receivers into the seat tubes and After the screw connection has been tightened, the re-tighten the screw connection. grabrail receiver can still be turned slightly. -
Page 25: Caster Swivel Lock
4.14 Caster Swivel Lock Retrofitting the Caster Swivel Lock Now screw the caster fork together with the caster swivel lock to the caster attachment device on either First remove the front wheels and caster forks (see side. section 4.9). Next remove the distance plates from the caster Observe the reassembly instructions in attachment device. - Page 26 Otto Bock HealthCare GmbH Sälzerstraße 16 · 56235 Ransbach-Baumbach/Germany Otto Bock HealthCare GmbH has been certified by the German Society for the Certification of Quality Assurance Systems (DQS) in accordance with DIN EN ISO 9001 standard, reg. no. 779 (management system)
