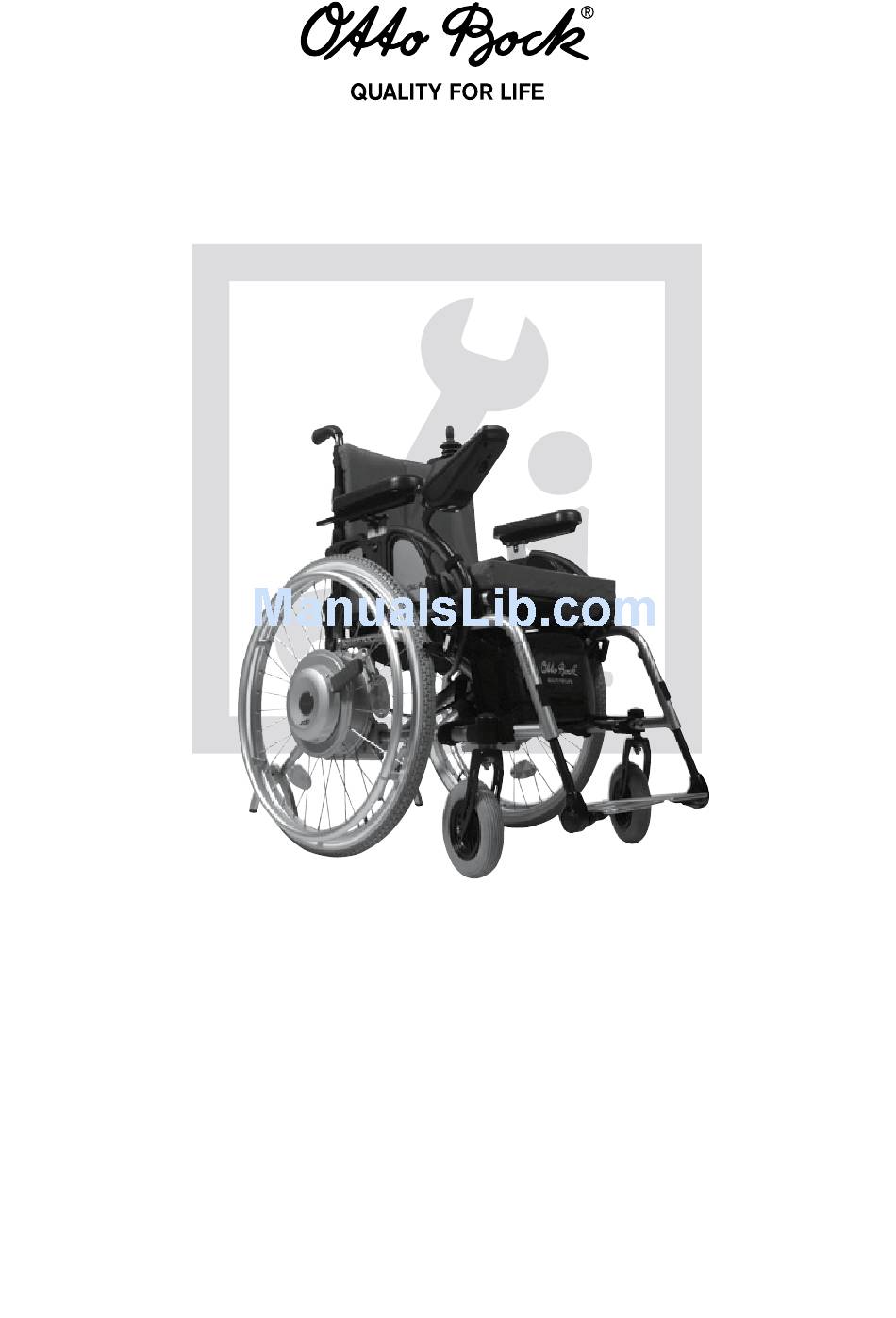

- Page 1 Service Instructions...
-
Page 3: Table Of Contents
4 Required Tools .......................... 5 5 Adjusting and Replacing ......................6 5. Control Unit ........................ 6 5.2 Battery Packs / Fuse ....................8 5.3 Motors........................3 5.4 z50 Wheels ....................... 5 5.5 Anti-tippers ....................... 7 5.6 Options.................. ......7 5.7 Frame / Adapter Plates ..................... 8 5.8 Assembly of the z50 to Manual Wheelchairs ............. 8... -
Page 4: General View
1 General View Desk side panel Control unit Battery pack Footrest Release lever z50 wheel with hub motor Swinging anti-tipper... -
Page 5: Safety
2 Safety Observe the following guidelines for maintenance or repair work: Danger! Use caution near flammables or especially when holding lit cigarettes. The back upholstery and seat cushion may catch fire. Danger! When getting into or out of the wheelchair with power add-on drive, the electronic control must be switched off. Danger! When using lifting platforms, be sure that the wheelchair is standing centrically on the lifting platform area and that none of the wheelchair‘s components, such as the anti-tipper, are protruding into the danger area. Danger! Explosive gases can develop while the batteries are charging. For this reason, provide for sufficient ventilation when using the battery charger in closed rooms. Do not smoke when near the battery charger or handling the batteries. Avoid fire and sparks! Danger! When mounting the z50 wheel or manual wheelchair wheel, make sure before driving that the locking mechanism has engaged (see sections ‘Assembly of the z50 Wheel’ and ‘Assembly of the Manual Wheelchair Wheel’ in the Instructions for Use). Attention! After cleaning the z50 power add-on drive check its operating performance. Attention! Driving over a longer period of time with only 2 LEDs of the battery indicator lit will result in battery discharge. To avoid function failure and permanent damage, charge the battery of the z50 power add-on drive immediately. Attention! To avoid overheating the battery charger, make sure that the cooling ribs or vent slots are uncovered. Attention! To prevent uncontrolled driving through accidental joystick manipulation, switch off the wheelchair when nobody is using it or the driving function is not required. Attention! Do not use the footplates when getting into or out of the wheelchair. Attention! Never use a water hose or high-pressure cleaning apparatus for cleaning the wheelchair. - Page 6 Note! Use appropriate tools. Note! Always use insulated tools when working on the batteries. Note! Wear appropriate clothing, including gloves and safety glasses, if necessary. Note! Secure the product to prevent it from tipping over or falling off the workbench. Note! Read the service and maintenance instructions before starting. Note! Familiarize yourself with the functions of the product. If you are not familiar with the product, read the Instructions for Use before inspecting the product. Note! If no Instructions for Use are available, please order one from the manufacturer. (Refer to the overview of all Otto Bock Branches ‘Otto Bock Worldwide’.) Note! You can also download the document from our homepage under www.ottobock.de or www.ottobock.com. Note! Clean or disinfect the product before starting inspection. See the Instructions for Use for care instructions or specific product inspection information. Note! Many of the screw fastenings use thread lock or nylock nuts. If you have to undo such screw fastenings, replace the nut or screw with a new thread lock and/or nut. If new screws or nuts with thread lock are not available, use a medium-strength liquid thread lock substance (such as Euro Lock A24.20). Note! To allow for complete charging current to be fed into the battery, the control is to be switched off during the charging process. Note! When the z50 power add-on drive is not used over extended periods of time or for dispatching the add-on drive, the main plug should be removed to avoid standby current of the control.
-
Page 7: Preface
3 Preface Regular maintenance is important. It increases safety and prolongs the service life of the product. All rehab products should be inspected and serviced once a year. If the product is used frequently, or if it is used by growing children or patients with changing clinical conditions, we recommend readjusting and servicing the product every 6 months. Use only original spare parts for all service and maintenance. The service and maintenance described in this manual should be performed by trained specialists only and not by the user. This service and maintenance manual refers to the spare parts catalog and Instructions for Use. For this reason, it is important to use these documents together. -
Page 8: Adjusting And Replacing
5 Adjusting and Replacing z50 5.1 Control Unit There is only one control panel variant available for the z50 power add-on drive. The control panel is attached to the plug-on holder with two screws. Therefore, the control panel is disconnectable and can be easily mounted and removed. Control panel holder Both variants of the control panel holder for the z50 are attached to the armrest beneath the armrest pad. To remove the control panel, first pull out the central plug which is attached to the frame, and then remove the control panel. Note: For adaption of the z50 power add-on drive, the desk side panel is always recommended! Control panel holder, swing-away in parallel Standard control panel holder The two control panel holders are attached in the same way to the side panel of the manual wheelchair. Both are clamped with an iron rail to the underside of the armrest pad of the desk side panel. - Page 9 Central Plug The central plug is attached to the crossbrace where First attach the two plastic clips to the crossbrace. both braces run closely along each other. Screw the metal sheet for central plug attachment Make sure when laying the cables leading to the onto these clips. For this purpose you require the central plug that the cables are not clamped while Allen wrench size 3. folding the wheelchair. Always secure cables to braces with cable ties at random intervals.
-
Page 10: Battery Packs / Fuse
5.2 Battery Pack / Fuse Battery The z50 standard equipment includes a 2 Ah gel battery pack. A 6 Ah gel battery pack is available as an option. Except for battery charging, these battery packs do not require servicing. For installation of the battery case, first connect the battery cable plug into the battery case's receptacle and lock and engage the plug by rotating it to the right. Put the battery case into the carrying bag and secure with hook and loop flap. To disconnect the battery cable, slide the silver locking pin slightly to the rear and rotate the plug to the left until it reaches the stop. Remove the plug from the battery case to separate the battery from the wheelchair. Battery Charging The remaining battery capacity determines the distance range of the z50 power add-on drive. Many factors have an influence on the battery's capacity. Besides the ambient temperature, the age of the batteries and the time and extent of driving, the way you charge the batteries has considerable effects on the capacity and thus on the distance range. Driving over a longer period of time with only the red LEDs of the battery indicator lit will result in battery discharge and thus battery damage. In addition, there is the risk that the z50 may stop due to zero battery capacity and put the user in a dangerous situation. If the z50 is not used for a longer period of time, a charging cycle should be carried out once a week to maintain the battery's capacity. Note: The warranty is void in case of damages that result from a totally discharged battery. When the z50 is not used over extended periods of time it must be charged once a week. Only use the battery charger provided by Otto Bock. The indications on the type plate of the battery charger must be identical to the voltage of the mains supply of your country. Charging will start automatically. The current charging state is indicated by the LEDs of the battery charger. - Page 11 Battery charger . ON/OFF indicator 2. Charging indicator 3. Charging indicator 2 4. Error indicator lamp 5. Battery cable 6. Mains cable Charging process: The mains plug functions as the main switch. As soon as the battery charger is connected to the mains supply, the ON lamp is lit. The order of connecting the mains cable and charging cable is irrelevant. The actual charging procedure is started as soon as the charging plug is connected to the charging receptacle on the control panel. The charging procedure is indicated by charging indicator . A battery capacity of 80% is reached when charging indicator goes out and charging indicator 2 is lit. When both charging indicators, and 2, are lit, the battery is completely charged. Charging Charging Error indicator ON lamp Explanation indicator 1 indicator 2 lamp Mains supply connected / charging plug not connected Charging procedure 0-80% Charging procedure 80-00% Battery capacity 00%, trickle charge Note: During battery charging, the wheelchair control must be switched off to allow the complete charging current to be fed into the battery.
- Page 12 Error lamp Flashing Error – 3: Battery charger overheated because the ambient temperature is too high or because the cooling system does not function properly. Solution: Protect the battery charger from direct sunlight and do not cover it with objects. Error 4: Battery connection is missing. The battery is unconnected, the connector plug is dirty or the battery cable connection is interrupted. Solution: Check the plug, battery cable and fuse in the battery case. Error 5: Wrong pole connection of the battery, program error and/or battery fault. Solution: Contact your authorized dealer. Error 6: The battery charger is not connected to the mains supply. Solution: Check the mains cable and socket. Error 7: Battery fault. Solution: Battery replacement recommended. The battery charger features a programmed recharging phase. Once a discharged battery is completely charged, the battery charger can remain connected with no risk of damaging the battery. Before the z50 can be used, the wheelchair control must be switched off and on. Danger! Explosive gases can develop while batteries are charging. For this reason, provide for sufficient ventilation when using the battery charger in closed rooms. Do not smoke when near the battery charger or handling the batteries. Avoid fire and sparks! Attention! To avoid overheating the battery charger, make sure that the cooling ribs or vent slots are uncovered. The battery charger should only be used within the indicated ranges of temperature and humidity. Make sure that the rubber feet of the battery charger stand on level ground. When the battery charger is in use, it must be protected from direct sunlight, since this would additionally heat up the charger. Avoid dust and dirt from affecting the function of the battery charger. To clean the charger, use a dry cloth.
- Page 13 To charge the battery, plug the 3-pole plug into the charging receptacle of the z50. The charging receptacle is located on the underside of the control panel. The battery case is attached to the wheelchair frame with a special bag. Depending on the mounting position, the bag is attached in front or behind the crossbrace. The size of the battery bag depends on battery size (2 Ah or 6 Ah). For detailed instructions on the battery bag attachment, see technical data tables. The bag is provided with altogether eleven hook and loop flaps, allowing the bag position to be set individually. Four flaps are located on each the left and right side of the bag and are hung on the upper and lower frame tubes. The three last flaps are located on the rear side of the bag and are hung on the crossbrace tubes, thus increasing the stability of the bag. First attach the adhesive strips with hook surface Then attach the flaps and tighten them. for hook and loop connection to the frame in the Finally attach the flaps on the rear side of the bag spacing for the flaps. This will prevent the flaps from to the crossbrace. Make sure that the bag is firmly slipping on the frame. attached.
- Page 14 To remove the battery, first open the wide hook and The battery case can be tilted to the front and loop flap. removed. Make sure that the battery cable is disconnected. Replacing / installing the fuse The fuse is located inside the battery pack.
-
Page 15: Motors
5.3 Motors The motors of the z50 power add-on drive are integrated into the hub of the rear wheels. Push mode Fahrbetrieb In the drive mode, the lever on the right and left motor must be in the front end position. This is indicated with the symbol of a "wheelchair without attendant". Drive mode By pulling the brake lever upwards, the brake will be released. The wheelchair is switched to the push mode. This is indicated with the symbol of a "wheelchair with attendant". - Page 16 Motor cover To remove the motor cover for a replacement, use a flathead screwdriver and pry out the cover. To replace the cover, first attach the cover on the upper raised tab and then press it on the other metal raised tabs one after another. Motor lever plastic grip The plastic grips of the brake release mechanism can be removed for a necessary replacement by pulling them off. If necessary, here too, you can use a flathead screwdriver. Gently lever the plastic from below and simultaneously pull the plastic grip on the top.
-
Page 17: Z50 Wheels
5.4 z50 Wheels Attention Replace the casing if it is bald or shows cracking or other damage. For instructions on how to replace the tires, please see service instructions manual for the manual wheelchair. z50 wheel position The height setting of the z50 wheel depends on the data in the order form. However, the z50 wheel position can be changed later using the four position holes which are provided in the wheel attachment plate. For data about the individual setting positions and wheelchair models, please see the Technical Data section. To change the position, loosen the nut on the threaded bushing. You require two 24 mm open-end wrenches. Insert the threaded bushing into the new hole, replace the positioning rings on the threaded bushing and re- tighten the nut. - Page 18 Active / passive z50 wheel adjustment The passive or active mounting positions can be set through adapter plates of the z50. For evaluation as to whether the z50 can be adapted to the active or passive position, please refer the Technical Data section. To retrofit the wheelchair, loosen the four screws which are used for adapter plate attachment to the frame and mount them to the other side of the frame in the new position. In case of the passive position, the adapter plate is attached to the frame with only three screws. Active position Passive position...
-
Page 19: Anti-Tippers
5.5 Anti-tippers As anti-tipper, the standard anti-tipper of the manual wheelchair or swinging anti-tipper are available. Each version must be used with two anti-tippers. For instructions on how to replace or retrofit the standard anti-tipper, please refer to the service instructions manual of the manual wheelchair. Retainer To mount the swinging anti-tipper, first screw the retainer to the adapter plate. The anti-tipper can then be mounted to the retainer. 5.6 Options Joystick accessories Remove the joystick cap and plug in the chosen Afterwards, secure it by tightening the Allen head joystick accessory. screw. -
Page 20: Frame / Adapter Plates
5.7 Frame / Adapter Plates Clamp Steel bolt The adapter plate for the z50 power add-on drive is attached to the frame with four screws. You require the Allen wrench size 4 to loosen and tighten these screws. 5.8 Assembly of the z50 to Manual Wheelchairs The individual working steps for the assembly of the z50 to manual wheelchairs are shown on the CD: z50, art. no. 646DV2, 'More Power for Everyday Life'. -
Page 21: Maintenance Plan
6 Maintenance Plan Maintenance and Service Plan z50 Customer: Patient change [ ] Yes [ ] No Year of constr.: Serial no.: Wheelchair/z50 general condition: Driving report: Application ranges: Check carefully all parts listed here for correct function, adjustment, damages or deformations and whether the screw connections are tightened! Damages Replacement Control panel Control panel holder Central plug 2 Battery pack Battery bag Cables 3 Motors Adapter plate Lock 4 Tires Spokes Push rings 5 Anti-tippers 6 Options... - Page 22 Hersteller/Manufacturer: Otto Bock HealthCare GmbH Max-Näder-Straße 5 · 375 Duderstadt/Germany National: Telefon (0 55 27) 848 46/462/463 · Telefax (0 55 27) 848 4 60 International: Phone +49-5527-848-304/562/590/594/3663 · Fax +49-5527-848-676 e-mail: reha@ottobock.de · Internet: http://www.ottobock.com Versandanschrift für Rücksendungen/Address for Returns Otto Bock HealthCare GmbH Lindenstraße 3 · D-07426 Königsee Otto Bock HealthCare GmbH has been certified by the German Society for the Certification of Quality Assurance Systems (DQS) in accordance with DIN EN ISO 900 standard, reg. no. 779 (management system)
