Section 2. General Information

2.1 Introduction

This manual contains information for the proper instal-
lation and operation of the Jandy CL and CV Series
Cartridge Filters. Procedures in this manual must be
followed exactly. For technical assistance, contact our
Technical Support Department at 1.800.822.7933.

2.2 Description

Cartridge fi lters do not require sand or diatomaceous
earth as the fi lter medium. Instead, the fi lter contains
fi lter elements which are easily removed for cleaning or
replacement.
Dirty water fl ows into the fi lter tank through the water
line connected to the lower bulkhead (inlet) on the
bottom half of the tank body. It is directed through the
fi lter cartridge inside of the fi lter. The debris is collected
in the fi lter and the clean water fl ows out of the fi lter
through the upper bulkhead (outlet) on the bottom half
of the tank body. Clean water is returned through the
piping system to the pool.
As debris collects in the fi lter, the pressure will rise
and water fl ow to the pool will diminish. The fi lter will
eventually become so plugged with debris that it will be
necessary to remove the fi lter cartridges and clean them
with soap and water.
NOTE
A fi lter removes dirt and other suspended particles
but does not sanitize the pool. Pool water must be
sanitized and chemically balanced for clear water.
The fi ltration system should be designed to meet
local health codes. At a minimum, the system should
turnover the total volume of water in your pool two to
four times in a 24 hour period.

2.3 General Requirements

1.
For best overall performance place the system as
close to the pool as possible.
2.
The fi lter should be located on a level concrete
slab so that the orientation of the valve outlets and
the pressure gauge are convenient and accessible
for the installation and operation of the unit.
3.
Protect the fi lter from the weather.
4.
If fi tting a chlorinator and/or any other device into
the fi ltration plumbing circuit, great care must be
exercised to ensure that the appliance is installed
in accordance with the Manufacturer's Instructions
and any standards that may exist.
5.
We recommend the use of barrel unions to connect
each component of the water conditioning system
to ease in future servicing. Barrel unions are
provided with all Jandy fi lters.
Cartridge Pool Filters - CL and CV Series Filters
WARNING
The maximum operating pressure for this filter is 50
psi. Never subject the filter to operating pressure
exceeding 50 psi. Operating pressures above 50 psi
can cause product failure or also cause the lid to be
blown off, which can result in death, serious personal
injury, or property dam age.
6.
When performing hydrostatic pressure tests or
when testing for external leaks of the completed
fi ltration and plumbing system, ensure that
the maximum pressure the fi ltration system is
subjected to does not exceed the maximum
working pressure of any of the components
within the system.
2.4 Specifi cations and Dimensions
See Table 1 and Figure 1.
Table 1.
Cartridge Filter Specifi cations
CL/CV
340
Filter Area (ft
2
)
340
Max. Flow (gpm)
127
Six Hour
Capacity (gal.)
45,720
Max. Working
Pressure (psi)
50
Normal Start Up
Pressure (psi)
6-15
Dimension "A"
41 in.
"A"
OUT LET
18 ½ in.
CL INLET
10 ½ in.

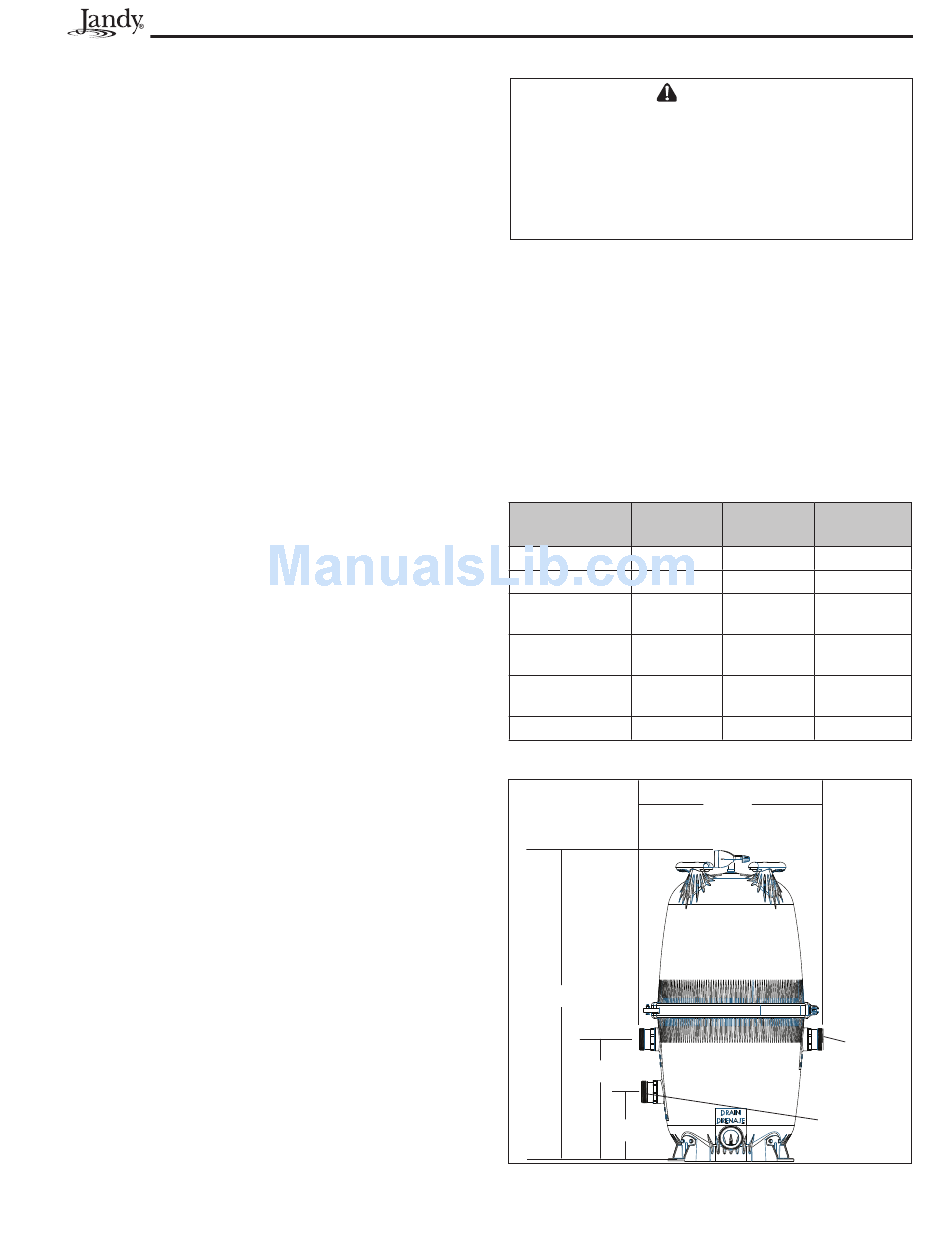

Figure 1.
Dimensions, Jandy CL and CV Series
Cartridge Filters
Page 5
460
580
460
580
150
150
54,000
54,000
50
50
6-15
6-15
41 in.
47 in.
28 in.
Port on
CV Model
CV INLET
Only
Port on
CL Model
Only
