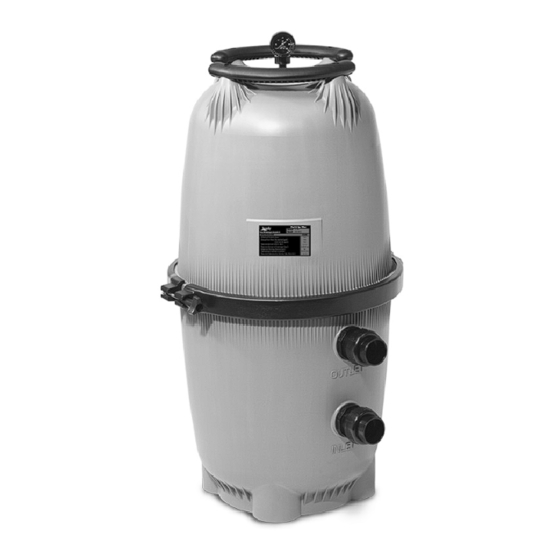

Jandy CL Series Installation And Operation Manual

Cartridge pool filters
Hide thumbs
Table of Contents

Advertisement

Quick Links

Installation and Operation Data
Installation and
Op er a tion Man u al
®
Jandy
Car tridge
Pool Fil ters
CL Series Fil ters
FOR YOUR SAFETY - This product must be installed and serviced by a pro fes sion al pool/
spa service technician. The procedures in this manual must be followed ex act ly. Im prop er
in stal la tion and/or op er a tion can create dangerous high pres sure which can cause the fi lter
lid to be blown off, possibly causing death, serious injury or prop er ty damage. Improper
in stal la tion and/or operation will void the war ran ty.
Before installing this product, read and follow all warning notices and instructions that
accompany this fi lter. Failure to follow warning notices and instructions may result in
property damage, serious injury, or death.
WARNING

Advertisement

Table of Contents
loading

Related Manuals for Jandy CL Series

Summary of Contents for Jandy CL Series

  • Page 1 Jandy Car tridge Pool Fil ters CL Series Fil ters WARNING FOR YOUR SAFETY - This product must be installed and serviced by a pro fes sion al pool/ spa service technician. The procedures in this manual must be followed ex act ly. Im prop er in stal la tion and/or op er a tion can create dangerous high pres sure which can cause the fi...

  • Page 3: Table Of Contents

    Cartridge Pool Filters - CL Series Filter Page 3 TABLE OF CONTENTS Section 4. Start-Up and Operation ....9 Section 1. Safety Information ....... 4 Important Safety Warning ..4 Section 5. Filter Disassembly and Assembly 9 General Safety Instructions ..4 Section 6.

  • Page 4: Section 1. Safety Information

    Page 4 Section 1. Safety Information 1.1 Important Safety Warning WARNING NEVER OPERATE OR TEST THE FIL TER SYSTEM AT MORE THAN 50 PSI. THIS FILTER OPERATES UNDER HIGH PRESSURE. WHEN ANY PART OF THE CIRCULATING SYSTEM, i.e., FILTER, PUMP, VALVE(S), CLAMP, ETC. IS SERVICED, AIR CAN ENTER THE SYSTEM AND BECOME PRESSURIZED WHEN THE SYSTEM IS RESTARTED.

  • Page 5: Section 2. General Information

    Section 2. General Information to connect each component of the water conditioning system to ease in future servicing. 2.1 Introduction Barell unions are provided with all Jandy fi lters. This manual contains information for the proper instal- WARNING ® lation and operation of the Jandy CL Series Cartridge Filters.

  • Page 6: Section 3. Installation Instructions

    Page 6 Section 3. If the fi lter needs to be located above the water Installation Instructions level of the pool, it can be raised 2.5 ft. without affecting the pump effi ciency. A check valve is 3.1 Filter Location recommended on the suction line to the pump.

  • Page 7: Filter Installation

    Cartridge Pool Filters - CL Series Filter Page 7 Outlet Port Laars Heater Spa Make Up Inlet Port Jandy Jandy Pump Waterfall Check Jandy Filter Valve From Pool Drain Spa Return Pool Return Spa Suction From Pool Skimmer Figure 4.

  • Page 8: Clamp Installation, Cl Series

    Clamp Ring 3.4 Clamp Installation, CL Series Be certain the o-ring is in position in the lower tank half. Press the fi lter lid over the lower half sandwiching the o-ring between the two halves.

  • Page 9: Section 4. Start-Up And Operation

    Cartridge Pool Filters - CL Series Filter Page 9 Watch the pressure gauge to be sure that the Section 4. Start-Up and Operation pressure does not exceed 50 psi (with clean cartridges). If the pressure approaches 50 psi, NOTE This section applies to both new pool and seasonal start-up.

  • Page 10: Section 6. Maintenance

    Keep the pressure gauge in good working order. the fi lter bottom. If you suspect a problem with the gauge, Jandy recommends you call a qualifi ed service technician 14. Place the fi lter lid onto the fi lter tank bottom.

  • Page 11: Section 8. Troubleshooting

    Section 8. Troubleshooting For a list of common problems and solutions see the Troubleshooting Guide below. Jandy recommends that you call a qualifi ed service technician to do any work on the fi lter/pump system. For technical service call 707.776.8200, ext.

  • Page 12: Section 9. Parts List And Exploded View

    Page 12 ® 9.2 Jandy CL Filters Exploded View Section 9. Parts List and Exploded View ® 9.1 Jandy CL Car tridge Filter Parts List Part Description Handle Assembly w/ hardware (set of 2) R0357100 Handle Hardware (set of 4)

  • Page 13: Section 10.Head Loss Curves

    Cartridge Pool Filters - CL Series Filter Page 13 Section 10. Head Loss Curves ® 10.1 Jandy CL Car tridge Filter Design Head Loss Curves...
  • Page 14 Page 14 NOTES...
  • Page 15 Cartridge Pool Filters - CL Series Filter Page 15...

  • Page 16: Warranty

    If the dealer is not available, you can locate a service center in your area by visiting www.jandy.com or by calling our technical support department at (707) 776-8200 extension 260. All returned parts must have a Returned Material Authorization number to be evaluated under the terms of this warranty.
