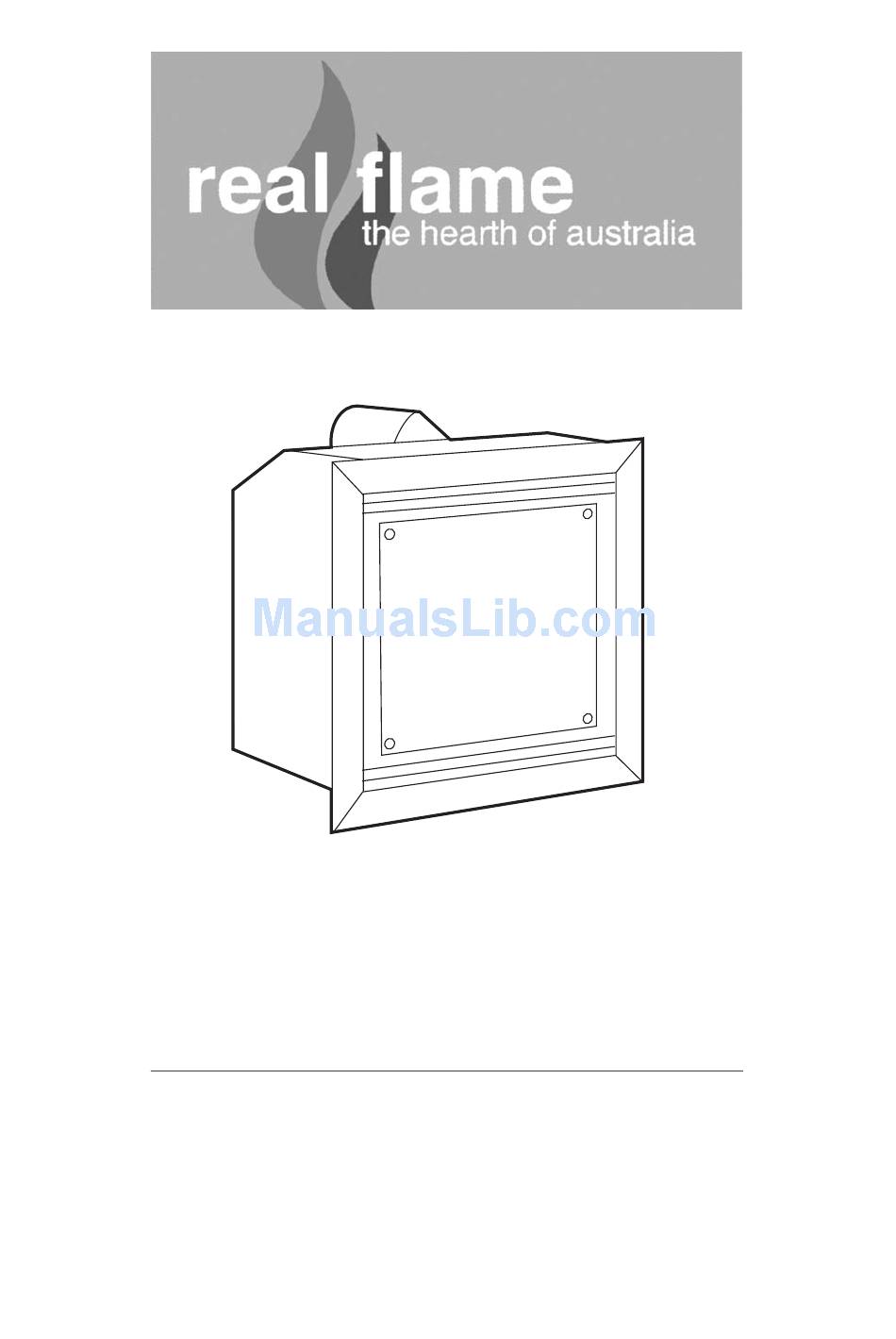

- Page 1 ® BALANCED FLUE SPACE HEATER INSTALLATION & OPERATING MANUAL The Captiva 600 & 900 are approved to be installed as a zero clearance firebox and are designed to operate on Natural Gas and Propane (LPG) gases ONLY. Approval Number GSCS20081.
- Page 2 WARNING The “Captiva 600 & 900” have a primary safety glass fitted in front of the glass door. This safety glass is fitted to these appliances to reduce the risk of injury from burns and at no time should this glass be permanently removed.
-
Page 3: Table Of Contents
CONTENTS Contents ........................3 Data Plate .........................4 Zero Clearance introduction ..................5 Dimensions Captiva 600 ..................6 Dimensions Captiva 900 ..................7 Timber frame installation..................8 Vertical venting installation..................10 Tests to be carried out by installer .................11 Servicing and maintenance ...................11 Parts list ........................13 Gas control assembly ....................13 Flue termination (cowls) regulations ..............15... -
Page 4: Data Plate
DATA PLATE (Affixed to the base of the unit for reference to gas pressure & consumption) MODEL CAPTIVA 600 SERIAL NO. DATE OF MANUFACTURE GAS TYPE APPROVAL: GSCS20081 NATURAL GAS @ 1.00 kPa Test Pressure Point (High) Injector Size Gas Consumption 1.65 mm... -
Page 5: Zero Clearance Introduction
CAPTIVA ZERO CLEARANCE MODEL INTRODUCTION The Real Flame “Captiva” is a log/coal or pebble effect space heater for use with Natural Gas and Propane. The Real Flame warranty will be voided by, and Real Flame disclaims any responsibility for the following actions: •... -
Page 6: Dimensions Captiva 600
DIMENSIONS Captiva 600 Captiva 600 Trim FRONT - 4 SIDED FRONT - 3 SIDED... -
Page 7: Dimensions Captiva 900
DIMENSIONS Captiva 900 Captiva 900 Trim FRONT - 4 SIDED FRONT - 3 SIDED... -
Page 8: Timber Frame Installation
CAPTIVA ZERO CLEARANCE MODEL (continued) Captiva Zero Clearance Timber Frame Installation Overall Dimensions (in mm) MODEL 1020 180mm (Flange) 250mm Stand Offs (x 12) 190mm Flange H (Trim) 840mm (3 sided 600mm trim) Power Connection Connection B (Firebox) F (Trim) Bottom of 3 sided Flue Size... - Page 9 CAPTIVA ZERO CLEARANCE MODEL (continued) Captiva Zero Clearance Timber Frame Installation (continued) (Recommended only) (Recommended only) IMPORTANT Install unit and fluing before plasterboard. HEATER From hearth Approx 20mm for Frameout Dimensions (in mm) hearth if required. MODEL NOTE: If fire is to be installed off the floor with a 4 sided 1800 trim, use the same A, B, C and D dimensions as shown with 1800...
-
Page 10: Vertical Venting Installation
CAPTIVA ZERO CLEARANCE MODEL (continued) INSTALLATION OF VERTICAL VENTING Vertical terminations must be installed with the following clearances: • Minimum of 500 mm from the nearest part of the roof (Measurement is taken from the bottom of the termination). • Minimum of 1500 mm from any mechanical air inlet. -
Page 11: Tests To Be Carried Out By Installer
CAPTIVA ZERO CLEARANCE MODEL (continued) Tests to be carried out by installer • Check unit for gas leaks. • Ensure that both high and low pressures are set as per the appliance data plate. Refer Page 4 for adjustments and Test pressure points •... - Page 12 SERVICING AND MAINTENANCE (continued) Figure (6) Undo bulkhead/burner nut. Figure (7) Remove holding screws from each side of burner. Figure (8) Remove sparker cover from front of Figure (9) Remove front protection mesh by burner and then gently remove burner taking removing screws.
- Page 13 SERVICING AND MAINTENANCE (continued) Figure (12) Undo the two screws at the front Figure (13) Loosen the wing nuts of each side of the module, then remove the wiring of the valve which will allow the valve to slide harness, the module can then be removed. out.
-
Page 14: Parts List
PARTS LIST Gas Control Valve Module Box Remote Control Remote Control Module Sparkers Sensor GAS CONTROL ASSEMBLY Inlet Test Adjustment Outet Test Pressure Point for High Pressure Point Gas Inlet Gas Outlet Adjustment for Low... -
Page 15: Flue Termination (Cowls) Regulations
CAPTIVA FLUE TERMINATION (COWLS) REGULATIONS Balanced Flue... -
Page 16: Remote Control Operating Guide
This should be read before servicing commences. The Captiva 600 & 900 are controlled completely by the use of the remote control; this remote can be used either as a manual operation or an auto operation. - Page 17 REMOTE CONTROL OPERATING GUIDE (continued) Teaching RF code • Ensure the power to the heater is turned off. • Press in sequence <P>, <T>, <T>, <UP> • The LCD diplay will show “CL ” (Code Learn) for 2 seconds then return to the normal OFF state display.
- Page 18 REMOTE CONTROL OPERATING GUIDE (continued) In Auto mode, the RF thermostat will control the flame and the fan according to the programmed times and temperature. The flame can be programmed to turn on or off, or change the required temperature. The switch off and on sequence operate as per manual operation, detailed above.
-
Page 19: Optional Marble Hearth And/Or Margin Set
OPTIONAL MARBLE HEARTH AND/OR MARGIN SET X = Polished = Only for boxed mantelpiece NOTE: Do not use reconstituted 200mm 200mm MODEL 600 FLUSH 1190 1695 900 FLUSH 1340 1840 600 BOX 1695 900 BOX 1138 1840 Marble Margin Set Installation Procedure Install Captiva with trim removed. -
Page 20: Optional Mantelpiece
OPTIONAL MANTELPIECE INSTALLATION MANTELPIECE DIMENSIONS MODEL 600 FLUSH 1695 1240 900 FLUSH 1840 1240 1140 600 BOX 1695 1240 900 BOX 1840 1240 Captiva Flush Firebox Plaster Marble Trim Mantel Captiva Boxed Plaster 200 x 200mm Boxed mantel marble block Firebox Trim Marble hearth... -
Page 21: Electrical Diagram
ELECTRICAL DIAGRAM... -
Page 24: Real Flame Contact Information
REAL FLAME PTY LTD ABN 76 006 311 155 Head Office/Factory/Showroom 1340 Ferntree Gully Rd. Scoresby Vic 3179 Ph: (03) 8706 2000 Fax: (03) 8706 2001 E-mail: info@realflame.com.au Richmond - VIC Showroom 300 Swan St. Richmond Vic 3121 Ph: (03) 9428 4443 Fax: (03) 9428 4445 Geelong - VIC Showroom 1/2A Gordon Avenue.
